Montagehaube
Verpackt in Gurtverpackung
- Tape on Reel Packaging
Verpackungseinheit: 440 Stück - Packaging unit: 440 pcs
Date Code
g13
a13
6 x 1,25 =
Consider protection memo from DIN 34
A1 XXXXXXX
Schirmblech
g1
ERNI RC
Abspulrichtung- Reel off Direction
a1
a1
Leiterplatten - Layout
PCB - Layout
Anforderungsstufe 1
Performance Level 1
Kontaktbereich vergoldet
Mating Area gold plating
Anschlussbereich verzinnt 4-6 µm
Terminal Area 4-6 µm tin plating
Information:
Tolerances
All Dimensions
in mm
Scale
5:1
a1
All rights reserved.
Only for information.
To insure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
b
Index
29.01.2008
Date
Subject to modification without Designation
prior notice.
Drawing will not be updated.

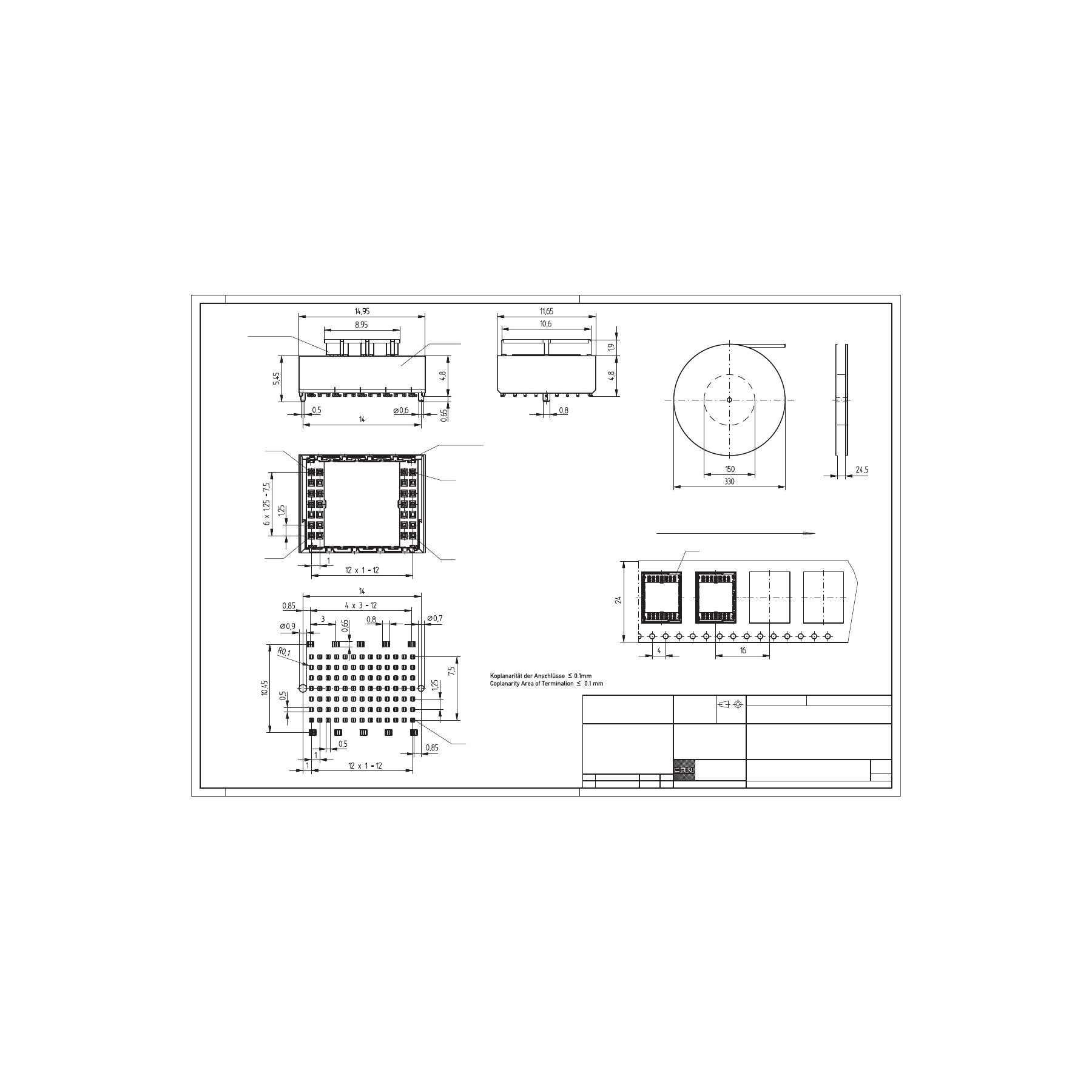

Messerleiste SMD, 91 polig
Male Con. SMD, 91 contacts
www.ERNI.com
H:00064703.SZA
224212
MSPEED
I
