A1274WR-2X40P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> A1274WR-2X40P

A1274WR-2X40P: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerJoint Tech Electronic Industrial Co., Ltd.

Download Datasheet Parametric View All

A1274WR-2X40P Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle

A1274WR-2X40P Parametric

Parameter Name	Attribute value
Objectid	304420508
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.268 inch
body length	2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	NYLON
Manufacturer's serial number	A1274
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	80

Preview

Download Datasheet

View All

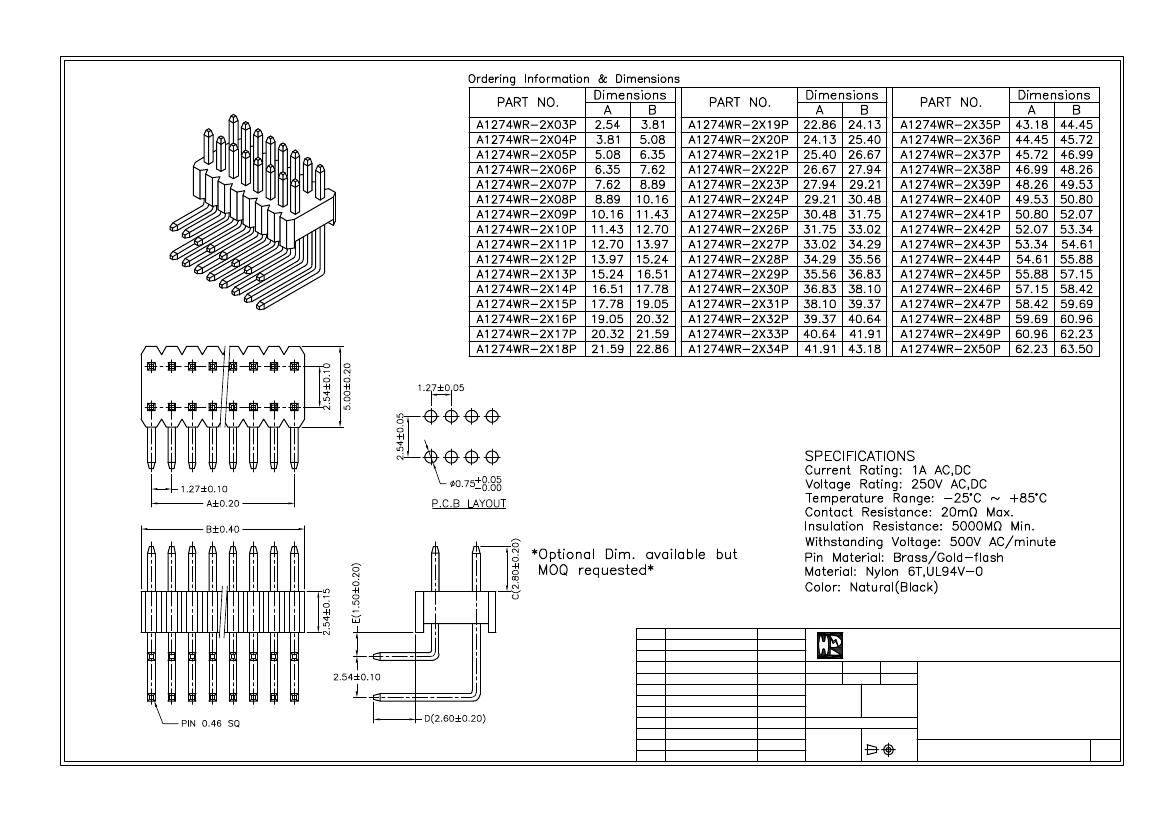

JOINT TECH ELECTRONIC IND. CO., LTD.

JOY DAY INDUSTRIAL CO., LTD.

UNIT

SCALE

SHEET

TITLE:

1 of 1

DRAWN BY

APPROVED BY

董正一

2002.05.29 2002.05.29

GENERAL TOLERANCE

ANGLE±

X.X±0.25

X.XX±0.15

DRAW NO.:

X.XXX±0.05

A1274WR-2XNP

REVISE

NEW RELEASE

2006.12.03

2005.11.22

1.27mm X 2.54mm PITCH

90°DUAL ROW

PIN HEADER

REV.

DESCRIPTION

DATE
