RJC07RK2B102M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RJC07RK2B102M

RJC07RK2B102M: DescriptionTrimmer, Cermet, 0.75W, 1000ohm, 20% +/-Tol, 13 Turn(s); CategoryPassive components The resistor; File Size149KB，3 Pages; ManufacturerTokyo Cosmos Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

RJC07RK2B102M Overview

Trimmer, Cermet, 0.75W, 1000ohm, 20% +/-Tol, 13 Turn(s)

RJC07RK2B102M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1638728414
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator direction	VERTICAL
Actuator type	SHAFT
Manufacturer's serial number	RJC07R
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	13
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	0.75 W
Rated temperature	40 °C
resistance	1000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
surface mount	NO
technology	CERMET
Terminal shape	WIRE
Tolerance	20%

Preview

Download Datasheet

View All

RJC07R

Series

TOCOS

POTENTIOMETERS

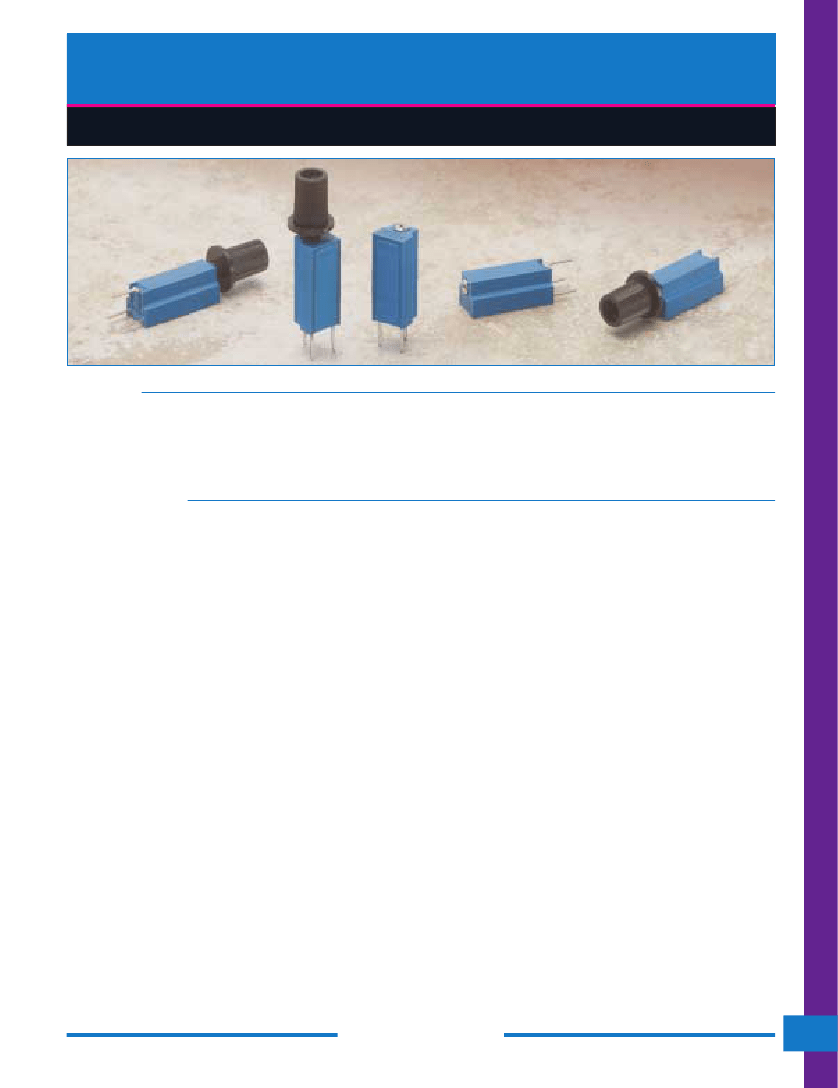

3/4’’ Rectilinear, 13-Turn, Through-Hole, Sealed Cermet Trimmers

Features

3/4” rectilinear, 13-turn, through-hole, sealed cermet trimmers

Space-saving vertical mount design

Single-slot top adjustment

Knob style available for easier adjustment

High performance, excellent stability

Wide operating temperature range of 55 C to 125 C

PC board solderable pins

Sealed to withstand wave soldering and immersion cleaning

Meets UL flammability standards

Specifications

Electrical

Standard Resistance Range

. . . . . . . . . . . . . . 10Ω to 1MΩ

(standard 1, 2 & 5 sequence )

Resistance Tolerance

. . . . . . . . . . . . . . .

10% and

20%

End Resistance

. . . . . . . . . . 1% or 3Ω, whichever is greater

Resistance Taper

. . . . . . . . . . . . . . . . . . . . . . . . . . . . Linear

Peak Noise (C.R.V.)

. . . . . . . 1% or 1Ω, whichever is greater

for

10kΩ; 2% max. for

20kΩ

Power Rating

. . . . . . . 0.75 watt at

40 C, 0 watt at

125 C

Maximum Input Voltage

. . . . . . . . 300VDC or power rating,

whichever is smaller

Temperature Coefficient

. . .

100ppm / C, 200Ω to 500kΩ

250ppm / C, other values

Environmental

Temperature Range

. . . . . . . . . . . . . . . . .

55 C to

125 C

High Temperature Exposure

. . . . . . . . . 125 C, 250 hours

∆T/R

)

3%, S.S.

)

Load Life

. . . . . . . . . . . . . . . .

40 C, 0.75 watt, 1,000 hours

∆T/R

)

3%, S.S.

)

Thermal Shock

. . . . . . . . . . . . . . . . . . . . . . 55 C, 125 C,

30 minutes each, 5 cycles

∆T/R

)

2%, S.S.

)

Shock

. . . . . . . . . . . . . 50G, 6ms, 6 directions, 3 times each

∆T/R

)

1%, S.S.

)

Vibration

. . . . . . . . . . . . . . . . 10-2,000Hz, 1.5mm amplitude,

20G, 12 hours

)

1%, S.S.

)

∆T/R

Humidity

. . . . . . . . . . . . . . . . . . . . . . . . . 40 C, 90-95%RH,

0.75 watt, 1,000 hours

∆T/R

)

3%, S.S.

)

Moisture Resistance

. . . . . . 10 C to 65 C, 80-98%RH,

0.75 watt, 10 cycles, 240 hours

∆T/R

)

Soldering Heat Resistance

. . . . . . . . . . . 350 C, 3 seconds

∆T/R

)

Seal Test

. . . . . . . . . . . . . . . .

85 C, hot water for 1 minute

Rotational Life

. . . . . . . . . . 200 cycles without discontinuity

∆T/R

)

∆T/R

= Total Resistance Change; S.S. = Setting Stability ( voltage ratio )

Insulation Resistance

. . . . . . .100MΩ minimum at 500VDC

Dielectric Strength

. . . . . . . . . . . . . . . . . . 900VAC, 1 minute

Adjustment Travel

. . . . . . . . . . . . . . . . . . . . . . . .13 3 turns

Mechanical

Mechanical Travel

. . . . . . . . . . . . . . . . . . . . . . . .13 3 turns

Shaft Torque

. . . . . . . . 7.2 to 300

•

(0.10 to 4.16

•

in)

Stop Strength

. . . . . . . . . . . . . . . . . . . . . . . . . Clutch action

Flammability of Plastic Materials

. . UL 94V-0 for housing;

UL 94HB for knob

Nominal Weight

. . . . . . . . . . . . . . . . . . 1.4g; 1.8g with knob

Marking

. . . . . . . . . . . . . . . . . . Resistance code, date code,

model type, wiring diagram

TOCOS

AMERICA, INC.

1177 East Tower Road, Schaumburg, IL 60173

Tel: 847-884-6664

Fax: 847-884-6665

E-mail: sales@tocos.com

www.tocos.com

111

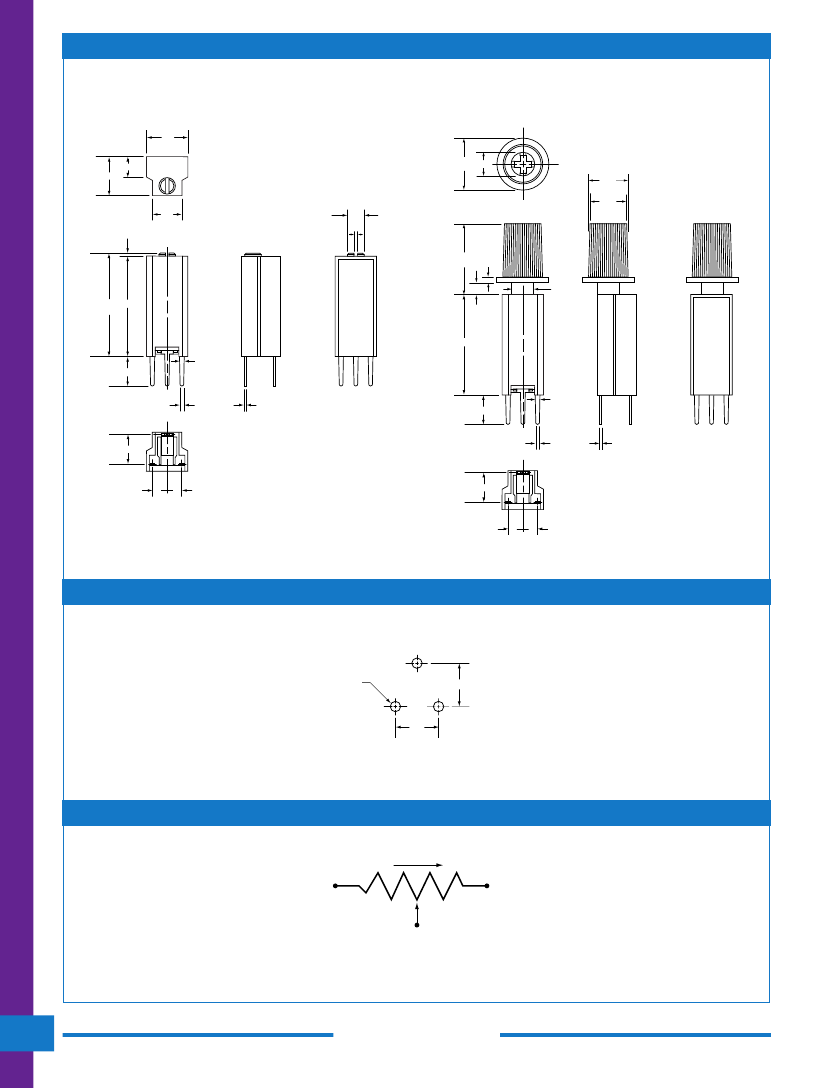

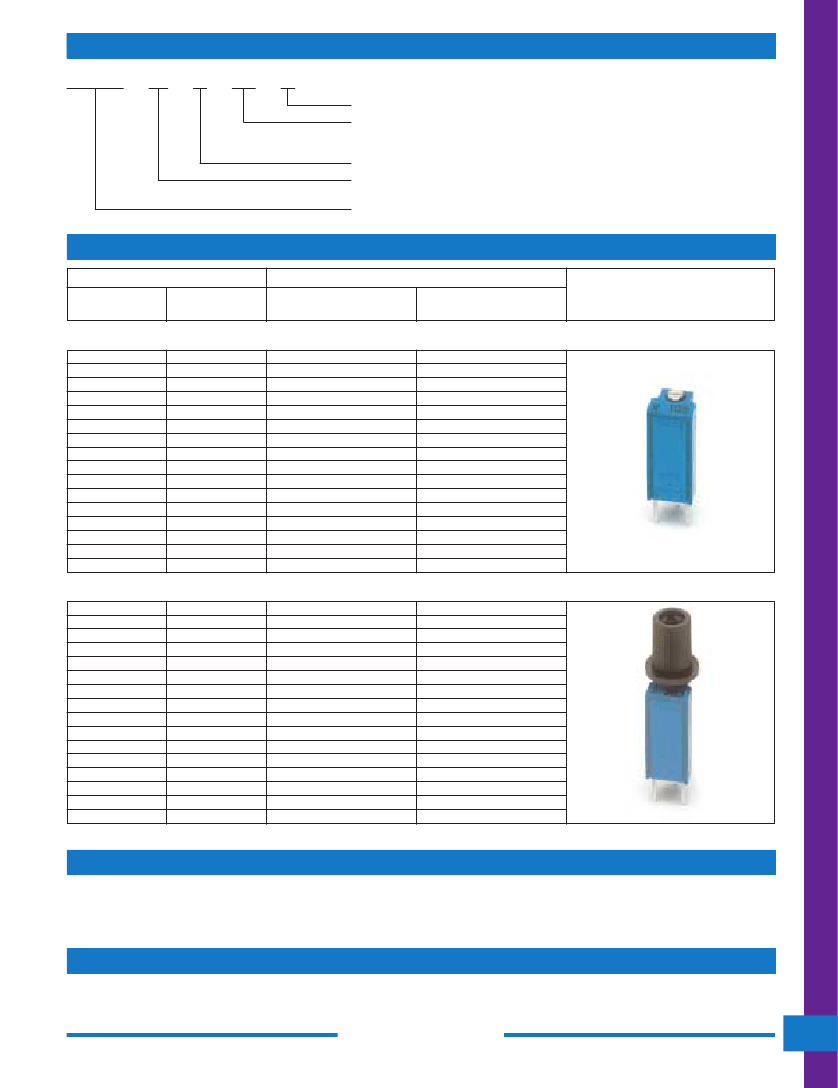

RJC07RK2B102M Related Products

	RJC07RK2B102M	RJC07RK2B104M	RJC07RK2B103K	RJC07RK2B103M	RJC07RK2B104K	RJC07RK2B502K	RJC07RK2B502M	RJC07RK2B102K	RJC07RK2B203M	RJC07RK2B500M
Description	Trimmer, Cermet, 0.75W, 1000ohm, 20% +/-Tol, 13 Turn(s)	Trimmer, Cermet, 0.75W, 100000ohm, 20% +/-Tol, 13 Turn(s)	Trimmer, Cermet, 0.75W, 10000ohm, 10% +/-Tol, 13 Turn(s)	Trimmer, Cermet, 0.75W, 10000ohm, 20% +/-Tol, 13 Turn(s)	Trimmer, Cermet, 0.75W, 100000ohm, 10% +/-Tol, 13 Turn(s)	Trimmer, Cermet, 0.75W, 5000ohm, 10% +/-Tol, 13 Turn(s)	Trimmer, Cermet, 0.75W, 5000ohm, 20% +/-Tol, 13 Turn(s)	Trimmer, Cermet, 0.75W, 1000ohm, 10% +/-Tol, 13 Turn(s)	Trimmer, Cermet, 0.75W, 20000ohm, 20% +/-Tol, 13 Turn(s)	Trimmer, Cermet, 0.75W, 50ohm, 20% +/-Tol, 13 Turn(s)
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compli	compli	compli	compli	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator direction	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL
Actuator type	SHAFT	SHAFT	SHAFT	SHAFT	SHAFT	SHAFT	SHAFT	SHAFT	SHAFT	SHAFT
Manufacturer's serial number	RJC07R	RJC07R	RJC07R	RJC07R	RJC07R	RJC07R	RJC07R	RJC07R	RJC07R	RJC07R
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	3	3	3	3	3	3	3	3	3	3
number of turns	13	13	13	13	13	13	13	13	13	13
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
Rated power dissipation(P)	0.75 W	0.75 W	0.75 W	0.75 W	0.75 W	0.75 W	0.75 W	0.75 W	0.75 W	0.75 W
Rated temperature	40 °C	40 °C	40 °C	40 °C	40 °C	40 °C	40 °C	40 °C	40 °C	40 °C
resistance	1000 Ω	100000 Ω	10000 Ω	10000 Ω	100000 Ω	5000 Ω	5000 Ω	1000 Ω	20000 Ω	50 Ω
resistance law	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR
Resistor type	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Tolerance	20%	20%	10%	20%	10%	10%	20%	10%	20%	20%
Maker	-	Tokyo Cosmos Electric Co., Ltd.	Tokyo Cosmos Electric Co., Ltd.	Tokyo Cosmos Electric Co., Ltd.	Tokyo Cosmos Electric Co., Ltd.	Tokyo Cosmos Electric Co., Ltd.	Tokyo Cosmos Electric Co., Ltd.	-	-	-
