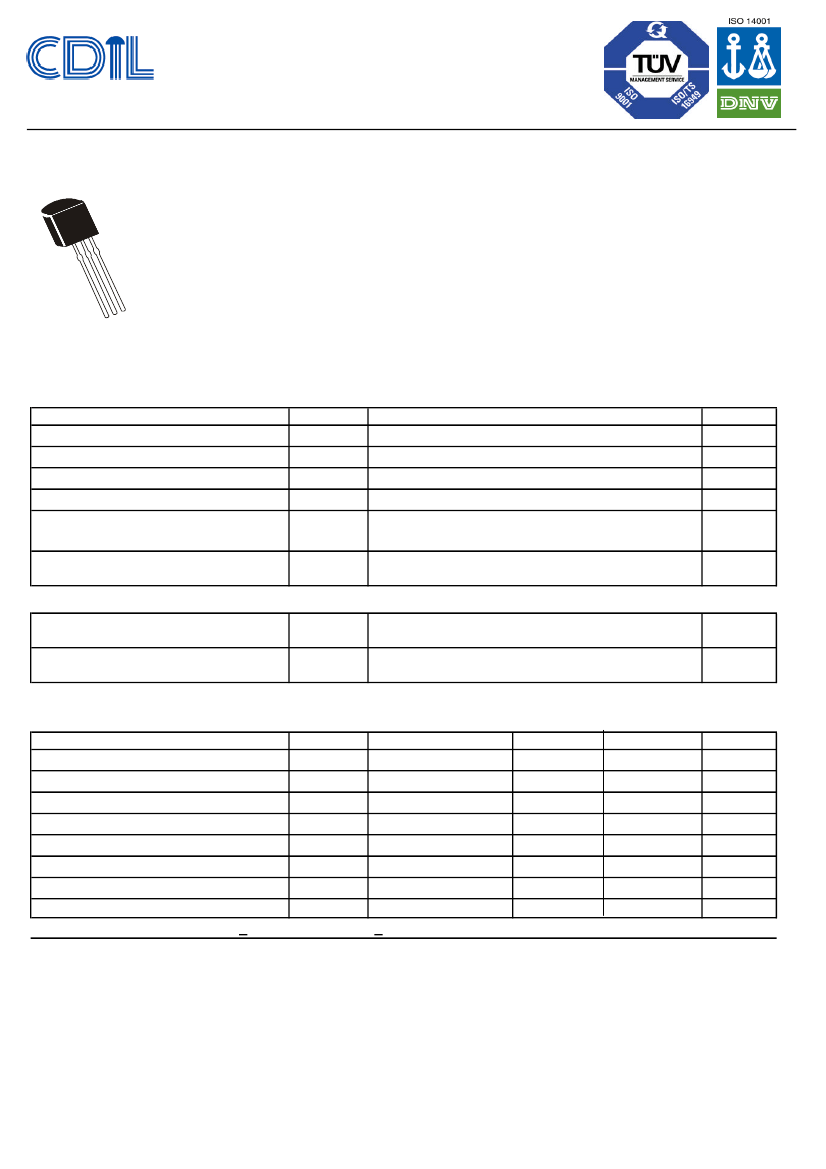

Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
SILICON PLANAR EPITAXIAL TRANSISTORS
C100
D100
TO-92
Plastic Package
PNP
NPN
C
BE
These are complementary transistors for medium power voltage and current amplifier
applications.
ABSOLUTE MAXIMUM RATINGS (T
a
=25ºC Unless Specified Otherwise)
VALUE
DESCRIPTION
SYMBOL
V
CBO
60
Collector Base Voltage
V
CER
50
Collector Emitter Voltage
V
EBO
5
Emitter Base Voltage
Collector Current Continuous
Power Dissipation @ T
a
=25ºC
Power Dissipation @ T
c
=25ºC
Operating And Storage Junction
Temperature Range
THERMAL CHARACTERISTICS
Thermal Resistance Junction-to-
Ambient
Thermal Resistance Junction-to-Case
I
C
P
D
T
j
, T
stg
1
500
800
-55 to +150
UNITS
V
V
V
A
mW
ºC
R
th(j-a)
R
th(j-c)
250
156.3
o
C/W
C/W
o
ELECTRICAL CHARACTERISTICS (T
a
=25ºC Unless Specified Otherwise)
DESCRIPTION
SYMBOL
TEST CONDITION
V
CBO
I
C
=100µA,I
E
=0
Collector Base Voltage
I
C
=10mA,R
BE
=1KΩ
Collector Emitter Voltage
V
CER*
V
EBO
I
E
=100µA, I
C
=0
Emitter Base Voltage
Collector Cut off Current
Emitter Cut off Current
DC Current Gain
I
CBO
I
EBO
h
FE*
V
CB
=40V, I
E
= 0
V
BE
=4V, I
C
= 0
V
CE
=1V, I
C
=150mA
MIN
60
50
5
MAX
UNITS
V
V
V
50
25
50
280
0.6
0.9
nA
nA
V
V
V
CE(sat)
*
I
C
=150mA, I
B
=15mA
Collector-Emitter Saturation Voltage
V
BE(on)
*
I
C
=150mA, V
CE
=1V
Base-Emitter ON Voltage
*Pulse Condition: Pulse Width < 300us, Duty Cycle < 2%.
C100_D100 Rev_1 301104D
Continental Device India Limited
Data Sheet
Page 1 of 4
C100
D100
TO-92
Plastic Package
TO-92 Plastic Package
PNP
NPN
B
Dimension With 'L'
Uncontrolled
Beyond 'L'
2
3
D
G
F
F
A A
K
1
D
E
SEC AA
MIN. MAX.
DIM
4.32
5.33
A
4.45
5.20
B
3.18
C
4.19
0.41
0.55
D
0.35
0.50
E
F
5 DEG
G
1.14
1.40
1.20
1.40
H
12.70
K
—
1.982 2.082
L
M
1.03
1.20
All dimensions are in mm
M
Solderability Ensured
L
3 2 1
Mold
Parting
Line
H
C
A
PIN CONFIGURATION
1. EMITTER
2. BASE
3. COLLECTOR
3 2 1
The TO-92 Package , Tape and Ammo Pack drawings are correct as on the date of issue/revision of this Data Sheet.
The currently valild dimensions and information, may please be confirmed from the TO-92 Drawing in the Packages and
Packing Section of the Product Catalogue.
P
a
c
k
i
n
g
D
e
t
a
i
l
s
PACKAGE
Details
TO-92 Bulk
TO-92 T&A
STANDARD PACK
Net Weight/ t
Qy
200 gm/ pcs
1K
645 gm/ pcs
2K
Size
INNER CARTON BOX
Qty
5K
2K
Size
OUTER CARTON BOX
Qty
80K
32K
Gr Wt
23 kgs
12.5 kgs
1K/
polybag
2K/
ammo box
3" x 7.5" x 7.5"
12.5" x 8" x 1.8"
17" x 15" x 13.5"
17" x 15" x 13.5"
C100_D100 Rev_1 301104D
Continental Device India Limited
Data Sheet
Page 2 of 4
C100
D100
TO-92
Plastic Package

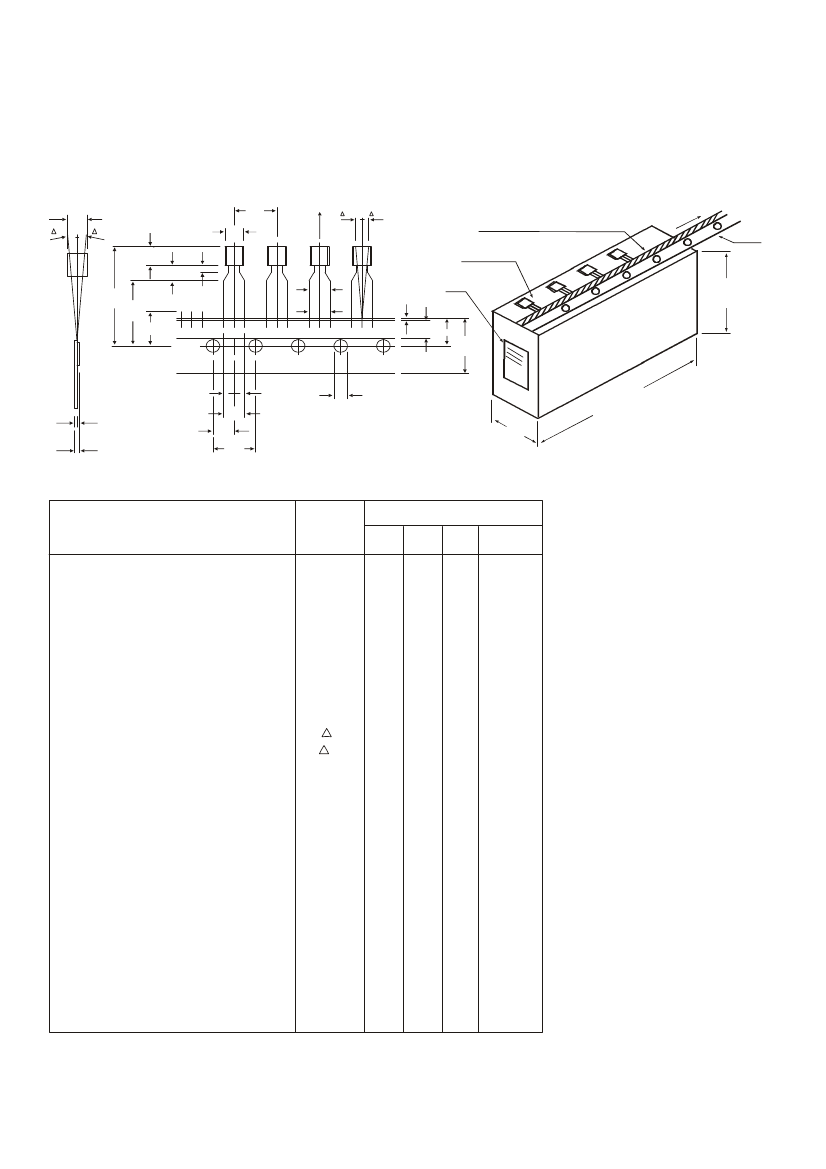

TO-92 Tape and Ammo Pack
Tape Mechanical Data
T
h
h
A
H3
H1
Ho
L
H2
C1
C2
W2
Wo
A1
P
(p)
h1
h1
PNP
NPN
Ammo Pack Style
Adhesive Tape on Top Side
Flat side
Label
D
FEE
Carrier
Strip
186
(7.3")
W1
W
F1
t1
t
P2
Po
F
F2
Do
33
3
2 (1
")
(1.
43
7" )
Flat Side of Transistor and
Adhesive Tape Visible
2000 pcs./Ammo Pack
All dimensions are in mm
ITEM
BODY WIDTH
BODY HEIGHT
BODY THICKNESS
PITCH OF COMPONENT
1
*
FEED HOLE PITCH
*
2
FEED HOLE CENTRE TO
COMPONENT CENTRE
DISTANCE BETWEEN OUTER
LEADS
SPECIFICATION
SYMBOL
A1
A
T
P
Po
P2
F
h
h1
W
Wo
W1
W2
Ho
H1
L
Do
t
F1, F2
H2
H3
| C1 - C2 |
(p)
0.45
MIN. NOM. MAX.
4.0
4.8
3.9
12.7
12.7
6.35
5.08
0
0
18
6
9
0.5
16
23.25
11.0
4
1.2
2.54
1.45
3.0
0.22
+ 0.4
- 0.1
± 0.2
REMARKS
1.0
1.3
± 0.5
± 0.2
+ 0.7
- 0.5
± 0.2
± 0.5
4.8
5.2
4.2
± 1.0
± 0.3
± 0.4
+ 0.6
- 0.2
TOL .
NOTES
1. Maximum alignment deviation between
leads will not to be greater than 0.2mm.
2. Maximum non-cumulative variation
between tape feed holes shall not
exceed 1 mm in 20 pitches.
3. Holddown tape will not exceed beyond
the edge(s) of carrier tape and there
shall be no exposure of adhesive.
4. There will be no more than three (3)
consecutive missing components in a
tape.
5. A tape trailer, having at least three feed
holes are provided after the last
component in a tape.
6. Splices should not interfere with the
sprocket feed holes.
*
3
COMPONENT ALIGNMENT SIDE VIEW
*
4
COMPONENT ALIGNMENT FRONT VIEW
TAPE WIDTH
HOLD-DOWN TAPE WIDTH
HOLE POSITION
HOLD-DOWN TAPE POSITION
LEAD WIRE CLINCH HEIGHT
COMPONENT HEIGHT
LENGTH OF SNIPPED LEADS
FEED HOLE DIAMETER
5
*
TOTAL TAPE THICKNESS
LEAD - TO - LEAD DISTANCE
STAND OFF
CLINCH HEIGHT
LEAD PARALLELISM
PULL - OUT FORCE
6N
*
1
Cumulative pitch error 1.0 mm/20 pitch
*
2
To be measured at bottom of clinch
*
3
At top of body
*
4
At top of body
*
5
t1 0.3 – 0.6 mm
C100_D100 Rev_1 301104D
Continental Device India Limited
Data Sheet
Page 3 of 4
Customer Notes
C100
D100
TO-92
Plastic Package
PNP
NPN
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best suited
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished in the Data Sheet and
on the CDIL Web Site/CD are believed to be accurate and reliable. CDIL however, does not assume responsibility for
inaccuracies or incomplete information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or
use of any CDIL product; neither does it convey any license under its patent rights nor rights of others. These products are not
designed for use in life saving/support appliances or systems. CDIL customers selling these products (either as individual
Discrete Semiconductor Devices or incorporated in their end products), in any life saving/support appliances or systems or
applications do so at their own risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 5141 1112 Fax + 91-11-2579 5290, 5141 1119
e-mail email@cdil.com
www.cdilsemi.com
C100_D100 Rev_1 301104D
Continental Device India Limited
Data Sheet
Page 4 of 4
