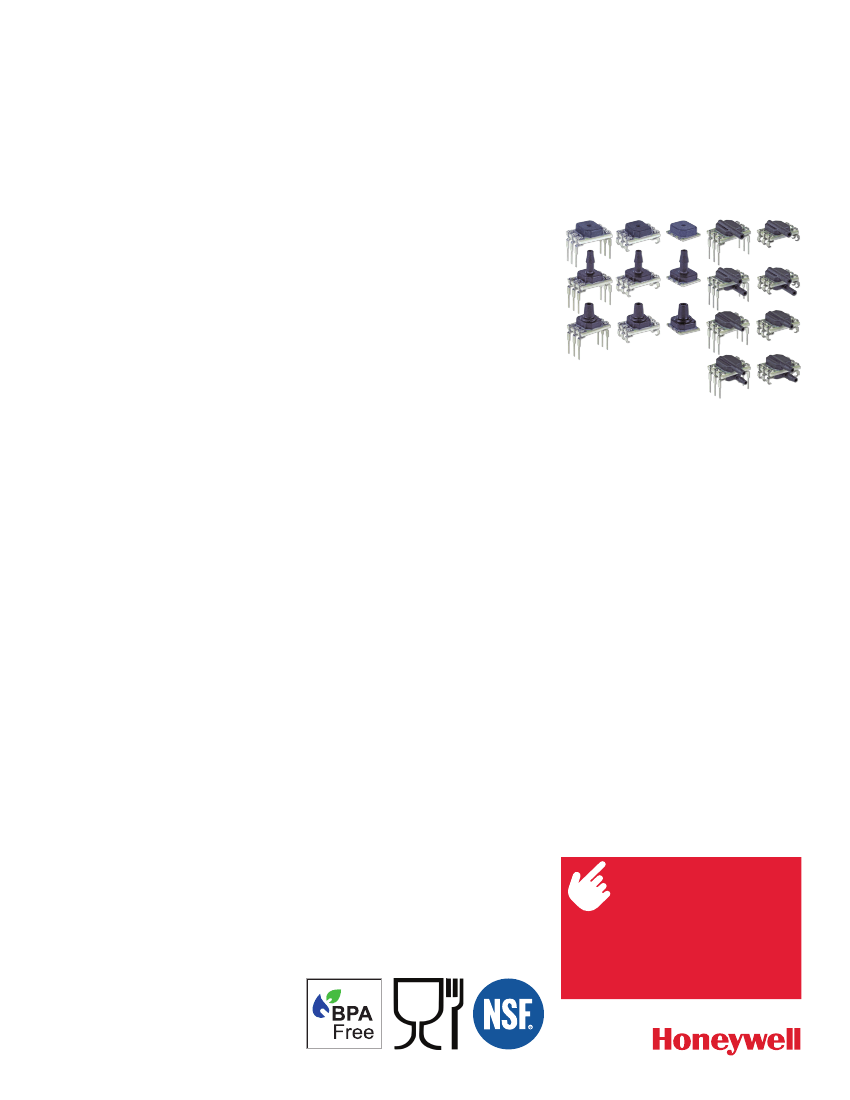

ABP
SERIES
DESCRIPTION
The ABP Series are piezoresistive silicon
pressure sensors offering a ratiometric
analog or digital output for reading
pressure over the specified full scale
pressure span and temperature range.
They are calibrated and temperature
compensated for sensor offset,
sensitivity, temperature effects and
accuracy errors (which include non-
linearity, repeatability and hysteresis)
using an on-board Application Specific
Integrated Circuit (ASIC). Calibrated
output values for pressure are updated
at approximately 1 kHz for analog and
2 kHz for digital. All products are
designed and manufactured according
to ISO 9001 standards.
• Dry gases option: The input port is
limited to non-corrosive, non-ionic
media (e.g., dry air, gases) and should
not be exposed to condensation. The
gases are limited to media compatible
with high temperature polyamide,
silicone, alumina ceramic, silicon, gold,
and glass.
• Liquid media option: Includes an
additional silicone-based gel coating
to protect the electronics under
port P1, which enables use with
non-corrosive liquids (e.g. water and
saline) and in applications where
condensation can occur. Since port P2
is designed for use with non-corrosive
liquids, this option is often suitable for
wet-wet differential sensing.
32305128
Issue I
Basic Board Mount Pressure Sensors
High Accuracy, Compensated/Amplified
60 mbar to 10 bar | 6 kPa to 1 MPa | 1 psi to 150 psi
Digital or Analog Output, Liquid Media Capable
to aging of the sensor terminals, which
minimizes the concern about aging
of the terminals prior PCB assembly.
Pressure choices allow engineers
to select range required for their
application. Leadless SMT, SMT, and
DIP package options.
Cost-effective: Small size helps
engineers reduce design and
manufacturing costs while maintaining
enhanced performance and reliability
of the systems they design.
Accurate: Total Error Band (TEB) and
wide pressure range enable engineers
to optimize system performance by
improving resolution and system
accuracy. Optional internal diagnostics
validate that the sensor readings are
correct.
Flexible: Supply voltage range, variety
of pressure units, types, and ranges,
output options, and wide operating
temperature range simplify use in the
application.
Versatile: Wet-media compatibility,
sleep mode, and temperature
output options make the sensor a
versatile choice for Internet of Things
applications.
Honeywell Brand: Utilize proprietary
Honeywell technology, and are
protected by multiple global patents.
Food Safety Certification for North
America, Europe and Asia.
•
•
FEATURES
•
•
•
•
POTENTIAL APPLICATIONS
DIFFERENTIATION
• Enhanced accuracy helps the design
engineer fully understand the error in
measurement.
• Wide supply voltage range offers
design flexibility.
• Power consumption when utilizing
sleep mode option allows for use in
battery-powered applications.
VALUE TO CUSTOMERS
• Simplifies design-in: Small size
saves room on the PC board (PCB),
or simplifies design in smaller and
lower power devices. Meets Moisture
Sensitivity Level 1 requirements, which
allows for unlimited shelf life when
stored at <30 ºC/85 %RH and, under
most storage conditions, allows for
PCB soldering without any material
concern about solder joint quality due
•
Medical:
CPAP, blood analysis, blood
pressure monitoring, breast pumps,
drug dosing, hospital beds, massage
machines, oxygen concentrators,
patient monitoring, sleep apnea
equipment, urine analyzers,
ventilators/portable ventilators, and
wound therapy
•
Industrial:
Air brakes, HVAC/
transmitters, life sciences, material
handling, pneumatic control and
regulation, process gas monitoring,
and valve positioning/positioners
•
Commercial:
Air beds, coffee makers,
and washing machines
• Measures gage and differential
pressures
• Total Error Band (see Figure 1): ±1.5 %FSS
• Liquid media option: Allows for wet/wet
operation on dual ported devices
• Industry-leading long-term stability:
±0.25 %FSS
• Industry-leading accuracy: ±0.25 %FSS BFSL
• Wide pressure range: 60 mbar to 10 bar
| 6 kPa to 1 MPa | 1 psi to 150 psi
• As small as 8 mm x 7 mm
• High burst pressures (see Table 7)
• Calibrated over temperature range of
0°C to 50°C [32°F to 122°F]
• Operates from a single power supply of
either 3.3 Vdc or 5.0 Vdc
• Output: Ratiometric analog or I
2
C- or
SPI-compatible 12-bit digital
• Power consumption: 2
µA
typical when
utilizing sleep mode option
• Meets IPC/JEDEC J-STD-020D.1
Moisture Sensitivity Level 1 requirements
• REACH and RoHS compliant
• Options: Internal diagnostic function,
liquid media, sleep mode, temperature
output
• Sensor materials have been tested and
certified for these food safety standards:
- NSF-169
- BPA Free
- LFGB
PORTFOLIO
Honeywell offers a variety
of board mount pressure sensors for
potential use in medical and industrial
applications. To view the entire product
portfolio, click here.
Sensing and Internet of Things
BASIC BOARD MOUNT PRESSURE SENSORS,
ABP SERIES
FIGURE 1. TOTAL ERROR BAND
Total Error Band (TEB) is a single specification that includes
all possible sources of error. TEB should not be confused with
accuracy, which is actually a component of TEB. TEB is the worst
error that the sensor could experience. The TEB specification
on a datasheet may be confusing. Honeywell uses the TEB
specification in its datasheet because it is the most comprehensive
measurement of a sensor’s true accuracy. Honeywell also
provides the accuracy specification in order to provide a common
comparison with competitors’ literature that does not use the
TEB specification. Many competitors do not use TEB—they simply
specify the accuracy of their device. Their accuracy specification,
however, may exclude certain parameters. On their datasheet, the
errors are listed individually. When combined, the total error (or
what would be TEB) can be significant.
TABLE 1. ABSOLUTE MAXIMUM RATINGS
1
CHARACTERISTIC
Supply voltage (V
supply
)
Voltage on any pin
Digital interface clock frequency:
I
2
C
SPI
ESD susceptibility (human body model)
Storage temperature
MIN.
-0.3
-0.3
100
50
2
-40 [-40]
MAX.
6.0
V
supply
+ 0.3
400
800
—
85 [185]
UNIT
Vdc
V
kHz
kV
°C [°F]
All Possible Errors
Offset
Full Scale Span
Pressure Non-Linearity
Pressure Hysteresis
Pressure Non-Repeatibility
Thermal Effect on Offset
Thermal Effect on Span
Thermal Hysteresis
Accuracy
BFSL
Total
Error
Band
Soldering time and temperature:
lead solder temperature (DIP)
4 s max. at 250°C [482°F]
peak reflow temperature (Leadless SMT, SMT)
15 s max. at 250°C [482°F]
1
Absolute maximum ratings are the extreme limits the device will withstand without damage.
TABLE 2. ENVIRONMENTAL SPECIFICATIONS
CHARACTERISTIC
Humidity:
all external surfaces
internal surfaces of Liquid Media Option (T, V, B, C, F, G)
internal surfaces of Dry Gases Option (N, D)
Vibration
Shock
Life
1
Solder reflow
PARAMETER
0 %RH to 95 %RH, non-condensing
0 %RH to 100 %RH, condensing
0 %RH to 95 %RH, non-condensing
15 g, 10 Hz to 2 kHz
100 g, 6 ms duration
1 million pressure cycles minimum
J-STD-020-D.1 Moisture Sensitivity Level 1
(unlimited shelf life when stored at <30°C/85 %RH)
NSF-169, BPA Free, LFGB
Certification (silicone gel coating option: Port 1 only)
1
Life may vary depending on specific application in which the sensor is used.
TABLE 3. WETTED MATERIALS
1
PRESSURE PORT 1 (P1)
DRY GAS OPTION
LIQUID MEDIA OPTION
Ports and covers
high temperature polyamide
Metal gel ring
—
304 SST
Substrate
alumina ceramic
—
Adhesives
epoxy, silicone
epoxy, silicone gel
silicon, glass, gold,
Electronic components
—
aluminum
1
Contact Honeywell Customer Service for detailed material information.
COMPONENT
TABLE 4. SENSOR PRESSURE TYPES
PRESSURE TYPE
Gage
Differential
2
DESCRIPTION
PRESSURE PORT 2 (P2)
—
alumina ceramic
epoxy, silicone
silicon
Output is proportional to the difference between applied pressure and atmospheric (ambient) pressure.
Output is proportional to the difference between the pressures applied to each port (Port 1 – Port 2).
Sensing and Internet of Things
BASIC BOARD MOUNT PRESSURE SENSORS,
ABP SERIES
TABLE 5. OPERATING SPECIFICATIONS
CHARACTERISTIC
Supply voltage (V
supply
):
1, 2, 3
3.3 Vdc
5.0 Vdc
Supply current:
3.3 Vdc
5.0 Vdc
sleep mode option
Operating temperature range
4
Compensated temperature range
5
Temperature output option
6
Startup time (power up to data ready)
Response time
Clipping limit:
upper
lower
2
I C/SPI voltage level:
low
high
Pull up on SDA/MISO, SCL/SCLK, SS
Total Error Band
Accuracy
9
Long term stability (1000 hr, 25°C [77°F])
Output resolution
7
ANALOG
MIN.
3.0
4.75
—
—
—
-40 [-40]
0 [-32]
—
—
—
—
2.5
—
—
—
—
—
—
TYP.
3.3
5.0
2.1
2.7
—
—
—
—
—
1
—
—
—
—
—
—
—
—
MAX.
3.6
5.25
2.8
3.8
—
85 [185]
50 [122]
—
5
—
97.5
—
—
—
—
±1.5
±0.25
±0.25
MIN.
3.0
4.75
—
—
—
-40 [-40]
0 [-32]
—
—
—
—
—
—
80
1
—
—
—
DIGITAL
TYP.
3.3
5.0
3.1
3.7
1
—
—
±4
—
0.46
—
—
—
—
—
—
—
—
MAX.
3.6
5.25
3.9
4.6
10
85 [185]
50 [122]
—
3
—
—
—
20
—
—
±1.5
±0.25
±0.25
UNIT
Vdc
mA
mA
µA
°C [°F]
°C [°F]
°C
ms
ms
%Vsupply
%Vsupply
kOhm
%FSS
8
%FSS BFSL
%FSS
0.03
—
—
—
—
—
%FSS
—
—
—
12
—
—
bits
1
Sensors are either 3.3 Vdc or 5.0 Vdc based on the catalog listing selected.
2
Ratiometricity of the sensor (the ability of the device output to scale to the supply voltage) is achieved within the specified
operating voltage.
3
The sensor is not reverse polarity protected. Incorrect application of supply voltage or ground to the wrong pin may cause
electrical failure.
4
Operating temperature range: The temperature range over which the sensor will produce an output proportional to pressure.
5
Compensated temperature range: The temperature range over which the sensor will produce an output proportional to
pressure within the specified performance limits.
6
Temperature output option: Typical temperature output error over the compensated temperature range of 0°C to 50°C.
Operation in Sleep Mode may affect temperature output error depending on duty cycle.
7
Total Error Band: The maximum deviation from the ideal transfer function over the entire compensated temperature and
pressure range. Includes all errors due to offset, full scale span, pressure non-linearity, pressure hysteresis, repeatability,
thermal effect on offset, thermal effect on span, and thermal hysteresis.
8
Full Scale Span (FSS): The algebraic difference between the output signal measured at the maximum (Pmax.) and minimum
(Pmin.) limits of the pressure range. (See Figure 2.)
9
Accuracy: The maximum deviation in output from a Best Fit Straight Line (BFSL) fitted to the output measured over the
pressure range at 25°C [77°F]. Includes all errors due to pressure non-linearity, pressure hysteresis, and non-repeatability.
TABLE 6. SENSOR OUTPUT AT SIGNIFICANT PERCENTAGES (DIGITAL VERSIONS ONLY)
% OUTPUT
0
10
50
90
100
DIGITAL COUNTS
DECIMAL
0
1638
8192
14746
16383
HEX
0x0000
0x0666
0x2000
0x399A
0x3FFF
Sensing and Internet of Things
3
BASIC BOARD MOUNT PRESSURE SENSORS,
ABP SERIES

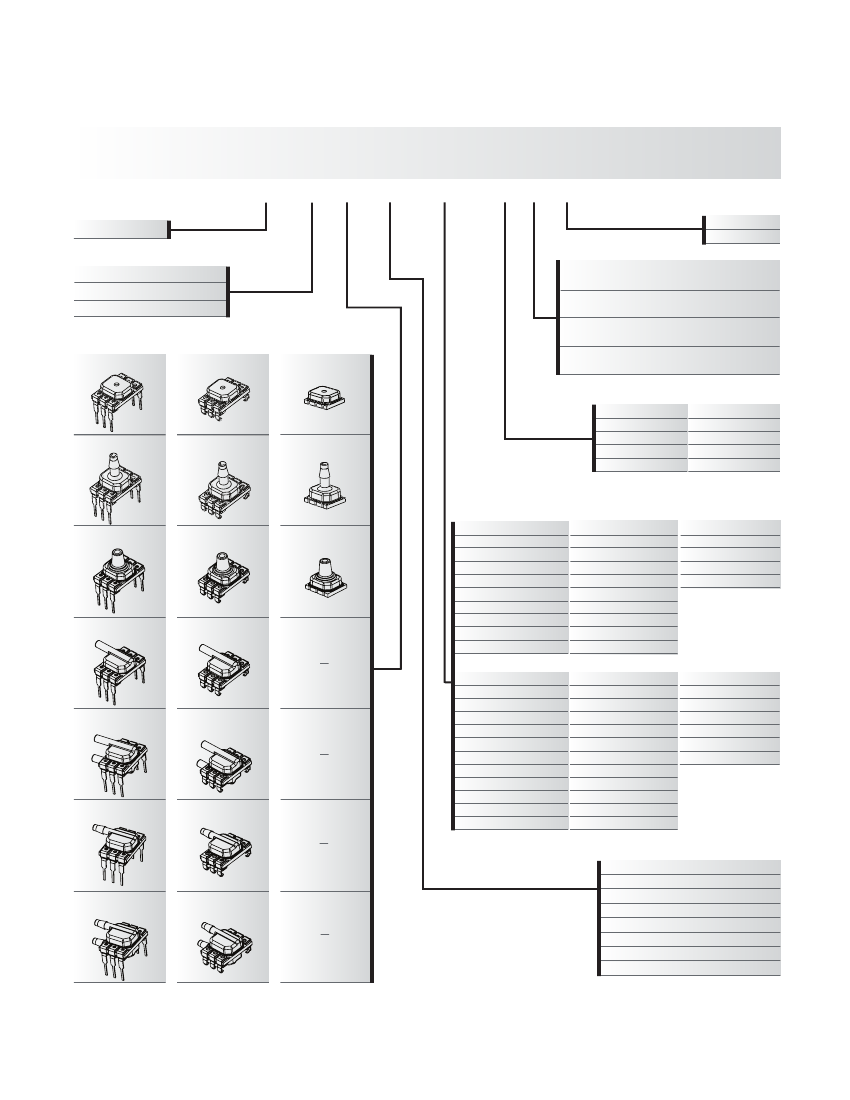

FIGURE 3. NOMENCLATURE AND ORDER GUIDE
For example,
ABPDNNN150PGAA3
defines an ABP Series Amplified Basic Pressure Sensor, DIP package, NN pressure port,
dry gases only, no diagnostics, 150 psi gage pressure range, analog output type, 10% to 90% of Vsupply (analog), transfer
function, no temperature output, no sleep mode, 3.3 Vdc supply voltage.
Product Series
ABP
Amplified Basic
ABP
D NN
N 150PG
A A
3
Transfer Function
3
Supply Voltage
3
5
3.3 Vdc
5.0 Vdc
Package
D
DIP (Dual Inline Pin)
M
SMT (Surface Mount Technology)
L
Leadless SMT
10% to 90% of Vsupply (analog), 2
14
A
no temperature output, no sleep modecounts (digital)
D
temperature output enabled, sleep mode enabled
Leadless SMT
10% to 90% of 2
14
counts (digital only)
Pressure Port
DIP
SMT
10% to 90% of 2
14
counts (digital
S
no temperature output, sleep modeonly)
enabled
10% to 90% of 2
14
T
temperature output counts (digital only)
enabled, no sleep mode
NN
No port
NN
No port
NN
No port
Output Type
Single axial
barbed port
Single axial
barbed port
Single axial
barbed port
AN
AN
AN
A
S
0
1
2
Analog
SPI
I
2
C, Address 0x08
I
2
C, Address 0x18
I
2
C, Address 0x28
3
4
5
6
7
I
2
C, Address 0x38
I
2
C, Address 0x48
I
2
C, Address 0x58
I
2
C, Address 0x68
I
2
C, Address 0x78
1 psi to 150 psi
Differential
Pressure Range
1, 2
60 mbar to 10 bar
Differential
6 kPa to 1 MPa
Differential
LN
Single axial
barbless port
LN
Single axial
barbless port
LN
Single axial
barbless port
JN
Single radial
barbless port
JN
Single radial
barbless port
060MD
100MD
160MD
250MD
400MD
600MD
001BD
1.6BD
2.5BD
004BD
±60 mbar
±100 mbar
±160 mbar
±250 mbar
±400 mbar
±600 mbar
±1 bar
±1.6 bar
±2.5 bar
±4 bar
Gage
0 mbar to 60 mbar
0 mbar to 100 mbar
0 mbar to 160 mbar
0 mbar to 250 mbar
0 bar to 400 mbar
0 bar to 600 mbar
0 bar to 1 bar
0 bar to 1.6 bar
0 bar to 2.5 bar
0 bar to 4 bar
0 bar to 6 bar
0 bar to 10 bar
006KD
010KD
016KD
025KD
040KD
060KD
100KD
160KD
250KD
400KD
006KG
010KG
016KG
025KG
040KG
060KG
100KG
160KG
250KG
400KG
600KG
001GG
±6 kPa
±10 kPa
±16 kPa
±25 kPa
±40 kPa
±60 kPa
±100 kPa
±160 kPa
±250 kPa
±400 kPa
Gage
0 kPa to 6 kPa
0 kPa to 10 kPa
0 kPa to 16 kPa
0 kPa to 25 kPa
0 kPa to 40 kPa
0 kPa to 60 kPa
0 kPa to 100 kPa
0 kPa to 160 kPa
0 kPa to 250 kPa
0 kPa to 400 kPa
0 kPa to 600 kPa
0 kPa to 1 MPa
001PD
005PD
015PD
030PD
060PD
±1 psi
±5 psi
±15 psi
±30 psi
±60 psi
Gage
JJ
Dual radial
barbless ports,
same side
JJ
Dual radial
barbless ports,
same side
RN
Single radial
barbed port
RN
Single radial
barbed port
060MG
100MG
160MG
250MG
400MG
600MG
001BG
1.6BG
2.5BG
004BG
006BG
010BG
001PG
005PG
015PG
030PG
060PG
100PG
150PG
0 psi to 1 psi
0 psi to 5 psi
0 psi to 15 psi
0 psi to 30 psi
0 psi to 60 psi
0 psi to 100 psi
0 psi to 150 psi
Product Option
N
D
T
V
B
C
G
F
Dry gases only, no diagnostics
Dry gases only, diagnostics on
Liquid media, no diagnostics
Liquid media, diagnostics on
Liquid media, food grade, no diagnostics
4
Liquid media, food grade, diagnostics on
4
Liquid media, fluorosilicone gel, no diagnostics
4
Liquid media, fluorosilicone gel, diagnostics on
4
RR
Dual radial
barbed ports,
same side
RR
Dual radial
barbed ports,
same side
Custom pressure ranges are available. Contact Honeywell Customer Service for more information.
See the explanation of sensor pressure types in Table 4.
3
The Transfer Function limits define the output of the sensor at a given pressure input. By specifying P
min.
and P
max.
, the output at P
min.
and P
max.
, the complete transfer function of the sensor
is defined. See the graphical representations of the transfer function in Figure 3.
4
Food grade and harsh media compatible product options are available. Contact Honeywell Customer Service for more information.
1
2
Sensing and Internet of Things
5
Talking
京公网安备 11010802033920号
EEWORLD
