2N2221

Description
800 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-18
Categorysemiconductor    Discrete semiconductor
File Size146KB,4 Pages
ManufacturerCDIL
Websitehttp://www.cdilsemi.com
Download Datasheet Parametric Compare View All

2N2221 Overview

800 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-18

2N2221 Parametric

Parameter NameAttribute value
Number of terminals3
Transistor polarityNPN
Maximum on-time20 ns
Maximum off time213 ns
Maximum collector current0.8000 A
Maximum Collector-Emitter Voltage30 V
Processing package descriptionTO-18, 3 PIN
stateDISCONTINUED
packaging shaperound
Package Sizecylindrical
Terminal formWire
Terminal locationBOTTOM
Packaging MaterialsMetal
structuresingle
Shell connectionCOLLECTOR
Number of components1
transistor applicationsswitch
Transistor component materialssilicon
Maximum ambient power consumption0.5000 W
Transistor typeUniversal small signal
Minimum DC amplification factor50
Rated crossover frequency250 MHz
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company

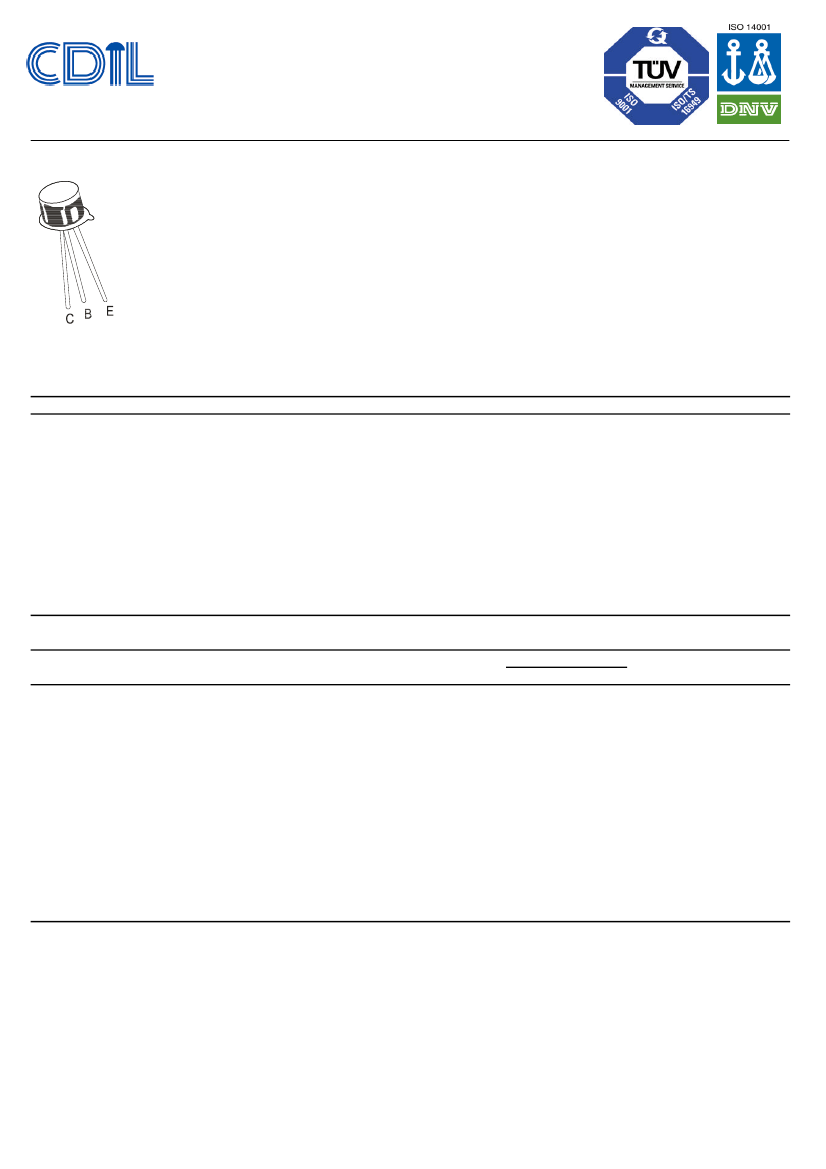

NPN SILICON PLANAR SWITCHING TRANSISTORS
2N2221
2N2222
TO-18
Metal Can Package
Switching and Linear Application DC and VHF Amplifier Applications
ABSOLUTE MAXIMUM RATINGS (Ta=25ºC unless specified otherwise)
DESCRIPTION
SYMBOL
2N2221, 22
V
CEO
30
Collector Emitter Voltage
V
CBO
Collector Base Voltage
60
Emitter Base Voltage
Collector Current Continuous
Power Dissipation @Ta=25ºC
Derate Above 25ºC
Power Dissipation @ Tc=25ºC
Derate Above 25ºC
Operating and Storage Junction
Temperature Range
V
EBO
I
C
P
D
P
D
T
j
, T
stg
5
800
500
2.28
1.2
6.85
-65 to +200
UNIT
V
V
V
mA
mW
mW/ºC
W
mW/ºC
ºC
ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise )
DESCRIPTION
SYMBOL TEST CONDITION
Collector Emitter Breakdown Voltage
Collector Base Breakdown Voltage
Emitter Base Breakdown Voltage
Collector Leakage Current
BV
CEO
BV
CBO
BV
EBOf
I
CBO
I
C
=10mA,I
B
=0
I
C
=10µA.I
E
=0
I
E
=10µA, I
C
=0
V
CB
=50V, I
E
=0
VALUE
MIN
MAX
30
60
5
10
10
0.4
1.6
1.3
2.6
UNIT
V
V
V
nA
µA
V
V
V
V
Collector Emitter Saturation Voltage
Base Emitter Saturation Voltage
V
CB
=50V, I
E
=0
Ta=150 º C
V
CE(Sat)
* I
C
=150mA,I
B
=15mA
I
C
=500mA,I
B
=50mA
V
BE(Sat)
* I
C
=150mA,I
B
=15mA
I
C
=500mA,I
B
=50mA
0.6
Continental Device India Limited
Data Sheet
Page 1 of 4
