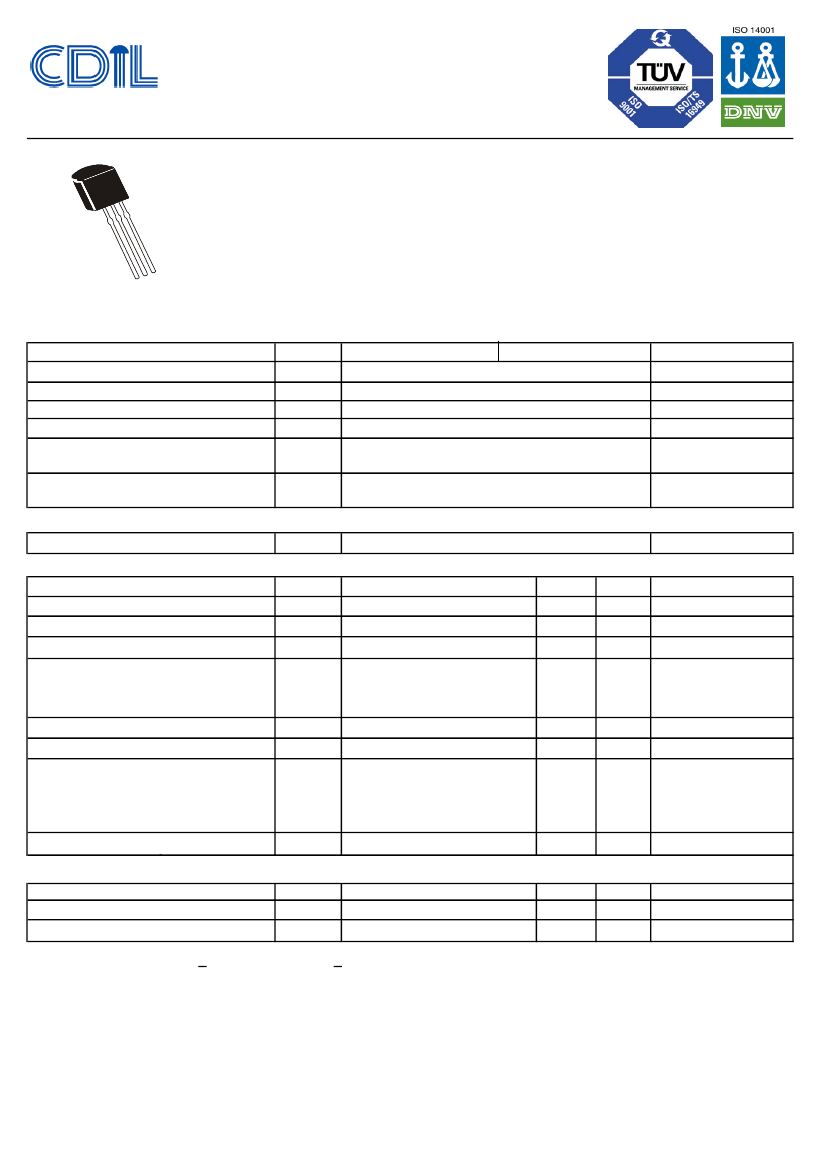

Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
NPN SILICON PLANAR EPITAXIAL TRANSISTORS
2N3704 2N3705
TO-92
Plastic Package
For Lead Free Parts, Device Part #
will be Prefixed with "T"
E
CB
Amplifier Transistor
ABSOLUTE MAXIMUM RATINGS (T
a
=25ºC)
DESCRIPTION
SYMBOL
V
CEO
Collector Emitter Voltage
V
CBO
Collector Base Voltage
V
EBO
Emitter Base Voltage
I
C
Collector Current Continuous
Total Device Dissipation at T
a
=25ºC
P
D
Derate Above 25ºC
Operating And Storage Junction
T
j
, T
stg
Temperature Range
THERMAL RESISTANCE
Junction to Ambient in free air
R
th (j-a)
2N3704
30
50
5.0
600
625
5.0
- 55 to +150
2N3705
UNIT
V
V
V
mA
mW
mW/ºC
ºC
200
MIN
30
50
5.0
100
50
MAX
ºC/W
UNIT
V
V
V
ELECTRICAL CHARACTERISTICS (T
a
=25ºC unless specified otherwise)
DESCRIPTION
SYMBOL
TEST CONDITION
V
CEO
I
C
=1mA, I
B
=0
Collector Emitter Voltage
V
CBO
I
C
=100µA, I
E
=0
Collector Base Voltage
V
EBO
I
E
=100µA, I
C
=0
Emitter Base Voltage
*h
FE
V
CE
=2V, I
C
=50mA
DC Current Gain
2N3704
2N3705
I
CBO
V
CB
=20V, I
E
=0
Collector Cut Off Current
I
EBO
V
EB
=3V, I
C
=0
Emitter Cut Off Current
Collector Emitter Saturation Voltage
*V
CE (sat)
I
C
=100mA, I
B
=5mA
2N3704
2N3705
I
C
=100mA, V
CE
=2V
300
150
100
100
nA
nA
Base Emitter (On) Voltage
DYNAMIC CHARACTERISTICS
DESCRIPTION
Transistors Frequency
Output Capacitance
*V
BE (on)
0.5
0.6
0.8
1.0
V
V
V
SYMBOL
TEST CONDITION
f
T
I
C
=50mA, V
CE
=2V, f=20MHz
C
ob
I
E
=0, V
CB
=10V, f=1MHz
MIN
100
MAX
12
UNIT
MHz
pF
*Pulse Test: Pulse Width < 300µs, Duty Cycle < 2%
µ
2N3704_2N3705Rev_1 081205E
Continental Device India Limited
Data Sheet
Page 1 of 4
2N3704 2N3705
TO-92
Plastic Package
For Lead Free Parts, Device Part #
will be Prefixed with "T"
B
Dimension With 'L'
TO-92 Plastic Package
1
2
3
D
G
F
F
A A
K
D
E
SEC AA
MIN. MAX.
DIM
4.32
5.33
A
4.45
5.20
B
3.18
4.19
C
0.41
0.55
D
0.35
0.50
E
F
5 DEG
1.40
1.14
G
1.20
1.40
H
12.70
K
—
1.982 2.082
L
1.03
M
1.20
All dimensions are in mm
Uncontrolled
M
Solderability Ensured
Beyond 'L'
L
3 2 1
Mold
Parting
Line
H
C
A
PIN CONFIGURATION
1. BASE
2. COLLECTOR
3. EMITTER
3 2 1
The TO-92 Package, Tape and Ammo Pack Drawings are correct as on the date of issue/revision of this Data Sheet.
The currently valid dimensions and information, may please be confirmed from the TO-92 Drawing in the Packages and
Packing Section of the Product Catalogue.

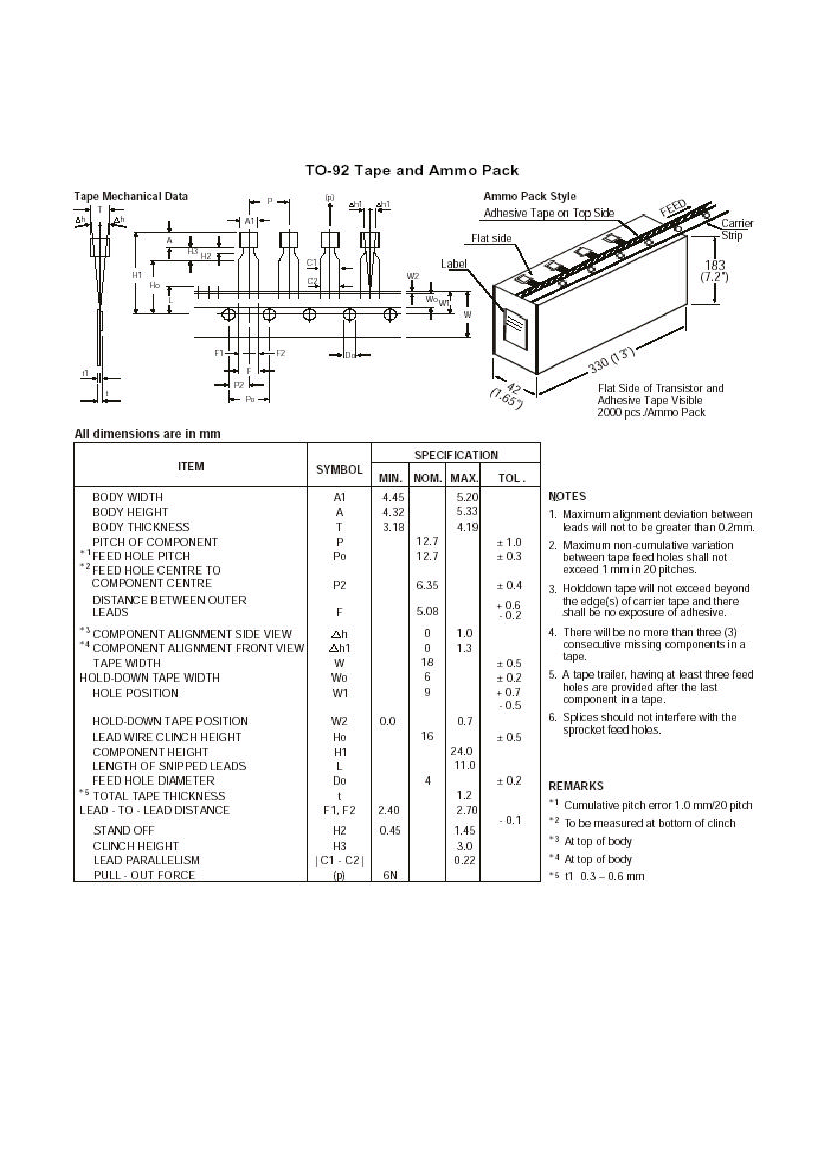

Packing Details
PACKAGE
Details
TO-92 Bulk
TO-92 T&A
1K/
polybag
2K/
ammo box
STANDARD PACK
Net Weight/
Qty
200 gm/ pcs
1K
645 gm/ pcs
2K
Size
3" x 7.5" x 7.5"
12.5" x 8" x 1.8"
INNER CARTON BOX
Qty
5K
2K
Size
17" x 15" x 13.5"
17" x 15" x 13.5"
OUTER CARTON BOX
Qty
80K
32K
Gr Wt
23 kgs
12.5 kgs
2N3704_2N3705Rev_1 081205E
Continental Device India Limited
Data Sheet
Page 2 of 4
2N3704 2N3705
TO-92
Plastic Package
For Lead Free Parts, Device Part #
will be Prefixed with "T"
Component Disposal Instructions
1. CDIL Semiconductor Devices are RoHS compliant, customers are requested to please
dispose as per prevailing Environmental Legislation of their Country.
2.
In Europe, please dispose as per EU Directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
2N3704_2N3705Rev_1 081205E
Continental Device India Limited
Data Sheet
Page 3 of 4
