NMC-H1812X7R183J200TRLPF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NMC-H1812X7R183J200TRLPF

NMC-H1812X7R183J200TRLPF: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 200V, X7R, 0.018uF, SURFACE MOUNT, 1812, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size52KB，5 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance; Related ProductsFound20parts with similar functions to NMC-H1812X7R183J200TRLPF

Download Datasheet Parametric View All

NMC-H1812X7R183J200TRLPF Overview

CAPACITOR, CERAMIC, MULTILAYER, 200V, X7R, 0.018uF, SURFACE MOUNT, 1812, CHIP, ROHS COMPLIANT

NMC-H1812X7R183J200TRLPF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	, 1812
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.018 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Manufacturer's serial number	NMC-H
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED PLASTIC
positive tolerance	5%
Rated (DC) voltage (URdc)	200 V
size code	1812
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

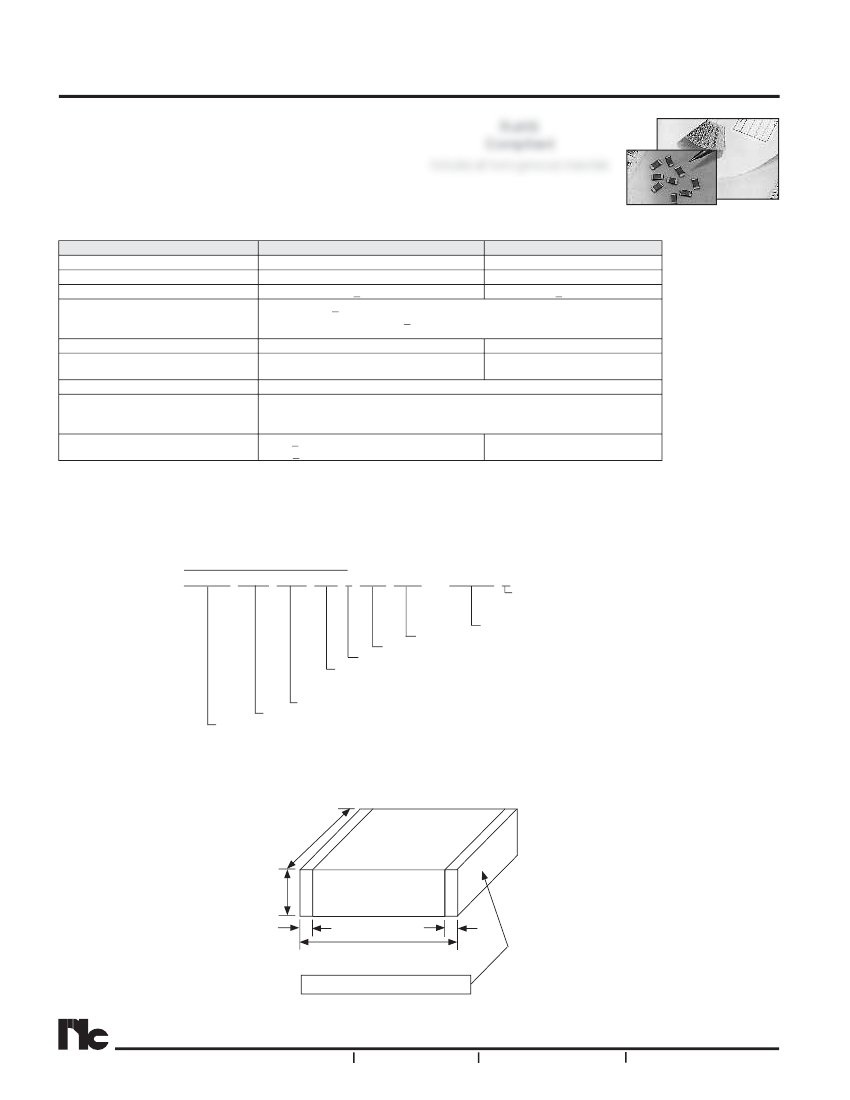

Multilayer Ceramic Chip Capacitors

FEATURES

• HIGH VOLTAGE 200Vdc ~ 3KVdc

• NPO AND X7R DIELECTRICS

• 0603, 0805, 1206, 1210, 1808 AND 1812 SIZES

• NICKEL BARRIER TERMINATION AND EXCELLENT

MECHANICAL STRENGTH

SPECIFICATIONS

Operating Temperature Range

Temperature Characteristic

Dissipation Factor

Insulation Resistance

Capacitance Range

Capacitance Tolerance

Rated Voltage

Dielectric Withstanding Voltage

Test Conditions (C & DF)

NMC-H Series

RoHS

Compliant

Includes all homogeneous materials

*See Part Number System for Details

NPO

X7R

-55°C ~ +125°C

±30ppm

±15%

< 0.1%

< 2.5%

> 500MegΩ or 500MegΩ-μF whichever is less

Test Method: Voltage rating < 500V measured after 1 minute at rated voltage,

Voltage rating > 500V measured after 1 minute at 500V

0.22pF ~ 0.0056μF

150pF ~ 0.47μF

±0.1pF(B), ±0.25pF(C), ±0.5pF(D)

±5%(J), ±10%(K), ±20(M)

±1%(F), ±2%(G), ±5%(J), ±10%(K), ±20(M)

200Vdc ~ 3KVdc

Working Voltage 200 & 250Vdc x 1.5 + 100Vdc for 5 seconds

Working Voltage 500Vdc x 1.5 for 5 seconds

Working Voltage greater than 500Vdc x 1.2 for 5 seconds

C < 1000pF = 1MHz, 1Vrms @ 25°C

1KHz, 1Vrms @ 25°C

C < 1000pF = 1KHz, 1Vrms @ 25°C

PART NUMBER SYSTEM

NMC-H 1210 NPO 102 J 1KV TRP or TRPLP F

RoHS compliant

Tape & Reel (Embossed Plastic Carrier)

Tape & Reel (Paper carrier)

Voltage (Vdc)

Capacitance Tolerance Code (see chart)

Capacitance Code, expressed in pF, ﬁrst 2 digits are

signiﬁcant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)

Series

CONSTRUCTION

100% Sn over Ni barrier

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

Recommended Resources

Improved dynamic expansion circuit

Bilateral current source circuit

Piezoelectric acceleration sensor circuit diagram

Internal structure block diagram of M57962L

Protection circuit within lithium-ion battery pack

Pulse dialing nine-channel infrared remote control circuit (LR40992, μPC1373)
