USB-B-S-S-W-TH-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> USB-B-S-S-W-TH-TR

USB-B-S-S-W-TH-TR: DescriptionTelecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size125KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

USB-B-S-S-W-TH-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	USB-B-S-S-W-TH-TR	-	-	View	Buy Now

USB-B-S-S-W-TH-TR Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT

USB-B-S-S-W-TH-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1039613540
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	3 weeks
Other features	TAPE AND REEL
subject depth	0.638 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of ports	1
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.143 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

REVISION R

TYPE

-B

USB-B-S-X-X-TH-X-XX

PACKAGING

BLANK: TRAY (SEE NOTE 3)

-TR: TAPE & REEL (SEE NOTES 3 & 4)

-FR: FULL REEL QTY TAPE & REEL

(SEE NOTES 3 & 4)

E&I OPTION

-R: RoHS COMPLIANT

(SEE NOTE 2)

TERMINATION

-TH: THRU HOLE

COLOR

-B: BLACK

-W: WHITE

CONFIGURATION

DO NOT

SCALE FROM

THIS PRINT

-S: SINGLE

PLATING SPECIFICATION

-F: 3µ" SELECTIVE GOLD IN MATTE

AREA, MATTE TIN ON TAIL.

-S: 30µ" SELECTIVE GOLD IN MATTE

AREA, MATTE TIN ON TAIL.

2.50±0.15 .098±.006

5.60±0.13 .220±.005

8.45±0.25 .333±.010

12.10±0.15 .476±.006

0.62 .024

POS 1

POS 2

16.20±0.15 .638±.006

3.18±0.05 .125±.002

7.78±0.10 .306±.004

10.80±0.15 .425±.006

POS 3

POS 4

10.7 .42

3.64 .143

3.10 .122

0.25 .010

14.5 .57

0.60±0.05 .024±.002

2.50±0.05 .098±.002

10.40±0.13 .409±.005

2.00 .079

NOTES:

C10

2.70±0.15 .106±.006

0.90 .035 PTH (TYP)

4 PLCS

12.04 .474

2.50 .098

REPRESENTS A CRITICAL DIMENSION.

2. ALL PARTS ARE RoHS COMPLIANT WITH OR WITHOUT -R.

3. ORDERS WILL BE PACKAGED ACCORDING TO THE SAMTEC

PACKAGING EFFICIENCY STANDARDS (SPES) FOUND ON

WWW.SAMTEC.COM

4. ATTACH LABEL TO EACH REEL.

5. TRAYS ARE STANDARD PACKAGING.

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN MILLIMETERS.

TOLERANCES ARE:

DECIMALS

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

2.30 .091 PTH (TYP)

2 PLCS

2.70 .106

POS 2

POS 1

2.00 .079

PROPRIETARY NOTE

X.X: 0.3 [.01]

X.XX: 0.20 [.008]

X.XXX: 0.051 [.0020]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

POS 3

POS 4

INSULATOR: PBT, UL94-V0

CONTACT: PHOSPHOR BRONZE

SHELL: STEEL; NICKEL PLATED

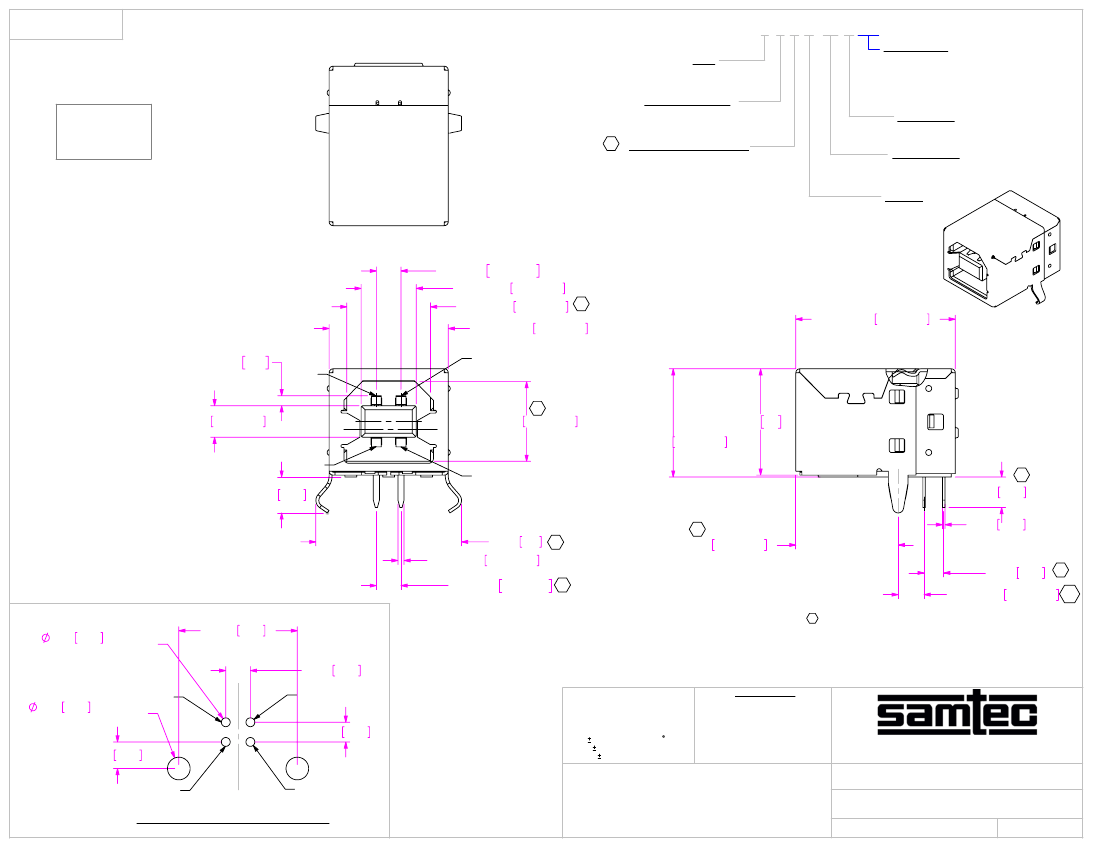

USB TYPE B RIGHT ANGLE THRU HOLE

RECOMMENDED PCB LAYOUT

F:\DWG\MISC\MKTG\USB-B-S-X-X-TH-X-XX-MKT.SLDDRW

USB-B-S-X-X-TH-X-XX

2/06/06

SHEET

BY:

B.HARPENAU

USB-B-S-S-W-TH-TR Related Products

	USB-B-S-S-W-TH-TR	USB-B-S-F-B-TH-TR
Description	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Objectid	1039613540	1039613537
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Factory Lead Time	3 weeks	3 weeks
Other features	TAPE AND REEL	TAPE AND REEL
subject depth	0.638 inch	0.638 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	USB CONNECTOR	USB CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD FLASH OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3	e3
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of ports	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	30u inch	FLASH inch
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL
Shell material	STEEL	STEEL
Terminal length	0.143 inch	0.143 inch
Terminal pitch	2.4892 mm	2.4892 mm
Termination type	SOLDER	SOLDER
Total number of contacts	4	4
UL Flammability Code	94V-0	94V-0
