EPRB-2
Miniature Pressure Transducer
SPECIFICATIONS
Ranges from 0.6 to 700 bar (10 to 10,000 PSI)
Gage and absolute pressure references
Variety of pressure ports
Operating temperature up to 150 °C (300 °F)
0.5 to 4.5V or 4-20mA amplified output
EPRB-2
is an ultra-miniature pressure transducer of 100%
stainless steel welded construction. It is designed for severe
environments where minimum size and light weight are required.
Multiple interfaces such as pressure ports and electrical
outputs, connection thru cables or connectors have been
designed to offer a wide range of adaptability to customer’s
standards.
EPRB-2
models have amplified output, either 5V
DC
ratiometric or 8-30V
DC
for use on vehicle, military, test equipment
or on a test bench.
On request, Instruction documents can be provided to
ease the selection and use of our sensors and provide helpful
tips.
FEATURES
Liquid and gas media compatible
with Stainless Steel
Variety of available pressure ports
Variety of connector and cable outputs
IP66 rating for absolute pressure reference
APPLICATIONS
Motorsports
Downhole Exploration
Off-Road Vehicles
Pipeline pressure
SENSOR SOLUTIONS
/// EPRB-2_en
06/2017
Page 1
EPRB-2
Miniature Pressure Transducer
STANDARD RANGES
Pressure ranges
bar
0.6
1
2
3.5
6
10
20
35
60
100
200
350
700
psi
10
15
30
50
100
150
300
500
1K
1.5K
3K
5K
10K
Pressure Reference
gage*
(type1)
abs.
(type3)
Pressure Overload
(rated pressure)
3 x FS
3 x FS
3 x FS
2 x FS
2 x FS
2 x FS
2 x FS
2 x FS
2 x FS
2 x FS
2 x FS
2 x FS
1.5 x FS
Burst Pressure
(rated pressure)
5 x FS
5 x FS
5 x FS
3 x FS
3 x FS
3 x FS
3 x FS
3 x FS
3 x FS
3 x FS
3 x FS
3 x FS
2 x FS
* Gage model (type 1) is vented to atmosphere through one hole into sensor housing (sensor to be used into dry and clean environment)
PERFORMANCE SPECIFICATIONS (typical values at temperature 23±3°C)
PARAMETERS
Signal &
Supply Voltage
in “notes”
VALUES
Code I5 : 4 to 20mA (tolerances ±0.2 mA)
Code U3 : 0.5 to 4.5 V (tolerances ± 50 mV)
Code U6 : 0 to 5 V (tolerances ± 50 mV)
Code R3 : 0.5 to 4.5 V (tolerances ± 50 mV)
< 10 mA
± 0.05% FS
± 0.25% FS
Zero Offset = 0.1%FS/year
Sensitivity= 0.1%/year
400 Hz
± 1%FSO /100°
C (±2% FSO/100°C for ranges ≤ 1 bar or 15 psi)
± 1% /100°
C (±1.5%/100°C for ranges ≤ 1 bar or 15 psi)
- 40° C to 150° C (-40 °C to 120°C for model I5 : 4 to 20 mA)
0° C to 100° C
Type 3 = 0.5V ± 50mV (0.5V ±100mV
for ranges ≤ 1 bar or 15 psi)
Type 5 = 4 mA ± 0.4 mA (4 mA ±0.8 mA
for ranges ≤ 1 bar or 15 psi)
Type 6 = ± 50mV (± 50mV ±100mV
for ranges ≤ 1 bar or 15 psi)
2g (10Hz to 60Hz) and 20g (60Hz to 1 KHz)
50g (11 ms) and 200g (6 ms)
20 g for model U3 + 25 g per meter of cable
IP66
IP30 for Gage (type 1)
NOTES
Supply 10 to 30 V
DC
Supply 8 to 32 V
DC
Supply 8 to 32 V
DC
Supply 5 Vdc regulated
NA for model I5 (4 to 20 mA)
Max Current
Non-Repeatability
Combined Non-Linearity & Hysteresis
Long term stability
Bandwidth (-3 dB)
Thermal Zero Shift "TZS" in CTR
Thermal Sensitivity Shift "TSS" in CTR
Operating Temperature Range (OTR)
Compensated Temperature Range (CTR)
Zero Offset
Vibration
Shock (1/2 sine)
Weight (without cable)
Ingress Protection
CE compliance
SENSOR SOLUTIONS
/// EPRB-2_en
12/2017
Page 2
EPRB-2
Miniature Pressure Transducer
EN55022 Emissions Class A & B
IEC61000-4-2 Electrostatic Discharge Immunity (1kV contact)
IEC61000-4-3 EM Field Immunity (3V/m)
IEC61000-4-4 Electrical Fast Transient Immunity (1kV)

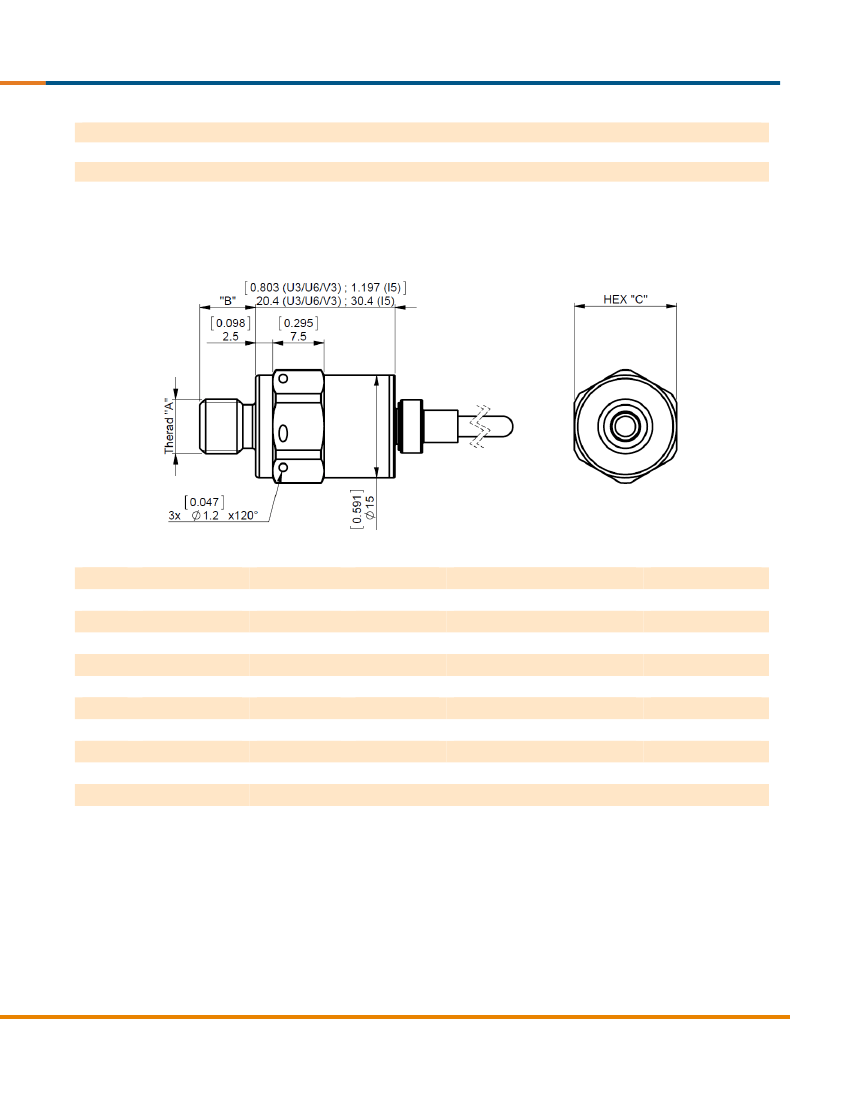

DIMENSIONS
STANDARD EPRB-2 WITH SHIELDED CABLE OUTPUT (standard length = 1m)
MODEL
N
V
S
Q
P
X
Z
W
Y
E
F
THREAD “A”
M5X0.8
10-32 UNF-2A
M8X1
5/16”-24
UNF-2A
M10X1
3/8”-24
UNF-2A
7/16”-20
UNF-2A
G 1/4A (BSP)
1/4”-18 NPT
AS4395E02
AS4395E04
THREAD
LENGTH "B"
8.2 (.323”)
8.2 (.323”)
8.2 (.323”)
8.2 (.323”)
8.2 (.323”)
8.2 (.323”)
8.2 (.323”)
11.7 (.460”)
14 (.551”)
DIM. “C”
15 mm (.590”)
15 mm (.590”)
15 mm (.590”)
15 mm (.590”)
15 mm
(.590”)
15 mm (.590”)
18 mm (.71”)
18
mm (.71”)
18 mm (.71”)
O-RING SUPPLIED
Ø3.5x1.5 FKM
Fluoroelastomer
Ø3.5x1.5 FKM
Fluoroelastomer
Ø6.35x1.6 FKM
Fluoroelastomer
Ø6.35x1.6 FKM
Fluoroelastomer
Ø7.65x1.63 FKM
Fluoroelastomer
Ø7.65x1.63 FKM
Fluoroelastomer
Ø8.92x1.83 NBR
Not Supplied
Not Supplied
per AS4395
per AS4395
INSTALLATION
TORQUE
1 Nm
(2 Nm max.)
1 Nm
(2 Nm max.)
2.5 Nm
(5 Nm max.)
2.5 Nm
(5 Nm max.)
3 Nm
(6 Nm max.)
3 Nm
(6 Nm max.)
5 Nm
(10 Nm max.)
5 Nm
(10 Nm max.)
5 Nm (
10 Nm max.)
SENSOR SOLUTIONS
/// EPRB-2_en
12/2017
Page 3
EPRB-2
Miniature Pressure Transducer

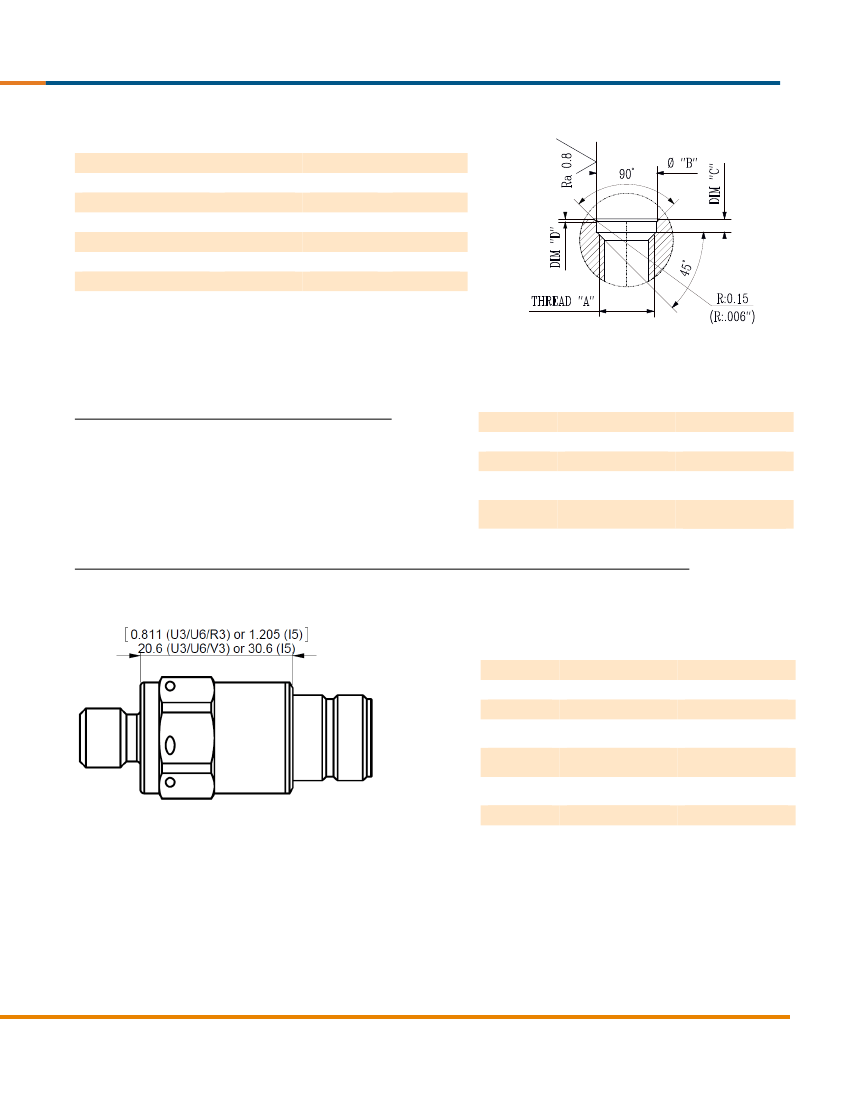

INSTALLATION
RECOMMENDED MOUNTING PORT (1)
Thread “A”
M5X0.8
10-32 UNF
M8x1
5/16-24 UNF
M10x1
3/8”-24
UNF
7/16”-20
UNF
Dim. “B”
5.6 mm
0.22”
8.8 mm
0.35”
10.4 mm
0.41”
0.48”
Dim. “C”
1.5 mm
0.06”
1.9 mm
0.075”
2.0 mm
0.077”
0.086”
Dim. “D”
0.2 mm
0.01”
0.4 mm
0.015”
0.4 mm
0.015”
0.015”
1. Tolerances on dimensions = ± 0.05 mm
(0.002”)
WIRING AND CONNECTOR OUTPUT OPTIONS
Standard cable output: shielded cable (4 x AWG26)
Cable shield not connected to housing for model
U3/U6/R3
Cable shield connected to housing for model
I5
Wire color
Red
Black
Green
White
Model U3/U6/R3
+SUPPLY
-SUPPLY
+OUTPUT
-OUTPUT
Model I5
+SUPPLY
-SUPPLY
reserved to
factory
reserved to
factory
Option
CM1:
integral connector Deutsch
DCS 11 T 8-7 PN
(recommended for Mil-Aero applications)
Mating connector
DCS 07 D 8-7 SN RD
not supplied.
CM1
1
2
3
4
5
6
7
Model U3/U6/R3
-SUPPLY
not used
common with pin
1
+OUTPUT
-OUTPUT
not used
+SUPPLY
Model I5
-SUPPLY
not used
not used
reserved to
factory
reserved to
factory
not used
+SUPPLY
SENSOR SOLUTIONS
/// EPRB-2_en
12/2017
Page 4
EPRB-2
Miniature Pressure Transducer

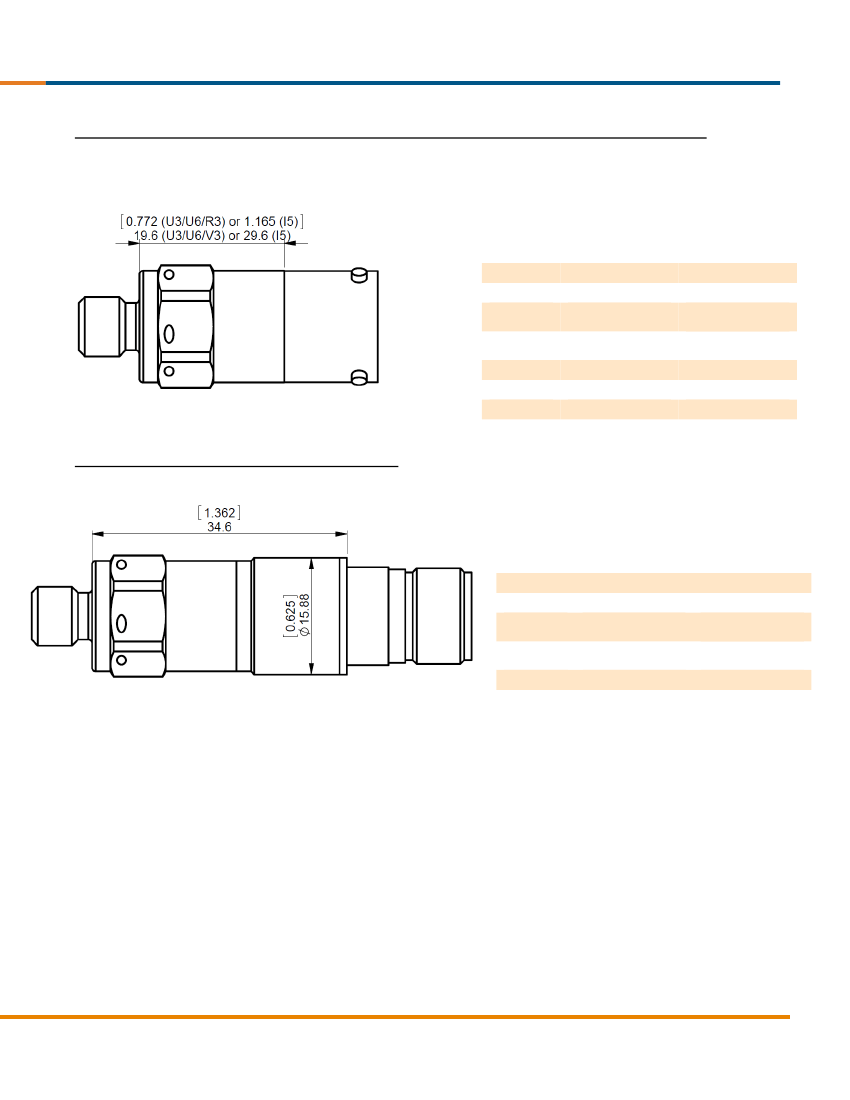

Option
CM2:
integral connector
MIL-C 26482 MS3113H10-6P
(limited to operating temperature 125°C)
Mating connector
MS3116J10-6S
not supplied.
To order mating connector with wired shielded cable 4 leads
AWG26, use the reference ECS-CM2-/LxxM by replacing xx by length in meter (1m, 3m, 5m or 10m available).
CM2
A
B
C
D
E
F
Model U3/U6/R3
+SUPPLY
+OUTPUT
-OUTPUT
-SUPPLY
not used
not used
Model I5
+SUPPLY
reserved to
factory
reserved to
factory
-SUPPLY
not used
not used
Option
CM3:
integral connector
805-006-03Z18-4CA
Mating connector
805-001-16M8-4SA
not supplied.
CM3
1
2
3
4
Model U3/U6/R3
+SUPPLY
+OUTPUT
-OUTPUT
-SUPPLY
Model I5
+SUPPLY
reserved to
factory
reserved to
factory
-SUPPLY
SENSOR SOLUTIONS
/// EPRB-2_en
12/2017
Page 5
