BR93C86-10SU-2.7 datasheet, PDF

Datasheet> All Categories > storage> storage> BR93C86-10SU-2.7

BR93C86-10SU-2.7: DescriptionSupply voltage 2.7V~5.5V/Operating temperature -40C~+85C type; Categorystorage storage; File Size282KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BR93C86-10SU-2.7 Overview

Supply voltage 2.7V~5.5V/Operating temperature -40C~+85C type

BR93C86-10SU-2.7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	LSOP, SOP8,.25
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
Maximum clock frequency (fCLK)	1 MHz
Data retention time - minimum	100
Durability	1000000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
JESD-609 code	e3/e2
length	4.9 mm
memory density	16384 bi
Memory IC Type	EEPROM
memory width	16
Number of functions	1
Number of terminals	8
word count	1024 words
character code	1000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	1KX16
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	260
power supply	3/5 V
Certification status	Not Qualified
Maximum seat height	1.475 mm
Serial bus type	MICROWIRE
Maximum standby current	0.00001 A
Maximum slew rate	0.002 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	3.9 mm
Maximum write cycle time (tWC)	10 ms
write protect	SOFTWARE
Base Number Matches	1

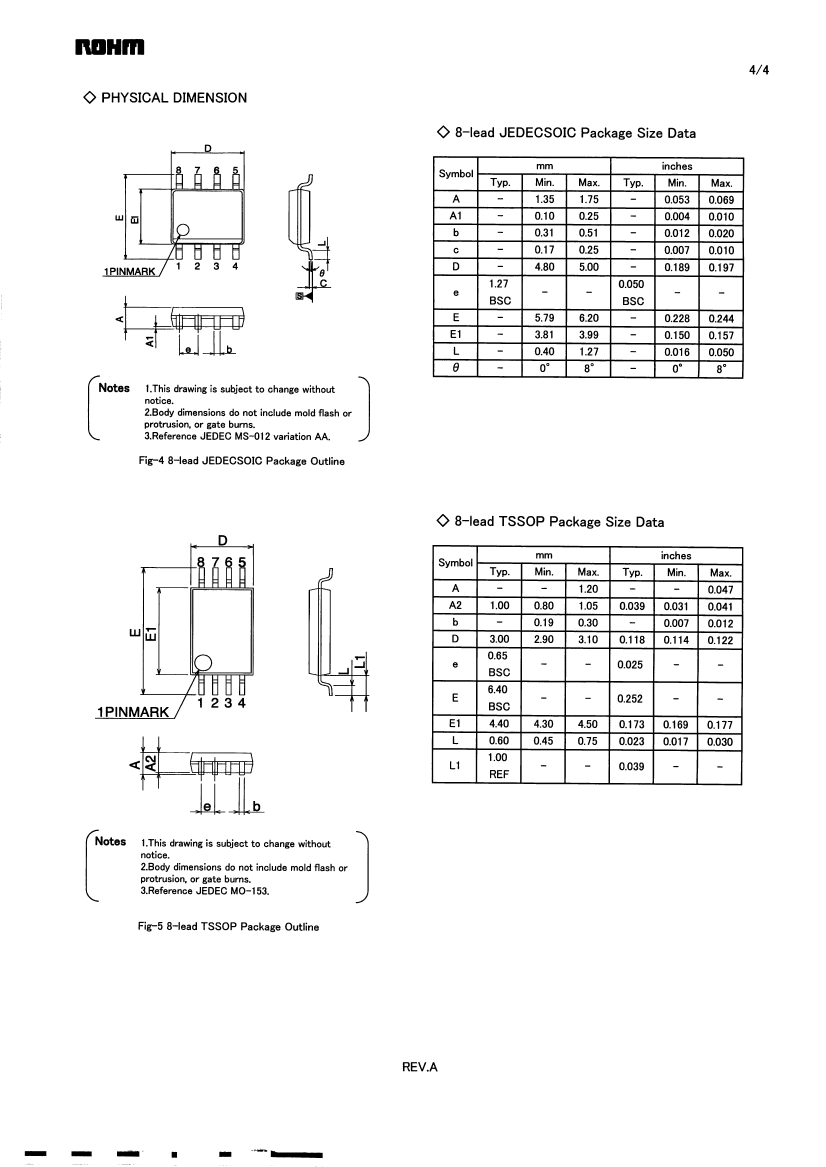

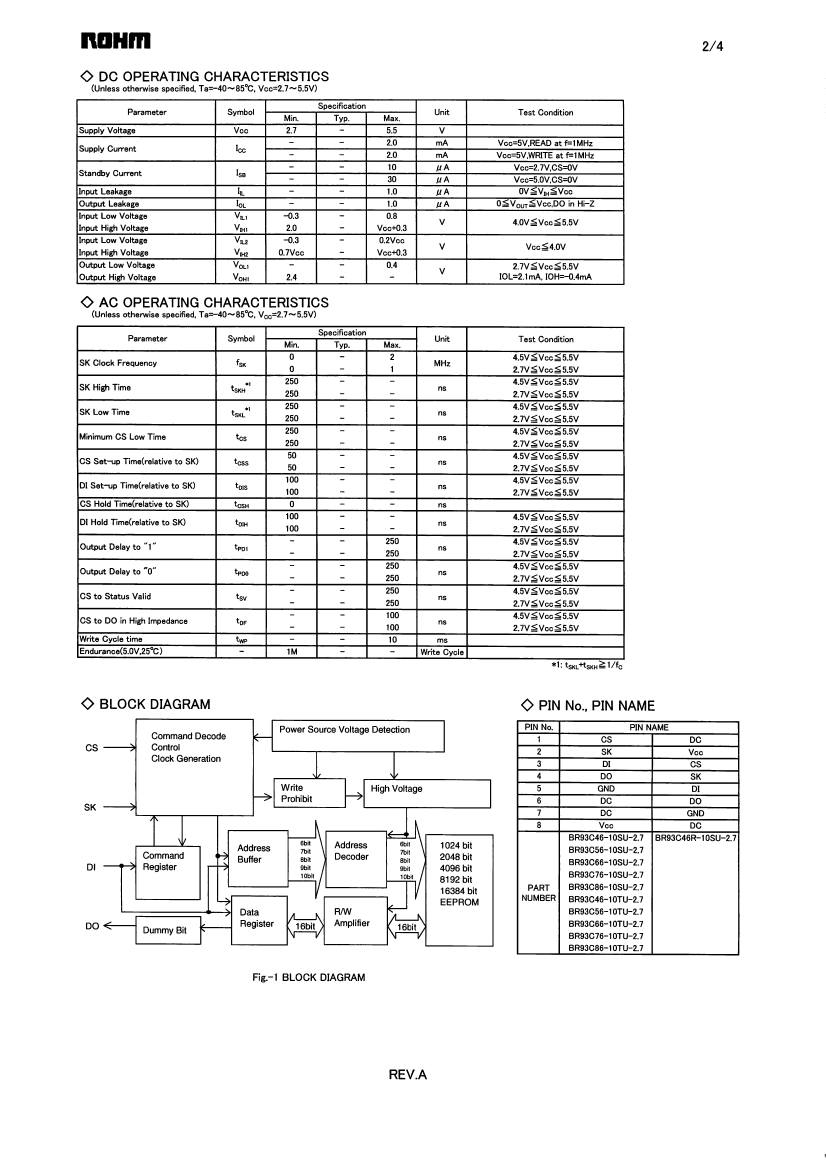

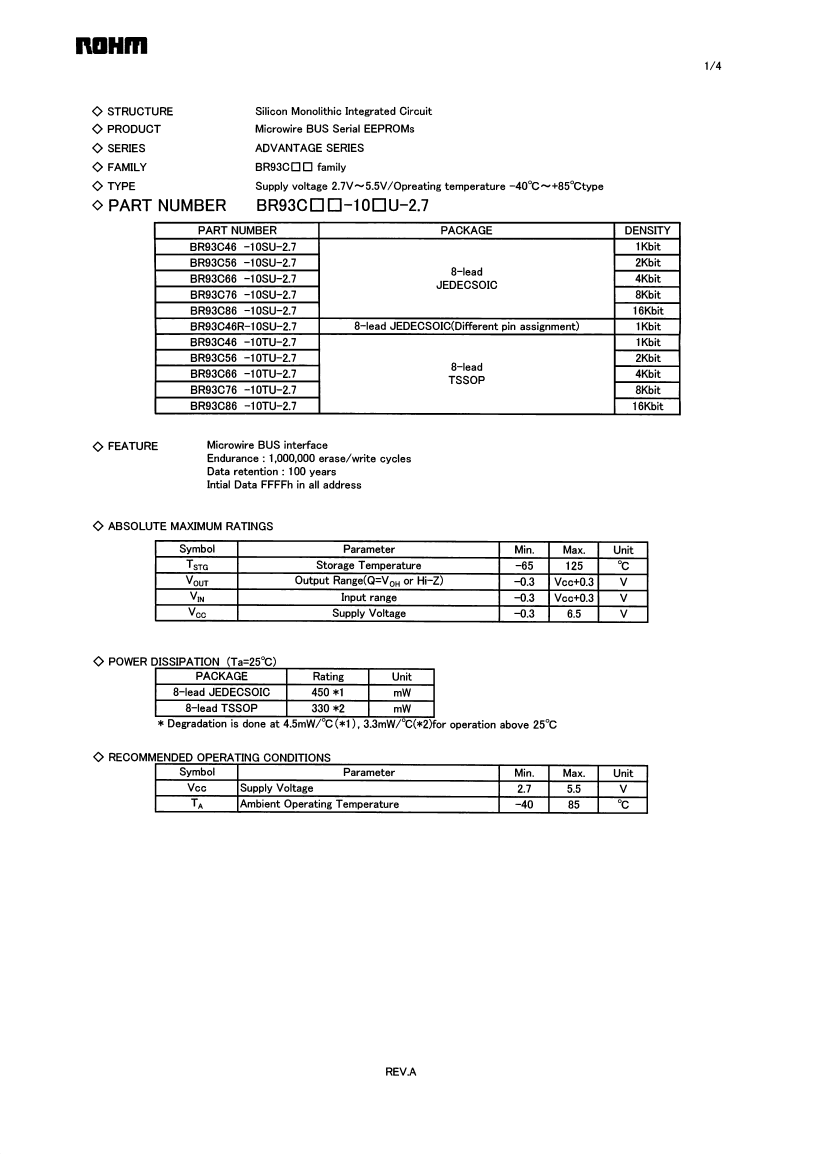

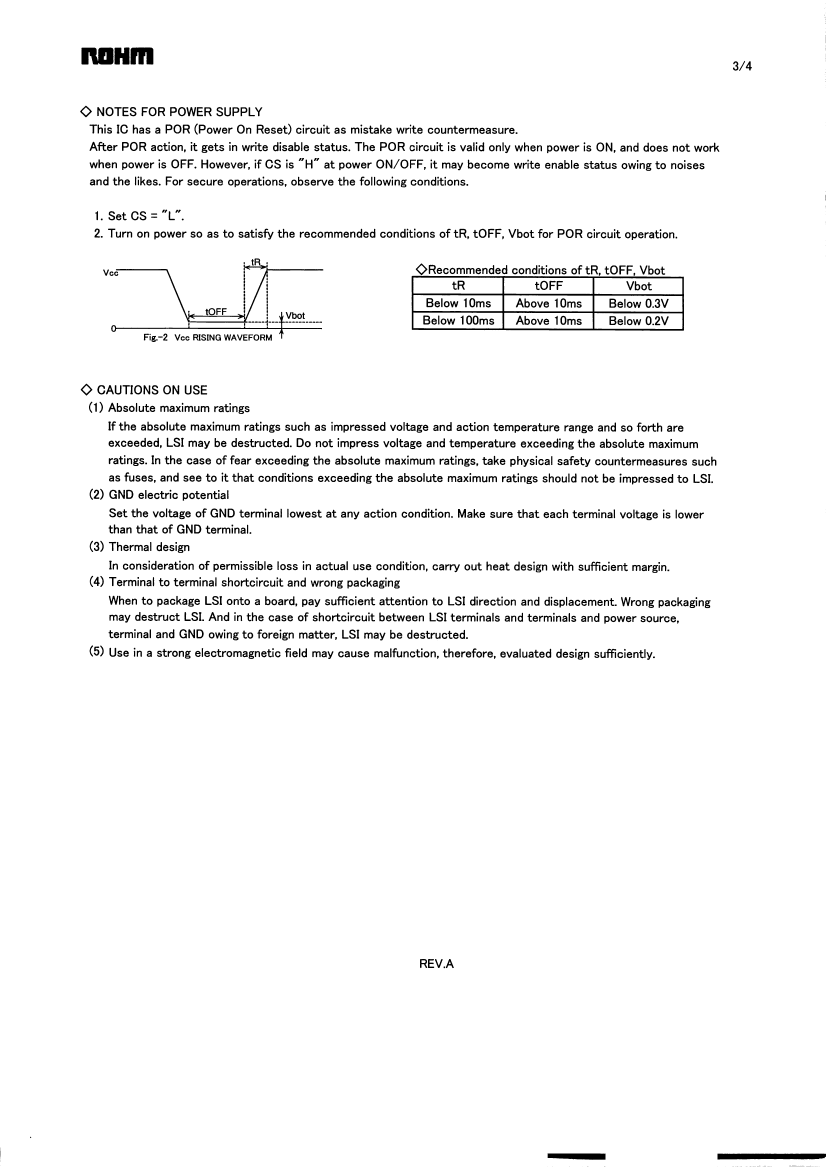

Preview

Download Datasheet

View All

Appendix

Notes

No technical content pages of this document may be reproduced in any form or transmitted by any

means without prior permission of ROHM CO.,LTD.

The contents described herein are subject to change without notice. The specifications for the

product described in this document are for reference only. Upon actual use, therefore, please request

that specifications to be separately delivered.

Application circuit diagrams and circuit constants contained herein are shown as examples of standard

use and operation. Please pay careful attention to the peripheral conditions when designing circuits

and deciding upon circuit constants in the set.

Any data, including, but not limited to application circuit diagrams information, described herein

are intended only as illustrations of such devices and not as the specifications for such devices. ROHM

CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any

third party's intellectual property rights or other proprietary rights, and further, assumes no liability of

whatsoever nature in the event of any such infringement, or arising from or connected with or related

to the use of such devices.

Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or

otherwise dispose of the same, no express or implied right or license to practice or commercially

exploit any intellectual property rights or other proprietary rights owned or controlled by

ROHM CO., LTD. is granted to any such buyer.

Products listed in this document are no antiradiation design.

The products listed in this document are designed to be used with ordinary electronic equipment or devices

(such as audio visual equipment, office-automation equipment, communications devices, electrical

appliances and electronic toys).

Should you intend to use these products with equipment or devices which require an extremely high level of

reliability and the malfunction of with would directly endanger human life (such as medical instruments,

transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other

safety devices), please be sure to consult with our sales representative in advance.

About Export Control Order in Japan

Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control

Order in Japan.

In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause)

on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction.

Appendix1-Rev1.1
