ZS4734A-G: DescriptionZener Diode, 5.6V V(Z), 5%, 1W,; CategoryDiscrete semiconductor diode; File Size3MB，3 Pages; ManufacturerWeitron Technology; Websitehttp://weitron.com.tw/; Environmental Compliance

Download Datasheet Parametric Compare View All

ZS4734A-G Overview

Zener Diode, 5.6V V(Z), 5%, 1W,

ZS4734A-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	105870302
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode type	ZENER DIODE
Maximum dynamic impedance	5 Ω
Number of components	1
Maximum operating temperature	150 °C
Maximum power dissipation	1 W
Nominal reference voltage	5.6 V
surface mount	YES
Maximum voltage tolerance	5%
Working test current	45 mA

Preview

Download Datasheet

View All

ZS4728A Thru ZS4753A

* "G" Lead(Pb)-Free

Surface Mount Zenet Diodes

Features

*1W Power Dissipation

*For Surface Mounted Applications

*Low zener Impedance

*Low Regulation Factor

*Zener Breakdown Voltage Range 3.3V to 36V

Mechanical Data

*Case : SMA-1

*Terminals : Solderable per MIL-STD-202,Method 208

*Polarity : Color Band Denotes Cathode

*Marking : Marking Code(See Table on Page 2)

*Mounting Position : Any

*Weight : 0.05 grams

SURFACE MOUNT

ZENER DIODES

1.0 WATTS

SMA-1

SMA-1 Outline Dimension

B

C

A

E

J

H

Dimensions in inches

unit:mm

SMA-1

Dim

A

B

C

E

H

J

Min

2.40

4.40

0.30

3.80

1.00

1.50

Max

2.80

4.80

0.30

4.20

1.00

1.70

H

WEITRON

http://www.weitron.com.tw

1/3

03-May-05

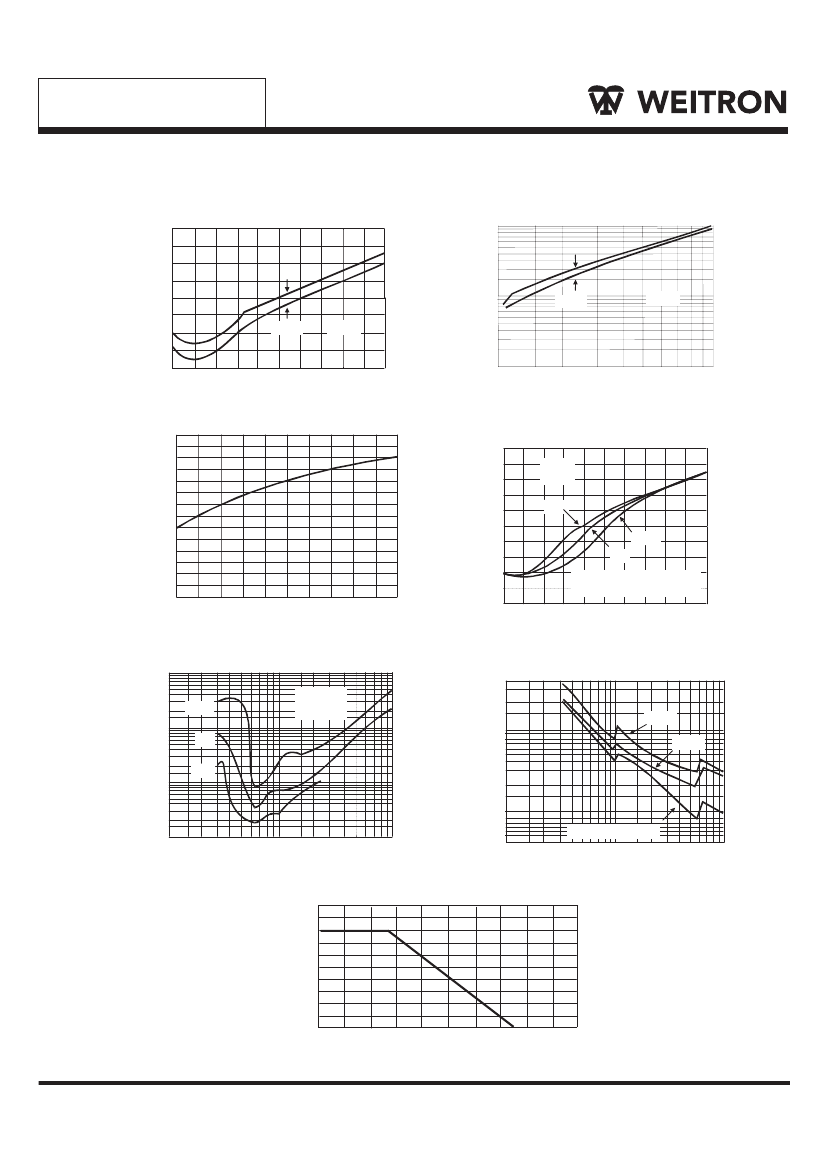

ZS4734A-G Related Products

	ZS4734A-G	ZS4729A-G	ZS4733A-G	ZS4738A-G	ZS4740A-G	ZS4743A-G	ZS4744A-G
Description	Zener Diode, 5.6V V(Z), 5%, 1W,	Zener Diode, 3.6V V(Z), 5%, 1W,	Zener Diode, 5.1V V(Z), 5%, 1W,	Zener Diode, 8.2V V(Z), 5%, 1W,	Zener Diode, 10V V(Z), 5%, 1W,	Zener Diode, 13V V(Z), 5%, 1W,	Zener Diode, 15V V(Z), 5%, 1W
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	105870302	105870297	105870301	105870306	105870308	105870311	1281488681
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	5 Ω	10 Ω	7 Ω	4.5 Ω	7 Ω	10 Ω	14 Ω
Number of components	1	1	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum power dissipation	1 W	1 W	1 W	1 W	1 W	1 W	1 W
Nominal reference voltage	5.6 V	3.6 V	5.1 V	8.2 V	10 V	13 V	15 V
surface mount	YES	YES	YES	YES	YES	YES	YES
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%	5%
Working test current	45 mA	69 mA	49 mA	31 mA	25 mA	19 mA	17 mA
