CRS-02LDE-20-SG: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size151KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CRS-02LDE-20-SG Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug

CRS-02LDE-20-SG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304502866
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.12 inch
subject depth	0.083 inch
body length	1.016 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	CRS
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.063 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

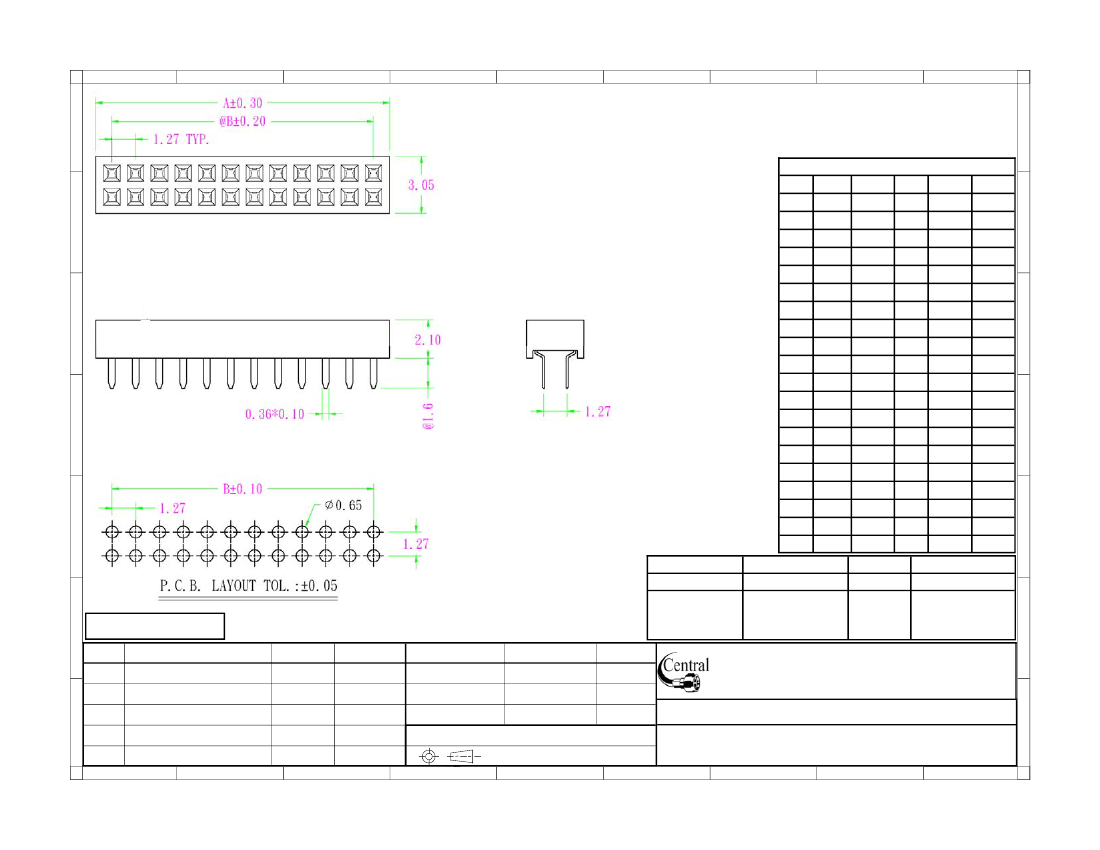

SPECIFICATIONS

Contact material:

Contact plating:

Insulator material:

C

D

E

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

Pos.

A

02

2.94

Phosphor bronze

Gold flash over nickel

03

4.21

Nylon 6T, UL94V-0

04

5.48

05

6.75

06

8.02

07

9.29

08 10.56

09 11.83

10 13.10

11 14.37

12 15.64

13 16.91

14 18.18

15 19.45

16 20.72

17 21.99

18 23.26

19 24.53

20 25.80

21 27.07

Series

Rows

CRS

02LDE

Receptacle strip, 02LDE=Dual row,

1.27mm pitch

2.1mm profile

Date

08/10/99

08/10/99 Part No.:

Dimensions

B

Pos.

A

B

1.27 22

28.34 26.67

2.54 23

29.61 27.94

3.81 24

30.88 29.21

5.08 25

32.15 30.48

6.35 26

33.42 31.75

7.62 27

34.69 33.02

8.89 28

35.96 34.29

10.16 29

37.23 35.56

11.43 30

38.50 36.83

12.70 31

39.77 38.10

13.97 32

41.04 39.37

15.24 33

42.31 40.64

16.51 34

43.58 41.91

17.78 35

44.85 43.18

19.05 36

46.12 44.45

20.32 37

47.39 45.72

21.59 38

48.66 46.99

22.86 39

49.93 48.26

24.13 40

51.20 49.53

25.40

Contacts

Plating

XX

2-40

GD=Gold

TN=Tin

SG=Selective gold

B

C

D

E

F

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

CRS-02LDE-XX-XX

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: Receptacle strip, 1.27mm pitch

G
