A1-17-SSE-CMS-254-T/A datasheet, PDF

Datasheet> All Categories > The connector> The connector> A1-17-SSE-CMS-254-T/A

A1-17-SSE-CMS-254-T/A: DescriptionBoard Connector, 17 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerAntelec; Websitehttp://www.antelec.fr; Environmental Compliance

Download Datasheet Parametric View All

A1-17-SSE-CMS-254-T/A Overview

Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

A1-17-SSE-CMS-254-T/A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8035812160
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	A1
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	17
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

BTB

2.54 mm

www.antelec.fr

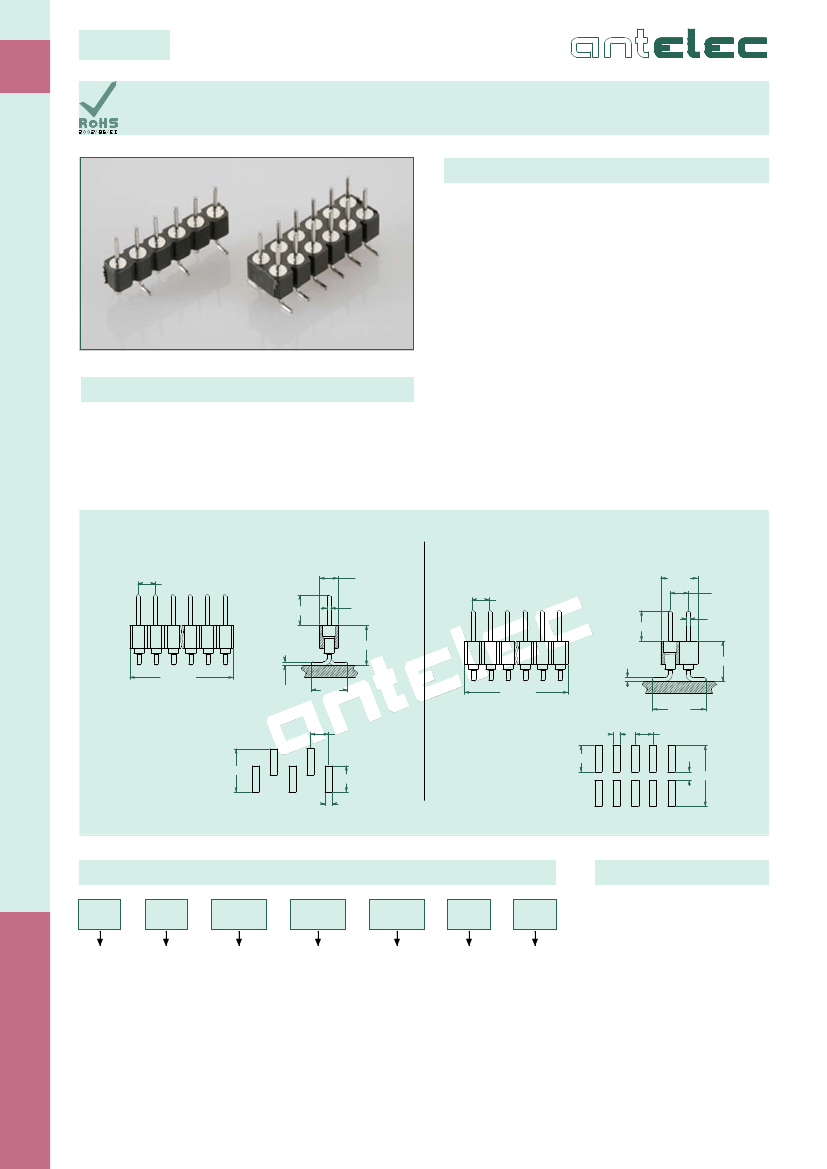

Pin header straight SMT type pin Ø 0.50 mm

Product specifications

High quality machine pins

Current rating : 3.0 A

Dielectric withstanding voltage : > 1000 Volts RMS

Operating temperature : -55°C to +125°C

Max processing temperature : 260°C during 5 sec

Mechanical cycles : 500 cycles min

Contact : brass

Plating : tin (standard)

Insulator : LCP, UL94V-0

Mates with

A(1 or 2)-XX-BSE

A(1 or 2 or 3)-XX-(BSE-X, TPB or BXE)

A(1 or 2 or 3)-XX-(BSE or BSD)-XX

AGPS1-XX-(BSE or BCZXX or BCZ-TPB)

A(1 or 2)-XX-BSE-CMS-254

1 Row

2.54

3.6

Ø 0.47

2 Rows

5.08

2.54

Ø 0.47

3.6

4.8

Ø 0.47

N x 2.54

Ø 0.47

4.2

N x 2.54

6.94

4.8

2.54

3.20

5.50

3.20

0.80

2.54

1.60

8.00

PCB layout

(tolerance ± 0.05 mm)

PCB layout

(tolerance ± 0.05 mm)

0.80

Create your part number

Product range

BOARD TO BOARD 2.54

Antelec

1 row

or A2 for

2 rows

Total

number

of contacts

SSE

Standard

Tin DIP

Pin header

CMS

SMT

version

254

Pitch

2.54 mm

Pin N°1

on left

or 1D for

Pin N°1

on right

(only for

1 row,

number

of pins

even)

In Bulk or

B/A for Reel

with pad or

T/A for Tub

with pad

Number of pins :

1 row : 3 to 64 pins

2 rows : 4 to 72 pins

102

info@antelec.fr

tel: +33 (0)1 49 80 14 14

fax: +33 (0)1 49 80 14 15
