Preview

2BK65-63: DescriptionToggle Switch, DPST, Latched, 6A, 125VDC, Wire Terminal, Bat Type Actuator, Panel Mount-threaded,; CategoryMechanical and electronic products switch; File Size61KB，1 Pages; ManufacturerCarling Technologies; Environmental Compliance

Download Datasheet Parametric Compare View All

2BK65-63 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2BK65-63	-	-	View	Buy Now

2BK65-63 Overview

Toggle Switch, DPST, Latched, 6A, 125VDC, Wire Terminal, Bat Type Actuator, Panel Mount-threaded,

2BK65-63 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	4 weeks
Actuator type	BAT TYPE
body width	13.41 mm
body height	14.73 mm
Body length or diameter	25 mm
Contact (AC) maximum rated R load	6A@125VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	6 A
Contact (DC) maximum rated R load	6A@125VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	125 V
Electrical life	25000 Cycle(s)
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	66 °C
Minimum operating temperature	-18 °C
surface mount	NO
Switch action	LATCHED
switch function	DPST
Switch type	TOGGLE SWITCH
Termination type	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

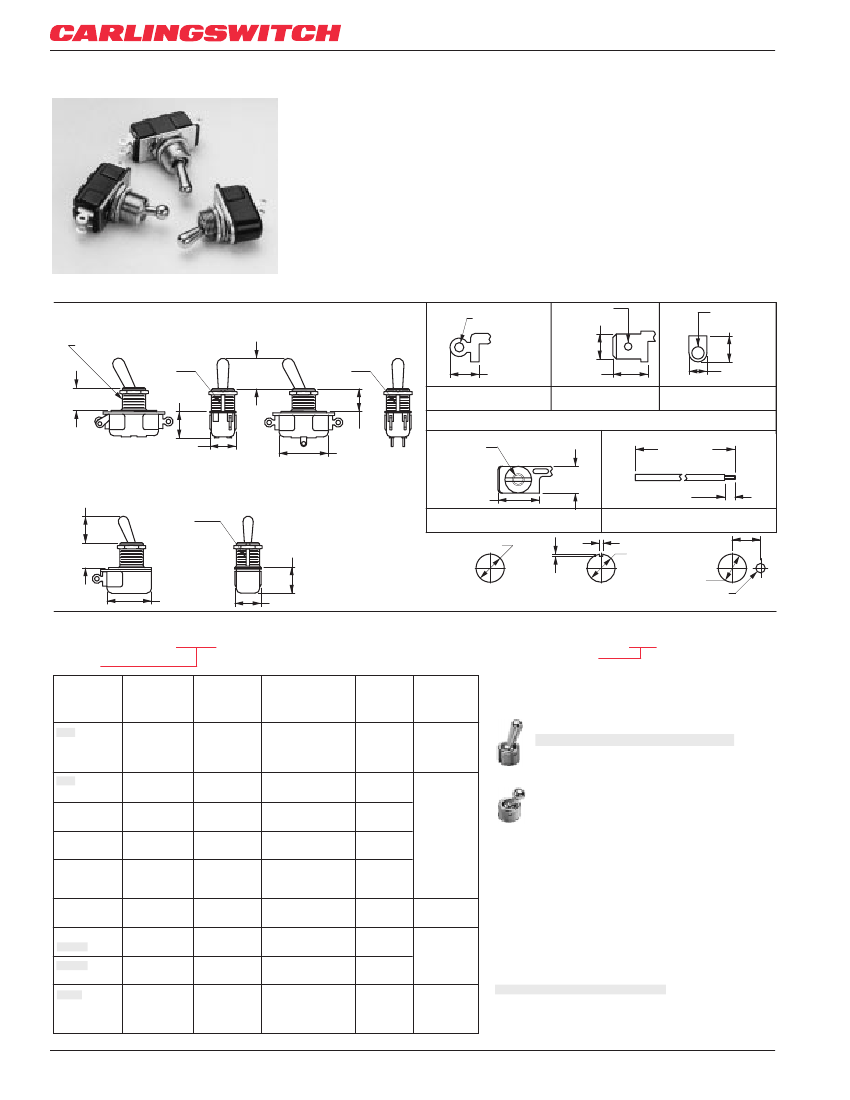

Toggle Switches

110/216-Series

The 110/216-Series toggle switches

utilize a quick-make, quick-break contact

mechanism and are available in both

single and double pole. These switches

are 125-250 volts AC/DC rated and

suitable for shallow back panel

applications. They are available in a

range of circuits, terminations and

bushing/toggle configurations.

Specifications

•Certifications*: UL, CSA

•Dielectric Strength: 1,000V (minimum)

•Insulation Resistance: 100 Megohms

(minimum)

•Base Material: Phenolic

•Actuator Material: Brass/Nickel Plate

•Bushing Material: Brass/Nickel Plate

* Due to ongoing technological advances, consult factory for

certification specifics.

Dimensional Specifications: in. [mm]

15/32-32UNS-2A

THREAD

KEYWAY

.072[1.82]

X

.038[.965] DP

.580[14.73]

KEYWAY

.072[1.82]

X

.038[.965] DP

.093[2.36] DIA

.075[1.90] DIA

.250[6.35]

.070[1.77] DIA

.174[4.42]

.687[17.46]

.293[7.44]

SOLDER LUG

.351[8.92]

.250 TAB (Q.C.)

(SPST only)

.120[3.05]

SOLDER LUG

(bottom)

.465[11.81]

TERMINAL TYPE

.465[11.81]

.528[13.41]

112, 216, 316, 516

2BB, 2BK, 2BL SERIES

.687[17.46]

.984[25.00]

316, 516

2BL62 SERIES

.415[10.54]

SCREW

(ASSEMBLED)

.560[14.22]

110, 111, 160 SERIES

.890[22.60]

.524[13.31]

MOUNTING HOLE

.500[12.70] DIA

#6-32NC-2

THREAD

6.000[152.4]

.270[6.86]

.500[12.70]

INTEGRATED WIRE LEAD

(no exposed conductors)

.376[9.55]

.062[1.57]

.500[12.70] DIA

.038[9.65]

WITH KEYWAY

.500[12.70] DIA

.125[3.17] DIA

WITH LOCKING RING

KEYWAY

.072[1.82]

X

.038[.965] DP

.465[11.81]

110

SERIES

(ON)

MOMENTARY

NORMALLY

OPEN

110-M-NO

110-BM-NO

110-SM-NO

111-16M-NO

112-M

112-M-A

216-M-NO

216-M-ANO

NONE

(OFF)

MOMENTARY

NORMALLY

CLOSED

TERMINAL

110-M-NC

110-BM-NC

110-SM-NC

111-16M-NC

NONE

SOLDER LUG-END

SOLDER LUG-BTM

SCREW TERM.

WIRE LEAD

SOLDER LUG-END

WIRE LEAD

SOLDER LUG-END

WIRE LEAD

SOLDER LUG

SOLDER LUG-BTM

SOLDER LUG-END

WIRE LEAD

SOLDER LUG-BTM

WIRE LEAD

SOLDER LUG-END

WIRE LEAD

SOLDER LUG-END

SOLDER LUG-BTM

SOLDER LUG-END

WIRE LEAD

SOLDER LUG-BTM

SCREW TERM.

CIRCUIT

& POLES

SP-ST

-

TOGGLE STYLE

2

TOGGLE

LENGTH

.375

.500

.687

RATING

1

3A 250V

6A 125V

73

BAT

BUSHING

LENGTH

.343

.465

SUFFIX

NO.

52

63

73

NEOPRENE

SEAL

57

68

78

MAINTAINED

110

110-B

110-S

111-16

112

112-A

216

216-A

316

316-B

516

516-A

516-B

2BB65

2BB62

2BK65

2BK62

2BL62

2BL63

160H

160H-A

160H-B

160H-S

SP-DT

1A 250V

3A 125V

BALL .375

.375

.250

.343

21

22

---

216-M-NC

216-M-ANC

316-M

316-BM

516-M

516-AM

516-BM

NONE

DP-ST

DP-DT

NONE

2 CIRCUIT

NONE

SP-DT

6A 125VAC

NONE

DP-ST

3A 250V

6A 125V

NONE

DP-DT

NOTES:

Shading indicates standard configurations.

Tab terminals available on all above SP-ST switches. Add suffix /TABS.

(ex.) 110-73/TABS

1

Additional ratings available. Consult factory.

2

Momentary functions are available only with 73 toggles.

NONE

SP-ST

5A 250V

10A 125V

1/4HP 125V

58
