SSC04028R2YZF: DescriptionSMD POWER INDUCTORS; File Size394KB，5 Pages; ManufacturerSUPERWORLD; Websitehttp://www.superworld.com.sg/

Download Datasheet View All

SSC04028R2YZF Overview

SMD POWER INDUCTORS

Preview

Download Datasheet

View All

SMD POWER INDUCTORS

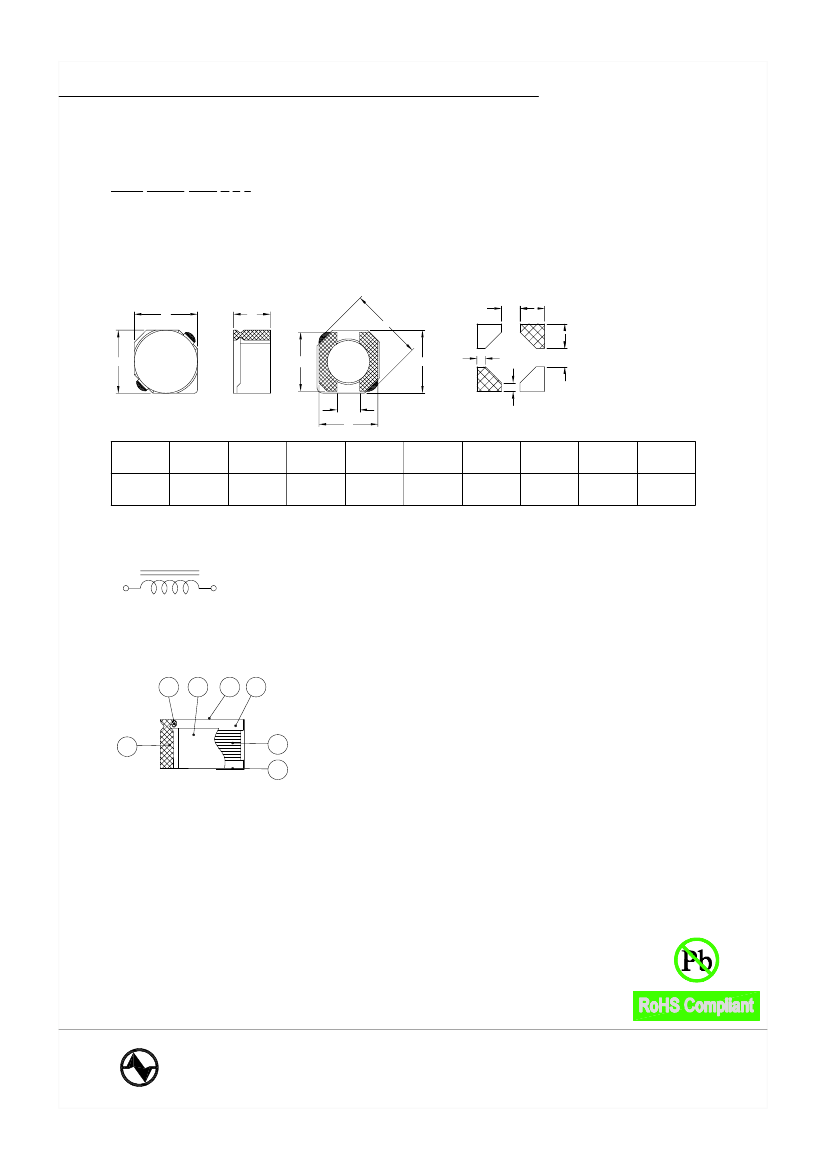

1. PART NO. EXPRESSION :

SSC0402 SERIES

SSC04021R0YZF

(a)

(b)

(a) Series code

(b) Dimension code

(d) Tolerance code : Y = ±30%

(e) X, Y, Z : Standard part

(f) F : Lead Free

2. CONFIGURATION & DIMENSIONS :

1R0

PCB Pattern

Unit : m/m

4.50 Ref.

1.50 Ref.

6.90 Max.

1.70 Ref.

1.80 Ref.

0.80 Ref.

4.70±0.3

2.00 Max.

4.50 Ref.

3. SCHEMATIC :

4. MATERIALS :

(a) Core : DR Ferrite Core

(b) Core : RI Ferrite Core

(d) Terminal : Au+Ni Copper Plate

(e) Adhesive : Epoxy

(f) Adhesive : Epoxy

(g) Ink : Bon Margue

5. GENERAL SPECIFICATION :

a) Temp. rise : 40°C Max. at rated current

b) Rated current : Base on temp. rise & L/L0A = 35% Max.

c) Storage temp. : -40°C to +125°C

d) Operating temp. : -40°C to +85°C

e) Resistance to solder heat : 260°C.10 secs

NOTE : Specifications subject to change without notice. Please check our website for latest information.

05.08.2008

SUPERWORLD ELECTRONICS (S) PTE LTD

PG. 1
