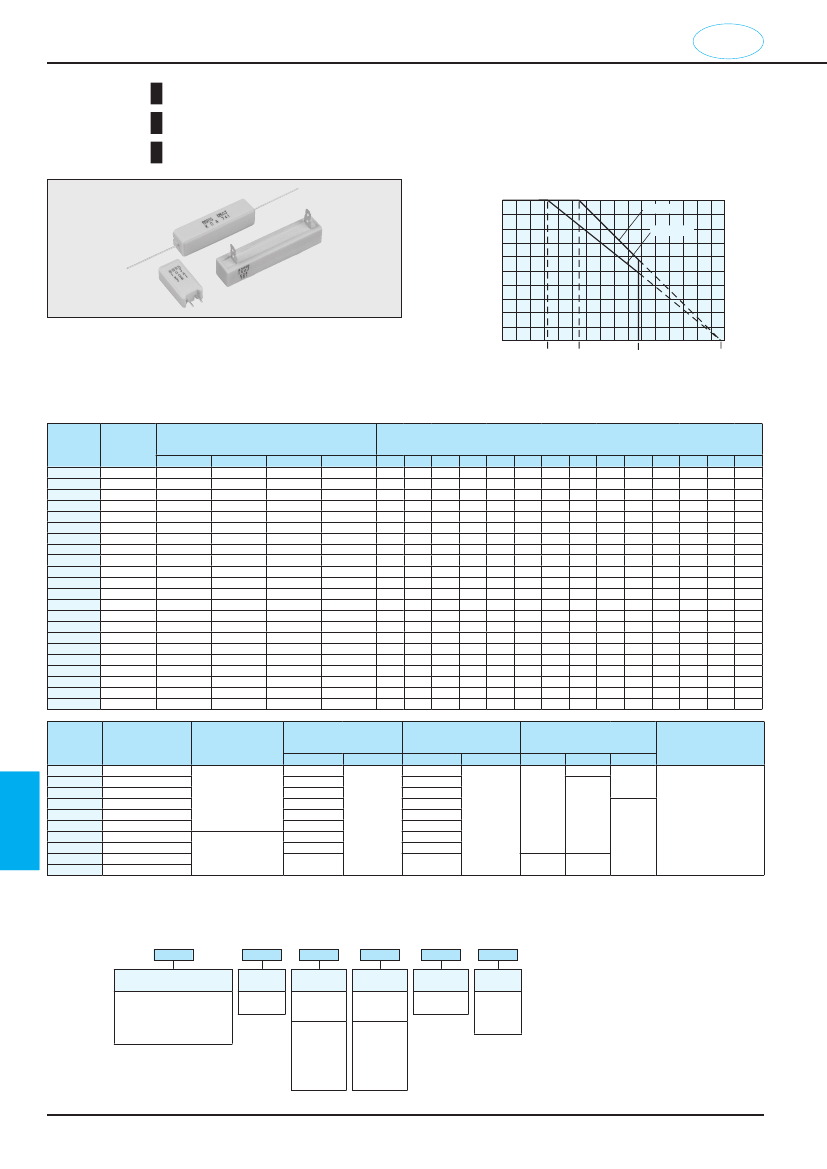

Rectangular Type Wirewound Resistors With Glass Core

Rectangular Type Wirewound Resistors With Ceramic Core

Rectangular Type Metal Oxide Film Resistors

■Derating Curve

100

1W∼10W

15W∼40W

Percent rated power

（％）

80

60

40

20

0

-40 -20

0 20

40

25

Ambient temperature

（℃）

60 80 100 120 140 160 180 200 220 240 260 280

70

155

275

For resistors operated at an ambient temperature or higher,the power shall be

derated in accordance with the above derating curve.

■Ratings

Type

BWR1

BWR2

BWR3

BWR5

BWR7

BWR10

BWR15

BWR20

BGR5

BGR7

BGR10

BGR15

BGR20

BGR30

BGR40

BSR2

BSR3

BSR5

BSR7

BSR10

BSR15

BSR20

Power

Rating

1W

2W

3W

5W

7W

10W

15W

20W

5W

7W

10W

15W

20W

30W

40W

2W

3W

5W

7W

10W

15W

20W

Resistance Range（Ω）

E24

F：±1%

1½56

1½160

1½300

1½360

1½390

—

G：±2%

0.22½75

0.22½200

0.22½390

—

Rated Ambient

Temperature

J：±5%

0.1½75

0.1½200

0.1½390

10½390

430½13k

430½27k

430½51k

430½56k

430½75k

430½56k

K：±10%

—

0.39½9.1

0.51½9.1

2.2½9.1

—

S

1.3

2.1

3.9

5.1

7.5

10.2

18.8

23.3

—

2.1

3.9

5.1

7.4

10.2

18.8

23.3

N

—

3.9

5.9

7.2

10.8

15.0

—

3.8

5.9

7.2

10.8

15.0

—

E

—

5.7

—

5.7

—

P

—

5.6

—

Style & Weight（g/1pcs）

X

Y

YS

Z

H

—

6.1

7.6

6.6

7.6

—

8.2

9.1

7.8

9.1

—

11.0 12.4 10.4 11.4

9.9

18.8

—

— 20.5 18.4

22.3

—

— 24.0 21.9

—

— 59.3

—

— 70.4

—

6.1

7.6

6.6

7.6

—

8.2

9.1

7.8

9.1

—

11.0 12.4 10.4 11.4 10.9

18.5

—

— 20.5 18.4

22.0

—

— 24.0 21.9

Q

—

6.2

7.8

10.7

18.6

22.1

59.6

70.6

—

6.2

7.8

10.7

18.6

22.1

HA

—

13.6

24.4

27.9

73.9

85.0

—

13.7

24.4

27.9

HB

—

27.5

31.0

73.5

84.6

—

27.5

31.0

QA

—

14.5

24.6

28.1

74.2

85.2

—

14.5

24.6

28.1

QB

—

27.7

31.3

73.8

84.8

—

27.7

31.3

Type

BWR1

B□R2

B□R3

B□R5

B□R7

B□R10

B□R15

B□R20

BGR30

BGR40

Power Rating

1W

2W

3W

5W

7W

10W

15W

20W

30W

40W

Max.Working Voltage

（V）

BSR

—

250

300

350

500

700

750

—

BGR BWR

・

Max.Overload Voltage

（V）

BSR

—

500

600

700

1000

1400

1500

—

BGR・

BWR

T.C.R.（×10

−6

/K）

BWR

BSR

—

BGR

—

Operating Temp.

Range

High Power Type Resistors

＋70℃

E＝

√￣￣

P・R

E＝

√￣￣￣￣

P R 10

・・

±100

±300

±250

－40℃½＋155℃

＋25℃

—

Rated voltage＝

√￣￣￣￣￣￣￣￣￣￣￣￣

or Max. working voltage, whichever is lower.

Power Rating×Resistance value

Please consult with us in advance about custom-made products.

■Type Designation

Example

BWR

Product

Code

BGR：Wirewound

（Glass core）

BWR：Wirewound

（Ceramic core）

BSR：Metal oxide film

3

Power

Rating

See table

above

C

Terminal

※1

Surface Material

C：SnCu

T：Sn

N

Style

※2

Nil：S style

N：N style

E：E style

P：P style

X：X style

Y：Y style

YS：YS style

Z：Z style

H：H style

Q：Q style

HA：HA style

HB：HB style

QA：QA style

QB：QB style

100

Nominal

Resistance

F：4 digits

G,J,K：3 digits

J

Resistance

Tolerance

F：±1%

G：±2%

J：±5%

K：±10%

※1 Lead-Free plated terminal symbols.

C

（SnCu）

：N, E, S and P styles

T

（Sn）

：X, Y, YS, Z, H and Q styles

※2 No indication on style means S style.

Contact us when you have control request for environmental

hazardous material other than the substance specified by

EU-RoHS.

178

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

Contact our sales representatives before you use our products for applications including automotives, medical equipment and aerospace equipment.

Malfunction or failure of the products in such applications may cause loss of human life or serious damage.

Oct. 2020

Oct. 2021

www.koaglobal.com

■Features

・High-power

resistor.

・Using

flame-retardant/insulated ceramic case.

・Excellent

in anti-pulse and inrush current.

・Products

meet EU-RoHS requirements.

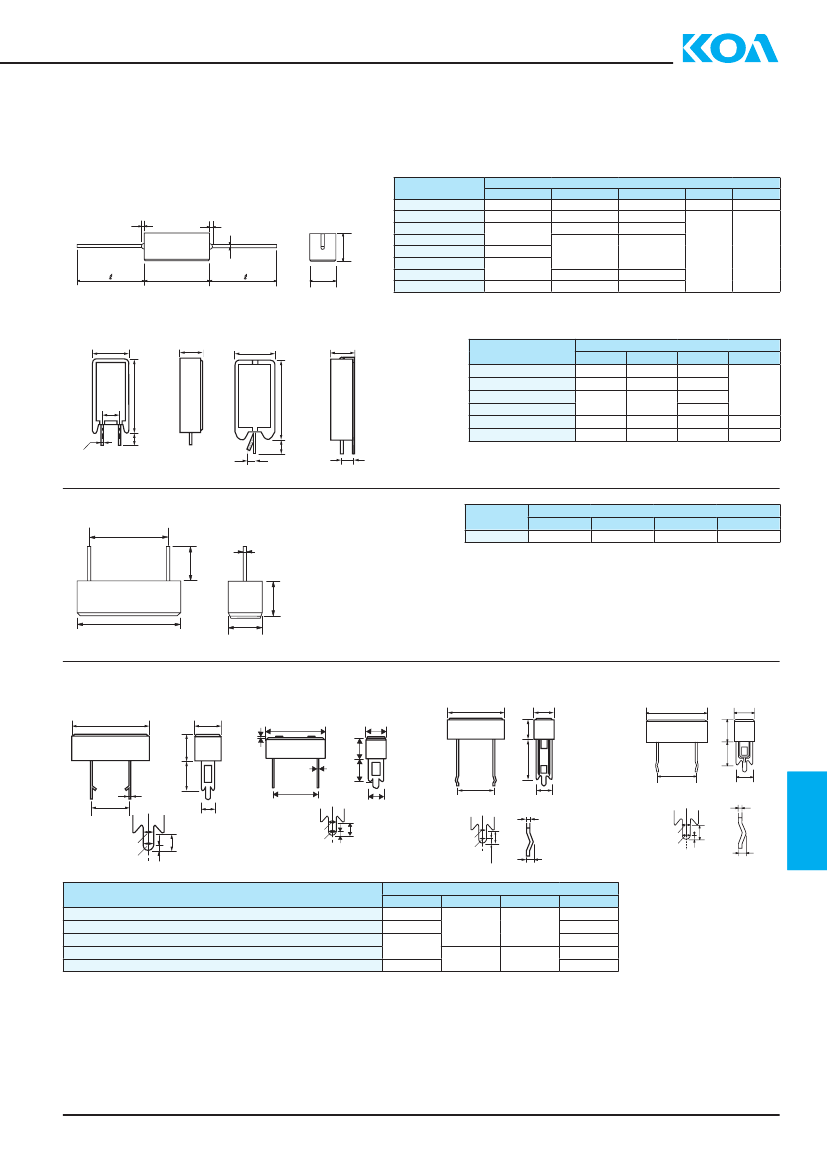

■Dimensions

①S

Style

1.5Max.

φd

H

Type

BWR1C

BWR2C・

BSR2C

BWR3C・

BSR3C

BWR5C・

BSR5C

BWR7C・BSR7C

BWR10C・BSR10C

BWR15C

・BSR15C

BWR20C・

BSR20C

L

13±1.0

18±1.5

22±1.5

35±1.5

48±1.5

63.5±1.5

Dimensions（mm）

W

H

5.5±1.0

6.3±1.0

8.0±1.0

9.5±1.0

12.5±1.2

12.5±1.5

9.5±1.0

12.5±1.2

12.5±1.5

ℓ±3

30

d±0.1

0.6

35

0.8

L

W

②N

Style

W

D

③E

Style

W

D

Type

BWR2CN・

BSR2CN

BWR3CN・BSR3CN

BWR5CN・BSR5CN

BWR7CN・BSR7CN

BWR10CN・BSR10CN

BWR5CE・BSR5CE

W±1

11

12

13

16

9.5

P

4.5±

1

2

φ0.8±0.1

4.5±

1

2

Dimensions（mm）

D±1

H±1.5

7

20.5

8

25

25.5

9

38.5

12

35

9.5

23.5

P

＋ 2

−1

5

7.5

5

H

1MAX.

P

④P

Style

（P）

φ0.8

Type

BWR5CP

15±3

L

23±1.5

Dimensions（mm）

W±1.5

H±1.5

9.5

（P）

20

Parenthesized dimensions are for reference.

Please refrain from using these parts as a board-insertion type.

Only soldering doesn’ have enough joint strength.

t

Additional fixation is recommended.

L

W

⑤X

Style

（5W∼10W）

L

W

1±0.5

H

⑥Y

Style

（15W，20W）

L

15±1.5 H

W

L

H

W

⑦YS

Style

L

H

P

7.3±0.5

7.5±0.3

0.5

10±

1

2

W

H

10±

2

1

0.5

P

25±

2

1

High Power Type Resistors

P

10±0.5

P

t 0.4

5±0.3

1.6

1.4

0.7

4.5

0.75

3

2.7

1.0

1.6

1.4

4.5

1.4

0.85

4.5

1.6

7

0.85

Type

BGR5TX

・BSR5TX

・BGR5TY BSR5TY BGR5TYS・BSR5TYS

・

BGR7TX

・BSR7TX

・BGR7TY

・BSR7TY BGR7TYS・BSR7TYS

・

BGR10TX

・BSR10TX

・BGR10TY

・BSR10TY

・BGR10TYS・

BSR10TYS

BGR15TX

・BSR15TX

BGR20TX

・BSR20TX

L±1.5

27

35

48

63.5

Dimensions（mm）

W±1.0

H±1.0

9.5

12.5

9.5

12.5

P±1.5

15

22.5

35

32.5

47.5

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

Contact our sales representatives before you use our products for applications including automotives, medical equipment and aerospace equipment.

Malfunction or failure of the products in such applications may cause loss of human life or serious damage.

Oct. 2020

Oct. 2021

www.koaglobal.com

179

POWER TYPE

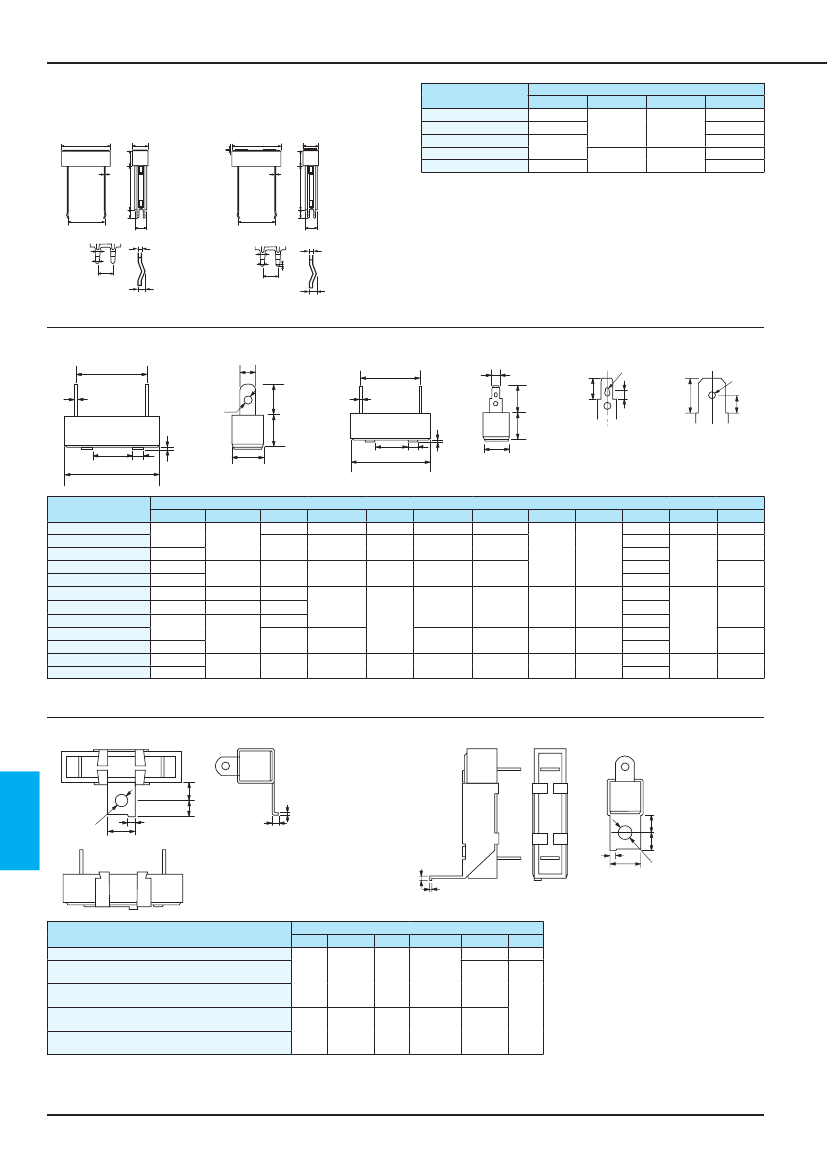

■Dimensions

⑧Z

Style

（5W∼10W）

L

H

W

Type

（15W, 20W）

1±0.5

L

H

W

P

4.5±0.5 22±

2

1

P

1.5

1

7.3±0.3

0.5

3.5

2

1.5

5±0.5 30±

2

1

t 0.5

BGR5TZ BSR5TZ

・

BGR7TZ・

BSR7TZ

BGR10TZ

・BSR10TZ

BGR15TZ

・BSR15TZ

BGR20TZ BSR20TZ

・

L±1.5

27

35

48

63.5

Dimensions（mm）

W±1.0

H±1.0

09.5

12.5

09.5

12.5

P

15

＋6

－2

22.5

＋6

－2

35

＋6

－2

32.5

＋4

－0

47.5

＋4

－0

10±0.3

0.5

5.0

（P）（P）

W

1

W

1

t

H

1

L

1

L

12

L

H

2

H

2

⑨H

Style

（P）

W

1

⑩Q

Style

（P）

W

1

（15W, 20W）

L

2

1±0.5

W

（5W,7W,10W,30W,40W）

W

φf

H

3

L

R0.65 R0.65

3.2

H

2

φf

H

1±0.5

H

1±0.5

L

1

L

2

L

1

L

2

W

R0.65

φf

L

H

2

3.2

Type

BGR10TH・BSR10TH

BGR15TH・BSR15TH

BGR20TH・BSR20TH

BGR30TH

BGR40TH

BGR5TQ・BSR5TQ

BGR7TQ・BSR7TQ

BGR10TQ・BSR10TQ

BGR15TQ・BSR15TQ

BGR20TQ・BSR20TQ

BGR30TQ

BGR40TQ

L

48±1.5

63.5±2

75±2.5

90±2.5

27±1.5

35±1.5

48±1.5

63.5±2

75±2.5

90±2.5

L

1

25±1.0

40±1.2

—

25±1.0

40±1.2

L

2

4.5

7.0

10.0

—

4.5

7.0

10.0

W

9.5±1.0

12.5±1.2

19.0±1.5

9.5±1.0

W

1

5.0

6.0

7.5

Dimensions（mm）

H

1

±1.0

9.5±1.0

7.0

12.5±1.2

19.0±1.5

9.5±1.0

8.5

11.0

10.5

13.0

12.0

H

2

H

2

H

3

（H

3

）

—

（P）

35

34.5

49.5

56

71

15.0

22.5

35.0

34.5

49.5

56

71

t

0.4

0.5

H

3

t

H

1

H

1

H

2

H

1

0.85

1.1

t

（φf）

2.0

2.5

3.0

2.2

6.5

6.35

8.0

3.3

—

4.1

4.75

12.5±1.2

19.0±1.5

6.3

12.5±1.2

19.0±1.5

0.5

—

0.8

1.7

Parenthesized dimensions are for reference.

⑪HA・QA

Style

⑫HB・QB

Style

High Power Type Resistors

P

3

（P

2

）

t1

K

P

3

（P

2

）

K

t

1

W

3

（W

2

）

φ4.2

（10W:φ4）

W

3

（W

2

）

Type

BGR10THA・BSR10THA・BGR10TQA・BSR10TQA

BGR15THA・BSR15THA・BGR15TQA・BSR15TQA

BGR15THB・BSR15THB・BGR15TQB・BSR15TQB

BGR20THA・BSR20THA・BGR20TQA・BSR20TQA

BGR20THB・BSR20THB・BGR20TQB・BSR20TQB

BGR30THA・BGR30TQA

BGR30THB・BGR30TQB

BGR40THA・BGR40TQA

BGR40THB・BGR40TQB

Parenthesized dimensions are for reference.

（P ）

2

P ±1

3

Dimensions（mm）

（W

2

）

W

3

±0.3

K±0.3

2.8

3.0

t

1

0.6

8.0

6

12

3.0

0.8

10

8

18

3.0

180

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

Contact our sales representatives before you use our products for applications including automotives, medical equipment and aerospace equipment.

Malfunction or failure of the products in such applications may cause loss of human life or serious damage.

Oct. 2020

Oct. 2021

www.koaglobal.com

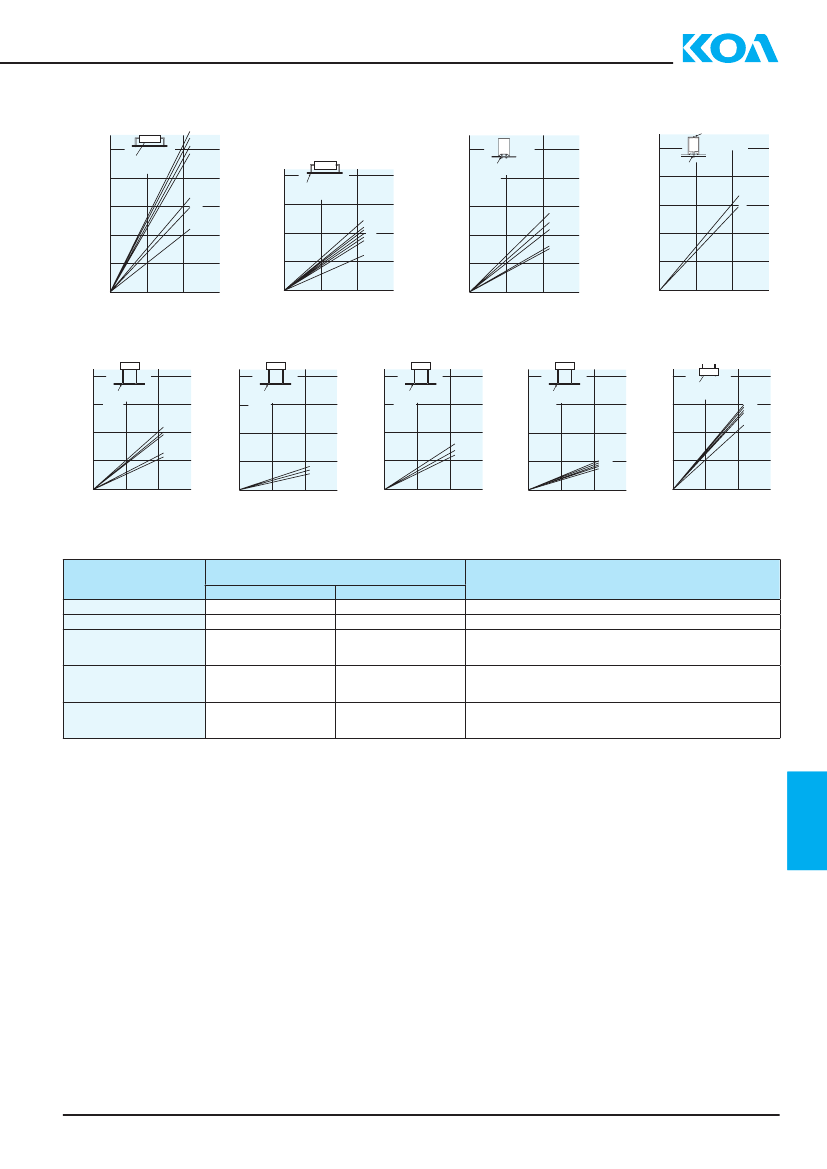

■Temperature Rise (Ref.)

①S

Style

ＳスタイルＡ点図

250

Temperature rise（℃）

200

150

100

50

0

Measuring

Point

20w

15w

10w

7w

ＳスタイルＢ点図

②N

Style

③E

Style

A

Measuring

Point

Temperature rise（℃）

5w

3w

2w

150

100

50

0

Measuring

Point

20w

15w

10w

7w

5w

3w

2w

Temperature rise（℃）

200

Measuring

200 Point

150

100

50

0

B

200

150

100

50

0

A

B

10w

7w

5w

3w

2w

50

100

Power rating ratio

（%）

50

100

Power rating ratio

（%）

50

100

Power rating ratio

（%）

50

100

Power rating ratio

（%）

④X Style

200

Temperature rise（℃）

⑤Y

Style

200

Temperature rise（℃）

⑥YS

Style

200

Temperature rise（℃）

⑦Z

Style

200

Temperature rise（℃）

⑧H,

Q Style

150

100

50

0

Measuring

Point

10w

7w

5w

20w

15w

150

100

50

0

Measuring

Point

150

100

50

0

Measuring

Point

Temperature rise（℃）

Measuring

150 Point

100

50

0

20w

15w

10w

7w

5w

50

100

Power rating ratio

（%）

300

200

100

0

Measuring

Point

40w

30w

20w

15w

10w

7w

5w

50

100

Power rating ratio

（%）

10w

7w

5w

50

100

Power rating ratio

（%）

50

100

Power rating ratio

（%）

50

100

Power rating ratio

（%）

■Performance

Test Items

Resistance

T.C.R.

Resistance to soldering heat

Performance Requirements

ΔR±％

Limit

Within specified tolerance

Within specified T.C.R.

1：BWR, BSR

2：BGR

3：BWR, BGR

5：BSR

3：BWR

5：BGR, BSR

Typical

—

0.8：BWR

1.7：BGR

0.9：BSR

2.4：BWR

2.55：BGR

4.5：BSR

2.4：BWR

4.25：BGR

4.5：BSR

25℃

＋25℃/－55℃ and ＋25℃/＋125℃

350℃±10℃、3.5s

Power rating×1/10、40℃、90%½95%RH、1000h

1.5h ON/0.5h OFF cycle

25℃ or 70℃, rated voltage, 1000h,

1.5h ON/0.5h OFF cycle

Test Methods

Moisture resistance

Endurance at 25℃ or 70℃

■Precautions for Use

・

The products attached by ionic impurities negatively affects their moisture resistance, corrosion resistance, etc. Please pay careful attention to products handling as well

as storage, mounting conditions and environment.

・

When the pulse including surge is impressed to the resistor, it may cause disconnection. Please confirm us about the conditions for use in advance.

・

In case of using them for an AC circuit, abnormal phenomena like oscillation etc. occasionally happen as they have an inductance or a parasitic capacitance

because of their wiring structures. Use them by taking the dispersion of constants of other components into the consideration.

High Power Type Resistors

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

Contact our sales representatives before you use our products for applications including automotives, medical equipment and aerospace equipment.

Malfunction or failure of the products in such applications may cause loss of human life or serious damage.

Oct. 2020

Oct. 2021

www.koaglobal.com

181

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	720357327
package instruction	AXIAL LEADED
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FLAME PROOF
structure	Rectangular
JESD-609 code	e2
Lead diameter	0.8 mm
Lead length	35 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-40 °C
Package height	6.3 mm
Package length	18 mm
Package form	Axial
Package width	6.3 mm
Rated power dissipation(P)	2 W
Rated temperature	70 °C
resistance	0.13 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	WIRE
Tolerance	5%

	BWR2CR13J	BWR2CR11J	BWR2CR16J	BWR2CR18J	BWR2C160J	BWR2C160G	BWR2CR10J
Description	Fixed Resistor, Wire Wound, 2W, 0.13ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Wire Wound, 2W, 0.11ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Wire Wound, 2W, 0.16ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Wire Wound, 2W, 0.18ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Wire Wound, 2W, 16ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Wire Wound, 2W, 16ohm, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED	Fixed Resistor, Wire Wound, 2W, 0.1ohm, 5% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	720357327	720357325	720357329	720357330	720357190	720357189	8082859519
package instruction	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED	AXIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	FLAME PROOF	FLAME PROOF	FLAME PROOF	FLAME PROOF	FLAME PROOF	FLAME PROOF	FLAME PROOF
structure	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular
JESD-609 code	e2	e2	e2	e2	e2	e2	e2
Lead diameter	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Lead length	35 mm	35 mm	35 mm	35 mm	35 mm	35 mm	35 mm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package height	6.3 mm	6.3 mm	6.3 mm	6.3 mm	6.3 mm	6.3 mm	6.3 mm
Package length	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm
Package form	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Package width	6.3 mm	6.3 mm	6.3 mm	6.3 mm	6.3 mm	6.3 mm	6.3 mm
Rated power dissipation(P)	2 W	2 W	2 W	2 W	2 W	2 W	2 W
Rated temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
resistance	0.13 Ω	0.11 Ω	0.16 Ω	0.18 Ω	16 Ω	16 Ω	0.1 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND	WIRE WOUND
Temperature Coefficient	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C
Terminal surface	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Tolerance	5%	5%	5%	5%	5%	2%	5%
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-

BWR2CR13J

BWR2CR13J Overview

BWR2CR13J Parametric

Preview

BWR2CR13J Related Products

Recommended Resources
