1.5KE6.8C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1.5KE6.8C

1.5KE6.8C: DescriptionTrans Voltage Suppressor Diode, 1500W, 5.5V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, CASE 1, 2 PIN; CategoryDiscrete semiconductor diode; File Size241KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

1.5KE6.8C Overview

Trans Voltage Suppressor Diode, 1500W, 5.5V V(RWM), Bidirectional, 1 Element, Silicon, PLASTIC, CASE 1, 2 PIN

1.5KE6.8C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1439143942
package instruction	PLASTIC, CASE 1, 2 PIN
Contacts	2
Manufacturer packaging code	CASE 1
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum breakdown voltage	7.48 V
Minimum breakdown voltage	6.12 V
Breakdown voltage nominal value	7.5 V
Shell connection	ISOLATED
Maximum clamping voltage	10.8 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
JESD-609 code	e0
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	BIDIRECTIONAL
Maximum power dissipation	1.52 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	5.5 V
Maximum reverse current	2000 µA
surface mount	NO
technology	AVALANCHE
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

1N6267 thru 1N6303A

1.5KE6.8 thru 1.5KE440CA

Transient Voltage Suppressor

Breakdown Voltage 6.8 to 440 Volts

Peak Pulse Power

1500 Watts

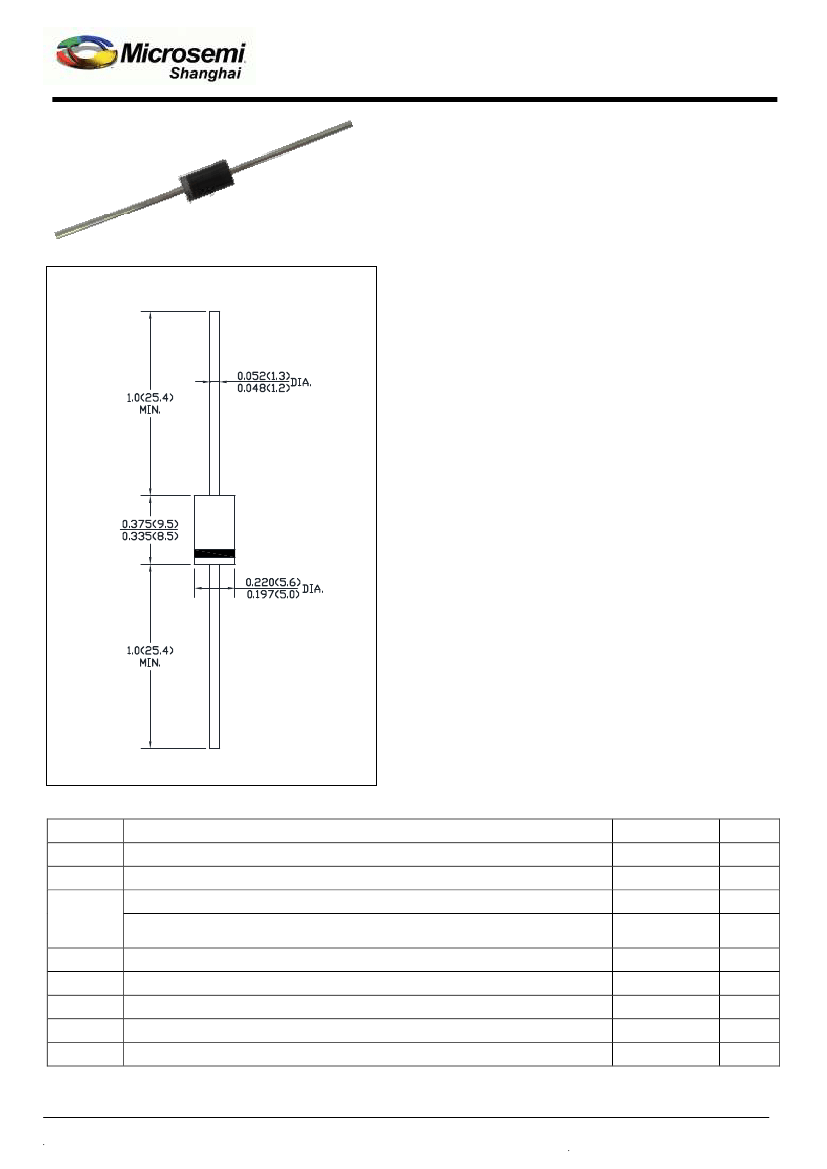

Features



CASE: DO-201AD (DO-27)



Breakdown Voltages (V

) from 6.8 to 440V

1500W peak pulse power capability with a 10/1000μs

waveform, repetitive rate (duty cycle):0.01%

Fast Response Time

Low incremental surge resistance

Excellent clamping capability

Available in uni-directional and bi-directional

High temperature soldering guaranteed: 265

℃

/10

seconds, 0.375” (9.5mm) lead length, 5lbs. (2.3kg)

tension

Application



Dimensions in inches and (millimeters)

Maximum Ratings and Electrical Characteristics

Symbol

PPM

Conditions

Peak pulse power capability with a 10/1000μs

Peak pulse current with a 10/1000μs

印

打



Use in sensitive electronics protection against voltage

transients induced by inductive load switching and

lighting on IC

, MOSFE, signal lines of sensor units for

consumer, computer, industrial, automotive and

telecommunication

Case:

Void-free transfer molded thermosetting epoxy

body meeting UL94V-O

Terminals:

Tin-Lead or ROHS Compliant annealed

matte-Tin plating readily solderable per MIL-STD-750,

Method 2026

Marking:

Part number

Polarity:

Cathode indicated by band. No marking on

bidirectional devices

Weight:

1.2g（Approximately）

C unless otherwise specified

Mechanical Data

效

无

Value

1500

SEE TABLE1

1.52

200

3.5/5.0

Unit

℃/W

Steady state power dissipation at T

=40℃ ,Lead lengths 0.375”(10mm)

M(AV)

FSM

θJL

θJA

Steady state power dissipation at T

=25℃ when mounted on FR4 PC

described for thermal resistance

Peak forward surge current,8.3ms single half sine-wave unidirectional only⑴

Maximum instantaneous forward voltage at 100A for unidirectional only⑵

Thermal resistance junction to lead

Thermal resistance junction to ambient

STG

Operating and Storage Temperature

-65 to +150

℃

Notes:

⑴

Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle=4 pulses per minute maximum

⑵

=3.5Vfor 1.5KE220(A) and below; V

=5.0V for 1.5KE250(A) and above

Document Number: 1N6267 thru 1N303A, 1.5KE6.8 thru 1.5KE440CA

Feb.29,2012

www.smsemi.com
