87914-0235: DescriptionBoard Connector, 2 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size2MB，54 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

87914-0235 Overview

Board Connector, 2 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator,

87914-0235 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	316220184
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.196 inch
subject depth	0.09 inch
body length	0.1 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	100u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.197 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	2

Preview

Download Datasheet

View All

⌀

1.14

0.05

TYP

0.38

CKT 1

2.54

0.05

TYP

NON-ACCUM.

CKT 1

2.54

0.05

2.54 TYP

4.98

CKT 2

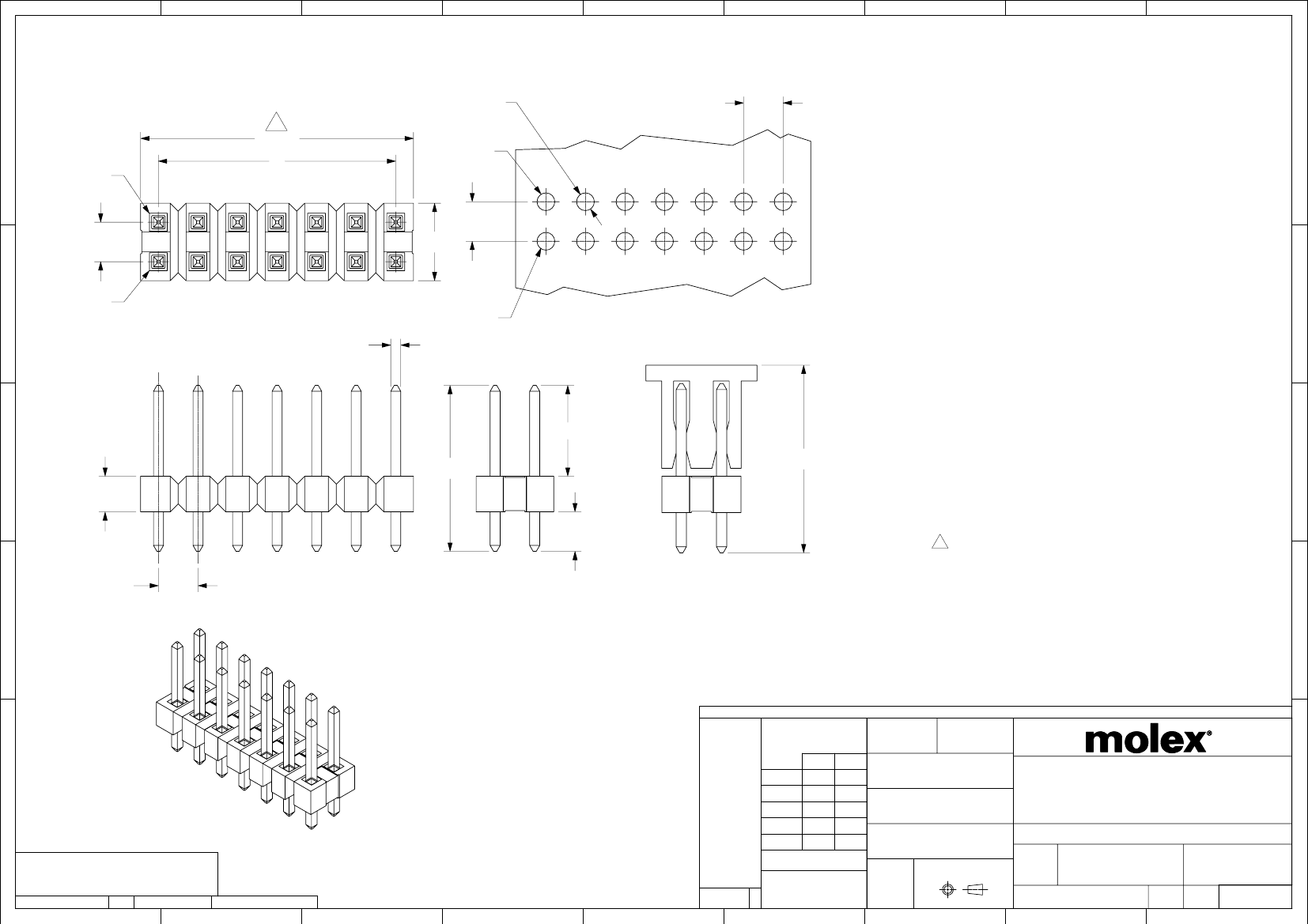

RECOMMENDED P.C.B HOLE LAYOUT

0.64

0.05

SQ TYP

2.29

2.54

TYP

NOTES:

1. MATERIAL:

HSG: LCP, GLASS-FILLED, UL94V-0,

COLOR: BLACK

PIN: 0.64MM SQ PIN, COPPER ALLOY

2. PLATING TYPE:

(1) : 0.0254 µm GOLD FLASH OVER

1.25 µm MIN. NICKEL OVERALL.

(2) : 0.025 µm MIN. GOLD PLATE ON CONTACT AND

1.88 µm MIN. TIN ON SOLDERTAIL OVER

1.25 µm MIN. NICKEL OVERALL.

(3) : 0.25 µm MIN. GOLD PLATE ON CONTACT AND

1.88 µm MIN. TIN ON SOLDERTAIL OVER

1.25 µm MIN. NICKEL OVERALL.

(4) : 0.38 µm MIN. GOLD PLATE ON CONTACT AND

1.88 µm MIN. TIN ON SOLDERTAIL OVER

1.25 µm MIN. NICKEL OVERALL.

(5) : 0.75 µm MIN. GOLD PLATE ON CONTACT AND

1.88 µm MIN. TIN ON SOLDERTAIL OVER

1.25 µm MIN. NICKEL OVERALL

(6) : 2.50 µm MIN. TIN OVER 1.25 m MIN. NICKEL OVERALL.

(7) : 0.38 µm MIN. GOLD PLATE ON CONTACT AND

2.50 µm MIN. TIN ON SOLDERTAIL OVER

1.25 µm MIN. NICKEL OVERALL.

(8) : 0.38 µm MIN. GOLD PLATE ON CONTACT AND

0.05 µm MIN. GOLD FLASH ON SOLDERTAIL OVER

1.25 µm MIN. NICKEL OVERALL.

(9) : 0.05 - 0.25 µm MIN. GOLD FLASH OVER

1.25 µm MIN. NICKEL OVERALL.

3. PIN PUSHOUT FORCE: 1KG MIN IN EITHER DIRECTION

4. THE ABOVE 14 CKT IS FOR ILLUSTRATION PURPOSE ONLY.

5. FOR PACKAGING OPTION PLEASE REFER TO THE TABLE.

6. RECOMMENDED PCB THICKNESS 1.60MM.

7. PRODUCT SPECIFICATION: PS-87920-019

8. WAFER TO BE FLAT WITHIN 0.003mm/mm

. IRREGULAR CIRCUIT CUTOFF WITHIN BREAKAWAY SECTION

IS PERMISSIBLE. CUTTING OR CHIPPING OF THE MAIN

BODY IS NOT ACCEPTABLE.

10. PARTS ARE NOT STACKABLE ON 2.54 CENTER

11. CAP TO BE PLACED AS CENTRAL OF PART AS POSSIBLE

WITH THE TOP SURFACE FLAT FOR PICK AND PLACE.

12. PACKAGING SPECIFICATION:

TRAY: PK-89990-489

BULK: PK-89990-491

TUBE: PK-87914-300

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

2017/03/17

2017/05/09

DIMENSION UNITS

SCALE

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DRWN BY

DATE

NTS

INCH

MIGRATED TO NX

4 PLACES

3 PLACES

2 PLACES

0.2

KCHO

CHK'D BY

DATE

2004/11/05

2004/12/08

DATE

REVISION OF DRAWING MAY BE

CHANGED DURING FINAL RELEASED

FOR PRODUCTION.

RELEASE STATUS

FORMAT: Met-lega-master-tb-prod-A3

REVISION: C

DATE: 2016/02/04

2.54MM PITCH

DUAL ROW HEADER SINGLE WAFER, T/H

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

PTLIM

APPR BY

EC NO:

114031

DRWN:

FCSOO

CHK'D:

APPR:

KHLIM

1 PLACES

0 PLACES

MLONG

DRAWING SIZE

2010/09/06

THIRD ANGLE PROJECTION

ANGULAR TOL

3.0

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

87914

DOCUMENT NUMBER

SEE TABLE

GENERAL MARKET

DOC TYPE DOC PART

SHEET NUMBER

RELEASE DATE

D18

REV

SD-87914-013

PSD

000

1 OF 45
