TCD
Series
MULTIL AYER CERAMIC
Y5U Ceramic
Radial Lead
High CV
125 C
Maximum
Temperature
Actual Size
TCD
The TCD series are radial lead ceramic capacitors from UCC/NCC. These capacitors have a very low
ESR and impedance which makes these capacitors ideal for filtering switching power supplies and
DC-DC converters. The TCD series has a maximum 250VDC rated voltage making them more
applicable for use in higher voltage power supplies than our ceramic chip capacitors. All of our radial
capacitors with 5mm lead spacing are also available with ammo pack taping.
Refer to Mini-Glossary at the end of the multilayer ceramic capacitors section for additional technical
information and specifications.
Summary of Specifications
Radial lead terminals.
Capacitance range: 0.1 to 100µF.
Voltage range: 25 to 250VDC.
Operating temperature range: 55 C to 125 C.
Standard capacitance tolerance: 20% or 20% to 80%
Nominal case size (L W H): 5.0 3.5 6.0mm to 28.5 8.5
Rated lifetime: 1,000 hours at 125 C.
20.0mm.
18
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
TCD Series
TCD Specifications
Item
Operating Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Dissipation Factor ( Tan )
Ripple Current
Withstand Voltage
Insulation Resistance
Solderability
55 to 125 C
25 to 250VDC
0.1 to 100 F
20% ( M ) or
20% to
80% ( Z ) at
20
2 C, 1 0.1kHz, and 1 0.2Vrms
Characteristics
2.5% maximum at
20 2 C, 1 0.1kHz, and 1 0.2Vrms
At 125 C, the maximum ripple current at 10kHz -1MHz is specified in the Ratings Tables.
MULTIL AYER CERAMIC
No abnormality after applying 250% of the DC rated voltage from terminal-to-terminal and
terminal-to-resin coating for 1 to 5 seconds at 20 2 C.
1,000
Ω•F
or 10,000MΩ, whichever is less, after applying the DC rated voltage for 60 5
seconds at 20 2 C.
Using H60A or H63A solder at a solder temperature of 235 5 C and a dip time of 2 0.5
seconds, a minimum of 75% of the circumferential surface of the dipped lead wires shall be
covered with new solder.
Using H60A or H63A solder at a solder temperature of 350 10 C and a dip time of 3 0.5
seconds at a depth of 2 to 2.5mm from the resin coating, the following specifications shall be
satisfied when the capacitors are restored to 20 C.
Appearance
: no abnormality
Capacitance change :
≤
15% of initial measured value
Tan ( DF )
:
≤
2.5%
TCD
Soldering Heat Resistance
Humidity Load Life Test
The following specifications shall be satisfied when the capacitors are restored to 20 C after
applying the DC rated voltage for 500 24, 0 hours at 40 2 C, 90 - 95% RH. After the initial
load test, the withstand voltage shall be tested by applying 250% of the DC rated voltage for
5 seconds.
Appearance
: no abnormality
Capacitance change :
≤
20% of initial measured value
Tan ( DF )
:
≤
5%
Insulation resistance : 50
Ω•F
or 1,000MΩ, whichever is less
Load Life Test
The following specifications shall be satisfied when the capacitors are restored to 20 C after
applying 200% of the DC rated voltage for 1,000 48, 0 hours at 85 2 C, or 1,000 48, 0
hours at 125 3 C with the initial DC rated voltage applied. After the initial load test, the
withstand voltage shall be tested by applying 250% of the DC rated voltage for 5 seconds.
Appearance
: no abnormality
Capacitance change :
≤
20% of initial measured value
Tan ( DF )
:
≤
5%
Insulation resistance : 100
Ω•F
or 1,000MΩ, whichever is less
Part Numbering System for TCD Series
TCD
31
E
1H
225
M
T
When ordering, always specify complete catalog number for TCD Series.
Taping Code: T = Straight Lead; T710 = Crimped Lead.
Optional taping is available for case codes 21, 30, 31 and 41 only.
Capacitance Tolerance: M = 20%; Z = 20% to 80%
Capacitance Value: Expressed in picofarads. The first two digits are
significant figures, and the third digit indicates the number of zeros
following these figures (e.g. 225 = 2,200,000pF = 2.2 F ).
Voltage Code: 1E = 25VDC; 1H = 50VDC; 2A = 100VDC; 2E = 250VDC.
Temperature Coefficient: E = Y5U.
Case Code: Refer to dimensions section for standard case sizes.
Series Name: Indicates basic capacitor design.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
19

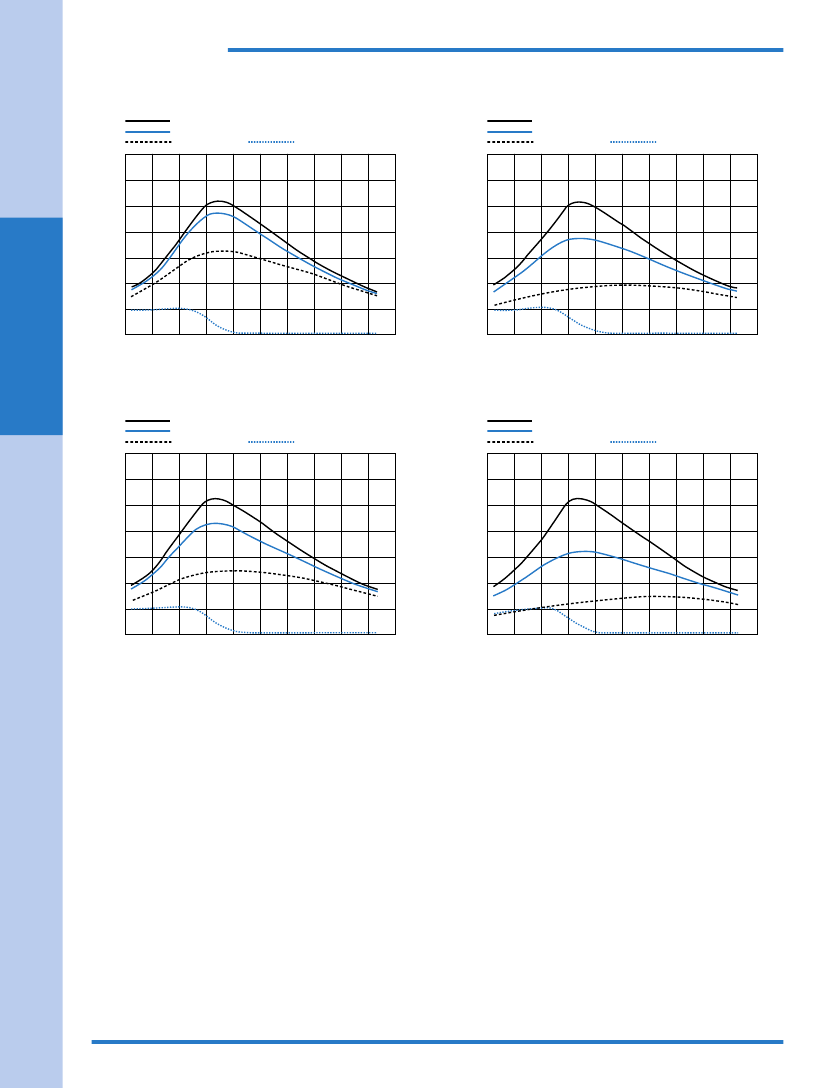

TCD Series
Standard Voltage Ratings - Radial Lead Multilayer Ceramic
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
†Part
Number
†
UCC
Case Code*
Maximum
Ripple Current
(A rms) at
125 C, 10kHz-1MHz
3.0
4.0
4.0
0.22
0.3
0.3
0.73
0.8
1.0
1.0
1.0
1.5
1.5
2.0
2.0
3.0
3.0
4.0
4.0
0.55
0.8
1.0
1.0
1.5
1.5
2.0
2.0
3.0
3.0
4.0
4.0
50 Volts
33
47
68
0.1
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
0.1
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
TCD60E1H336M
TCD61E1H476M
TCD61E1H686M
TCD21E2A104M
TCD21E2A154M
TCD21E2A224M
TCD30E2A334M
TCD30E2A474M
TCD31E2A684M
TCD31E2A105M
TCD31E2A155M
TCD41E2A225M
TCD41E2A335M
TCD51E2A475M
TCD51E2A685M
TCD60E2A106M
TCD60E2A156M
TCD61E2A226M
TCD61E2A336M
TCD30E2E104M
TCD30E2E154M
TCD31E2E224M
TCD31E2E334M
TCD41E2E474M
TCD41E2E684M
TCD51E2E105M
TCD51E2E155M
TCD60E2E225M
TCD60E2E335M
TCD61E2E475M
TCD61E2E685M
20%,
80% tolerance.
60
61
61
21
21
21
30
30
31
31
31
41
41
51
51
60
60
61
61
30
30
31
31
41
41
51
51
60
60
61
61
MULTIL AYER CERAMIC
TCD
100 Volts
250 Volts
†
M indicates 20% tolerance. Substitute code letter Z in part number for
*
Refer to diagram of dimensions for actual case sizes.
Ammo Pack Taping Specifications
Radial Lead Multilayer Ceramics
Available for Case Codes 21, 30, 31 and 41
Conforms to JIS-C-0805
Ammo Pack
h
P
0
/
2
P
Unit: mm
Dimensions and Quantity Per Box
UCC Case Code
H max.
Straight Lead
H max.
Crimped Lead
H
0
0.5
P 1.0
P
0
0.3
P
1
0.7
P
0
/
2
1.3
F 1.0
W 0.5, 1.0
W/
2
0.5
M 1.0
M
0
1.5
Ø
D 0.2
Ø
d 0.05
t 0.2
∆h
2
Pieces
Per Box *
21
23
25
16.0
12.7
12.7
3.85
6.35
5.0
18.0
9.0
13.0
1.5
4.0
0.5
0.6
0
2,000
30
24
26
16.0
12.7
12.7
3.85
6.35
5.0
18.0
9.0
13.0
1.5
4.0
0.5
0.6
0
2,000
31
26
28
16.0
12.7
12.7
3.85
6.35
5.0
18.0
9.0
13.0
1.5
4.0
0.5
0.6
0
2,000
41
29
30
16.0
12.7
12.7
3.85
6.35
5.0
18.0
9.0
13.0
1.5
4.0
0.5
0.6
0
1,500
H
(straight)
H
(crimped)
M
0
H
0
W/
2
M
W
P
1
P
0
F
Ø
d
Ø
D
t
*Specified
quantity may vary for rating of capacitor.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
21
