TCJB107M006-0045

Description
Tantalum Solid Electrolytic Chip Capacitors with Conductive Polymer Electrode
File Size118KB,4 Pages
ManufacturerAVX
Download Datasheet View All

TCJB107M006-0045 Overview

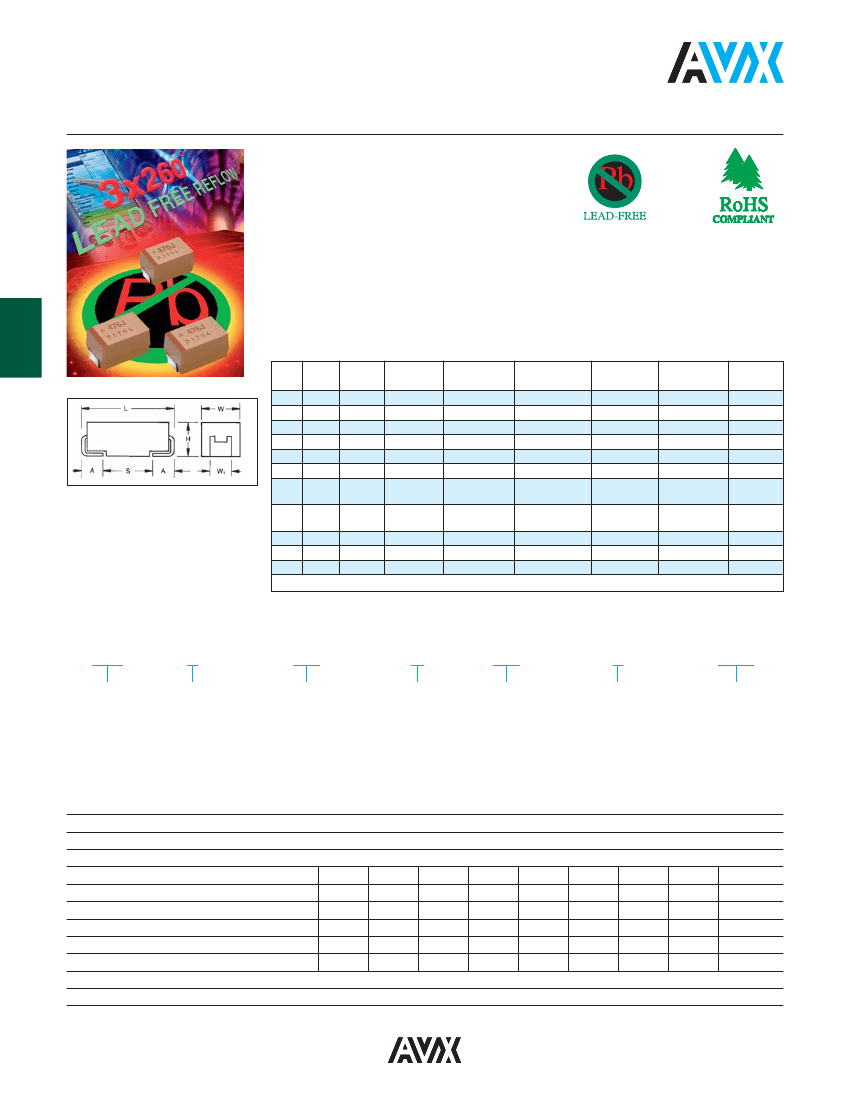

Tantalum Solid Electrolytic Chip Capacitors with Conductive Polymer Electrode

TCJ Series
Tantalum Solid Electrolytic Chip Capacitors
with Conductive Polymer Electrode
• Conductive polymer electrode reduces
ignition failure mode
• Lower ESR
• 3x reflow 260°C compatible
• CV range: 1.0-220μF / 2.5-35V
• 11 case sizes available
LEAD-FREE COMPATIBLE
COMPONENT
CASE DIMENSIONS:
millimeters (inches)
Code
A
B
C
G
H
K
For part marking see page 132
P
R
S
T
W
EIA
Code
1206
1210
EIA
Metric
3216-18
3528-21
6032-28
3216-15
3528-15
3216-10
2012-15
2012-12
3216-12
3528-12
6032-15
L±0.20
(0.008)
3.20 (0.126)
3.50 (0.138)
6.00 (0.236)
3.20 (0.126)
3.50 (0.138)
3.20 (0.126)
2.05 (0.081)
2.05 (0.081)
3.20 (0.126)
3.50 (0.138)
6.00 (0.236)
W+0.20 (0.008)
-0.10 (0.004)
1.60 (0.063)
2.80 (0.110)
3.20 (0.126)
1.60 (0.063)
2.80 (0.110)
1.60 (0.063)
1.35 (0.050)
1.30 (0.051)
1.60 (0.063)
2.80 (0.110)
3.20 (0.126)
H+0.20 (0.008)
-0.10 (0.004)
1.60 (0.063)
1.90 (0.075)
2.60 (0.102)
1.50 (0.059) max
1.50 (0.059) max
1.00 (0.039) max
1.50 (0.059) max
1.20 (0.047) max
1.20 (0.047) max
1.20 (0.047) max
1.50 (0.059) max
W
1
±0.20
(0.008)
1.20 (0.047)
2.20 (0.087)
2.20 (0.087)
1.20 (0.047)
2.20 (0.087)
1.20 (0.047)
1.0±0.1
(0.039±0.004)
1.0±0.1
(0.039±0.004)
1.20 (0.047)
2.20 (0.087)
2.20 (0.087)
A+0.30 (0.012)
-0.20 (0.008)
0.80 (0.031)
0.80 (0.031)
1.30 (0.051)
0.80 (0.031)
0.80 (0.031)
0.80 (0.031)
0.50 (0.020)
0.50 (0.020)
0.80 (0.031)
0.80 (0.031)
1.30 (0.051)
S Min.
1.10 (0.043)
1.40 (0.055)
2.90 (0.114)
1.10 (0.043)
1.40 (0.055)
1.10 (0.043)
0.85 (0.033)
0.85 (0.033)
1.10 (0.043)
1.40 (0.055)
2.90 (0.114)
2312
1206
1210
1206
0805
0805
1206
1210
2312
W
1
dimension applies to the termination width for A dimensional area only.
HOW TO ORDER
TCJ
A
Type
Case Size
See table
above
226
Capacitance Code
pF code: 1st two digits
represent significant figures,
3rd digit represents multiplier
(number of zeros to follow)
M
Tolerance
M=±20%
004
Rated DC Voltage
002=2.5Vdc
004=4Vdc
006=6.3Vdc
010=10Vdc
016=16Vdc
020=20Vdc
025=25Vdc
035=35Vdc
R
Packaging
R=7" T/R
S=13" T/R
0300
ESR in mΩ
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Leakage Current DCL:
Rated Voltage (V
R
)
Category Voltage (V
C
)
Category Voltage (V
C
)
Surge Voltage (V
S
)
Surge Voltage (V
S
)
Surge Voltage (V
S
)
Temperature Range:
Reliability:
+85°C:
+105°C:
+125°C:
+85°C:
+105°C:
+125°C:
All technical data relate to an ambient temperature of +25°C
1.0 μF to 220 μF
±20%
0.1CV
2.5
4
6.3
10
16
20
25
1.7
3.3
2.7
5.2
4
8
7
13
10
20
13
26
17
32
35
28
46
28
2.2
3.4
5
8
13
16
20
-55°C to +125°C, -55ºC to +105ºC (35V)
1% per 1000 hours at 85°C, V
R
with 0.1Ω/V series impedance, 60% confidence level
50
