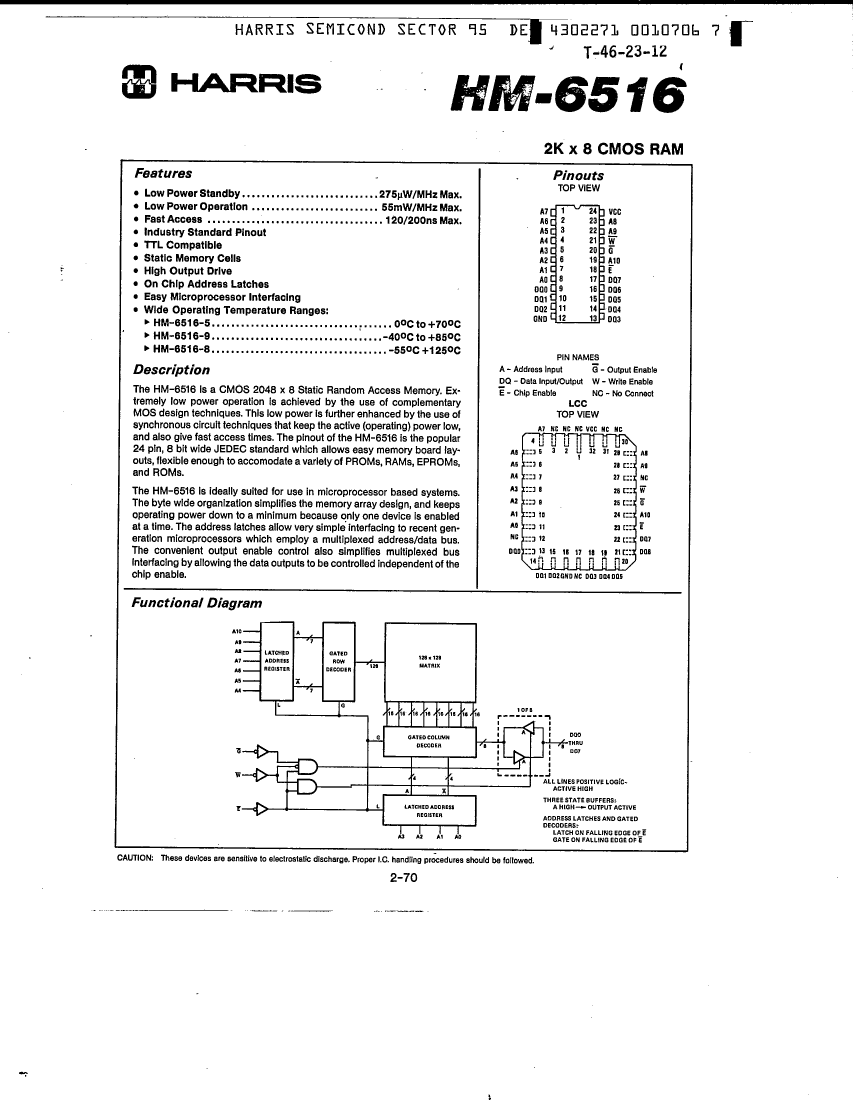

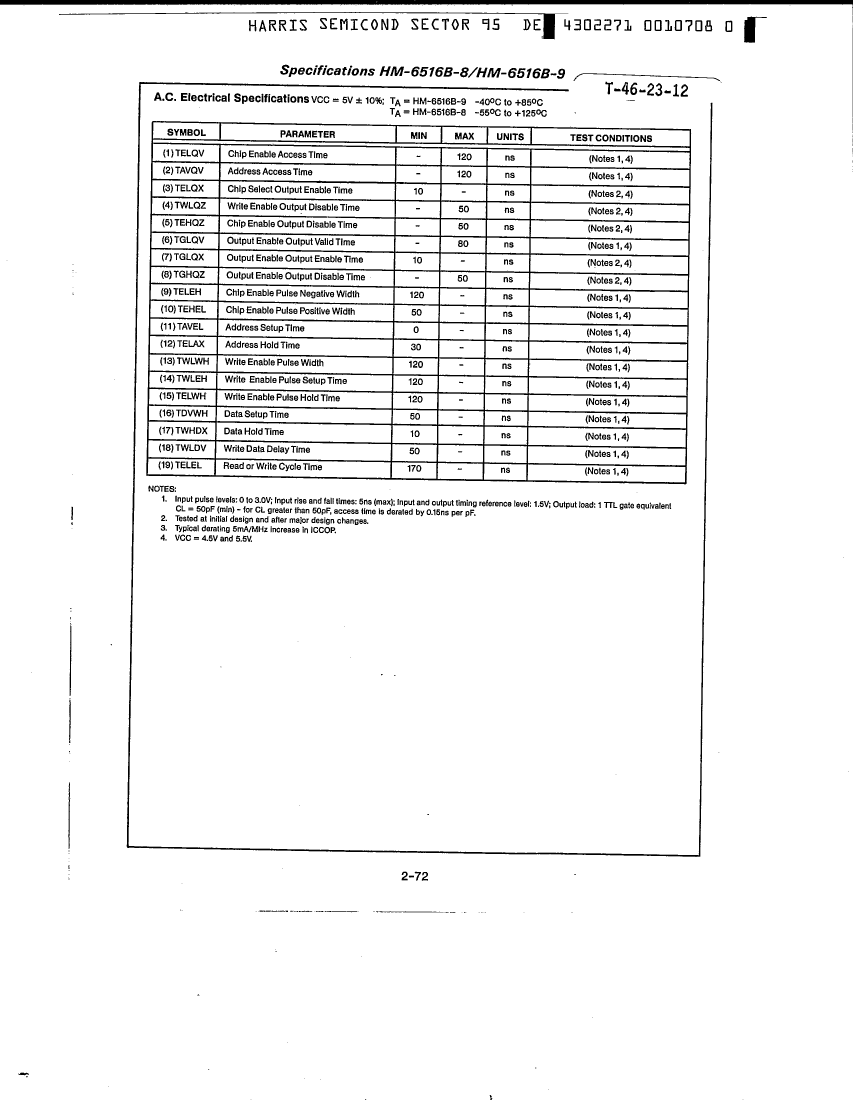

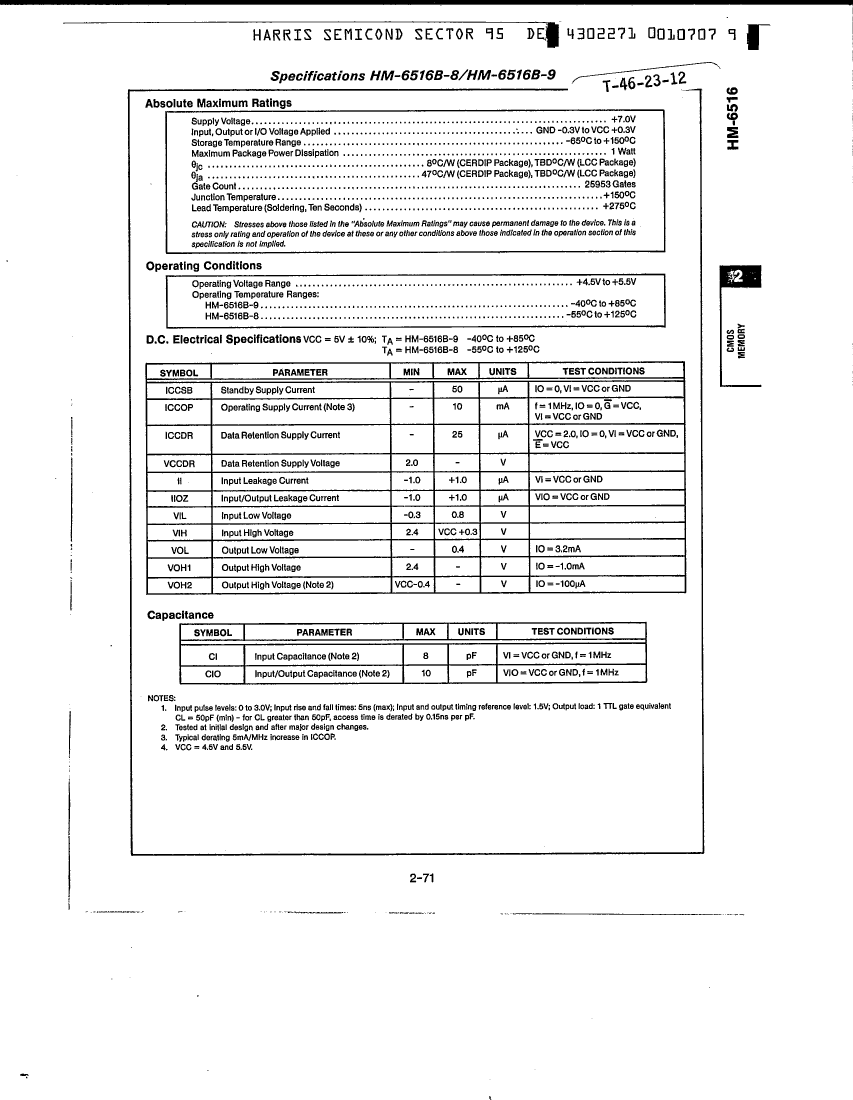

5962-01-245-9773: Description5962-01-245-9773; Categorystorage storage; File Size575KB，8 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric Compare View All

5962-01-245-9773 Overview

5962-01-245-9773

5962-01-245-9773 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1515162755
Reach Compliance Code	not_compliant
ECCN code	3A001.A.2.C
Maximum access time	200 ns
I/O type	COMMON
JESD-30 code	R-XQCC-N32
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of terminals	32
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2KX8
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC32,.45X.55
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum standby current	0.00005 A
Minimum standby current	2 V
Maximum slew rate	0.023 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD

Preview

Download Datasheet

View All

5962-01-245-9773 Related Products

	5962-01-245-9773	HM4-6516B-8	5962-01-151-4881	HM1-6516-5	HM1-6516B-8
Description	5962-01-245-9773	IC,SRAM,2KX8,CMOS,LLCC,32PIN,CERAMIC	5962-01-151-4881	IC,SRAM,2KX8,CMOS,DIP,24PIN,CERAMIC	IC,SRAM,2KX8,CMOS,DIP,24PIN,CERAMIC
Objectid	1515162755	101232076	1515162692	101230050	101230062
Reach Compliance Code	not_compliant	compliant	not_compliant	not_compliant	not_compliant
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	EAR99	3A001.A.2.C
Maximum access time	200 ns	120 ns	200 ns	200 ns	120 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XQCC-N32	R-XQCC-N32	R-XDIP-T24	R-XDIP-T24	R-XDIP-T24
memory density	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8
Number of terminals	32	32	24	24	24
word count	2048 words	2048 words	2048 words	2048 words	2048 words
character code	2000	2000	2000	2000	2000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C
organize	2KX8	2KX8	2KX8	2KX8	2KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	QCCN	DIP	DIP	DIP
Encapsulate equivalent code	LCC32,.45X.55	LCC32,.45X.55	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.00005 A	0.000025 A	0.00005 A	0.00025 A	0.000025 A
Minimum standby current	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	0.023 mA	0.034 mA	0.023 mA	0.023 mA	0.034 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B
