TLMK/O/S/Y320.
Vishay Semiconductors
Power SMD LED PLCC-4
FEATURES
• Utilizing AlInGaP technology
• Available in 8 mm tape
• Luminous intensity, color and forward
voltage categorized per packing unit
• Luminous intensity ratio per packing unit
I
Vmax
/I
Vmin
≤
1.6
• ESD class 2
• Suitable for all soldering methods
according to CECC
• Lead (Pb)-free device
e3
19210
DESCRIPTION
The TLM.32.. series is an advanced development in
terms of heat dissipation.
The leadframe profile of this PLCC-3 SMD package is
optimized to reduce the thermal resistance.
This allows higher drive current and doubles the light
output compared to Vishay’s high intensity SMD LED
in PLCC-2 package.
PRODUCT GROUP AND PACKAGE DATA
• Product group: LED
• Package: SMD PLCC-4
• Product series: power
• Angle of half intensity: ± 60°
PARTS TABLE
PART
TLMK3200
TLMK3201
TLMK3202
TLMK3203
TLMS3200
TLMS3201
TLMS3202
TLMO3200
TLMO3201
TLMO3202
TLMO3203
TLMY3200
TLMY3201
TLMY3202
TLMY3203
APPLICATIONS
• Traffic Signals and Signs
• Interior and exterior lighting
• Dashboard illumination
• Indicator and backlighting purposes for audio,
video, LCDs switches, symbols, illuminated
advertising etc.
COLOR, LUMINOUS INTENSITY
Red, I
V
> 200 mcd (typ. 500 mcd)
Red, I
V
= (250 to 800) mcd
Red, I
V
= (320 to 800) mcd
Red, I
V
= (400 to 1250) mcd
Red, I
V
> 160 mcd (typ. 300 mcd)
Red, I
V
= (160 to 400) mcd
Red, I
V
= (250 to 800) mcd
Soft orange, I
V
> 200 mcd (typ. 500 mcd)
Soft orange, I
V
= (250 to 800) mcd
Soft orange, I
V
= (320 to 800) mcd
Soft orange, I
V
= (400 to 1250) mcd
Yellow, I
V
> 200 mcd (typ. 450 mcd)
Yellow, I
V
= (250 to 800) mcd
Yellow, I
V
= (320 to 800) mcd
Yellow, I
V
= (400 to 1250) mcd
DOMINANT WAVELENGTH
611 nm to 622 nm
611 nm to 622 nm
611 nm to 622 nm
611 nm to 622 nm
626 nm to 638 nm
626 nm to 638 nm
626 nm to 638 nm
600 nm to 611 nm
600 nm to 611 nm
600 nm to 611 nm
600 nm to 611 nm
583 nm to 594 nm
583 nm to 594 nm
583 nm to 594 nm
583 nm to 594 nm
Document Number 83146
Rev. 1.5, 24-Sep-07
www.vishay.com
1
TLMK/O/S/Y320.
Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS
1)
TLMK32.., TLMS32.., TLMO32.., TLMY32..
PARAMETER
Reverse voltage
Forward current
Power dissipation
Junction temperature
Operating temperature range
Storage temperature range
Thermal resistance junction/
ambient
mounted on PC board FR4
optional paddesign (see page 11)
mounted on PC board FR4
recommended paddesign (see page 10)
T
amb
≤
65 °C (290 K/W),
T
amb
≤
70 °C (270 K/W)
TEST CONDITION
SYMBOL
V
R
I
F
P
tot
T
j
T
amb
T
stg
R
thJA
R
thJA
VALUE
5
70
180
125
- 40 to + 100
- 40 to + 100
290
270
UNIT
V
mA
mW
°C
°C
°C
K/W
K/W
Note:
1)
T
amb
= 25 °C, unless otherwise specified
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
TLMK32.., RED
PARAMETER
TEST CONDITION
PART
TLMK3200
Luminous intensity
I
F
= 50 mA
TLMK3201
TLMK3202
TLMK3203
Luminous flux/Luminous
intensity
Dominant wavelength
Peak wavelength
Spectral bandwidth
at 50 % I
rel max
Angle of half intensity
Forward voltage
Reverse current
Note:
1)
T
amb
= 25 °C, unless otherwise specified
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
V
R
= 5 V
SYMBOL
I
V
I
V
I
V
I
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
V
R
1.85
611
MIN
200
250
320
400
3
617
624
18
± 60
2.1
0.01
2.55
10
622
TYP.
500
800
800
1250
MAX
UNIT
mcd
mcd
mcd
mcd
mlm/mcd
nm
nm
nm
deg
V
µA
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
TLMS32.., RED
PARAMETER
Luminous intensity
Luminous flux/Luminous
intensity
Dominant wavelength
Peak wavelength
Spectral bandwidth
at 50 % I
rel max
Angle of half intensity
Forward voltage
Reverse current
Note:
1)
T
amb
= 25 °C, unless otherwise specified
www.vishay.com
2
Document Number 83146
Rev. 1.5, 24-Sep-07
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
V
R
= 5 V
TEST CONDITION
I
F
= 50 mA
PART
TLMS3200
TLMS3201
TLMS3202
SYMBOL
I
V
I
V
I
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
V
R
1.85
626
MIN
160
160
250
3
630
641
17
± 60
2.1
0.01
2.55
10
638
TYP.
300
400
800
MAX
UNIT
mcd
mcd
mcd
mlm/mcd
nm
nm
nm
deg
V
µA
TLMK/O/S/Y320.
Vishay Semiconductors
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
TLMO32.., SOFT ORANGE
PARAMETER
TEST CONDITION
PART
TLMO3200
Luminous intensity
I
F
= 50 mA
TLMO3201
TLMO3202
TLMO3203
Luminous flux/Luminous
intensity
Dominant wavelength
Peak wavelength
Spectral bandwidth
at 50 % I
rel max
Angle of half intensity
Forward voltage
Reverse current
Note:
1)
T
amb
= 25 °C, unless otherwise specified
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
V
R
= 5 V
SYMBOL
I
V
I
V
I
V
I
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
V
R
1.85
600
MIN
200
250
320
400
3
605
611
17
± 60
2.1
0.01
2.55
10
611
TYP.
500
800
800
1250
MAX
UNIT
mcd
mcd
mcd
mcd
mlm/mcd
nm
nm
nm
deg
V
µA
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
TLMY32.., YELLOW
PARAMETER
TEST CONDITION
PART
TLMY3200
Luminous intensity
I
F
= 50 mA
TLMY3201
TLMY3202
TLMY3203
Luminous flux/Luminous
intensity
Dominant wavelength
Peak wavelength
Spectral bandwidth
at 50 % I
rel max
Angle of half intensity
Forward voltage
Reverse current
1)
SYMBOL
I
V
I
V
I
V
I
V
φ
V
/I
V
MIN
200
250
320
400
TYP.
450
MAX
800
800
1250
UNIT
mcd
mcd
mcd
mcd
mlm/mcd
3
583
588
590
18
± 60
1.85
2.1
0.01
2.55
10
594
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
I
F
= 50 mA
V
R
= 5 V
λ
d
λ
p
Δλ
ϕ
V
F
V
R
nm
nm
nm
deg
V
µA
Note:
T
amb
= 25 °C, unless otherwise specified
FORWARD VOLTAGE CLASSIFICATION
GROUP
1
2
FORWARD VOLTAGE (V)
MIN
1.85
2.15
MAX
2.25
2.55
Document Number 83146
Rev. 1.5, 24-Sep-07
www.vishay.com
3
TLMK/O/S/Y320.
Vishay Semiconductors
COLOR CLASSIFICATION
DOMINANT WAVELENGTH (NM)
GROUP
MIN
1
2
3
4
5
6
611
614
RED
MIN
618
622
598
600
602
604
606
608
SOFT ORANGE
MAX
MIN
601
603
605
607
609
611
MAX
581
583
585
587
589
591
YELLOW
MAX
584
586
588
590
592
594
LUMINOUS INTENSITY CLASSIFICATION
GROUP
Xa
Xb
Ya
Yb
Za
Zb
0a
0b
LUMINOUS INTENSITY (MCD)
MIN
160
200
250
320
400
500
630
800
MAX
250
320
400
500
630
800
1000
1250
GROUP NAME ON LABEL
LUMINOUS INTENSITY GROUP
Z
HALFGROUP
b
WAVELENGTH
2
FORWARD VOLTAGE
1
One packing unit/tape contains only one classification group of luminous intensity, color and forward voltage.
Only one single classification groups is not available.
The given groups are not order codes, customer specific group combinations require marketing agreement.
No color subgrouping for Super Red.
TYPICAL CHARACTERISTICS
T
amb
= 25 °C, unless otherwise specified
200
100
90
P
V
- Power Dissipation (mW)
180
160
140
120
100
80
60
40
20
0
0
25
50
75
100
125
R
thJA
= 290 K/W
I
F
- Forward Current (mA)
270 K/W
80
70
60
50
40
30
20
10
0
0
25
50
75
100
T
amb
- Ambient Temperature (°C)
125
270 K/W
R
thJA
= 290 K/W
18567
T
amb
- Ambient Temperature (°C)
18568
Figure 1. Power Dissipation vs. Ambient Temperature
Figure 2. Forward Current vs. Ambient Temperature
www.vishay.com
4
Document Number 83146
Rev. 1.5, 24-Sep-07
TLMK/O/S/Y320.
Vishay Semiconductors
0°
10°
20°
30°
I
V
rel
- Relative Luminous Intensity
2.5
I
V
rel
- Relative Luminous Intensity
red
2.0
1.5
1.0
0.5
0.0
- 50
17035
40°
1.0
0.9
0.8
0.7
50°
60°
70°
80°
0.4
0.2
0
0.2
0.4
0.6
0.6
95 10319
- 25
0
25
50
75
100
T
amb
- Ambient Temperature (°C)

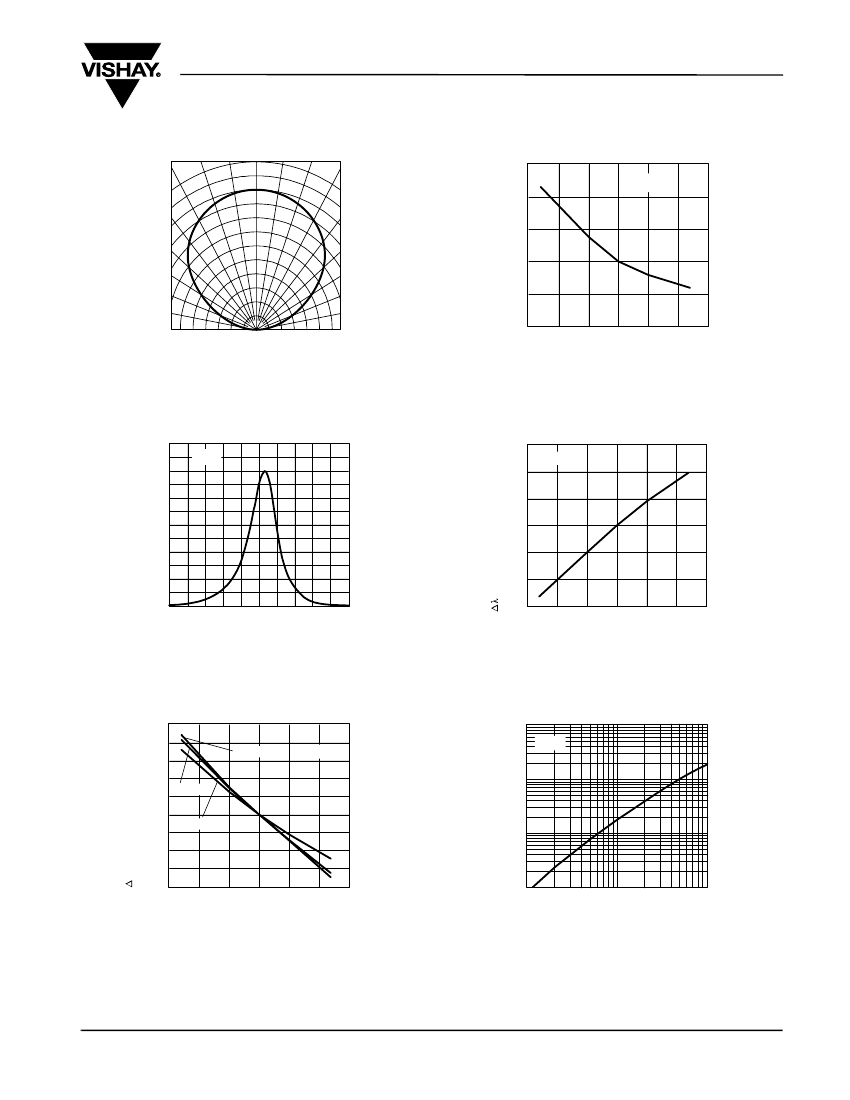

Figure 3. Rel. Luminous Intensity vs. Angular Displacement
Figure 6. Relative Luminous Intensity vs. Amb. Temperature
1.2
- Change of Dom.
Wavelength
(nm)
6
red
4
2
0
-2
-4
-6
- 50
I
V
rel
- Relative Luminous Intensity
red
1.0
0.8
0.6
0.4
0.2
0.0
570
590
610
630
650
670
d
- 25
0
25
50
75
100
16007
λ
-
Wavelength
(nm)
17036
T
amb
- Ambient Temperature (°C)
Figure 4. Relative Intensity vs. Wavelength
Figure 7. Change of Dominant Wavelength vs.
Ambient Temperature
V
F
- Change of Forward
Voltage
(mV)
250
I
V
rel
- Relative Luminous Intensity
200
150
100
50
0
- 50
- 100
- 150
- 200
- 50
- 25
0
25
50
75
100
10 mA
30 mA
50 mA
red
10
red
1
0.1
0.01
1
17037
17034
T
amb
- Ambient Temperature (°C)
