SMTBJ120B: Description265 V, 30 A, SILICON SURGE PROTECTOR, DO-214AA; CategoryAnalog mixed-signal IC Trigger device; File Size81KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

SMTBJ120B Overview

265 V, 30 A, SILICON SURGE PROTECTOR, DO-214AA

SMTBJ120B Parametric

Parameter Name	Attribute value
Parts packaging code	DO-214AA
package instruction	SMALL OUTLINE, R-PDSO-C2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	UL RECOGNIZED
Maximum breakover voltage	165 V
Configuration	SINGLE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
On-state non-repetitive peak current	30 A
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL
Trigger device type	SILICON SURGE PROTECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

SMTBJ SiBOD

™

series

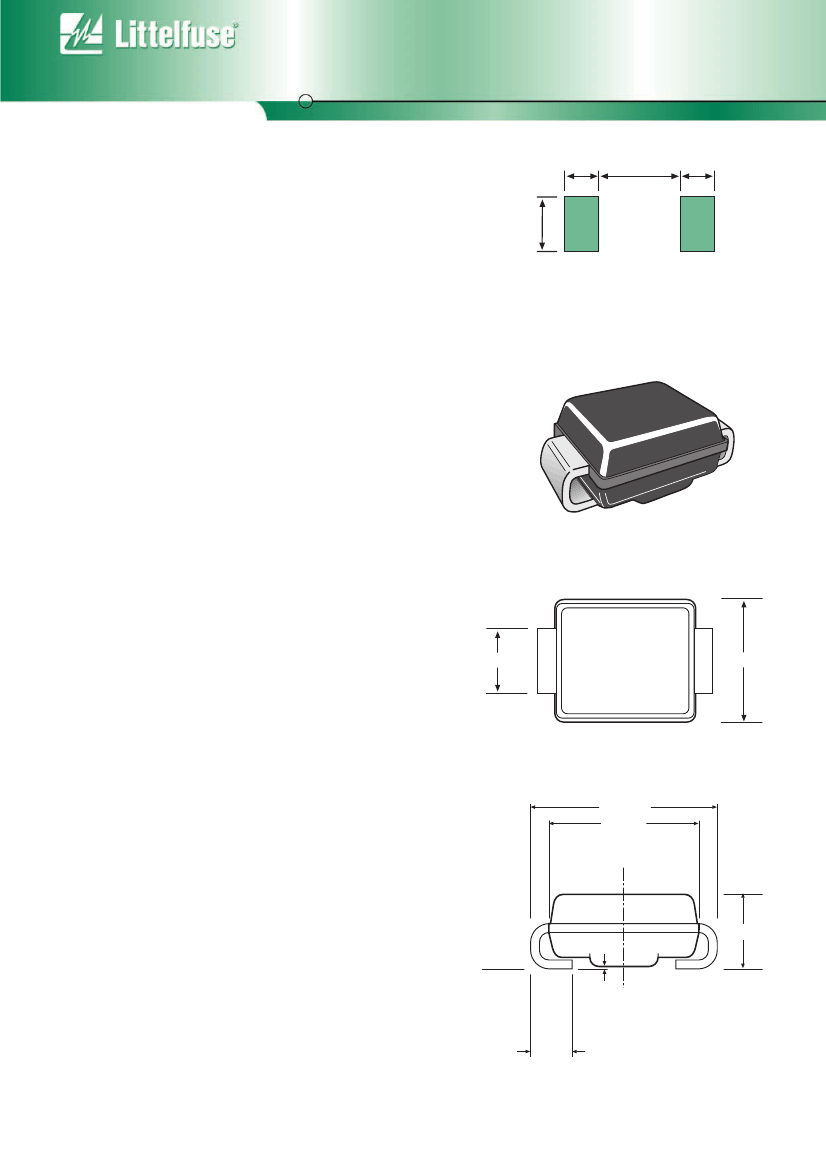

FEATURES

2.16

2.74

2.16

G

Bi-directional transient voltage protection

G

Glass passivated junction

G

Nano second clamping response

G

Surge capability up to 250 (Amps)

G

No performance degradation under service life

G

Industry standard DO-2144AA Jedec outline

G

Available on tape (12mm)

G

UL recognised

Solder Pads

2.26

All dimensions in mm

MECHANICAL CHARACTERISTICS

G

Transfer molded, void free epoxy body

G

Terminals: modified ‘J’ bend for large contact area

G

Tin/Lead plated leads

G

Maximum case temperature for soldering purposes: 230°C for 10 seconds

G

Standard packaging: 12mm tape (meets EIA 481-1)

G

Device marking, device code, logo

2.0

B

A

5.21/5.59

4.06/4.57

.102

.203

0.76/1.27

3.30/3.94

2.18/2.44

SEATING PLANE

w w w. l i t t e l f u s e . c o m

59

SMTBJ120B Related Products

	SMTBJ120B	SMTBJ170B	SMTBJ120A	SMTBJ100A	SMTBJ070B	SMTBJ070A	SMTBJ
Description	265 V, 30 A, SILICON SURGE PROTECTOR, DO-214AA	265 V, 30 A, SILICON SURGE PROTECTOR, DO-214AA	265 V, 30 A, SILICON SURGE PROTECTOR, DO-214AA	265 V, 30 A, SILICON SURGE PROTECTOR, DO-214AA	265 V, 30 A, SILICON SURGE PROTECTOR, DO-214AA	265 V, 30 A, SILICON SURGE PROTECTOR, DO-214AA	265 V, 30 A, SILICON SURGE PROTECTOR, DO-214AA
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
surface mount	YES	YES	YES	YES	YES	YES	Yes
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Parts packaging code	DO-214AA	DO-214AA	-	DO-214AA	-	DO-214AA	-
package instruction	SMALL OUTLINE, R-PDSO-C2	SMALL OUTLINE, R-PDSO-C2	SMALL OUTLINE, R-PDSO-C2	SMALL OUTLINE, R-PDSO-C2	SMALL OUTLINE, R-PDSO-C2	SMALL OUTLINE, R-PDSO-C2	-
Contacts	2	2	-	2	-	2	-
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	-
Maximum breakover voltage	165 V	215 V	165 V	135 V	120 V	120 V	-
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
JEDEC-95 code	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	-
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	-
On-state non-repetitive peak current	30 A	30 A	30 A	30 A	30 A	30 A	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Trigger device type	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR	SILICON SURGE PROTECTOR	-
Base Number Matches	1	1	1	-	1	1	-
Is it Rohs certified?	-	incompatible	incompatible	-	incompatible	incompatible	-
Maximum off-state DC voltage	-	170 V	120 V	-	70 V	70 V	-
JESD-609 code	-	e0	e0	-	e0	e0	-
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	245	-	245	NOT SPECIFIED	-
Terminal surface	-	TIN LEAD	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	TIN LEAD	-
Maximum time at peak reflow temperature	-	NOT SPECIFIED	60	-	60	NOT SPECIFIED	-
