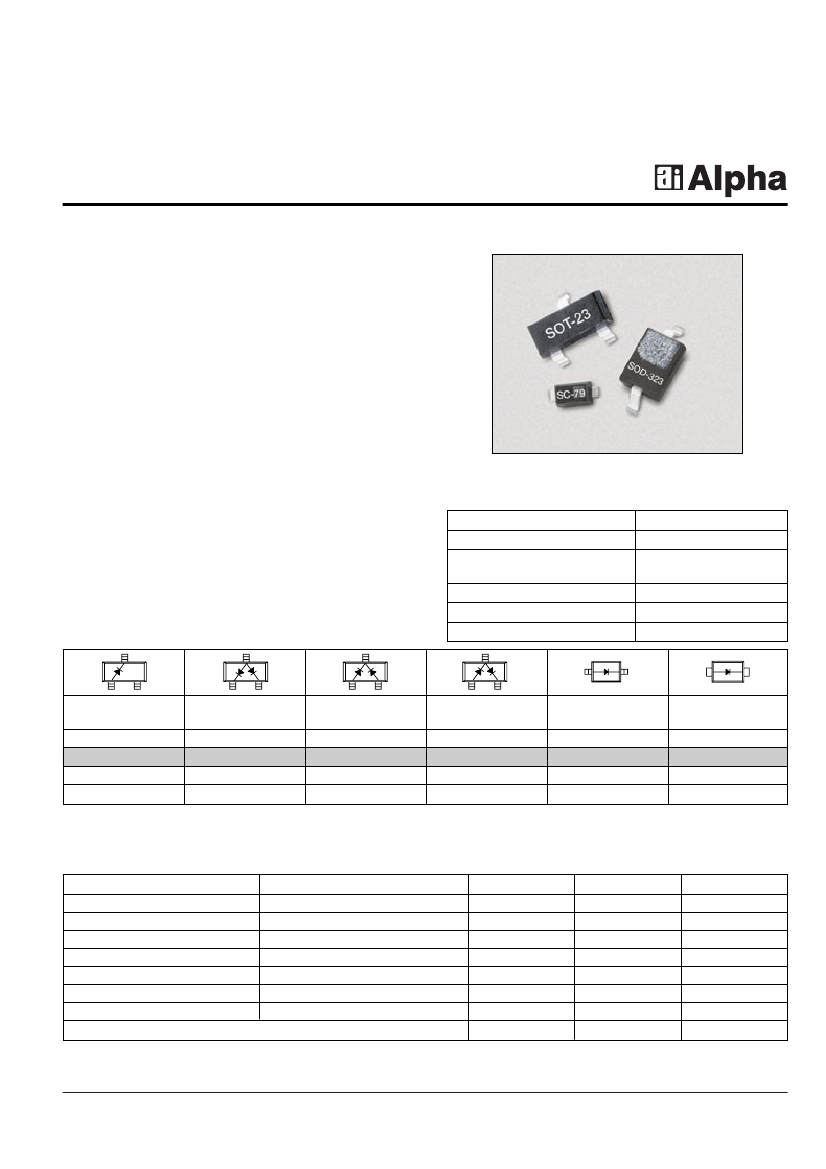

Preliminary
Fast Switching Speed, Low Capacitance
Plastic Packaged PIN Diodes
SMP1340 Series
Features
s
Designed for Fast Speed Wireless Switch
Applications
s
1.0
Ω
Resistance, 0.3 pF Capacitance
s
Multiple Package Configurations
s
Designed for High Volume Wireless
Applications
s
Available in Tape and Reel Packaging
Description
The SMP1340 series of plastic packaged, surface
mountable PIN diodes are designed for high volume switch
applications from 10 MHz to beyond 2 GHz. The short
carrier lifetime of typically 100 nS, combined with its thin
I region width of nominally 8
µm,
results in a fast speed
RF switching PIN diode. The RF performance of the
SMP1340 series is assured by virtue of its low
capacitance (0.3 pF) and low resistance (1.0
Ω
at 10 mA).
Absolute Maximum Ratings
Characteristic
Reverse Voltage (V
R
)
Power Dissipation @ 25°C Lead
Temperature (P
D
)
Storage Temperature (T
ST
)
Operating Temperature (T
OP
)
ESD Human Body Model
Value
50 V
250 mW
-65°C to +150°C
-65°C to +150°C
Class 1B
Single
Marking: PS1
SOT-23
o
SMP1340-001
L
S
= 1.5 nH
o
Available through distribution.
Common
Anode
Marking: PS9
SOT-23
o
SMP1340-003
L
S
= 1.5 nH
Common
Cathode
Marking: PS3
SOT-23
o
SMP1340-004
L
S
= 1.5 nH
Series
Pair
Marking: PS2
SOT-23
o
SMP1340-005
L
S
= 1.5 nH
Single
Single
SOD-323
o
SMP1340-011
L
S
= 1.5 nH
SC-79
o
SMP1340-079
L
S
= 0.7 nH
Electrical Specifications at 25°C
Parameter
Reverse Current (I
R
)
Capacitance (C
T
)
Resistance (R
S
)
Resistance (R
S
)
Resistance (R
S
)
Forward Voltage (V
F
)
Carrier Lifetime (TI)
I Region Width
Condition
V
R
= 50 V
F = 1 MHz, V = 5 V
F = 100 MHz, I = 1 mA
F = 100 MHz, I = 5 mA
F = 100 MHz, I = 10 mA
IF = 10 mA
IF = 10 mA
0.21
1.7
1.0
0.85
0.85
100
0.80
2.0
1.2
Typ.
Max.
10
0.30
Unit
µA
pF
Ω
Ω
Ω
V
nS
µm
Alpha Industries, Inc.
[781] 935-5150
•
Fax
[617] 824-4579
•
Email
sales@alphaind.com
•
www.alphaind.com
Specifications subject to change without notice. 6/99A
1
Fast Switching Speed, Low Capacitance Plastic Packaged PIN Diodes
SMP1340 Series
Typical Performance Data
100
100
Series Resistance (Ω)
Forward Current (mA)
0.1
1
10
100
10
10
1
1
0.1
0.1
0.01
0.01
0.6
0.7
0.8
0.9
1.0
Forward Current (mA)
Forward Voltage (mV)
Series Resistance vs. Current @ 100 MHz
0.30
350
300
DC Characteristic
Capacitance (pF)
0V
Conductance (µS)
0.25
250
200
150
100
50
0
10 V
40 V
0.20
1 MHz–1 GHz
0.15
0.10
0
5
10
15
20
25
30
35
40
-50
0
500
1000
1500
2000
Reverse Voltage (V)
Frequency (MHz)
Capacitance vs. Reverse Voltage
Conductance vs. Frequency
2
Alpha Industries, Inc.
[781] 935-5150
•
Fax
[617] 824-4579
•
Email
sales@alphaind.com
•
www.alphaind.com
Specifications subject to change without notice. 6/99A
Fast Switching Speed, Low Capacitance Plastic Packaged PIN Diodes
SMP1340 Series
SOT-23
0.110 (2.80 mm) MIN.
0.120 (3.04 mm) MAX.
3
SOD-323
0.012 (0.30 mm) MIN.
0.020 (0.50 mm) MAX.
0.047 (1.20 mm) MIN.
0.055 (1.40 mm) MAX.
1
2
0.090 (2.30 mm) MIN.
0.108 (2.74 mm) MAX.
0.010
(0.25 mm) MIN.
0.016
(0.40 mm) MAX.
0.063 (1.60 mm) MIN.
0.071 (1.80 mm) MAX.
0.083 (2.10 mm) MIN.
0.104 (2.64 mm) MAX.
0.045 (1.15 mm) MIN.
0.053 (1.35 mm) MAX.
1
2
0.037 (0.95 mm) REF.
0.020 (0.51 mm) REF.
0.076 (1.92 mm) REF.
0.003 (0.080 mm) MIN.
0.008 (0.20 mm) MAX.
8˚ MAX.
0.035 (0.89 mm) MIN.
0.044 (1.12 mm) MAX.
0.006
(0.15 mm) TYP.
CATHODE
INDICATOR
0.008 (0.20 mm) NOM.
0.050
(1.25 mm) MAX.
0.004 (0.10 mm) MAX.
0.022 (0.55 mm) REF.
0.0005 (0.01 mm) MIN.
0.004 (0.10 mm) MAX.
0.010 (0.25 mm) MIN.
SC-79
CATHODE 0.006 (0.15 mm) MIN.
INDICATOR
0.010
(0.25 mm) MIN.
0.014
(0.35 mm) MAX.
1
2
0.028
(0.70 mm) MIN.
0.035
(0.90 mm) MAX.
0.060 (1.50 mm) MIN.
0.067 (1.70 mm) MAX.
0.043 (1.10 mm) MIN.
0.051 (1.30 mm) MAX.
0.020
(0.50 mm) MIN.
0.028
(0.70 mm) MAX.
10˚ MAX.
10˚ MAX.
0.003
(0.07 mm) MIN.
0.008
(0.20 mm) MAX.
Alpha Industries, Inc.
[781] 935-5150
•
Fax
[617] 824-4579
•
Email
sales@alphaind.com
•
www.alphaind.com
Specifications subject to change without notice. 6/99A
3
