7M4042S65CB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 7M4042S65CB

7M4042S65CB: DescriptionStandard SRAM, 256KX4, 65ns, CMOS, CDIP28, 1.600 X 0.400 INCH, 0.280 INCH HEIGHT, CERAMIC, SIDEBRAZED, DIP-28; Categorystorage storage; File Size303KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

7M4042S65CB Overview

Standard SRAM, 256KX4, 65ns, CMOS, CDIP28, 1.600 X 0.400 INCH, 0.280 INCH HEIGHT, CERAMIC, SIDEBRAZED, DIP-28

7M4042S65CB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1164070765
package instruction	DIP, DIP28,.4
Reach Compliance Code	not_compliant
ECCN code	3A001.A.2.C
Maximum access time	65 ns
I/O type	COMMON
JESD-30 code	R-CDIP-T28
JESD-609 code	e0
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	4
Number of functions	1
Number of terminals	28
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	256KX4
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.4
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum standby current	0.122 A
Minimum standby current	4.5 V
Maximum slew rate	0.32 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30

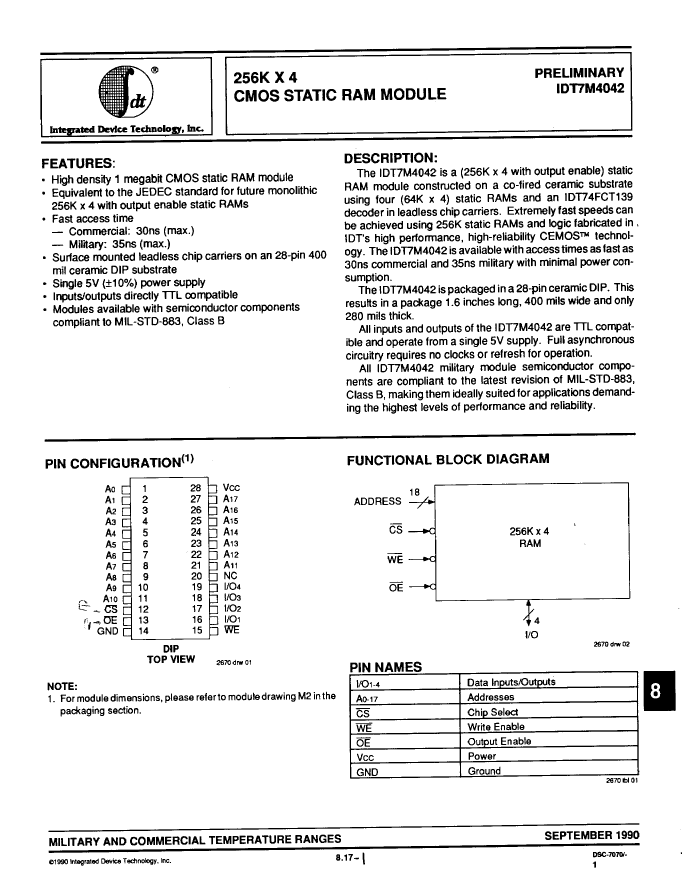

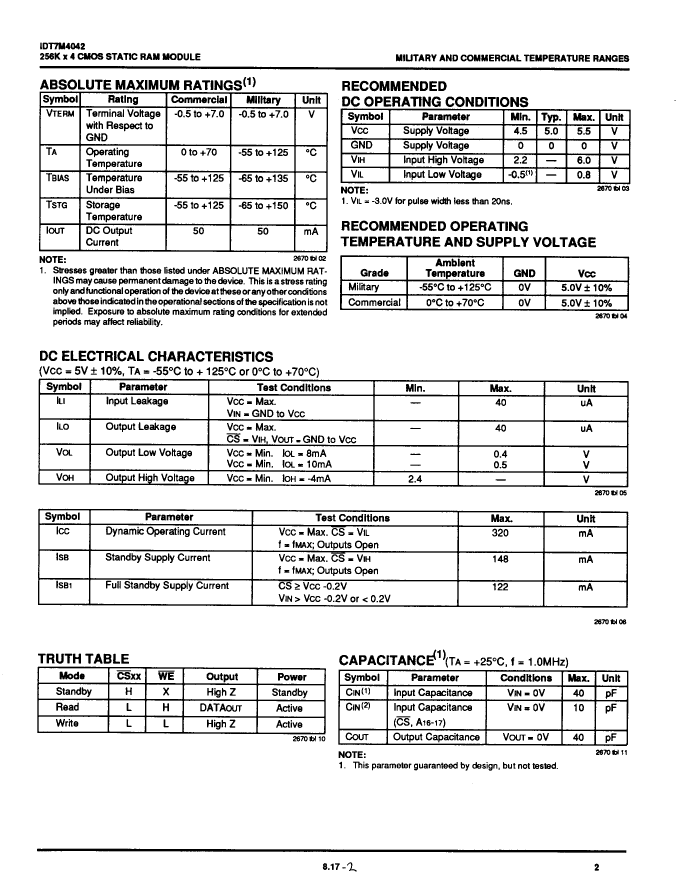

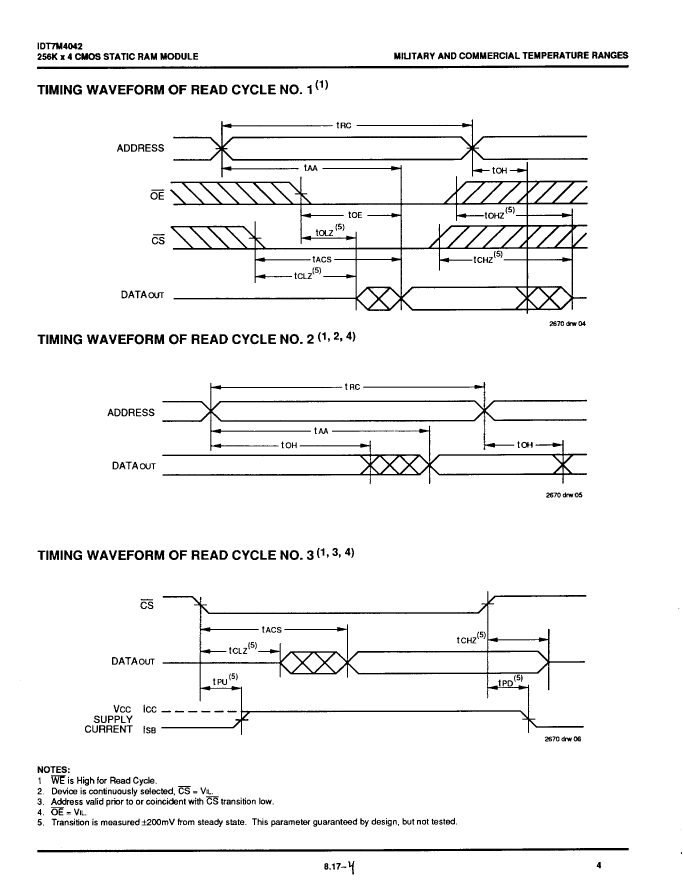

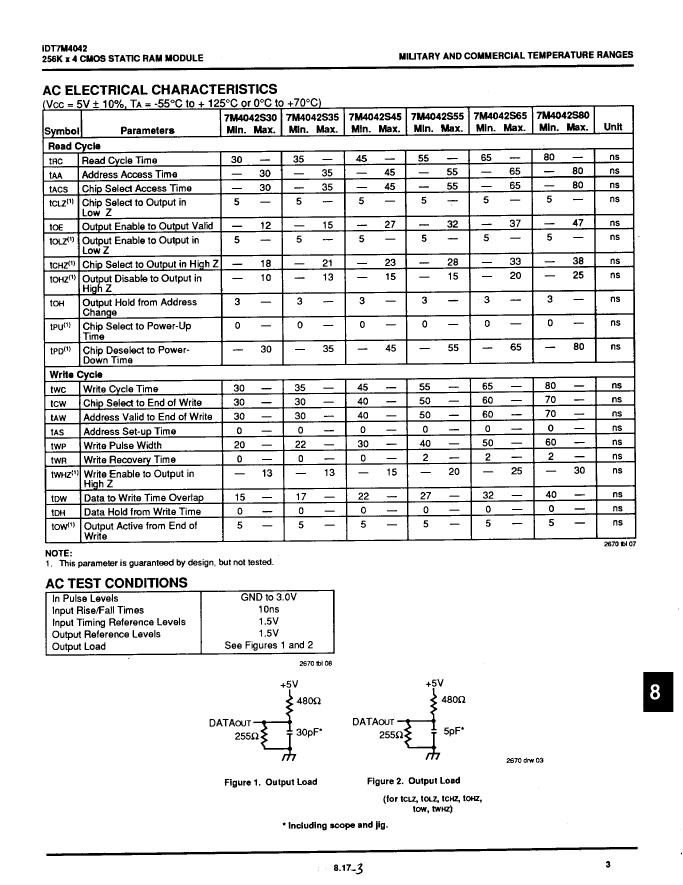

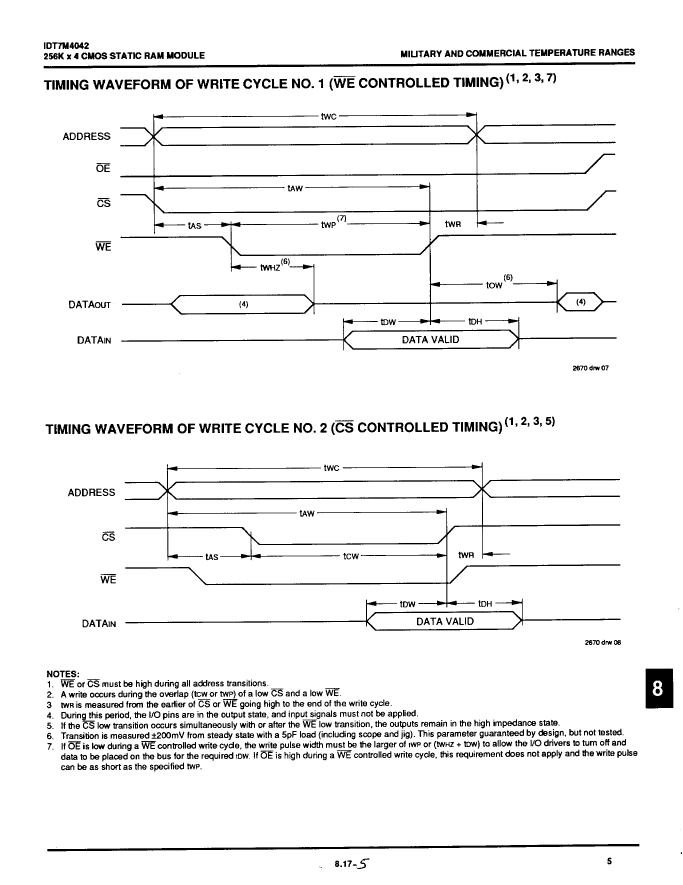

Preview

Download Datasheet

View All

7M4042S65CB Related Products

	7M4042S65CB	7M4042S80CB
Description	Standard SRAM, 256KX4, 65ns, CMOS, CDIP28, 1.600 X 0.400 INCH, 0.280 INCH HEIGHT, CERAMIC, SIDEBRAZED, DIP-28	Standard SRAM, 256KX4, 80ns, CMOS, CDIP28, 1.600 X 0.400 INCH, 0.280 INCH HEIGHT, CERAMIC, SIDEBRAZED, DIP-28
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Objectid	1164070765	1164070767
package instruction	DIP, DIP28,.4	DIP, DIP28,.4
Reach Compliance Code	not_compliant	not_compliant
ECCN code	3A001.A.2.C	3A001.A.2.C
Maximum access time	65 ns	80 ns
I/O type	COMMON	COMMON
JESD-30 code	R-CDIP-T28	R-CDIP-T28
JESD-609 code	e0	e0
memory density	1048576 bit	1048576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM
memory width	4	4
Number of functions	1	1
Number of terminals	28	28
word count	262144 words	262144 words
character code	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
organize	256KX4	256KX4
Output characteristics	3-STATE	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP28,.4	DIP28,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	225	225
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Filter level	MIL-STD-883 Class B	MIL-STD-883 Class B
Maximum standby current	0.122 A	0.122 A
Minimum standby current	4.5 V	4.5 V
Maximum slew rate	0.32 mA	0.32 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	30	30
