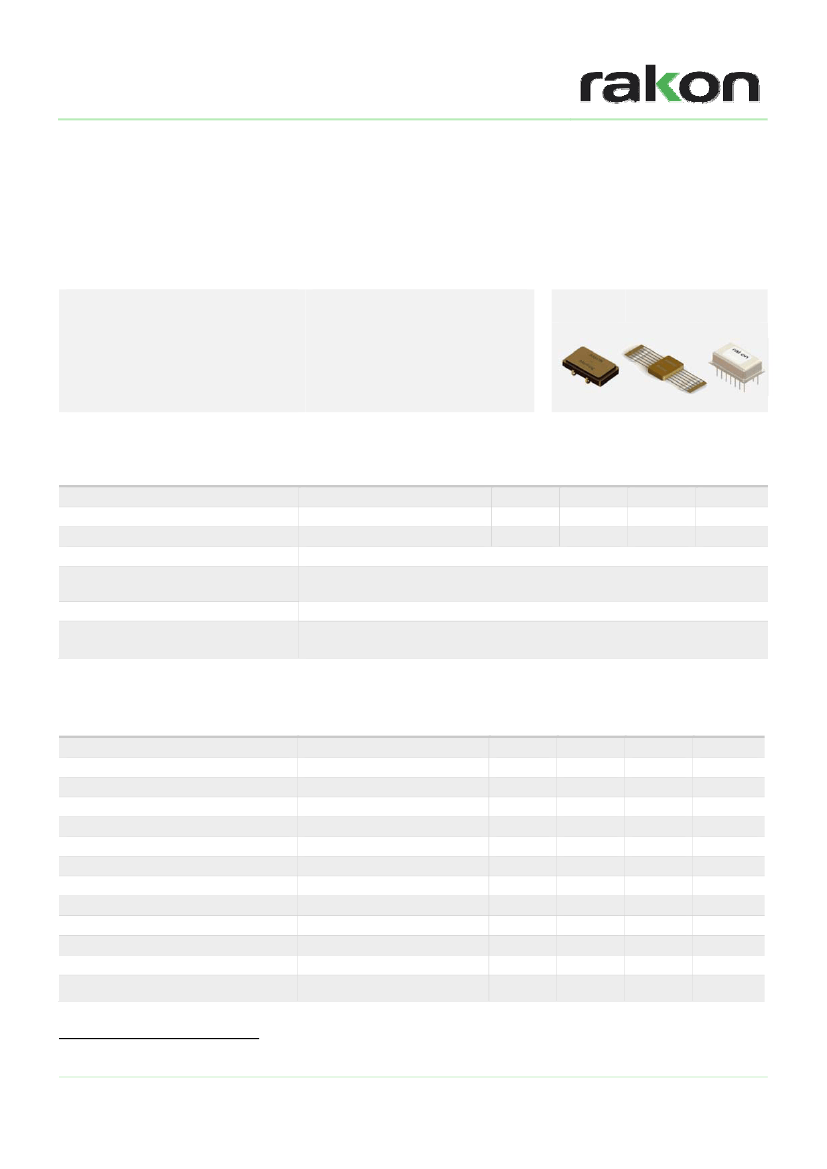

H
IGH
R
ELIABILITY
XO
|
S
PACE
S
OLUTIONS
RK115
This high reliability XO RK115 is designed for space applications and is based on hybrid technology, where it is resistant to extreme
environments (Radiation, shock and vibration). The key advantages of this oscillator are low power consumption and short lead times. The
RK115 is available with the second generation of enhanced J‐lead technology which make its report easy and is also available in Flatpack and
DIL packages, pin‐to‐pin compatible with most of the Space XOs in the market.
Features
ITAR‐free
Frequency Range: 2 MHz to 100 MHz
AHCMOS or ACMOS output
Low consumption: 25 mA
Supply Voltage: +3.3 V or +5 V
Global frequency statibility: ± 68 ppm
over 18 years
Applications
Space
o
o
Packages
J‐Lead
Flatpack
DIL
Digital cards
FPGA clock
Environmental Conditions
Parameter
Operating temperature
Switch‐on temperature
Non‐operating temperature
Random vibration
Shocks
Acceleration
Radiation
Condition / Remarks
Option C: ‐40°C to 110°C
TS
0
TNO
P
Min.
‐40
‐40
‐40
Typ.
25
Max.
110
110
110
Unit
°C
°C
°C
Level as per MIL‐STD‐202, Method 214, Condition I‐K (46, 3 Grms)
Mechanical shock as per MIL‐STD‐202, Method 213 (half sine with a peak acceleration of
2000 g for a duration of 0.3 ms
Acceleration as per MIL‐STD‐883, Method 2001, Condition A (5000 g)
Total lionizing Dose of 100 kRad, low dose rate as per ESCC22900 Latchup free up to
LET = 62.5 MeV/mg/cm
2
Frequency Characteristics
Parameter
Nominal frequency
Steady state input current power
Global frequency stability
1
Initial frequency accuracy
Frequency stability over temperature
Supply voltage stability
Load sensitivity
Ageing
Start‐up time
Output level
Duty cycle
Rise time
Fall time
Condition / Remarks
AHCMOS
Option C: ‐40°C to 110°C
Option C: ‐40°C to 110°C
Over operating temperature
Over operating temperature
Over 18 years
AHCMOS
10% to 90% Vcc
90% to 10% Vcc
Min.
2
2.4
45
Typ.
25
Max.
100
±68
±25
±30
±3
±5
±15
10
0.4
55
5
5
Unit
MHz
mA
ppm
ppm
ppm
ppm
ppm
ppm
ms
V
%
ns
ns
±10
50
1
Including initial accuracy + frequency temperature stability + power supply stability + ageing over 18 years.
Date: 24 May 2017
Issue: Shortform, 51001204.110, Issue A3
Specifications subject to change without notice
Page 1 of 2
www.rakon.com
Requests can be emailed to: hirel@rakon.com
H
IGH
R
ELIABILITY
XO
|
S
PACE
S
OLUTIONS

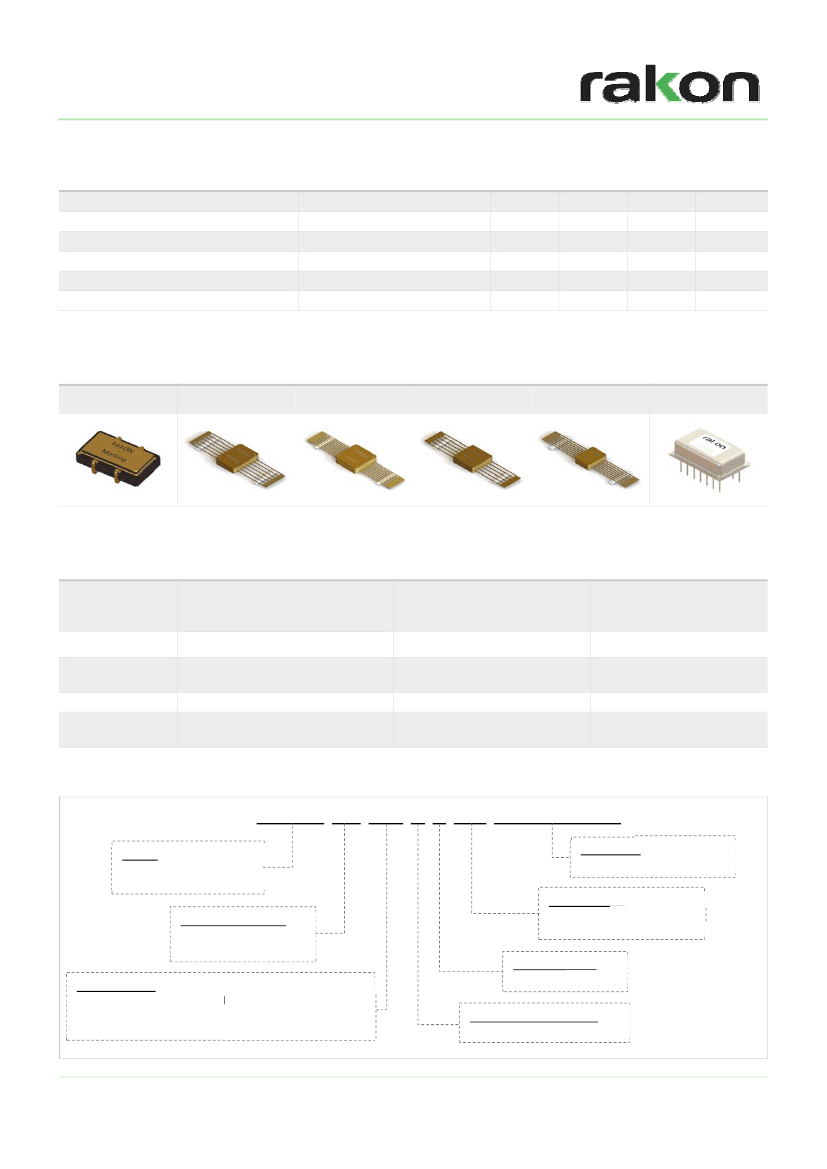

Electrical Interface
Parameter
Power supply option 1
Power supply option 2
Load impedance (AHCMOS 3.3 V)
Load impedance (AHCMOS 3.3 V)
Load impedance (AHCMOS 5 V)
Load impedance (ACMOS 3.3 V / 5 V)
Condition / Remarks
3.3 V
5 V
2 MHz ≤ Frequency < 80 MHz
80 MHz ≤ Frequency ≤100 MHz
2 MHz ≤ Frequency 100 MHz
Min.
3.13
4.5
13
9.1
13
13
Typ.
3.3
5
Max.
3.465
5.5
18
11
18
18
Unit
V
V
pF
pF
pF
pF
15
10
15
15
Package Options
J‐Lead
JL2
14x9x3.8 mm, 4 leads
Flatpack
FP1
15x20x3.6 mm, 14 leads
DIL
FP2
16x16x3.8 mm, 20 leads
FP3
16x16x3.6 mm, 12 leads
FP4
13x10x3 mm, 16 leads
DIL1
20x13x5 mm, 14 leads
Model Grade
Parameter
components
EM
Passive commercial parts, active parts
from the same manufacturer of the
hi‐rel parts
Swept quartz
Flight representative in form‐fit‐
function
Flight design
Acceptance testing
EQM
MIL grade parts procured from the
same manufacturer of hi‐rel parts
FM
Hi‐rel parts
Crystal materials
Mechanical
interface
Electrical interface
Tests
Swept quartz
Flight representative in form‐fit‐
function
Flight design
Qualification test
ESCC3501 Swept quartz
Flight design
Flight design
Acceptance testing (including
screening group A & B)
Ordering Part Example
RK115
AC JL2 C 1 FM 24M000000
Series
RK115 = Space XO
(According to MIL‐S)
Frequency
24M000000 = 24 MHz (Fnom)
Model Grade
Output Waveform
Blank = AHCMOS
AC = ACMOS
FM = FM level S
EM = EM
EQM
= EQM
Supply Voltage
1 = 3.3 V
2
= 5 V
Package Type
JL2 = J‐lead 14x9, 4 L enhanced FP3
= Flactpack 16x16, 12 L
FP1 = Flactpack 16x16, 14 L
FP4 = Flactpack 13x10, 16 L
FP2 = Flactpack 16x16, 20 L
DIL1 = DIL 20x13, 14 L
Temperature Stability
C
= ‐40°C to 110°C, ±30 ppm
Date: 24 May 2017
Issue: Shortform, 51001204.110, Issue A3
Specifications subject to change without notice
Page 2 of 2
www.rakon.com
Requests can be emailed to: hirel@rakon.com
