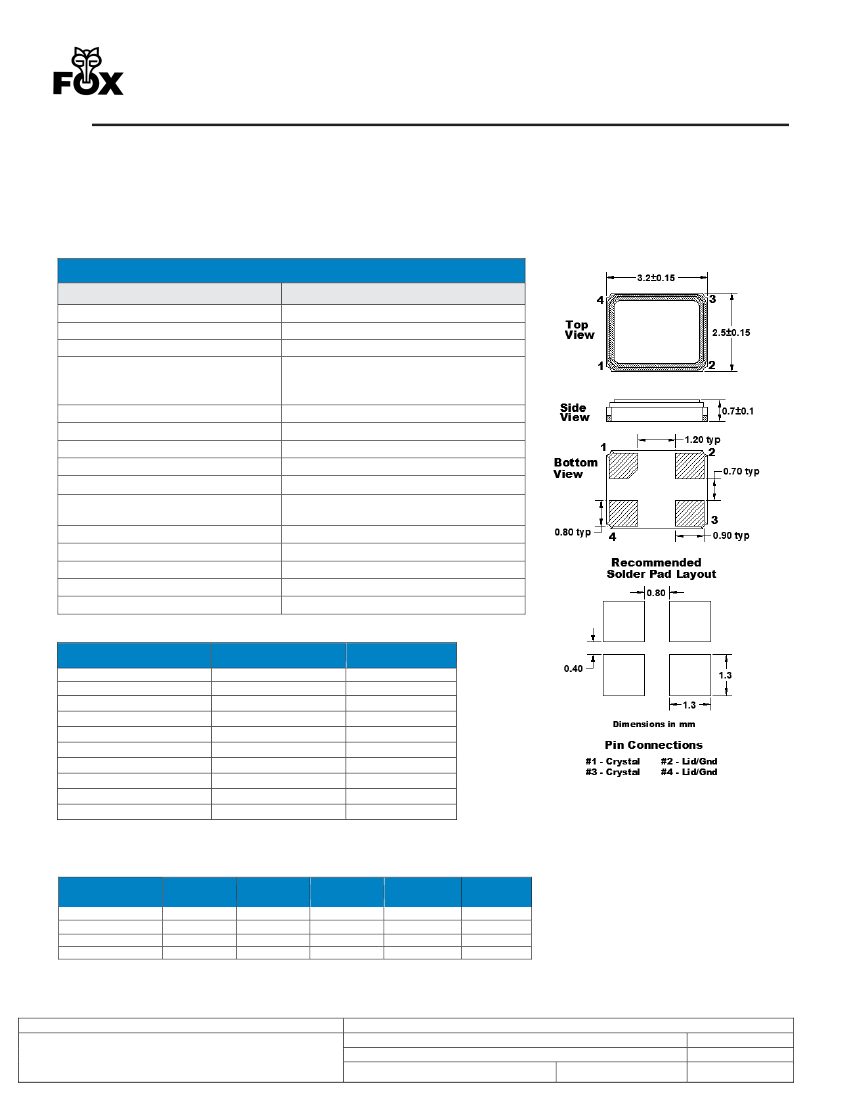

3.2 x 2.5mm Auto Grade Crystal
•
•
•
•
C3BA
(former FXA3225B)
DATASHEET
AEC Q200 Qualified
IATF-16949 QMS
Tolerances down to ±10 PPM
Stabilities down to ±20 PPM
• SPECIFICATIONS
PARAMETERS
MAX
(unless otherwise noted)
Frequency Range
8.000 ~ 150.000 MHz
Frequency Tolerance @ 25ºC
~(See options on page 2)
52.000 MHz
Frequency Stability, ref @ 25ºC
(See options below)
Temperature Range
Operating (T
OPR
)
See options below
Storage
(T
STG
)
-55ºC ~ +150ºC
Shunt Capacitance (C
0
)
3pF
Load Capacitance (C
L
)
(See options on page 2)
Drive Level
100µW
Aging per year
±5 PPM
Maximum Soldering Temp / Time
260ºC / 10 Seconds x 2
Moisture Sensitivity Level (MSL)
N/A
per J-STD-033
Termination Finish
Au (0.3~1µm) over Ni (1.27~8.89µm)
Seal Method
Seam
Lead (Pb) Free
Yes
RoHS Compliant
Yes, no exemptions
REACH Compliant (latest version) Yes
Frequency Range
(MHz)
8.000 ~ 9.999999
10.000 ~ 11.999999
12.000 ~ 15.999999
16.000 ~ 19.999999
20.000 ~ 24.999999
25.000 ~ 53.999999
54.000 ~ 64.000
54.000 ~ 99.999999
100.000 ~ 124.999999
125.000 ~ 150.000
Operating Mode
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
3
RD
OT
3
RD
OT
3
RD
OT
Max ESR
Ω
500
150
80
60
50
40
30
150
100
80
Note: Dimensional drawing is for reference to critical specifications
defined by size measurements.
•Available Operating Temperatures and Stabilities
1
Operating
Temperature
-40 ~ +85ºC
-40 ~ +105ºC
-40 ~ +125ºC
-55 ~ +125ºC
±20 PPM
O
X
X
X
±25 PPM
O
X
X
X
±30 PPM
O
O
X
X
±50 PPM
O
O
O
O
±100 PPM
O
O
O
O
Key: O=Available, X=Not Available,
Reference / Comments
7/21/2020 – Added thickness info to termination metals, adjusted MSL info
to include J-STD-033 and N/A
© Copyright 2020 Fox Electronics. All rights reserved
Title / Description:
C3BA SERIES STANDARD SPECIFICATIONS
Drawing Number:
C3BA-DOC-1
Part Number:
Draftsperson:
BEC
Approved:
MAJ
Size: A
Cage:
61429
Date:
07/21/2020
3.2 x 2.5mm Auto Grade Crystal

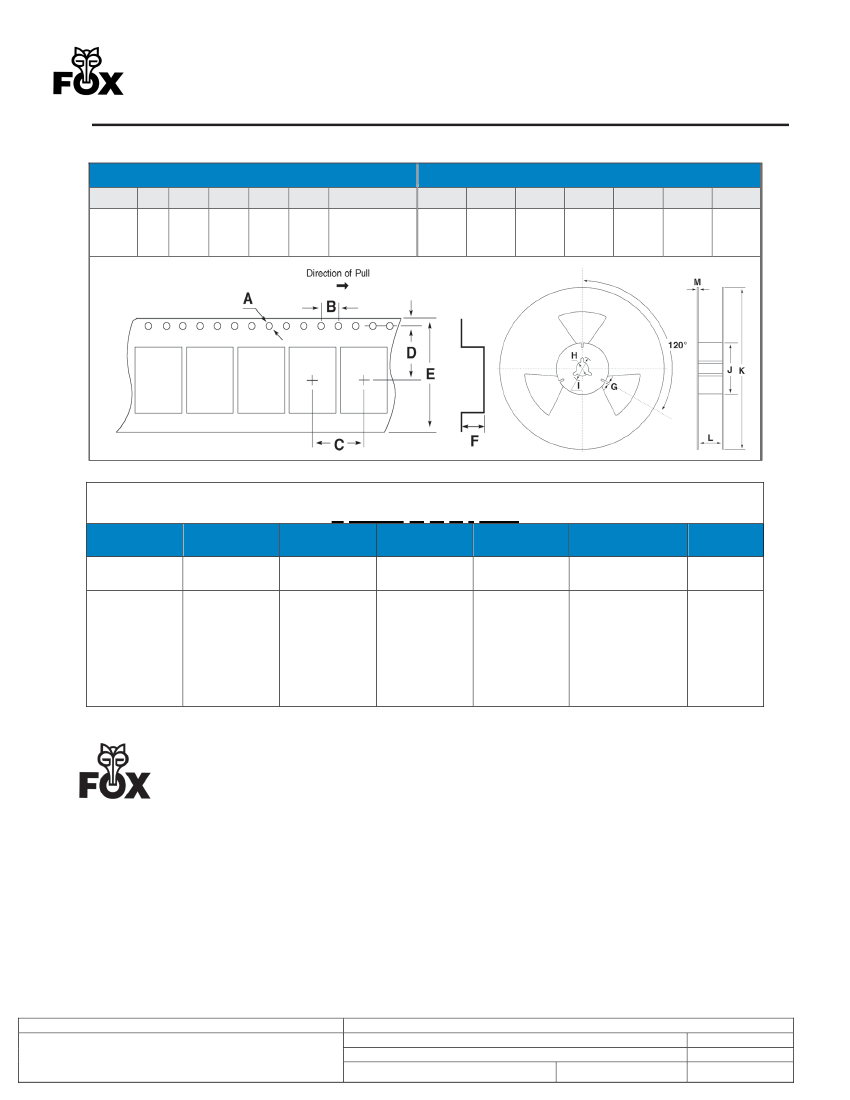

• TAPE SPECIFICATIONS
(millimeters)
A
B
C
4.0
D
3.5
E
8.0
F
1.4
Reel QTY
C3BA
(former FXA3225B)
DATASHEET
• REEL SPECIFICATIONS
(millimeters)
G
2.5
H
13
I
21
J
60
K
180
L
9.0
M
2.0
1.55
4.0
-T3 = 3,000
-T2 = 2,000
-T1 = 1,000
Available Options & Part Identification for Automotive Crystal Model C3BA
1
F C3BA B C V I 40.0
F
FOX
C3BA
Model
Number
B
Tolerance
B = ±50 PPM
C = ±30 PPM
D = ±25 PPM
E = ±20 PPM
F = ±15 PPM
H = ±10 PPM
C
Stability
A = ±100 PPM
B = ±50 PPM
C = ±30 PPM
D = ±25 PPM
E = ±20 PPM
V
Load
Capacitance
2
V=7pF
D=8pF
E=10pF
G=12pF
J=15pF
K=16pF
L=18pF
M=20pF
I
40.0
Operating
Frequency
(MHz)
Temperature
M = -40 to +85°C
P = -40 to +105°C
I = -40 to +125°C
T = -55 to +125ºC
1
Not
2
Listed
all frequency, tolerance, stability, load, and operating temperature combinations may be available.
load capacitances represent the most commonly used. Other load capacitances are available. Contact Fox Technical Suppo rt for assistance
Corporate Headquarters
5570 Enterprise Parkway
Fort Myers, FL 33905
http://www.FOXONLINE.com
Sales
1-888-GET-2-FOX (1-888-438-2369) or
1-239-693-0099
http://www.FOXONLINE.com/repdisty
Tech Support
http://www.FOXONLINE.com/email
PRODUCT USE:
Fox Electronics reserves the right to modify the products and/or specifications described herein at any time and at Fox Electronics' sole
discretion. All information in this document, including descriptions of product features and performance, is subject to chang e without notice. Performance
specifications and the operating parameters of the described products are determined in the independent state and are not guaranteed to perform the same way
when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied,
including, but not limited to, the suitability of Fox Electronics' products for any particular purpose, an implied warranty of merchantability, or no n-infringement of
the intellectual property rights of others. This document is presented only as a guide and does not convey any license under intellectual property rights of Fox
Electronics or any third parties.
Fox Electronics' products are not intended for use in applications involving extreme environmental conditions or in life supp ort systems or similar devices where
the failure or malfunction of a Fox Electronics product can be reasonably expected to significantly affect the health or safety of users. Anyone using a Fox
Electronics product in such a manner does so at their own risk, absent an express, written agreement by Fox Ele ctronics.
Fox Electronics and the Fox logo are registered trademarks of Fox Electronics. Product specification is subject to change without notice. Other trademarks and
service marks used herein, including protected names, logos and designs, are the proper ty of Fox Electronics or their respective third-party owners.
For datasheet type definitions and a glossary of common terms, visit http://www.foxonline.com/tgcrystals.html .
Reference / Comments
7/21/2020 – Added thickness info to termination metals, adjusted MSL info
to include J-STD-033 and N/A
© Copyright 2020 Fox Electronics. All rights reserved
Title / Description:
C3BA SERIES STANDARD SPECIFICATIONS
Drawing Number:
C3BA-DOC-1
Part Number:
Draftsperson:
BEC
Approved:
MAJ
Size: A
Cage:
61429
Date:
07/21/2020
