LGU1K332MHLC

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 80V, 3300uF, THROUGH HOLE MOUNT, RADIAL LEADED
CategoryPassive components    capacitor
File Size102KB，5 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Download Datasheet Parametric View All

LGU1K332MHLC Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 80V, 3300uF, THROUGH HOLE MOUNT, RADIAL LEADED

LGU1K332MHLC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1933484781
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance3300 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
JESD-609 codee0
leakage current1.54 mA
Manufacturer's serial numberGU
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)80 V
ripple current2710 mA
surface mountNO
Delta tangent0.2
Terminal surfaceTin/Lead (Sn/Pb)
Terminal shapeSNAP-IN

Preview

Download Datasheet

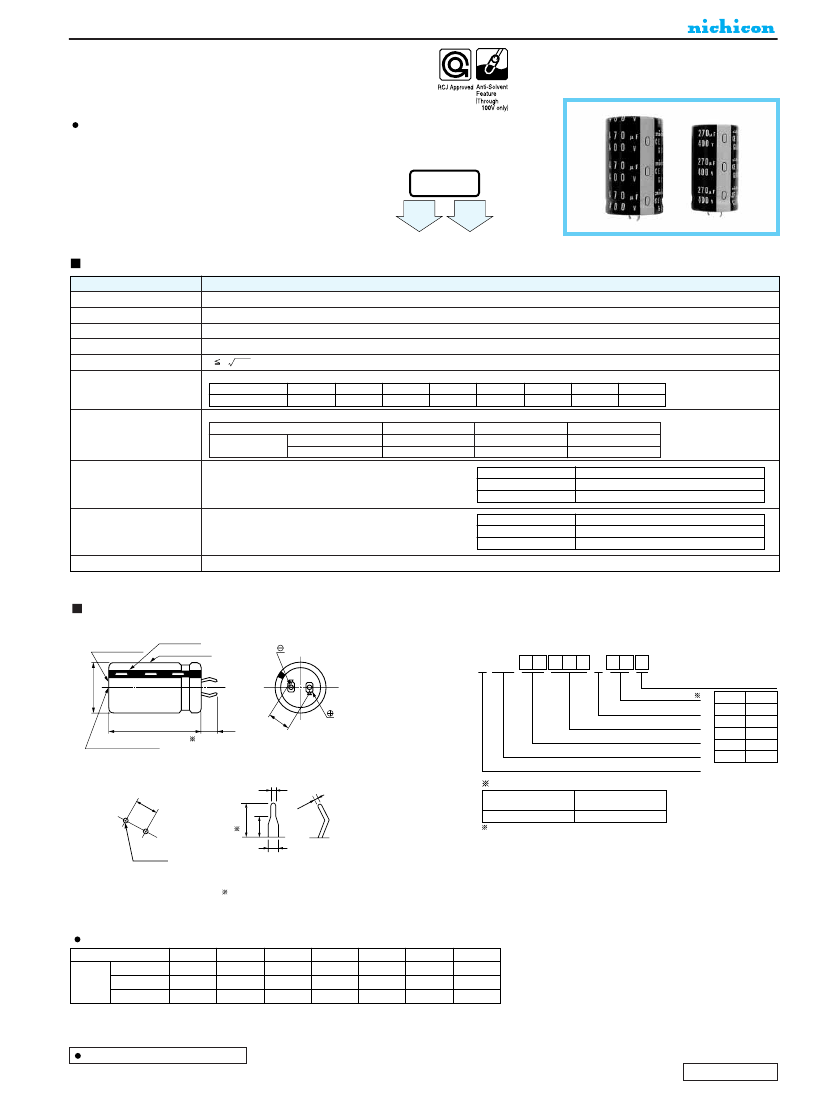

ALUMINUM ELECTROLYTIC CAPACITORS
GU
Snap-in Terminal Type, Wide Temperature Range
series
(160V~)
Approved by Reliability Center for Electronic
Component, Japan-Certification No. RCJ-03-24D
Withstanding 3000 hours application of rated ripple current at
105°C.
GU
Smaller
Low
Profile
GN
GJ
Specifications
Item
Performance Characteristics
Category
Temperature Range
Rated
Voltage Range
Rated
Capacitance Range
Capacitance Tolerance
Leakage Current
–
40 ~ + 105°C (16 ~ 250V) ,
–
25 ~ +105°C (315 ~ 450V)
16 ~ 450V
47~ 47000µF
± 20% at 120Hz, 20°C
I
3 CV
(µA) (After 5 minutes' application of rated voltage) [C : Rated Capacitance (µF), V : Voltage (V)]
Measurement frequency : 120Hz, Temperature : 20°C
Rated voltage(V)
tan
δ
(MAX.)
tan
δ
16
0.50
25
0.40
35
0.35
50
0.30
63
0.25
80
•
100
160~420
0.20
0.15
450
0.20
Measurement frequency : 120Hz
Stability at Low Temperature
Rated voltage (V)
Impedance ratio
ZT/Z20 (MAX.)
Z—25°C/ Z+20°C
Z—40°C/ Z+20°C
16~100
4
20
160~250
3
12
Capacitance change
tan
δ
Leakage current
Capacitance change
tan
δ
Leakage current
315~450
8
—
Within ±20% of initial value
200% or less of initial specified value
Initial specified value or less
Within ±15% of initial value
150% or less of initial specified value
Initial specified value or less
Endurance
After an application of DC voltage(in the range of rated DC
voltage even after over-lapping the specified ripple current) for
3000 hours at 105°C, capacitors meet the characteristic
requirements
listed
at right.
After leaving capacitors under no load at 105°C for 1000
hours, they meet the characteristic requirements listed at right.
Shelf Life
Marking
Printed with white color letter on black sleeve.
Drawing
Bottom plate
(code HL only)
Polarity bar
Sleeve (P.E.T.)
Type numbering system (Example : 200V 680µF)
1
2
3
4
5
6
7
8
9
10 11
12
L GU 2 D 6 8 1 ME L A
φD
+1MAX.
Case dia. code
Configuration
Capacitance tolerance (±20%)
Rated Capacitance (680µF)
4.0±0.5
Rated voltage (200V)
Series name
Type
0.8
+0.2
-0.1
4.0±0.5
10
±
0.1
0.8
-
.2
+0 .1
0
10
L±
2
Pressure relief vent
φD
20
22
25
30
35
Code
Y
Z
A
B
C
Configuration
Pb-free terminal
Pb-free PET sleeve
Sn-Pb finished terminal
PVC sleeve (containing Pb)
EL
2.5
HL
Please contact to us if other configurations are required.
2-2φ±
0.1
(PC board hole dimensions)
1.5
+0.2
-0.1
(Terminal dimensions)
The other terminal is also available upon request.
Please refer page 202 for schematic of dimensions.
Frequency coefficient of rated ripple current
Frequency (Hz)
Coeff.
16~100V
160~250V
315~450V
50
0.88
0.81
0.77
60
0.90
0.85
0.82
120
1.00
1.00
1.00
300
1.07
1.17
1.16
1k
1.15
1.32
1.30
10k
1.15
1.45
1.41
50k~
1.15
1.50
1.43
Minimum order quantity : 50pcs.
Dimension table in next page.
