TECHNICAL DATA SHEET DRAFT
SMA
RIGHT ANGLE JACK PCB
SMD

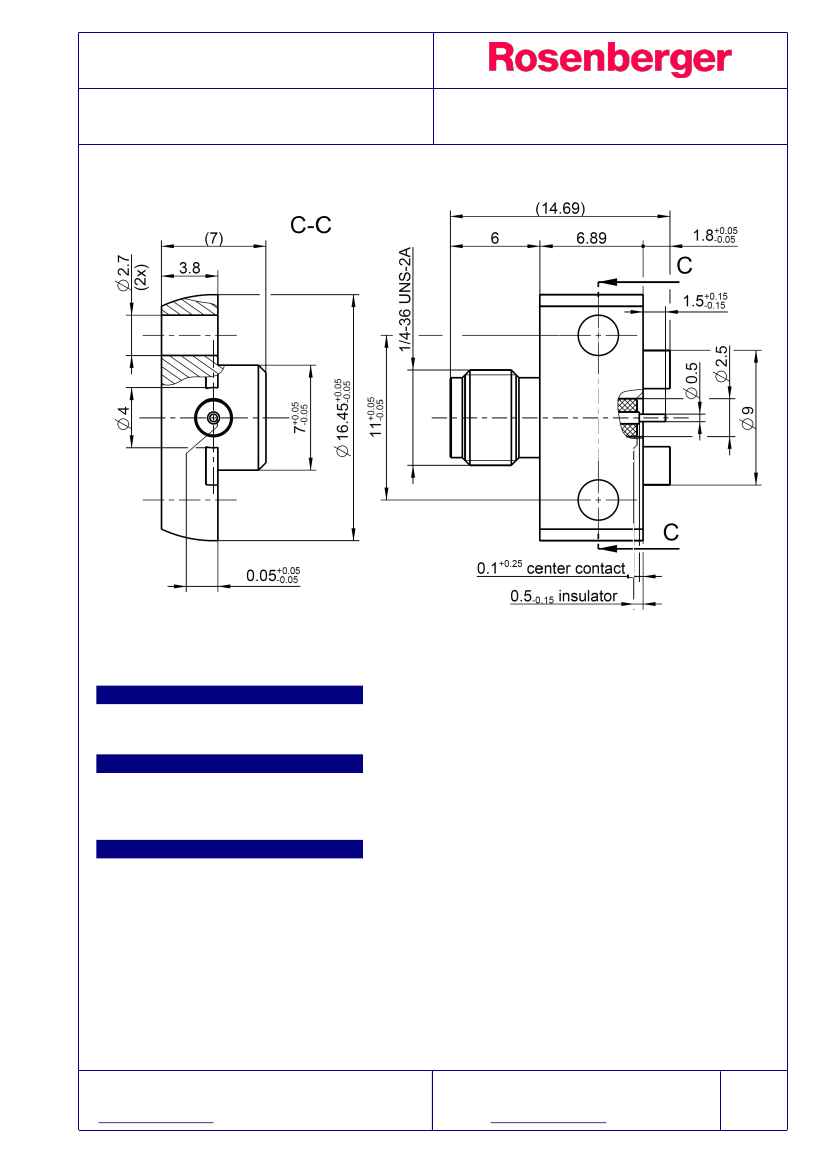

32K279-40ML5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-15; EN 122110; MIL-STD-348
Documents
PCB layout
Tape & reel packaging
tbd
VG57.50000
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Material
CuBe
Brass
PTFE
Plating
AuroDur®, gold plated
AuroDur®, gold plated
RF_35/06.07/5.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET DRAFT
SMA
RIGHT ANGLE JACK PCB
SMD
50
DC to 18 GHz
1.1 + 0.02 x f [GHz]
0.03 x
f(GHz)
dB
5 x10
3
M
3 m
2 m
1000 V rms
480 V rms
200 W @ 2 GHz;
100 W @ 10 GHz
100 dB up to 1 GHz
32K279-40ML5
Electrical data
Impedance
Frequency
VSWR
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
- VSWR in application depends decisive on PCB layout -
Mechanical data
Mating cycles
Center contact captivation: axial
Coupling test torque
Recommended torque
min. 100
20 N
max. 0.6 Nm
0.5 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
Max. soldering temperature
RoHS
-65°C to +165°C
MIL-STD-202, Meth. 107, Cond. B
MIL-STD-202, Meth. 101, Cond. B
MIL-STD-202, Meth. 204, Cond. D
MIL-STD-202, Meth. 213, Cond. I
MIL-STD-202, Meth. 106
IEC 61760-1, +260°C for 10 sec.
compliant
Tooling
N/A
Suitable cables
N/A
Weight
Weight
4.98 g
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/06.07/5.0
Draft
S. Andorfer
Date
21.02.20
Approved
H.Babinger
Date
13.03.20
Rev.
200
Engineering change number
20-e209
Name
S. Schmid
Date
13.03.20
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
2/2
