EJH-107-01-S-D-SM-LC-01 datasheet, PDF

Datasheet> All Categories > The connector> The connector> EJH-107-01-S-D-SM-LC-01

EJH-107-01-S-D-SM-LC-01: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Latch & Eject, Receptacle; CategoryThe connector The connector; File Size317KB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

EJH-107-01-S-D-SM-LC-01 Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Latch & Eject, Receptacle

EJH-107-01-S-D-SM-LC-01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1154858387
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	3 weeks
Other features	LOCKING CLIP
Board mount options	SPLIT BOARD LOCK
body width	0.39 inch
subject depth	0.5 inch
body length	1.394 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	EJH
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Installation option 2	LATCHING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.239 mm
Plating thickness	30u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	14

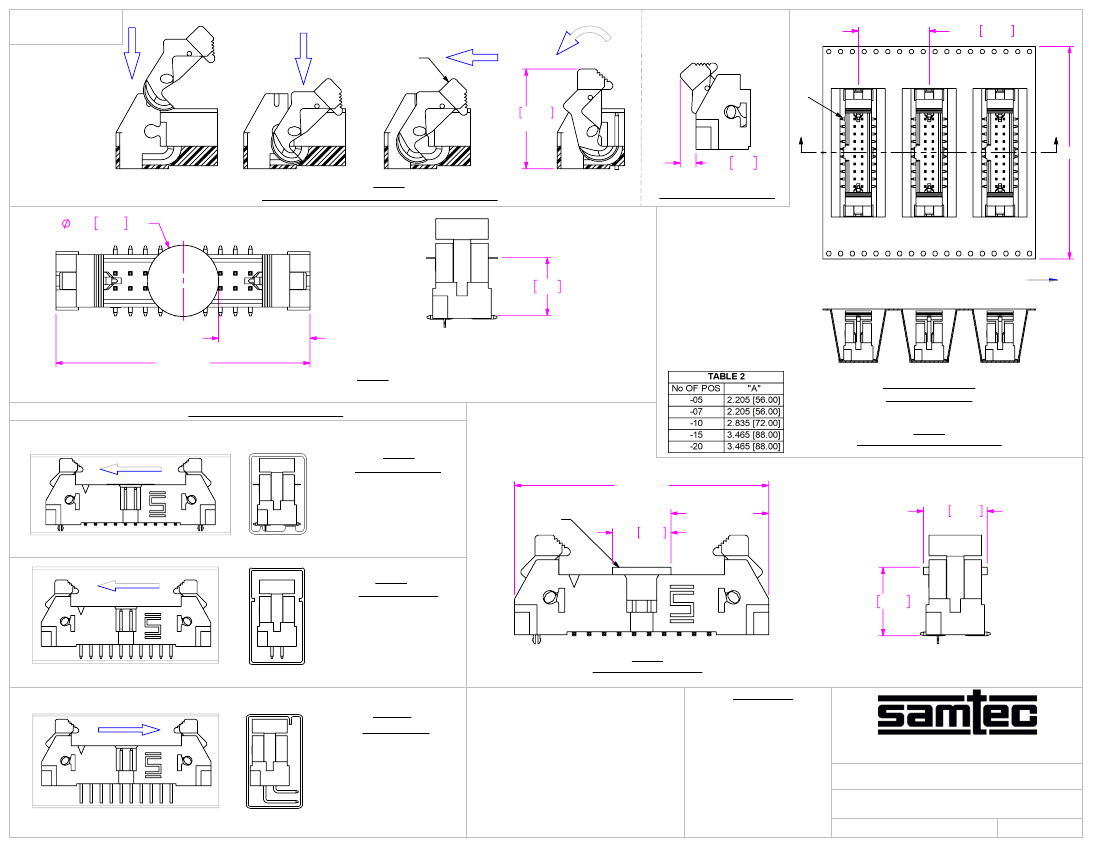

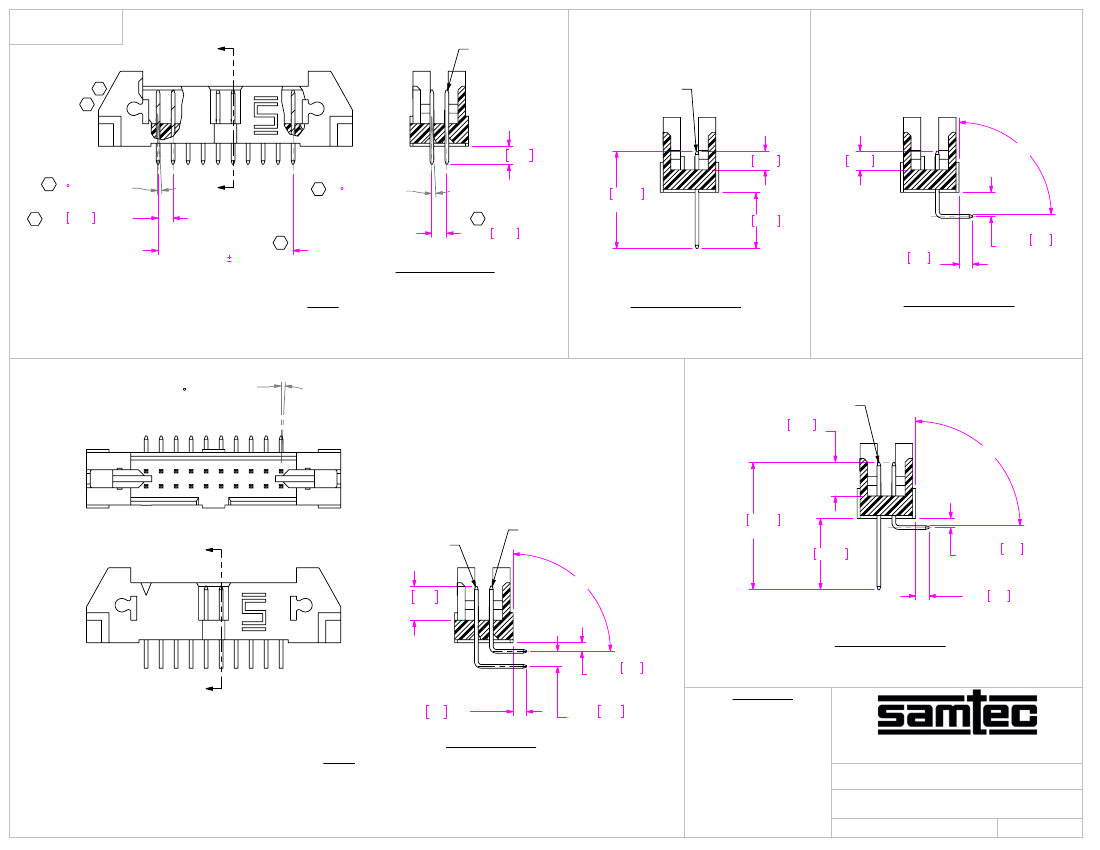

Preview

Download Datasheet

View All

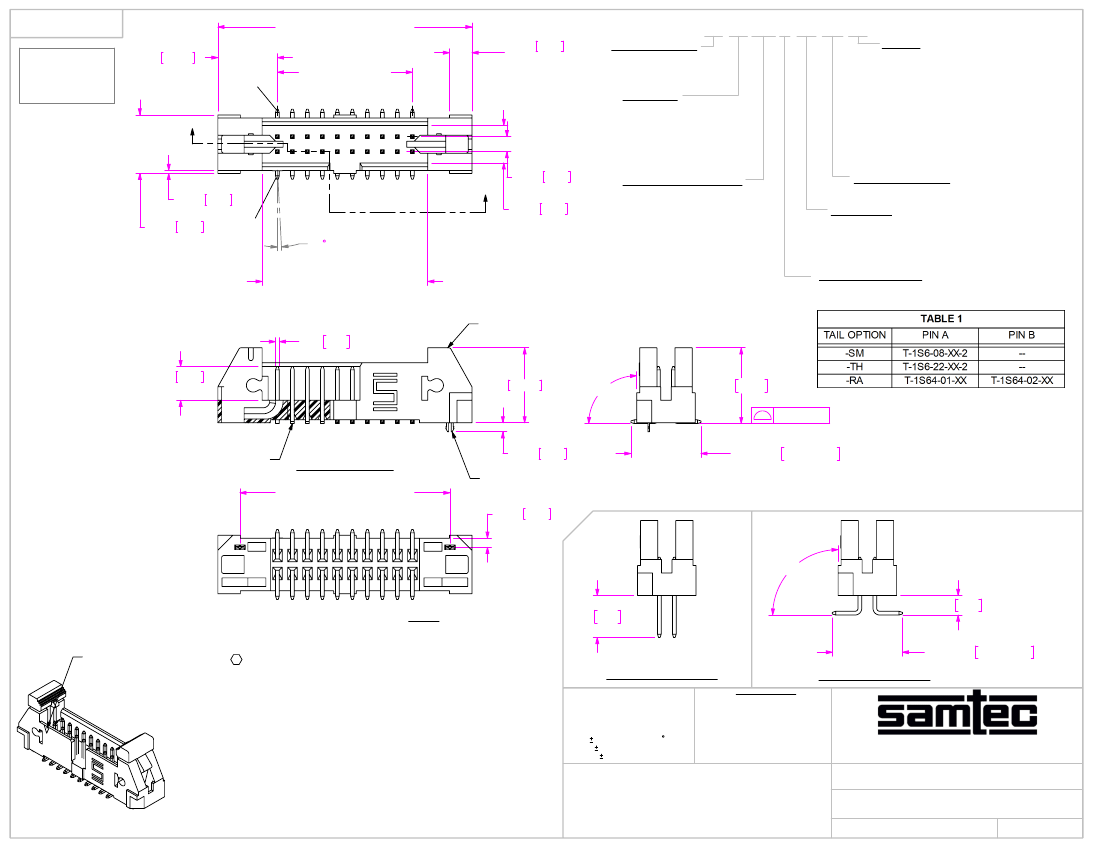

REVISION AB

DO NOT

SCALE FROM

THIS PRINT

.397 10.08

(No OF POS x .100[2.54])

+ .694[17.63] REF

(No OF POS -1)

x .100[2.54] REF

.150 3.81 (TYP)

REF

No OF POSITIONS

-05 THRU -25

EJH-1XX-XX-XX-D-XX-XX-XX

"A"

.100 2.54

.020 0.51 REF

.390 9.91 REF

2 MAX SWAY

(TYP)

(No OF POS x .100[2.54])

+ .104[2.64] REF

EJH-XX-D

.025 0.64 SQ REF

.225 5.72

REF

"A"

.250 6.35 REF

LEAD STYLE

-01: STANDARD

(USE EJH-XX-D)

-02: EXTENDED

(SEE FIG 11, SHEET 4)

(USE EJH-XX-D-EXT &

EHA-03-EXT)

PLATING SPECIFICATION

-S: SELECTIVE GOLD,

MATTE TIN TAIL

(USE T-1S6X-XX-S-X)

-F: FLASH SELECTIVE GOLD,

MATTE TIN TAIL

(USE T-1S6X-XX-F-X)

-SM: SELECTIVE HEAVY GOLD,

MATTE TIN TAIL

(USE T-1S6X-XX-S-X)

-FM: FLASH SELECTIVE GOLD,

MATTE TIN TAIL

(USE T-1S6X-XX-F-X)

-L : LIGHT SELECTIVE GOLD

MATTE TIN TAIL

(USE T-1S6X-XX-L-X)

-LC: LOCKING CLIP (FOR -SM ONLY)

(SEE NOTE 10)

-P: PICK & PLACE PAD (FOR -SM ONLY)

(USE PPP-50, SEE FIGURE 6, SHEET 3)

-K: POLYIMIDE FILM (SEE FIG 3, SHEET 3)

(USE K-850-650)

-TR: TAPE & REEL PACKAGING

(SEE FIG 7, SHEET 3))

(FOR -SM-P, & -SM-K ONLY)

(NOT AVAILABLE ON -SM-LC)

(NOT AVAILABLE ON -25 POSITION)

OPTION

POLARIZED OPTION

-XX = PIN OMITED

TAIL OPTION

-SM: SURFACE MOUNT (SEE FIG 1)

-TH: THROUGH HOLE (SEE FIG 8, SHEET 2)

-RA: RIGHT ANGLE (SEE FIG 9, SHEET 2)

ROW SPECIFICATION

-D: DOUBLE

.500 12.70 REF

90°

.505 12.83

.004[0.10]

PIN A (SEE TABLE 1)

SECTION "A"-"A"

(No OF POS x .100[2.54])

+ .400[10.16] REF

.060 1.52

LC-09-TM

.060 1.52 REF

.467±.010 11.86±0.25

90°

.130 3.30

EJH-110-01-X-D-SM-LC SHOWN

POSITION 1 INDICATOR

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. COPLANARITY TO BE: .004 MAX FOR POSITIONS -05 THRU -10

.006 MAX FOR POSITIONS -15 THRU -25

3. MAXIMUM BURR ALLOWANCE: .0015

4. MINIMUM PUSHOUT FORCE: 1 LB

5. MAXIMUM ALLOWABLE BOW: .002 INCH/INCH AFTER ASSEMBLY.

6. PARTS TO BE TUBED WITH EJECTOR ARMS IN THE UP POSITION

AS SHOWN.

7. REPRESS TO DIMENSION SHOWN.

8. NOTE DELETED.

9. MEASURE FROM THE TIPS OF THE TERMINALS.

10. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC

OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC

RECOMMENDS MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH

THE –LC OPTION.

11. EJECTOR ARMS PRESENT ON ALL FINISHED ASSEMBLIES.

REMOVED IN SOME CASES FOR CLARITY.

FIG 1

.280 7.11

.467±.010 11.86±0.25

-SM IN-PROCESS 1

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

ANGLES

PROPRIETARY NOTE

-SM IN-PROCESS 2

.XX: .01[0.3]

.XXX: .005[0.13]

.XXXX: .0020[0.051]

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 3:2

-01 INSULATOR: VECTRA E130i, COLOR: BLACK

-02 INSULATOR COLOR: NATURAL

TERMINAL: PHOS BRONZE 510 3/4 HARD

F:\DWG\MISC\MKTG\EJH-1XX-XX-XX-D-XX-XX-XX-MKT.SLDDRW

.100 x .100 EJECTOR HEADER ASSEMBLY

BY:

ERIC M.

EJH-1XX-XX-XX-D-XX-XX-XX

09/19/01

SHEET
