42-1000-840 datasheet, PDF - EEWORLD Datasheet

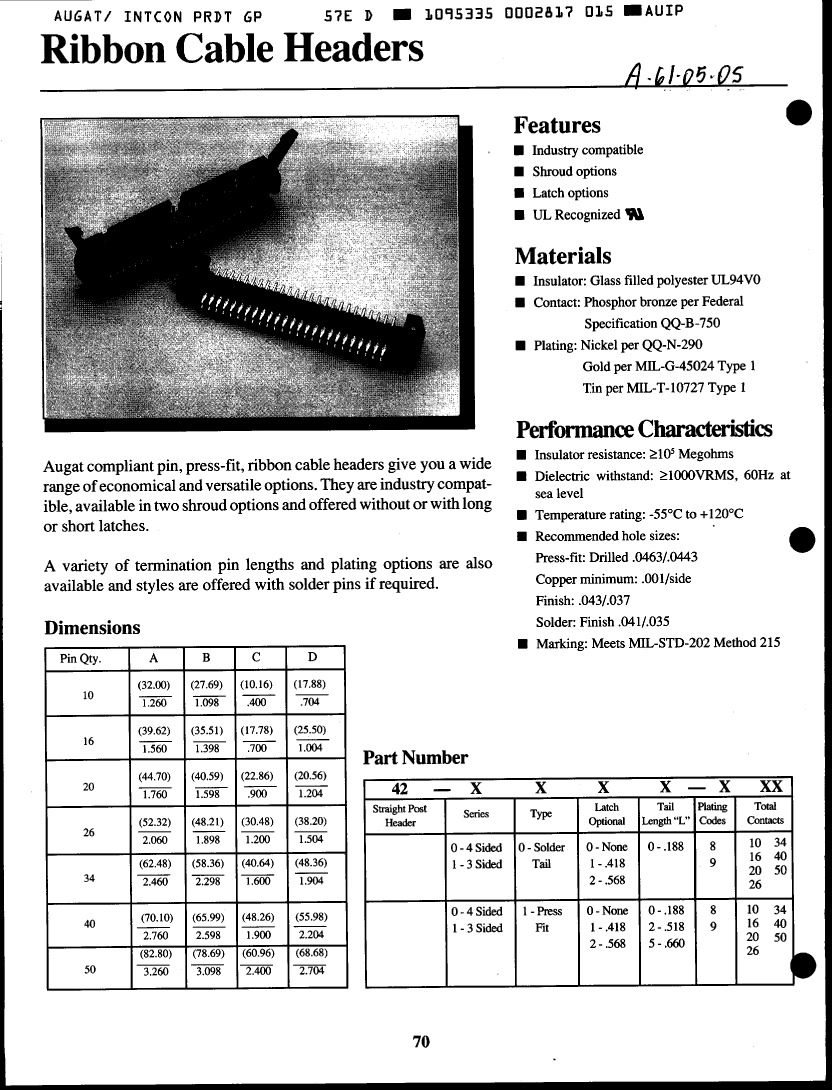

42-1000-840: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size217KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

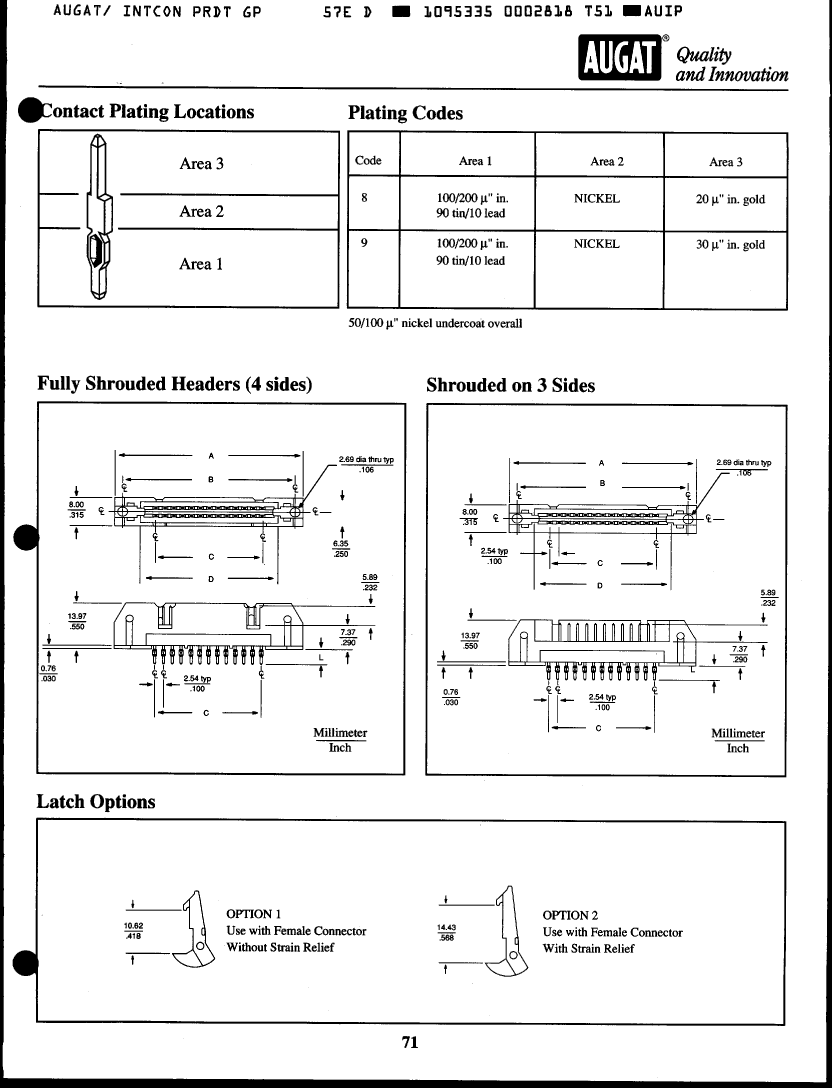

42-1000-840 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL

Parameter Name	Attribute value
Objectid	301472783
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	HOLE .099-.111
body width	0.315 inch
subject depth	0.55 inch
body length	2.76 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulation resistance	100000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	42-1
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	120 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	20u inch
polarization key	DUAL POLARIZED
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.188 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
