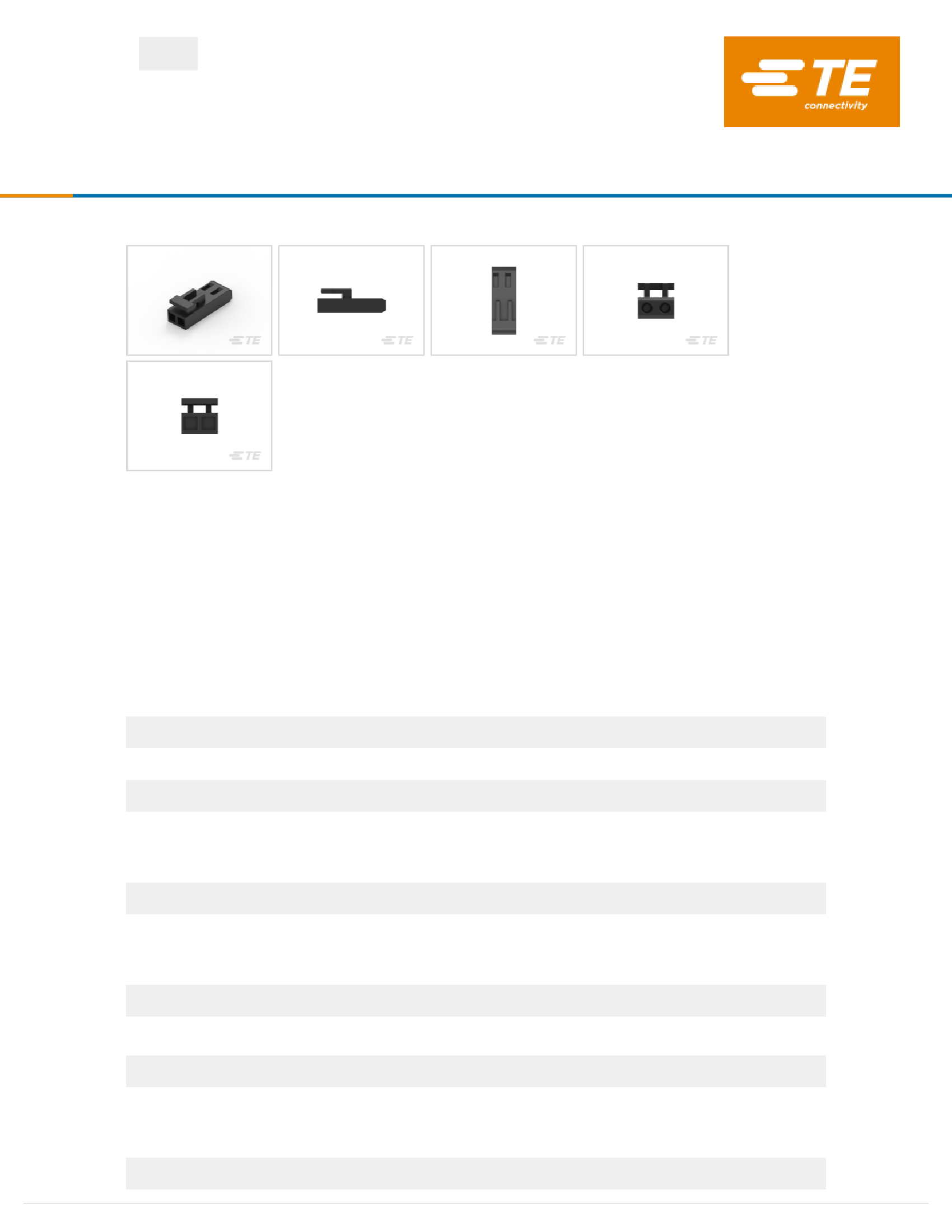

926475-2
Housing, Receptacle, Wire-to-Board, 2 Position, 2.54 mm [.1 in] Centerline, Crimp, 1
Row, Black, Wire & Cable, Signal, Cable Mount (Free-Hanging)
926475-2
ACTIVE
TE Internal #: 926475-2
Housing, Receptacle, Wire-to-Board, 2 Position, 2.54 mm [.1 in]
Centerline, Crimp, 1 Row, Black, Wire & Cable, Signal, Cable Mount
(Free-Hanging)
View on TE.com >
Connectors
>
PCB Connectors
>
Wire-to-Board Connectors
>
Wire-to-Board Connector Assemblies & Housings
Connector Product Type:
Housing
Connector & Housing Type:
Receptacle
Connector System:
Wire-to-Board
Number of Positions:
2
Centerline (Pitch):
2.54 mm [ .1 in ]
Features
Product Type Features
Connector Product Type
Connector & Housing Type
Connector System
Connector & Contact Terminates To
Configuration Features
Number of Positions
Number of Rows
Electrical Characteristics
Operating Voltage
Contact Features
Contact Type
Contact Current Rating (Max)
Termination Features
Termination Method to Wire & Cable
For support call+1 800 522 6752
Housing
Receptacle
Wire-to-Board
Wire & Cable
2
1
250 VAC
Socket
3A
Crimp
04/14/2022 12:38PM | Page 1
Mechanical Attachment
926475-2
Housing, Receptacle, Wire-to-Board, 2 Position, 2.54 mm [.1 in] Centerline, Crimp, 1
Row, Black, Wire & Cable, Signal, Cable Mount (Free-Hanging)
Mechanical Attachment
Mating Retention
Connector Mounting Type
Housing Features
Centerline (Pitch)
Housing Color
Dimensions
Row-to-Row Spacing
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
Industry Standards
UL Flammability Rating
UL 94V-0
Signal
-65 – 105 °C[-85 – 221 °F]
2.54 mm[.1 in]
2.54 mm[.1 in]
Black
Without
Cable Mount (Free-Hanging)
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2022
(223)
Does not contain REACH SVHC
Halogen Content
Not Low Halogen - contains Br or Cl > 900
ppm.
Not applicable for solder process capability
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
For support call+1 800 522 6752
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
04/14/2022 12:38PM | Page 2
926475-2
Housing, Receptacle, Wire-to-Board, 2 Position, 2.54 mm [.1 in] Centerline, Crimp, 1
Row, Black, Wire & Cable, Signal, Cable Mount (Free-Hanging)
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

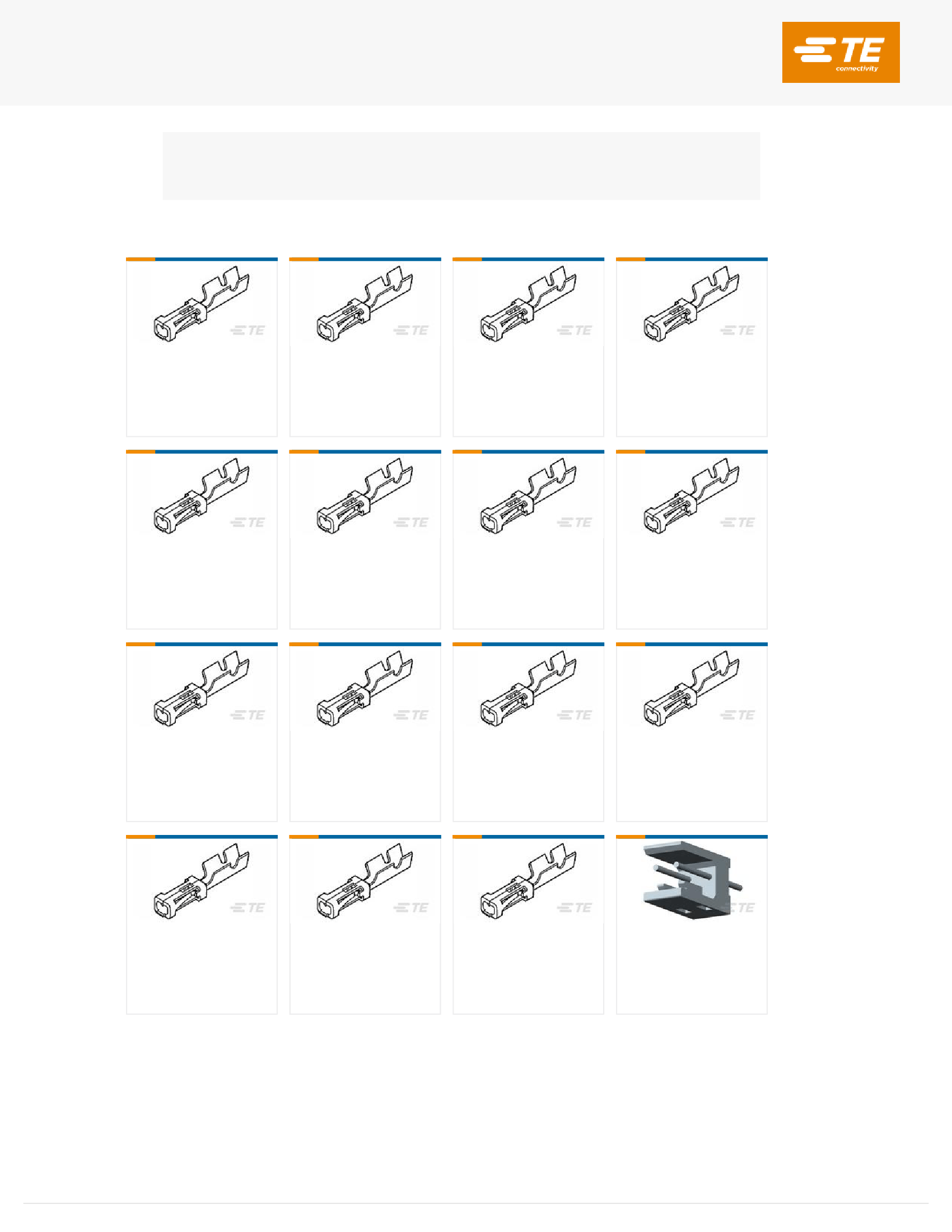

Compatible Parts
TE Part # 1-141708-1
MOD IV RECEPTACLE, CRIMP SNAP
IN, LP
TE Part # 141708-1
MOD-4 REC.CONT.SCP.
TE Part # 167021-2
MOD-4 REC.CONT.SCP.
TE Part # 167301-4
MOD-4 REC.CONT.SCP
TE Part # 2-167301-4
MOD-4 REC.CONT.SCP
TE Part # 2-167301-2
MOD-4 REC.CONT.SCP
TE Part # 166309-2
MOD-5 REC.CONTACT
TE Part # 167024-1
MOD-4 REC.CONT.SCP.
TE Part # 167023-1
MOD-4 REC.CONTACT
TE Part # 166310-2
MOD-5 REC.CONTACT
TE Part # 167300-6
MOD-4 REC.CONTACT
TE Part # 167300-8
MOD-4 REC.CONTACT
TE Part # 166309-3
MOD-5 REC.CONTACT
TE Part # 167021-3
MOD-4 REC.CONT.SCP.
TE Part # 141603-4
MOD-4 REC.CONTACT
TE Part # 826467-2
2P MOD II SHROUDED HEADER, ST
For support call+1 800 522 6752
04/14/2022 12:38PM | Page 3
926475-2
Housing, Receptacle, Wire-to-Board, 2 Position, 2.54 mm [.1 in] Centerline, Crimp, 1
Row, Black, Wire & Cable, Signal, Cable Mount (Free-Hanging)
TE Part # 166310-3
MOD-5 REC.CONTACT
TE Part # 167020-1
MOD 4 REC.CONTACT
TE Part # 926477-2
MOD4 RASTHAKEN

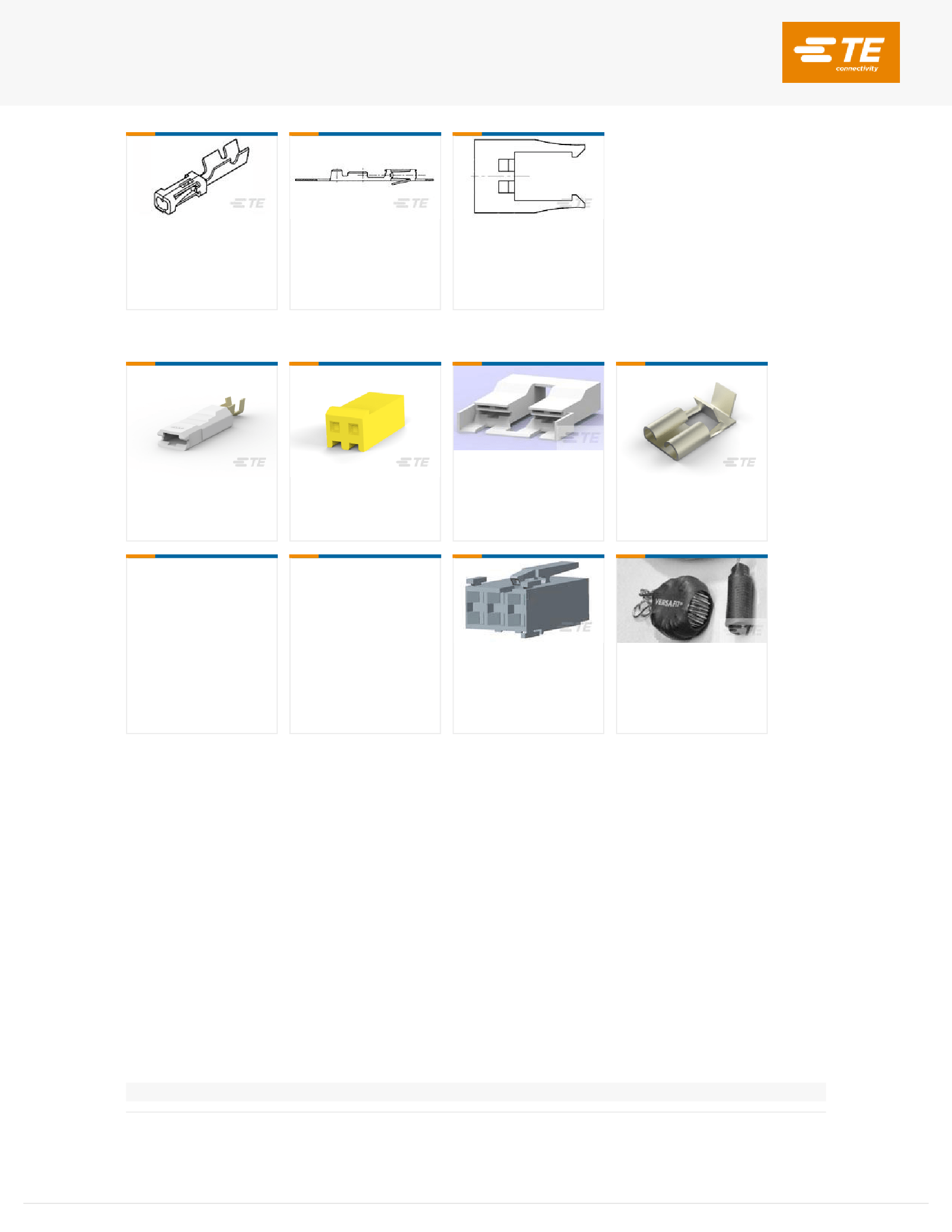

Customers Also Bought
