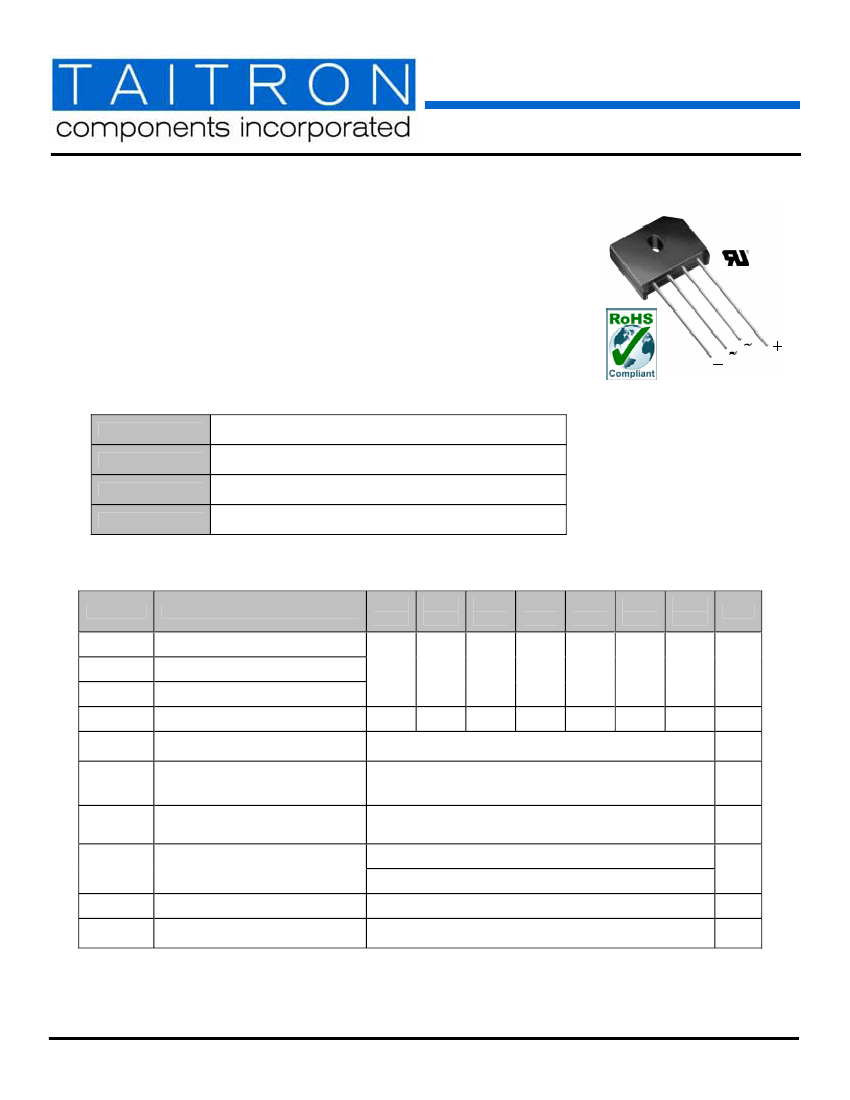

8 AMP SINGLE-PHASE
BRIDGE RECTIFIER
TU800 – TU810
8 AMP Single-Phase Bridge Rectifier
Features
•
•
•
•
Low Forward Voltage Drop
High Reliability
High Surge Current Capability
High Temperature Soldering Guaranteed:
260° C/10 seconds, /.375" (9.5mm) lead length
•
RoHS compliant
Mechanical Data
Case:
Terminals:
Polarity:
Weight:
Molded Plastic
Plated Leads Solderable per MIL-STD-202E, Method 208C
As Marked on Body
8.0 grams (approx)
Maximum Ratings And Electrical Characteristics
(T
amb
=25˚C)
Symbols
Parameter
Peak Repetitive Reverse Voltage
DC Blocking Voltage
Working Peak Reverse Voltage
RMS Reverse Voltage
Average Rectified Output Current
at T
C
=100˚C
Non-Repetitive Peak Forward
Surge Current single sine-wave
superimposed on rated load
Forward Voltage per element at
I
F
=8.0A
Peak Reverse Current At Rated DC
blocking voltage
Typical Junction Capacitance
Operating and Storage
Temperature Range
35
70
140
280
8.0
300
1.0
10
1000
200
-55 to 150
at T
A
=25°C
at T
A
=100°C
pF
˚C
420
560
700
V
A
A
V
50
100
200
400
600
800
1000
V
TU
800
TU
801
TU
802
TU
804
TU
606
TU
808
TU
810
Unit
V
RRM
V
DC
V
RWM
V
R(RMS)
I
F(AV)
I
FSM
V
F
I
R
C
J
T
J
,T
STG
µA
Note:
Single Phase, half wave, 60Hz, resistive or inductive load
For Capacitive load derate current by 20%
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-247-2232 (800)-TAITRON (661)-257-6060
Fax: (800)-TAITFAX (800)-824-8329 (661)-257-6415
Rev. B/WW
Page 1 of 4
8 AMP Single-Phase Bridge Rectifier
TU800 – TU810

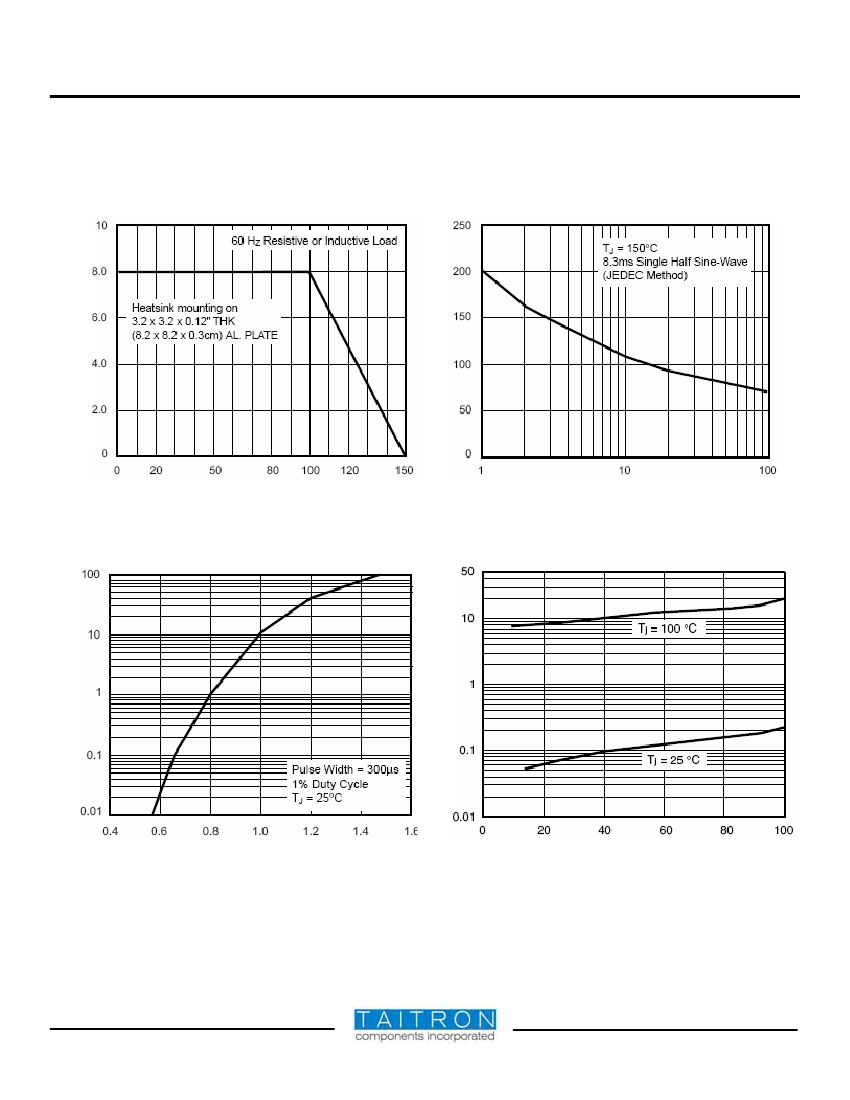

Rating and characteristic curves
I(
AV)
, Average Output Current (A)
Case Temperature °C
Fig.1- Forward Current Derating Curve
I
FSM,
Peak fwd Surge Current (A)
Number of Cycles at 60Hz
Fig.2-Max Peak Forward Surge Current
V
F
, Instantaneous fwd Voltage (V)
Fig.3- Typical Forward Characteristics per element
I
R,
Instantaneous Reverse Current (µA)
I
F
, Instantaneous fwd Current (A)
Rated Percent of Peak Reverse Voltage (%)
Fig.4-Typical Reverse Characteristics
Rev. B/WW
www.taitroncomponents.com
Page 2 of 4
8 AMP Single-Phase Bridge Rectifier
TU800 – TU810

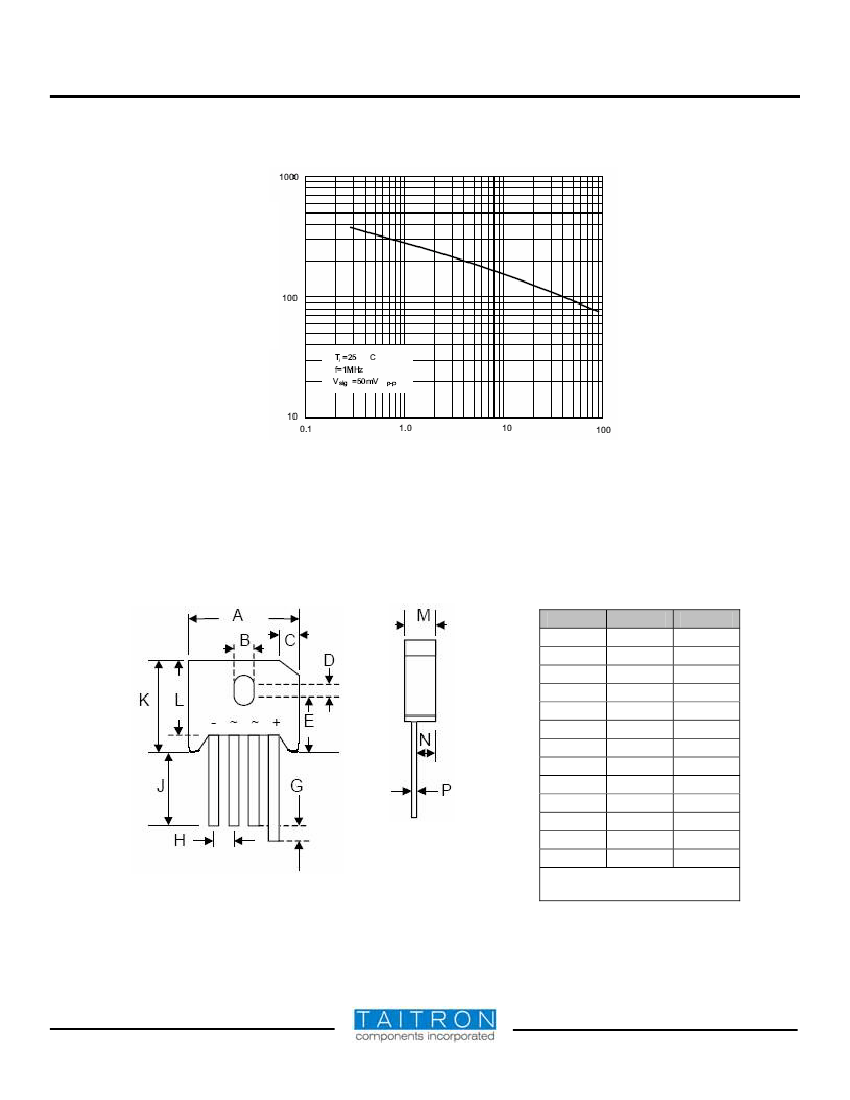

Cj, Capacitance (pF)
V
R
, Reverse Voltage (V)
Fig.4-Typical Junction Capacitance per Element
Dimensions (mm)
Dim
A
B
C
D
E
G
H
J
K
L
M
N
P
Min
22.7
3.8
4.2
1.7
10.3
4.5
4.6
25.4
----
16.8
6.6
4.7
1.2
Max
23.7
4.1
4.7
2.2
11.3
6.8
5.6
----
19.3
17.8
7.1
5.2
1.3
All Dimensions in mm
Rev. B/WW
www.taitroncomponents.com
Page 3 of 4
8 AMP Single-Phase Bridge Rectifier
TU800 – TU810
How to contact us
US HEADQUARTERS
28040 WEST HARRISON PARKWAY, VALENCIA, CA 91355-4162
Tel: (800) TAITRON (800) 247-2232 (661) 257-6060
Fax: (800) TAITFAX (800) 824-8329 (661) 257-6415
Email:
taitron@taitroncomponents.com
Http://www.taitroncomponents.com
TAITRON COMPONENTS MEXICO, S.A .DE C.V.
BOULEVARD CENTRAL 5000 INTERIOR 5 PARQUE INDUSTRIAL ATITALAQUIA, HIDALGO C.P.
42970 MEXICO
Tel: +52-55-5560-1519
Fax: +52-55-5560-2190
TAITRON COMPONENTS INCORPORATED REPRESENTAÇÕES DO BRASIL LTDA
RUA DOMINGOS DE MORAIS, 2777, 2.ANDAR, SALA 24 SAÚDE - SÃO PAULO-SP 04035-001 BRAZIL
Tel: +55-11-5574-7949
Fax: +55-11-5572-0052
TAITRON COMPONENTS INCORPORATED, SHANGHAI REPRESENTATIVE OFFICE
CROSS REGION PLAZA, 899 LINGLING ROAD, SUITE 18C, SHANGHAI, 200030, CHINA
Tel: +86-21-5424-9942
Fax: +86-21-5424-9931
Rev. B/WW
www.taitroncomponents.com
Page 4 of 4
