UU10LFNP-B682: DescriptionAC COMMON MODE COIL; CategoryAnalog mixed-signal IC filter; File Size153KB，3 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

UU10LFNP-B682 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UU10LFNP-B682	-	-	View	Buy Now

UU10LFNP-B682 Overview

AC COMMON MODE COIL

UU10LFNP-B682 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	unknow
Factory Lead Time	15 weeks
filter type	SINGLE PHASE EMI FILTER
high	23 mm
length	18.5 mm
Manufacturer's serial number	UU
Installation type	THROUGH HOLE MOUNT
working frequency	50/60Hz Hz
physical size	L18.5XB17.0XH23.0 (mm)/L0.728XB0.669XH0.906 (inch)
Rated current	0.43 A
Base Number Matches	1

Preview

Download Datasheet

View All

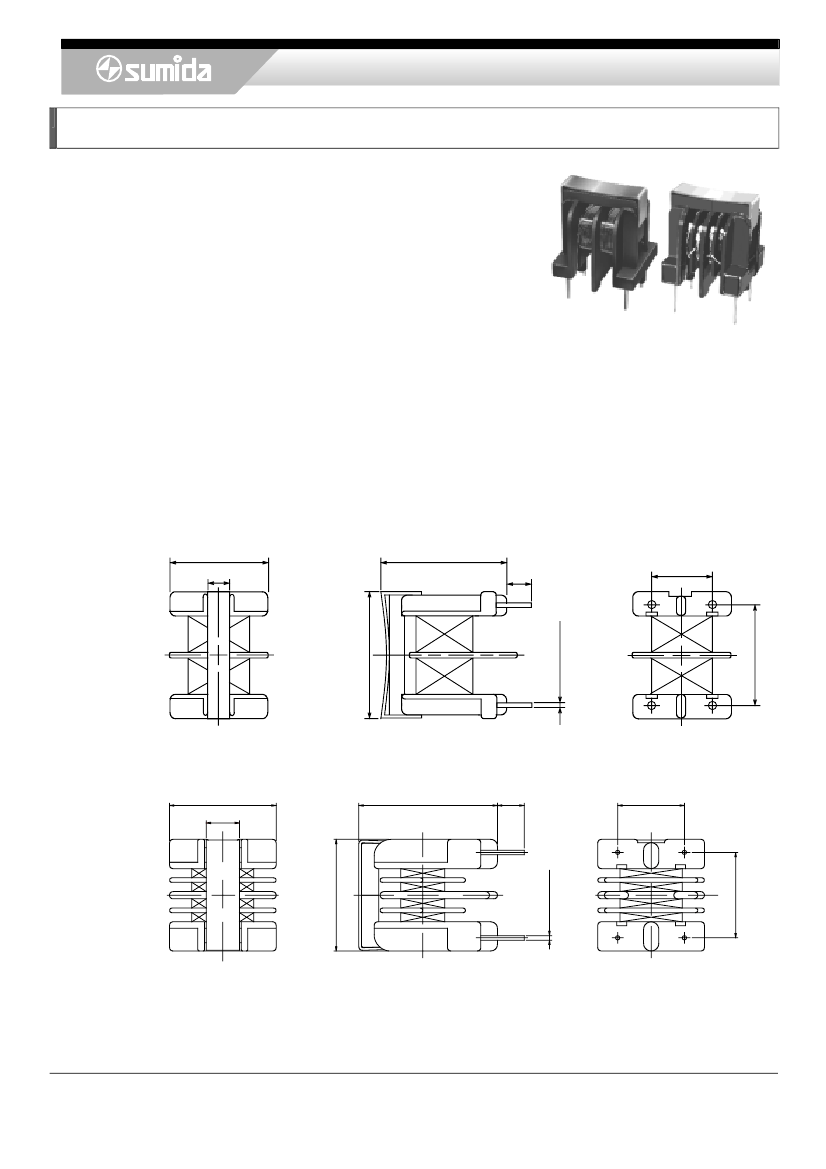

AC COMMON MODE COIL <Pin Type: UU Series>

Type: UU10LF, UU10LFB

◆

Product Description

・18.5×17.0mm

Max.(L×W), 23.0mm Max. Height.

・Inductance

range: 3.3mH½51mH

・Rated

current range: 0.15½0.65A

・In

addition to the standard versions of parameters shown here,

custom designs are available to meet your exact requirements.

◆

Feature

・Ideally

used as AC common mode noise filter for TV, VCR, Switching power supply, NC machine,

PC＆PC related advice, measurement and control unit.

・UU10LFB

has better high frequency characteristics for its split bobbin structure.

・RoHS

Compliance

◆

Dimensions (mm)

17.0 MAX.

5.7 MAX.

23.0 MAX.

4.0±1.0

10.0±0.3

18.5 MAX.

UU10LF

17.0 MAX.

5.7 MAX.

23.0 MAX.

4.0±1.0

φ 0.7±0.2

10.0±0.3

18.5 MAX.

UU10LFB

＊

Dimension does not include solder used on coil.

＊

Terminal pitch is measured at the base.(not from tip of the pin)

Please refer to the sales offices on our website for a representative near you

www.sumida.com

φ0.7±0.2

13.0±0.3

1/2
