Part Number

Search

Z86K1505PSG

Description
Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PDIP40, PLASTIC, DIP-40
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size395KB,24 Pages
ManufacturerIXYS
Environmental Compliance
Download Datasheet Parametric Compare View All

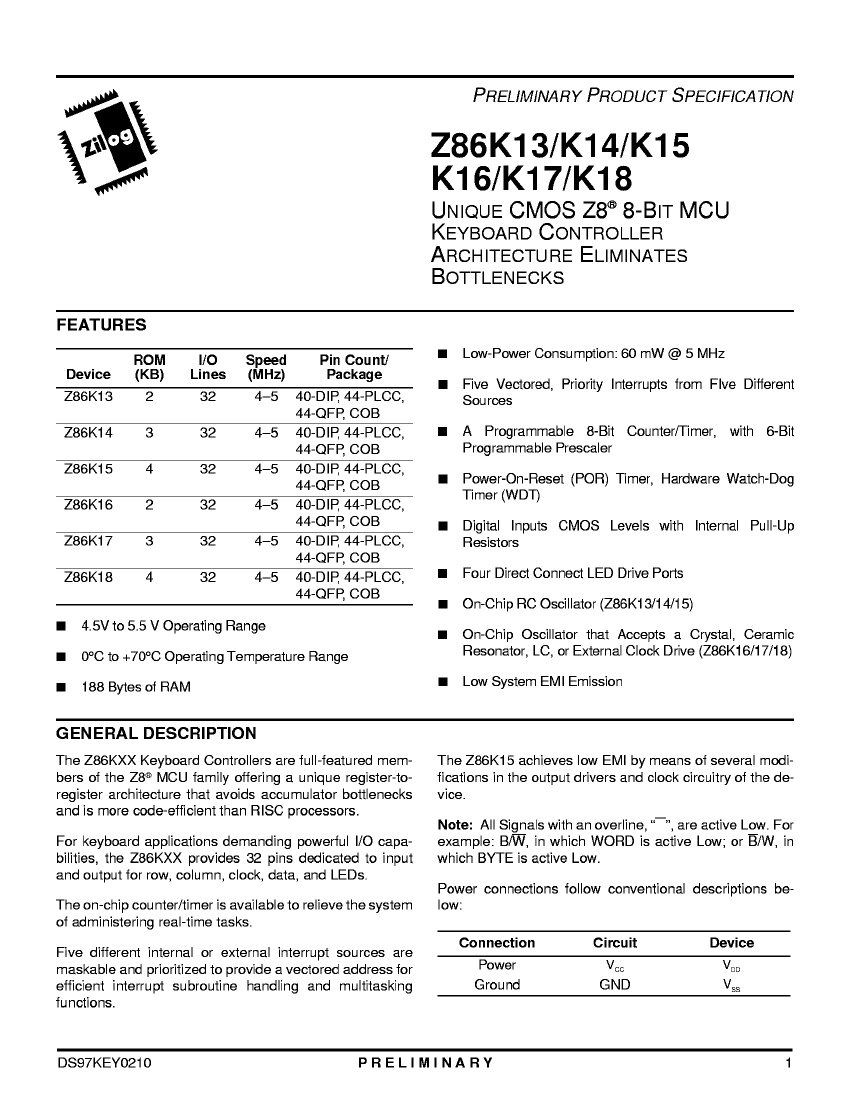

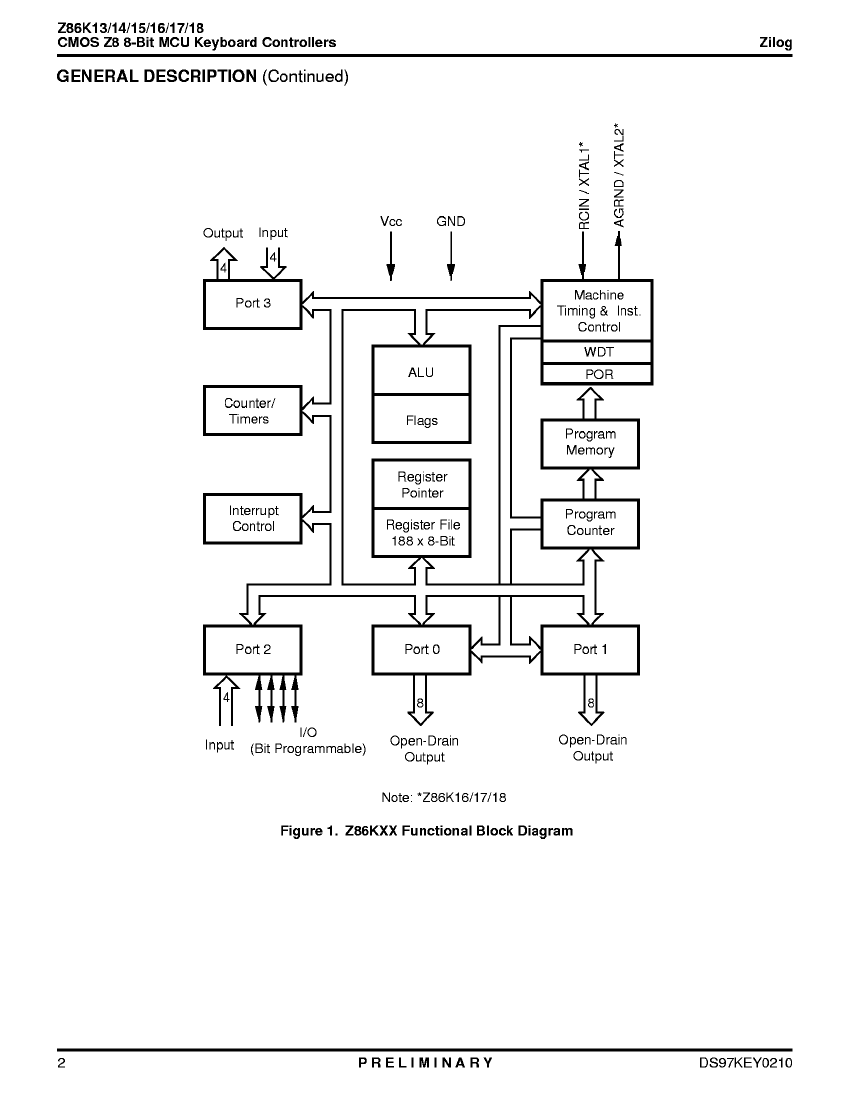

Z86K1505PSG Overview

Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PDIP40, PLASTIC, DIP-40

Z86K1505PSG Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid2097699257

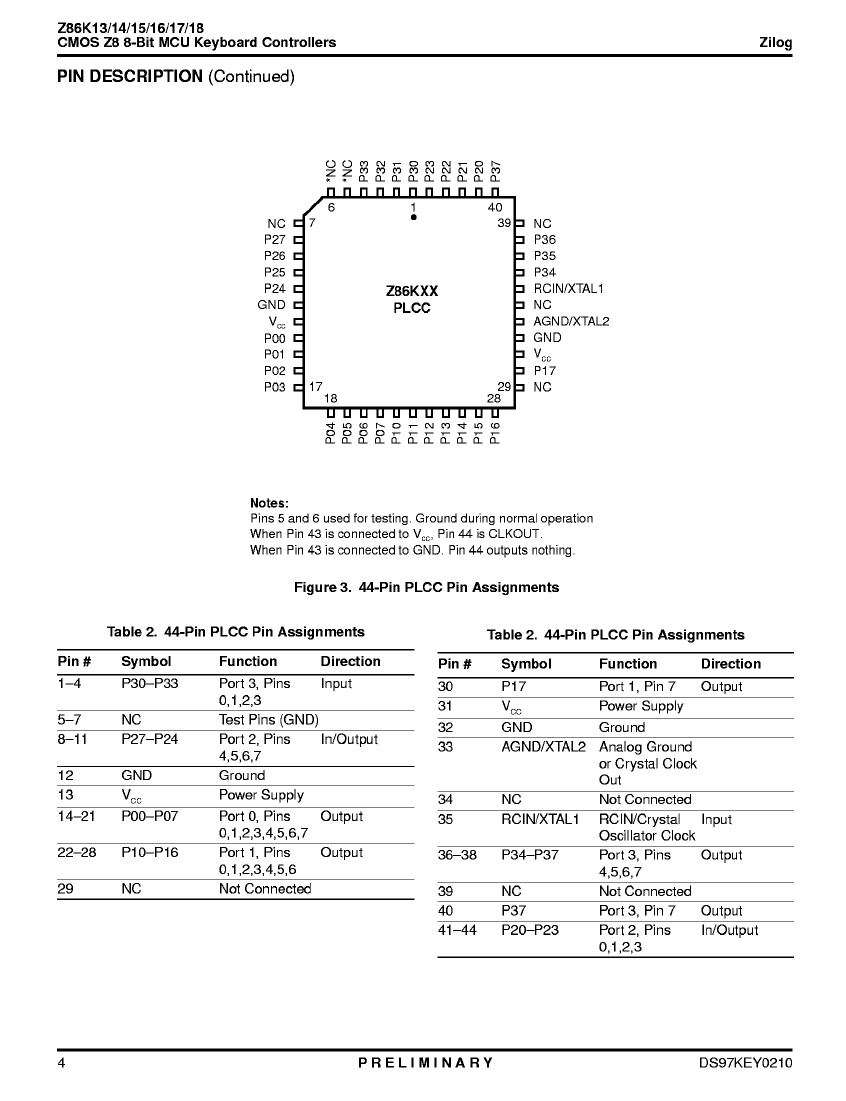

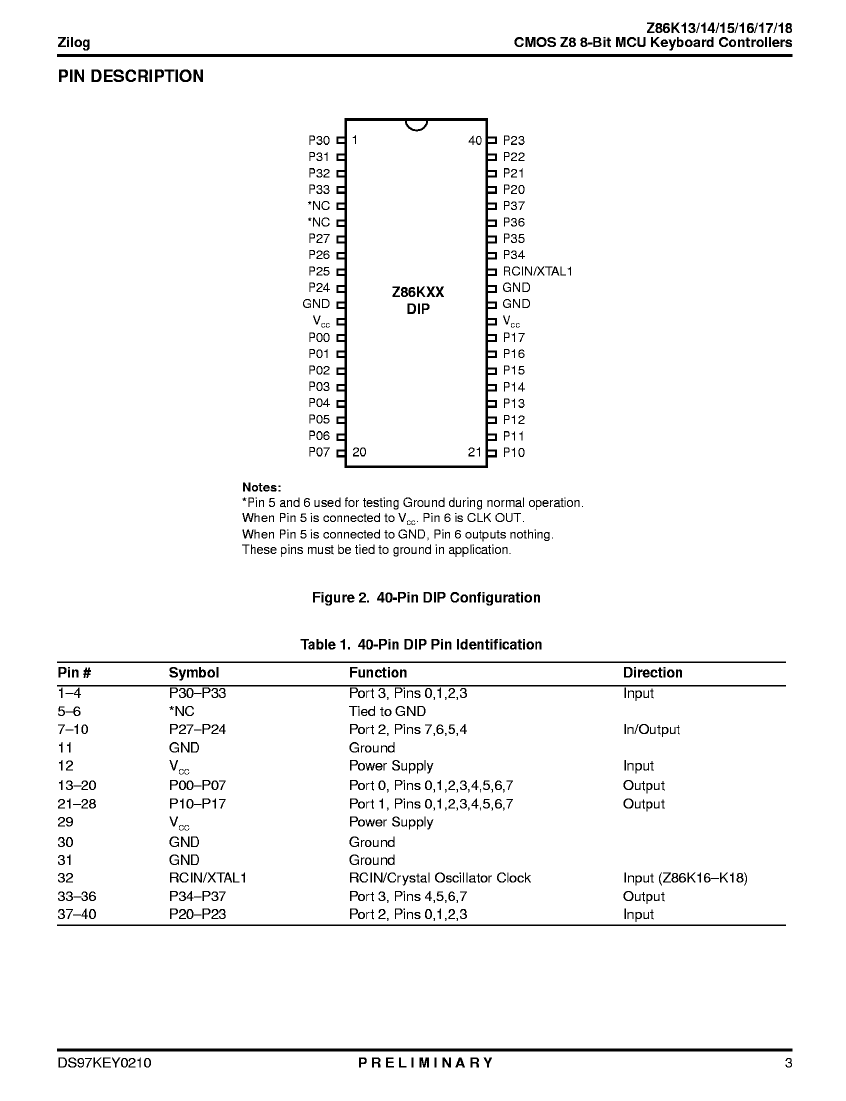

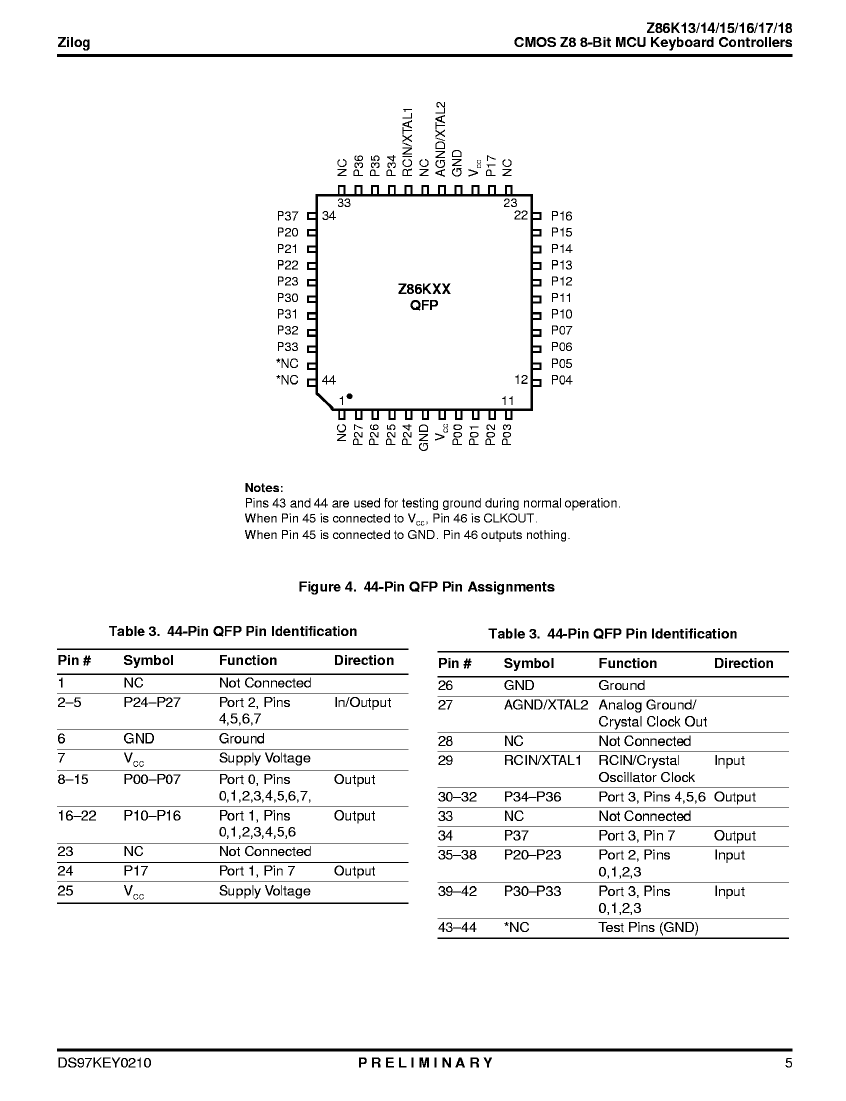

Parts packaging codeDIP
package instructionPLASTIC, DIP-40
Contacts40
Reach Compliance Codecompliant
Has ADCNO
Address bus width
bit size8
maximum clock frequency5 MHz
DAC channelNO
DMA channelNO
External data bus width
JESD-30 codeR-PDIP-T40
JESD-609 codee3
length52.325 mm
Number of I/O lines32
Number of terminals40
Maximum operating temperature70 °C
Minimum operating temperature
PWM channelNO
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)225
Certification statusNot Qualified
ROM programmabilityMROM
Maximum seat height4.24 mm
speed5 MHz
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
Nominal supply voltage5 V
surface mountNO
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTIN
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30
width15.24 mm
uPs/uCs/peripheral integrated circuit typeMICROCONTROLLER

Z86K1505PSG Related Products

Z86K1505PSG Z86K1505PSC
Description Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PDIP40, PLASTIC, DIP-40 Microcontroller, 8-Bit, MROM, 5MHz, CMOS, PDIP40, PLASTIC, DIP-40
Is it lead-free? Lead free Contains lead
Is it Rohs certified? conform to incompatible
Objectid 2097699257 1462472365
Parts packaging code DIP DIP
package instruction PLASTIC, DIP-40 PLASTIC, DIP-40
Contacts 40 40
Reach Compliance Code compliant unknown
Has ADC NO NO
bit size 8 8
maximum clock frequency 5 MHz 5 MHz
DAC channel NO NO
DMA channel NO NO
JESD-30 code R-PDIP-T40 R-PDIP-T40
JESD-609 code e3 e0
length 52.325 mm 52.325 mm
Number of I/O lines 32 32
Number of terminals 40 40
Maximum operating temperature 70 °C 70 °C
PWM channel NO NO
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DIP DIP
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE
Peak Reflow Temperature (Celsius) 225 NOT SPECIFIED
Certification status Not Qualified Not Qualified
ROM programmability MROM MROM
Maximum seat height 4.24 mm 4.24 mm
speed 5 MHz 5 MHz
Maximum supply voltage 5.5 V 5.5 V
Minimum supply voltage 4.5 V 4.5 V
Nominal supply voltage 5 V 5 V
surface mount NO NO
technology CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL
Terminal surface TIN Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature 30 NOT SPECIFIED
width 15.24 mm 15.24 mm
uPs/uCs/peripheral integrated circuit type MICROCONTROLLER MICROCONTROLLER
