DATA SHEET
RELAY

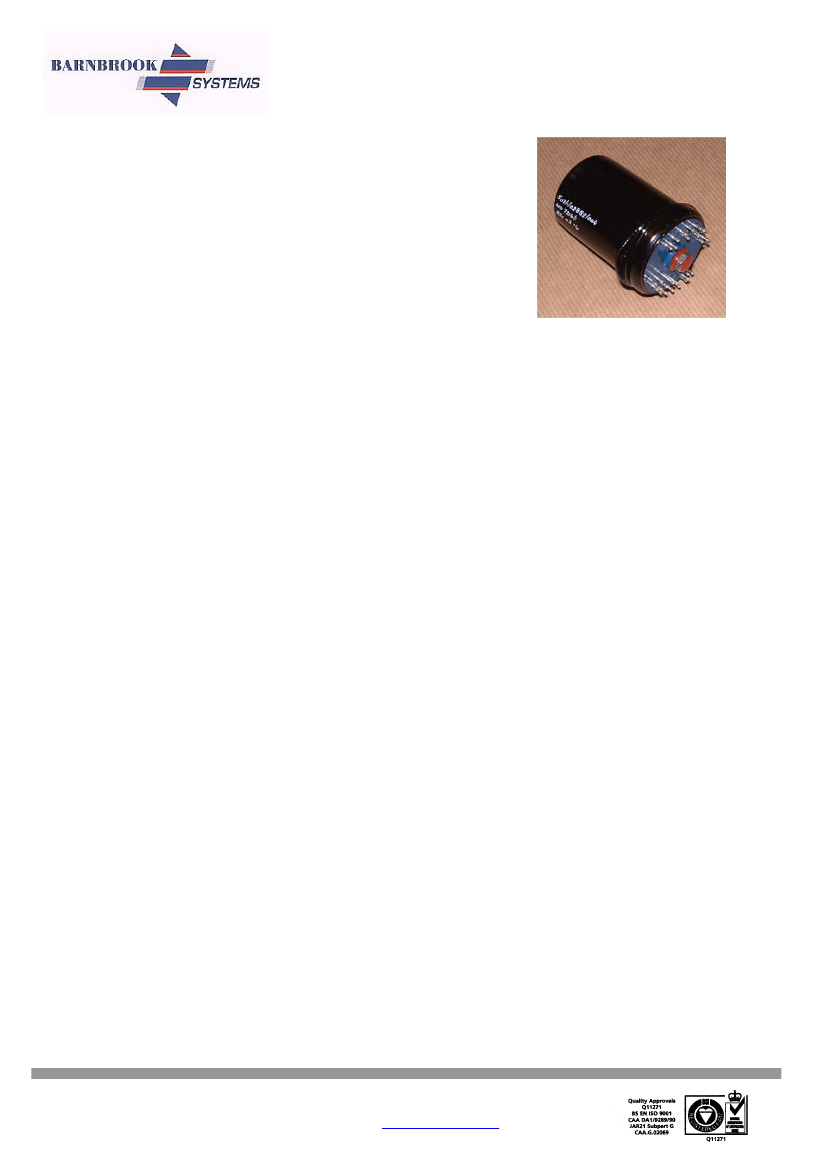

This is a medium to high sensitivity, circular, sealed miniature
relay of proprietary design. It is fitted with a balanced
armature system enabling it to give long and satisfactory
operation while being subjected to severe conditions of
acceleration and vibration.
The maximum springset load is eight changeovers, but
various springset combinations including make before break
actions are available.
It is only available for chassis mounting with solder
terminations.
Key Features
•
•
•
•
Balanced armature.
Medium to high sensitivity.
Chassis mounting.
Solder Terminations.
Type 3
Specification
Electrical
Operate Time
Release Time
Switching Rate
20 – 50 ms typical for 8 c/o contacts.
7 – 13 ms typical for 8 c/o contacts.
Capable of 300 ops/minute
Slow release models are also available with up to 200 ms
Delay. See table on sheet 2.
At nominal voltages and in an ambient temperature of
15.6
o
C the operating power varies according to the
springset load from 0.2 to 1.5 watts. The maximum
permissible power which may be dissipated in the
Windings is 4.0 watts approx. at 15.6
o
C
1000 V ac at 50 Hz.
500M
Ω
(min) at 500 V dc
Maximum Permissible Coil Dissipation
Dielectric Strength
Insulation Resistance
Environmental and Physical
Weight
Temperature category
Humidity Classifications H1 to RCS11
220 gram
-40
o
C to +100
o
C
6 damp – heat cycles (accelerated)
Duration per cycle 16 hours at 55
o
C, R.H. 95-100%
84 days tropical exposure
To RCS11 – Velocity 25.4mm (1”)/sec. at 10 Hz, to 76.2mm
(3”)/sec. at 60 Hz, then3 g at 60 Hz to 6.5 g at 150 Hz.
75 g – applied in any plane.
Def 5165 – 4000 bumps at 40 g.
See Sheet 3 for dimensional details
Vibration
Acceleration
Bump
Dimensions
Ordering Information
See Sheet 2.
Data Sheet No
DSREL3-0305
Sheet 1 of 3
Design authority and manufacture by Barnbrook Systems Limited
Barnbrook Systems reserves the right to alter specifications and design without notice
BARNBROOK SYSTEMS LIMITED, 25 FAREHAM PARK ROAD, HAMPSHIRE, PO15 6LD
TEL NO: +44(0)1329 847722 FAX: +44(0)1329 844132 E-mail:
sales@barnbrook.co.uk
www.barnbrook.com
DATA SHEET
RELAY
Type 3
Coil Data
Nominal dc
Coil Voltage
Nominal Coil Resistance
o
Ω
+/-5% at 15.6 C
Limit Circuit
Current (mA)
1.3
6
12
24
48
Constant
Current Supply
2
45
160
770
3200
-
1.37
30
122
550
2000
7500
350
75
43
18.7
8.7
-
(a)
510
115
56
26
14.2
8.4
(b)
(a)
(b)
(a) For relays with 6C, 3C3K or 3M3B.
(b) For relays with 8C, 4C4K or 4M4B.
Other coil values are available, up to 40,000
Ω
Slow Release Models
The following types are available with springsets as shown :-
Springset
4 Changeovers
4 Changeovers
8 Changeovers
Release Time
90 ms minimum
180 ms minimum
40 ms minimum
The above types relate to normal duty contacts only.
Relays of this type can be supplied suitable for the following nominal voltages :-
6.0V, 12.0V, 24.0V, 48.0V
The windings allow for voltage variations of +20% and –12.5%
Contact Data
Contact Rating (Resistive
Load) and Contact Life
6
Palladium
100mA at 300 Vdc - 10 ops.
6
1A at 60 Vdc – 5 x 10 ops.
6
1A at 12 Vdc – 10 ops.
5
3M3B, 4M4B
Silver
4A at 28 Vdc – 2 x 10 ops.
5
4A at 300 Vac – 2 x 10 ops.
Note: For all inductive loads an adequate contact protection and spark quenching circuit must be fitted.
Contact Arrangements
Available
3C3K, 6C, 4C4K,8C
Contact Material
Ordering Information
Part No.
507/1/02883/004
507/1/02883/012
Style
Ref.
NATO Stock No.
5945-99-911-4074
5945-99-412-8170
Coil
Volts/Res
Ω
24/550
CCS/7500
Action
8C
8C
Contact
Duty
Normal
Normal
Material
Palladium
Palladium
For details of other Type 3 Relays please contact Barnbrook Sales on
Telephone
+44(0)01329 847722
or e-mail
sales@barnbrook.co.uk
Data Sheet No
DSREL3-0305
Sheet 2 of 3
Design authority and manufacture by Barnbrook Systems Limited
Barnbrook Systems reserves the right to alter specifications and design without notice
BARNBROOK SYSTEMS LIMITED, 25 FAREHAM PARK ROAD, HAMPSHIRE, PO15 6LD
TEL NO: +44(0)1329 847722 FAX: +44(0)1329 844132 E-mail:
sales@barnbrook.co.uk
www.barnbrook.com
DATA SHEET
RELAY
Type 3

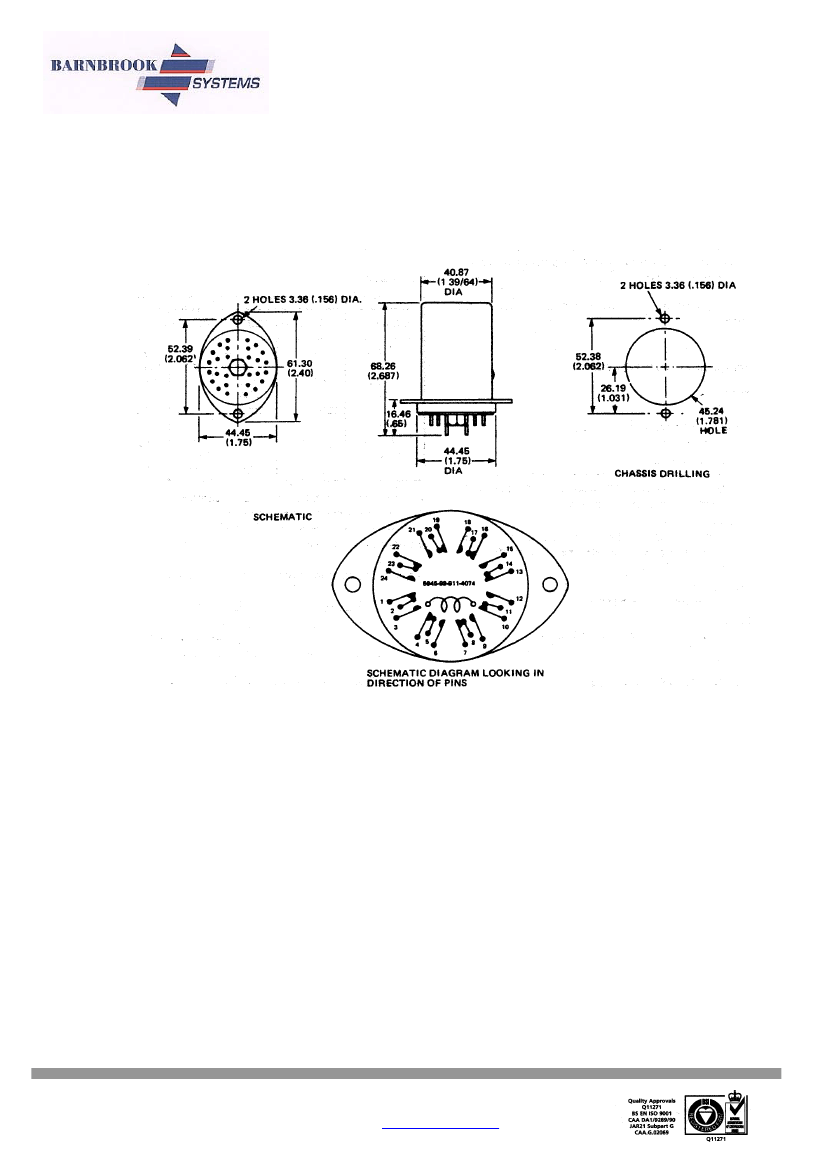

Dimensions and Panel Layout
Data Sheet No
DSREL3-0305
Sheet 3 of 3
Design authority and manufacture by Barnbrook Systems Limited
Barnbrook Systems reserves the right to alter specifications and design without notice
BARNBROOK SYSTEMS LIMITED, 25 FAREHAM PARK ROAD, HAMPSHIRE, PO15 6LD
TEL NO: +44(0)1329 847722 FAX: +44(0)1329 844132 E-mail:
sales@barnbrook.co.uk
www.barnbrook.com
