BB02-BD181-KA3-383000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BB02-BD181-KA3-383000

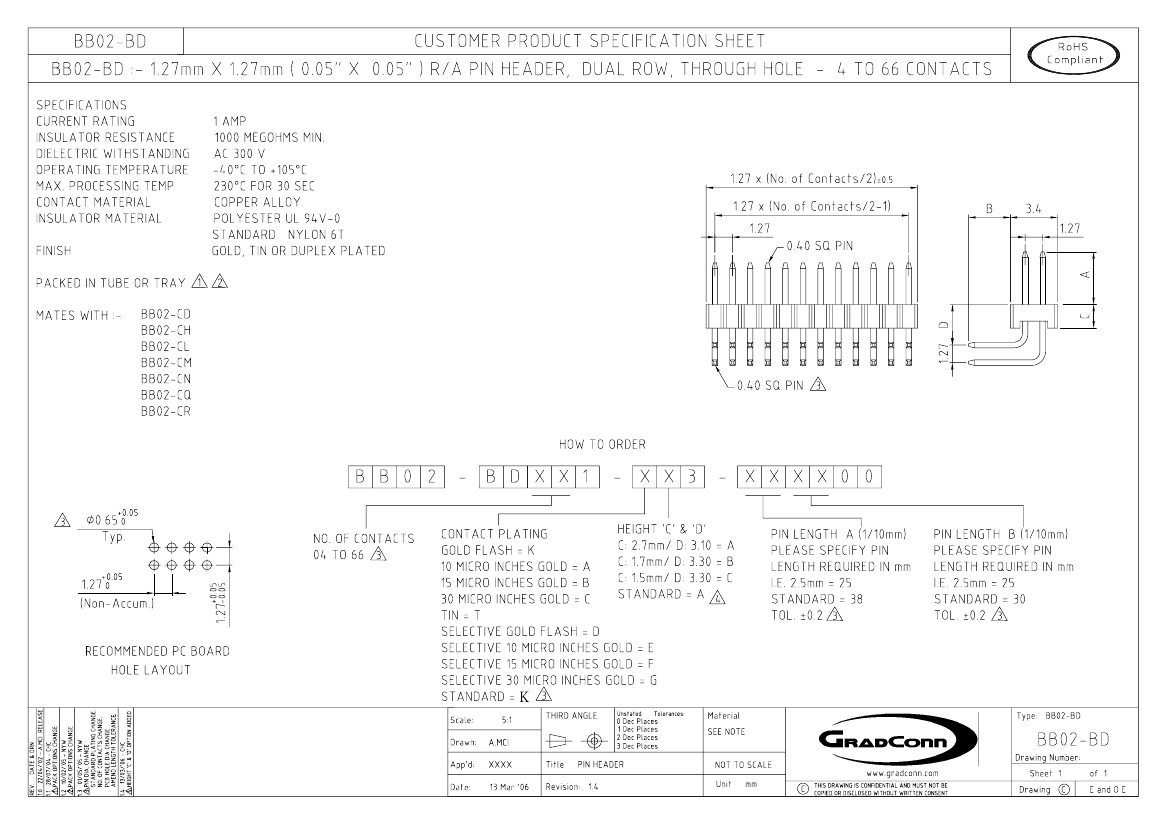

BB02-BD181-KA3-383000: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerGradConn Ltd

Download Datasheet Parametric Compare View All

BB02-BD181-KA3-383000 Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle

BB02-BD181-KA3-383000 Parametric

Parameter Name	Attribute value
Objectid	304097919
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS AND TRAY/TUBE PACKAGING
body width	0.134 inch
subject depth	0.172 inch
body length	0.45 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	BB02-BD
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

BB02-BD181-KA3-383000 Related Products

	BB02-BD181-KA3-383000	BB02-BD161-KA3-383000	BB02-BD121-KA3-383000	BB02-BD081-KA3-383000	BB02-BD101-KA3-383000
Description	Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle	Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle	Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle	Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle	Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS AND TRAY/TUBE PACKAGING	ROHS AND TRAY/TUBE PACKAGING	ROHS AND TRAY/TUBE PACKAGING	ROHS AND TRAY/TUBE PACKAGING	ROHS AND TRAY/TUBE PACKAGING
body width	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch
subject depth	0.172 inch	0.172 inch	0.172 inch	0.172 inch	0.172 inch
body length	0.45 inch	0.4 inch	0.3 inch	0.2 inch	0.25 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	BB02-BD	BB02-BD	BB02-BD	BB02-BD	BB02-BD
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	18	16	12	8	10
Maker	-	GradConn Ltd	GradConn Ltd	GradConn Ltd	-
