588-2-034-0-S-RS0

Description
Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Latch & Eject
CategoryThe connector    The connector
File Size1MB，1 Pages
ManufacturerMPE-Garry GmbH
Download Datasheet Parametric View All

588-2-034-0-S-RS0 Overview

Board Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Latch & Eject

588-2-034-0-S-RS0 Parametric

Parameter NameAttribute value
Objectid308737874
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.236 inch
body length1.957 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage700VAC V
insulator materialTHERMOPLASTIC
Manufacturer's serial number588
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation option 1LATCH & EJECT
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.124 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts34

Preview

Download Datasheet

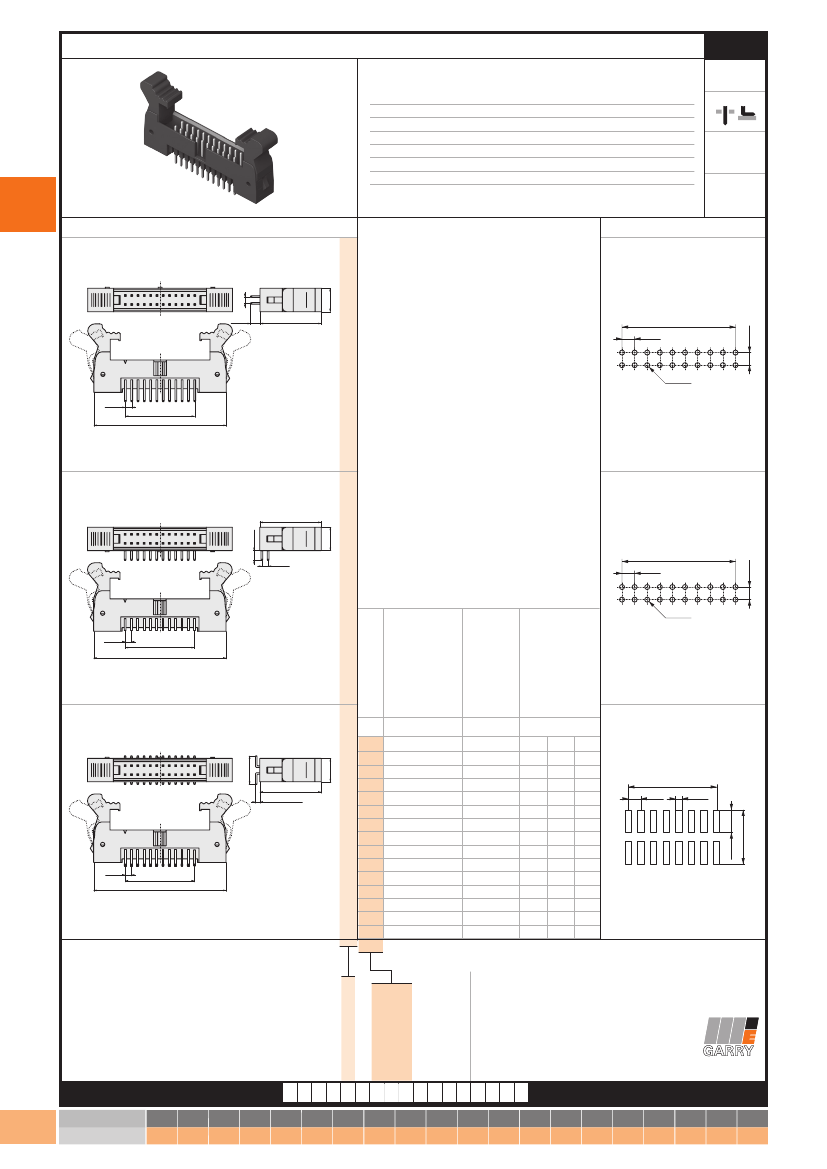

Pin Header Shrouded with Eject Levers 2,00 mm
Rated current
1,5 A
Rated voltage
150 V
RMS
/ V
DC
Withstand voltage
500 V
RMS
for one minute
Material contact
Copper alloy
Material insulator
High temp. thermoplast UL94V-0
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
All dimensions in mm.
Series
588
pitch
termination
contact
size
2,00
Product
group
3
max.
pincount
☐
0,50
068
Variation
PCB Layout
3,00
17,10
2,00
1
ø0,85
2,00
B
A
17,10
3,15
6,00
2
2,00
B
A
n
010
012
014
016
020
022
024
026
030
032
034
040
044
050
068
7,34
6,00
A
25,70
27,70
29,70
31,70
35,70
37,70
39,70
41,70
45,70
47,70
49,70
55,70
59,70
65,70
83,70
B
8,00
10,00
12,00
14,00
18,00
20,00
22,00
24,00
28,00
30,00
32,00
38,00
42,00
48,00
66,00
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
available in variation
ø0,85
no. of contacts
see figure left
see figure left
17,10
1,10±0,10
2,00
B
1,02
2,00
B
A
Plating contact (F,S)
Plating:
F = Au
S = Selective Au
Variation (1,2,3)
No. of contacts
www.mpe-connector.de
Order code:
588-?-???-0-?-RS0
160
6-8
3-34
Mating series
see page
3,60
8,60
3
2,00
2,00
2,00
B
2,00
B
MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de
2,00
