IM801D-23-BH-66.0000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> IM801D-23-BH-66.0000MHZ

IM801D-23-BH-66.0000MHZ: DescriptionLVCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size619KB，9 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

IM801D-23-BH-66.0000MHZ Overview

LVCMOS Output Clock Oscillator,

IM801D-23-BH-66.0000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7153286583
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; ALSO COMPATIBLE WITH HCMOS OUTPUT; TR, 7 INCH
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	66 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVCMOS
Output load	15 pF
physical size	2.5mm x 2.0mm x 0.8mm
longest rise time	2 ns
Maximum supply voltage	3.08 V
Minimum supply voltage	2.52 V
Nominal supply voltage	2.8 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)

Preview

Download Datasheet

View All

MEMS Oscillator, Low Power, LVCMOS, 1.000 MHz to 110.000 MHz

Features:



MEMS Technology

Direct pin to pin drop-in replacement for industry-standard packages

LVCMOS Compatible Output

Industry-standard package 2.0 x 1.6, 2.5 x 2.0, 3.2 x 2.5, 5.0 x 3.2, and 7.0 x 5.0 mm x mm

Six supply voltages options, +1.8 V, +2.5 V, +2.8 V, +3.3 V and +2.25 V to +3.63 V continuous

Pb-free, Halogen-free, Antimony-free

RoHS and REACH compliant

Fast delivery times

IM801 Series

Typical Applications:



Fibre Channel

Server and Storage

GPON, EPON

100M / 1G /10G Ethernet

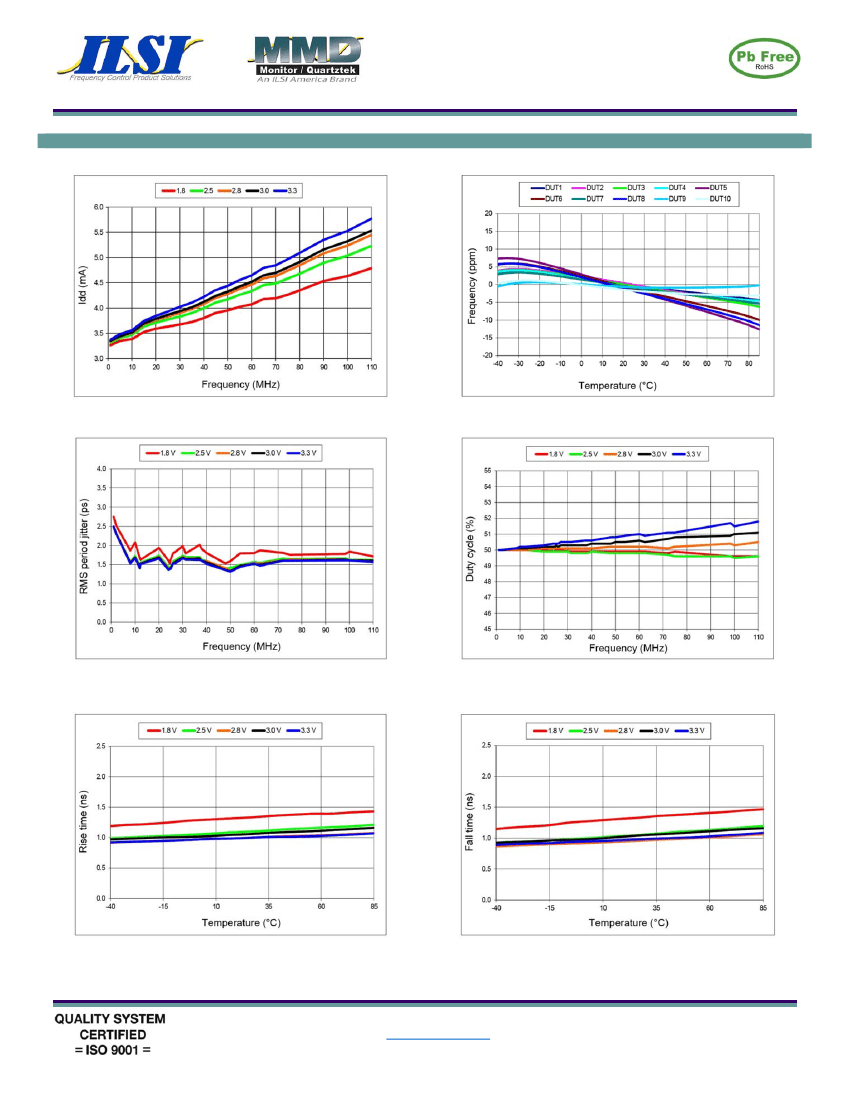

Electrical Specifications:

Frequency Range

Frequency Stability

Operating Temperature

Supply Voltage (Vdd) 10%

Current Consumption

OE Disable Current

Standby Current

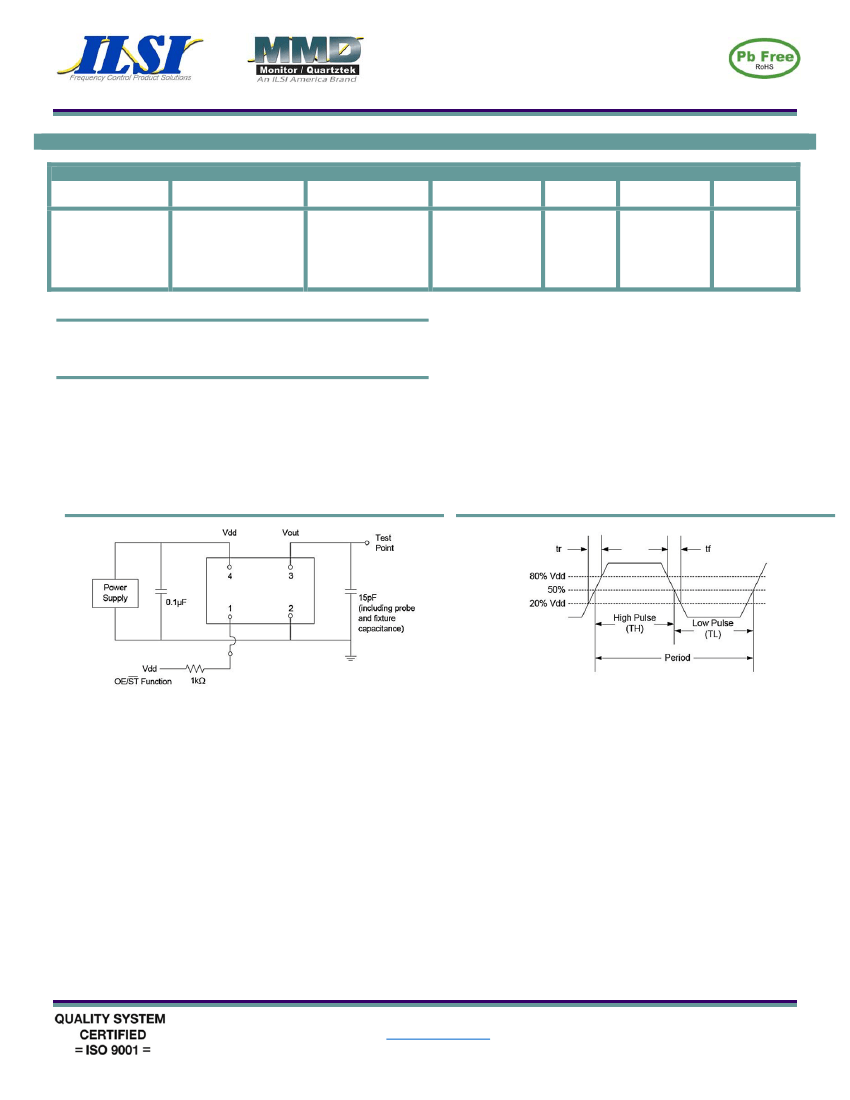

Waveform Output

Symmetry

Rise / Fall Time

Logic “1”

Logic “0”

Input High Voltage

Input Low Voltage

Input Pull-up Impedance

Startup Time

Enable/Disable time

Resume Time

RMS Period Jitter

Peak-to-peak Period Jitter

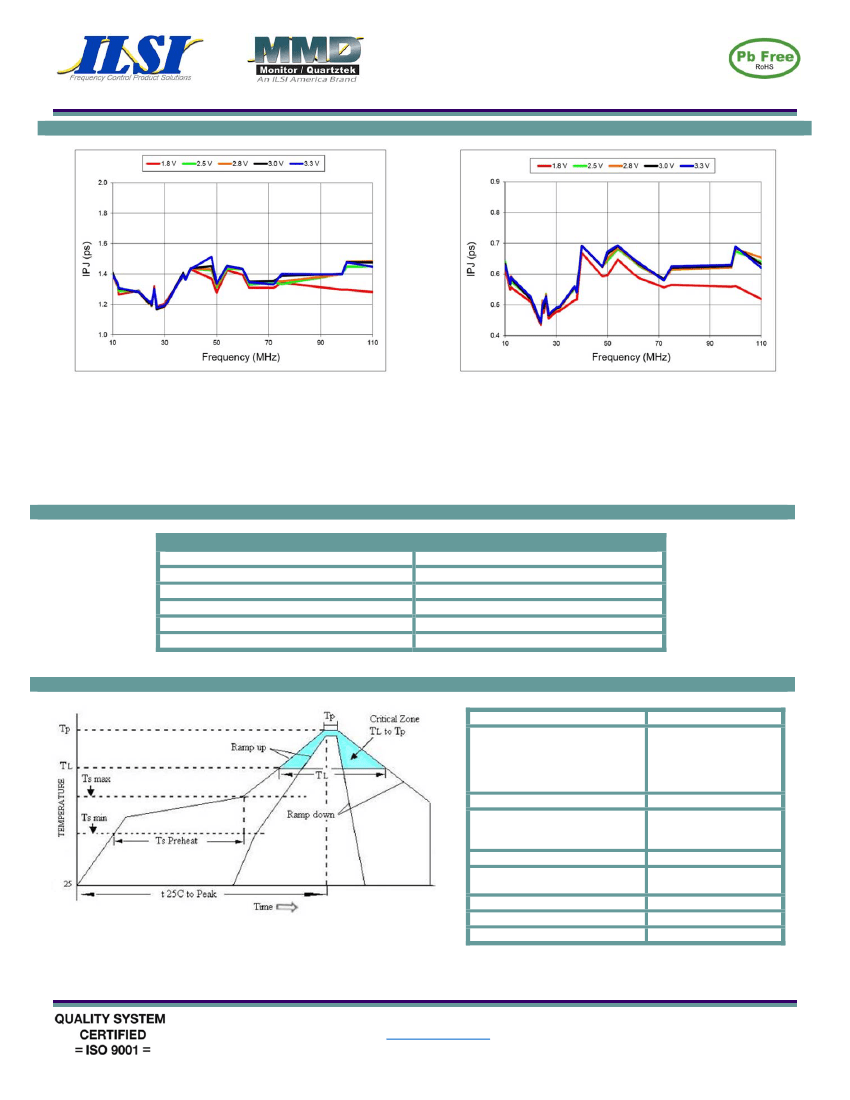

RMS Phase Jitter (random)

1.000 MHz to 110.000MHz

See Part Number Guide

3.8 mA typ./ 4.5 mA max

3.7 mA typ./ 4.2 mA max

3.5 mA typ./ 4.1 mA max

4.2 mA max

4.0 mA max

2.1 µA typ./ 4.3 µA max

1.1 µA typ. / 2.5 µA max

0.2 µA typ. / 1.3 µA max

LVCMOS / HCMOS

45%/55%

1.0 nSec typ./ 2.0 nSec max

1.3 nSec typ./ 2.5 nSec max

90% of Vdd min

10% of Vdd max

70% of Vdd min

30% of Vdd max

50kΩ min / 87kΩ typ. 150kΩ max

2.0MΩ min

5.0 mSec max

130 nSec max

5.0 mSec max

1.8pSec typ./ 3.0pSec max

1.8pSec typ./ 3.0pSec max.

12.0 pSec typ./ 25.0 pSec max

14.0 pSec typ./ 30.0 pSec max

0.5pSec typ./ 0.9 pSec max

1.3pSec typ./ 2.0pSec max

Inclusive of Initial Tolerance, Operating Temperature Range, Load,

Voltage, and Aging (First year at +25 ºC)

No load condition, F = 20 MHz, Vdd = +2.8 V to +3.3 V

No load condition, F = 20 MHz, Vdd = +2.5 V

No load condition, F = 20 MHz, Vdd = +1.8 V

Vdd = +2.5 V to +3.3 V, OE = GND, Output in high-Z state

Vdd = +1.8 V, OE = GND, Output in high-Z state

= GND, Vdd = +2.8 V to +3.3V

= GND, Vdd = +2.5 V

= GND, Vdd = +1.8 V

50% of waveform all Vdds

Vdd = +2.5 V, +2.8 V, + 3.0 V or +3.3 V from 20% to 80% of waveform

Vdd = +1.8 V from 20% to 80% of waveform

Pin 1, OE or

Pin 1, OE logic high or logic low or

logic high

Pin 1,

logic Low

Measured from the time Vdd reaches its rated min value

F = 110 Mhz. For other frequencies, T_oe =100 nSec = 3 cycles

Measured from the time

pin crosses 50% threshold

F = 75 MHz, Vdd = +2.5 V, +2.8 V, + 3.0 V or +3.3 V

F = 75 MHz, Vdd = +1.8 V

F = 75 MHz, Vdd = +2.5 V, +2.8 V, + 3.0 V or +3.3 V

F = 75 MHz, Vdd = +1.8 V

F = 75 MHz, Integration Bandwidth = 900 kHz to 7.5 MHz

F = 75 MHz, Integration Bandwidth = 12 kHz to 20.0 MHz

Notes:



All min and max limits are specified over temperature and rated operating voltage with 15pF output unless otherwise stated.



Typical values are at +25ºC and nominal supply voltage.

Absolute Maximum Limits

Storage Temperature

Supply Voltage (Vdd)

Electrostatic Discharge

Solder Temperature (follow standard Pb free soldering guidelines)

Junction Temperature

-65ºC to +150ºC

-0.5 VDC to 4.0 VDC

2000 V max

260ºC max

150ºC max

ILSI America Phone 775-851-8880

●

Fax 775-851-8882

●email:

e-mail@ilsiamerica.com

●

www.ilsiamerica.com

Specifications subject to change without notice

Rev: 08/18/17_B
