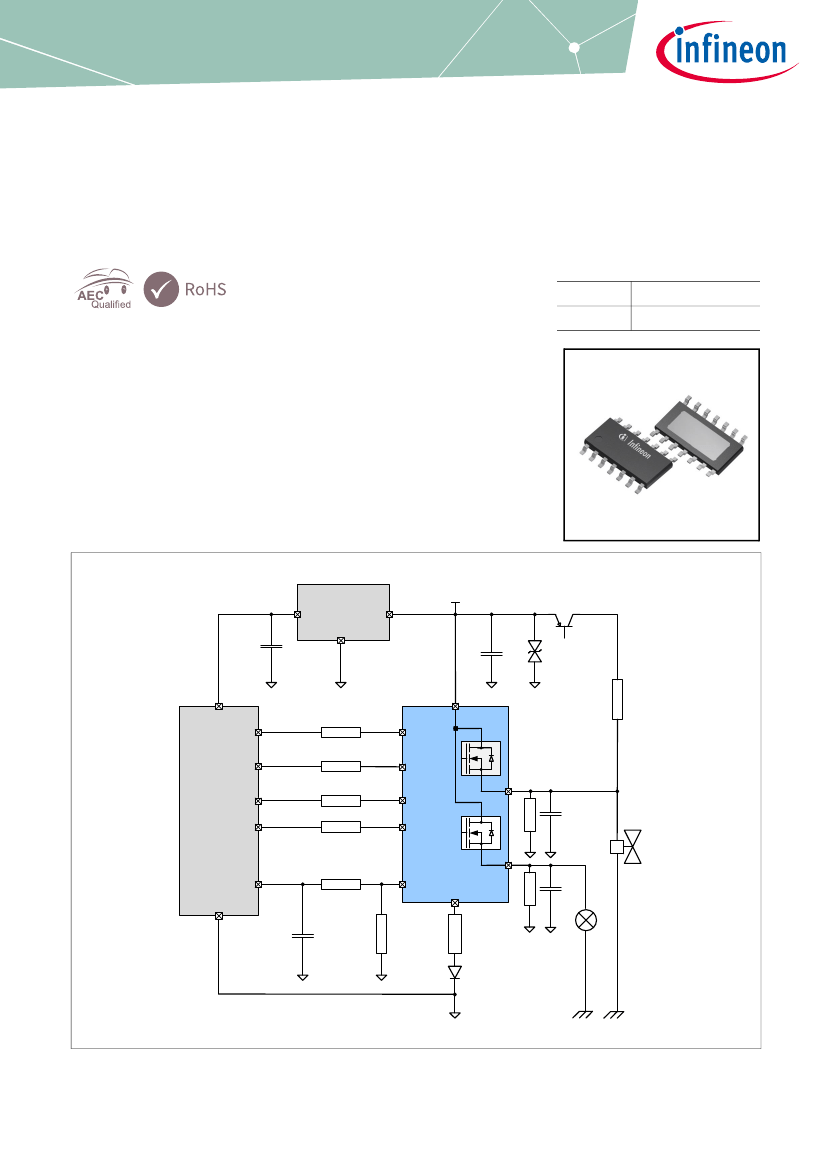

PROFET™ +24V
BTT6030-2ERB
Smart High-Side Power Switch Dual Channel, 32 mΩ
Package
Marking
PG-TDSO-14
6030-2ERB
1
Application
•
•
•
•
Overview
Suitable for resistive, inductive and capacitive loads
Replaces electromechanical relays, fuses and discrete circuits
Most suitable for loads with high inrush current, such as lamps
Suitable for 12 V and 24 V trucks + trailer and transportation systems
Voltage Regulator
OUT
C
VDD
GND
VS
V
BAT
T
1
C
VS
Z
R
OL
VDD
GPIO
GPIO
Microcontroller
GPIO
GPIO
R
IN
R
IN
IN0
IN1
R
DEN
R
DSEL
DEN
VS
DSEL
OUT0
OUT4
C
OUT
Valve
R
PD
OUT1
C
OUT
Bulb
ADC IN
GND
R
SENSE
IS
R
PD
GND
C
SENSE
R
GND
R
IS
D
Application Diagram with BTT6030-2ERB
Datasheet
www.infineon.com
1
Rev.1.00
2019-03-09
PROFET™ +24V
BTT6030-2ERB
Overview
Basic Features
•
•
•
•
•
•
•
•
Two channel device
Very low stand-by current
3.3 V and 5 V compatible logic inputs
Electrostatic discharge protection (ESD)
Optimized electromagnetic compatibility
Logic ground independent from load ground
Very low power DMOS leakage current in OFF state
Green product (RoHS compliant) & AEC qualified
Description
The BTT6030-2ERB is a 32 mΩ dual channel Smart High-Side Power Switch, embedded in a PG-TDSO-14,
Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an
N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 HV technology. It is
specially designed to drive lamps up to 2 * P21W 24V, as well as LEDs in the harsh automotive environment.
Table 1
Parameter
Operating voltage range
Maximum supply voltage
Maximum ON state resistance at
T
J
= 150°C per channel
Nominal load current (one channel active)
Nominal load current (both channels active)
Typical current sense ratio
Minimum current limitation
Maximum standby current with load at
T
J
= 25°C
Diagnostic Functions
•
•
•
•
•
Proportional load current sense for both channels multiplexed
Open load in ON and OFF
Overtemperature. Short circuit to battery and ground
Stable diagnostic signal during short circuit
Enhanced
k
ILIS
dependency with temperature and load current
Product Summary
Symbol
V
S(OP)
V
S(LD)
R
DS(ON)
I
L(NOM)1
I
L(NOM)2
k
ILIS
I
L5(SC)
I
S(OFF)
Value
5 V ... 36 V
65 V
62 mΩ
6A
4A
2240
40 A
500 nA
Protection Functions
•
•
•
•
•
•
•
Stable behavior during undervoltage
Reverse polarity protection with external components
Secure load turn-off during logic ground disconnect with external components
Overtemperature protection with latch
Overvoltage protection with external components
Voltage dependent current limitation
Enhanced short circuit protection for up to 40 m cables
2
Rev.1.00
2019-03-09
Datasheet
PROFET™ +24V
BTT6030-2ERB
Pin Configuration
3
3.1
Pin Configuration
Pin Assignment
GND
IN0
DEN
IS
DSEL
IN1
NC
1
2
3
4
5
6
7
14
13
12
11
10
9
8
OUT0
OUT0
OUT0
NC
OUT1
OUT1
OUT1
Pinout dual SO14.vsd
Figure 2
Pin Configuration
3.2
Table 2
Pin
1
2
3
4
5
6
7, 11
8, 9, 10
12, 13, 14
Cooling Tab
Pin Definitions and Functions
Pin Definition and Functions
Symbol
GND
IN0
DEN
IS
DSEL
IN1
NC
OUT1
OUT0
VS
Function
GrouND;
Ground connection
INput channel 0;
Input signal for channel 0 activation
Diagnostic ENable;
Digital signal to enable/disable the diagnosis of the device
Sense;
Sense current of the selected channel
Diagnostic SELection;
Digital signal to select the channel to be diagnosed
INput channel 1;
Input signal for channel 1 activation
Not Connected;
No internal connection to the chip
OUTput 1;
Protected high-side power output channel 1
1)
OUTput 0;
Protected high-side power output channel 0
1)
Voltage Supply;
Battery voltage
1) All output pins of a given channel must be connected together on the PCB. All pins of an output are internally
connected together. PCB traces have to be designed to withstand the maximum current which can flow.
Datasheet
4
Rev.1.00
2019-03-09
