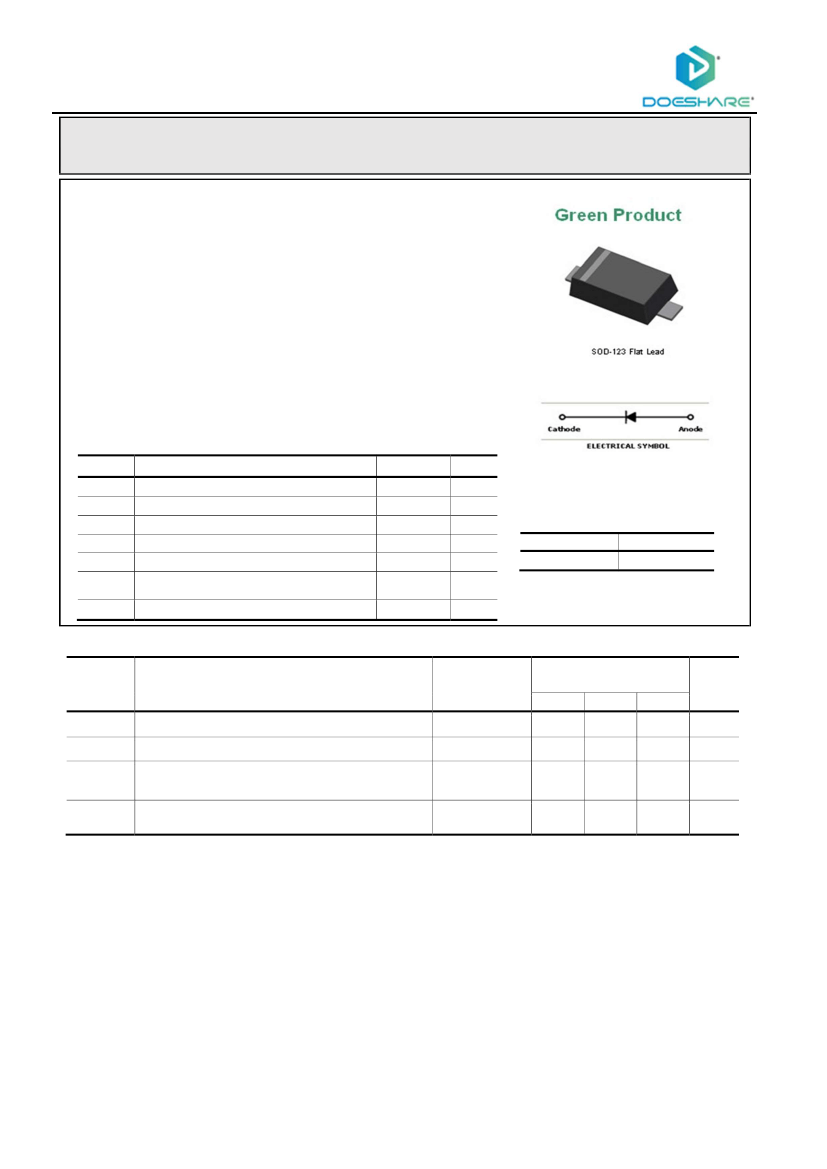

B5819W
B5819W
Schottky Barrier Diode
General description
Flat Lead Plastic Package Schottky Barrier Diode
FEATURES
•
For use in low voltage, high frequency inverters, free wheeling
•
•
•
•
•
•
•
& polarity protection…

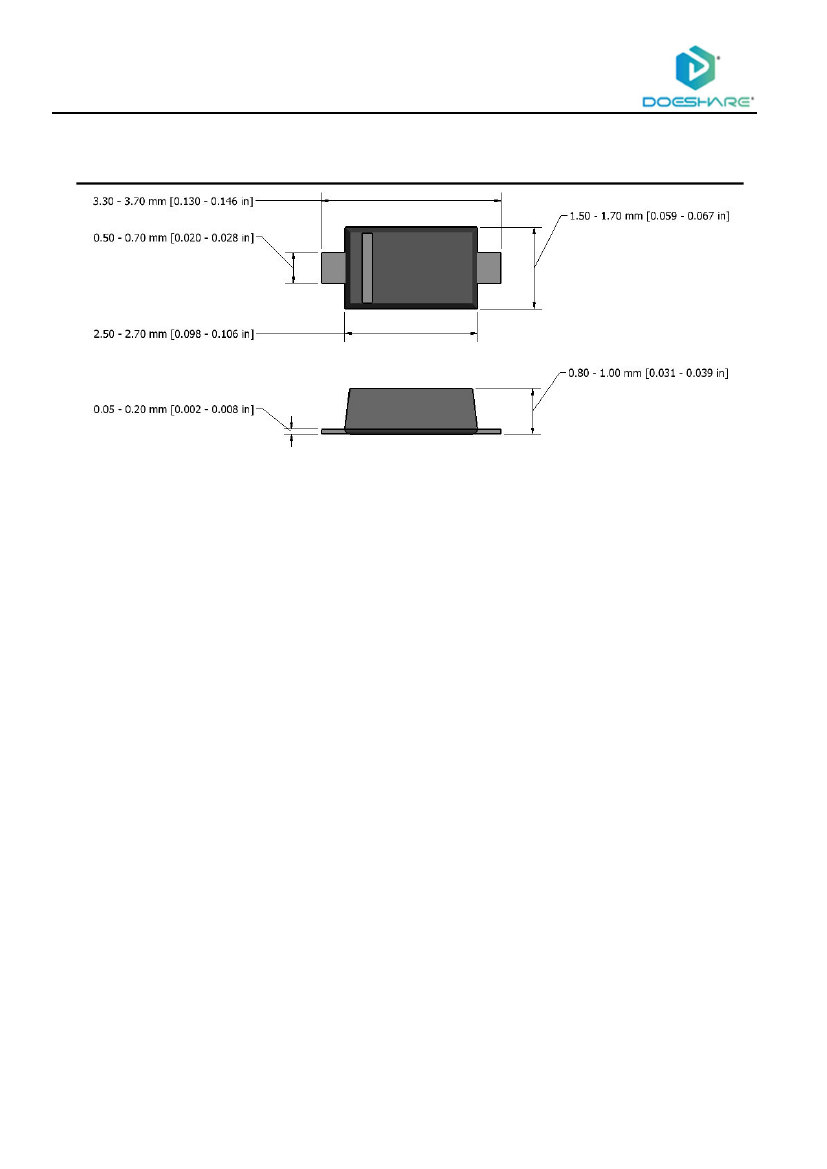

Flat Lead SOD-123 Small Outline Plastic Package
Surface Device Type Mounting
RoHS Compliant
Green EMC
Matte Tin(Sn) Lead Finish
Band Indicates Cathode
Weight: approx. 0.01g
TA = 25°C unless otherwise noted
Value
500
-55 to +150
+150
40
1
9
1.5
Units
mW
°C
°C
V
A
A
A
Absolute Maximum Ratings
Symbol
P
D
T
STG
T
J
V
RM
I
O
I
FSM
I
FRM

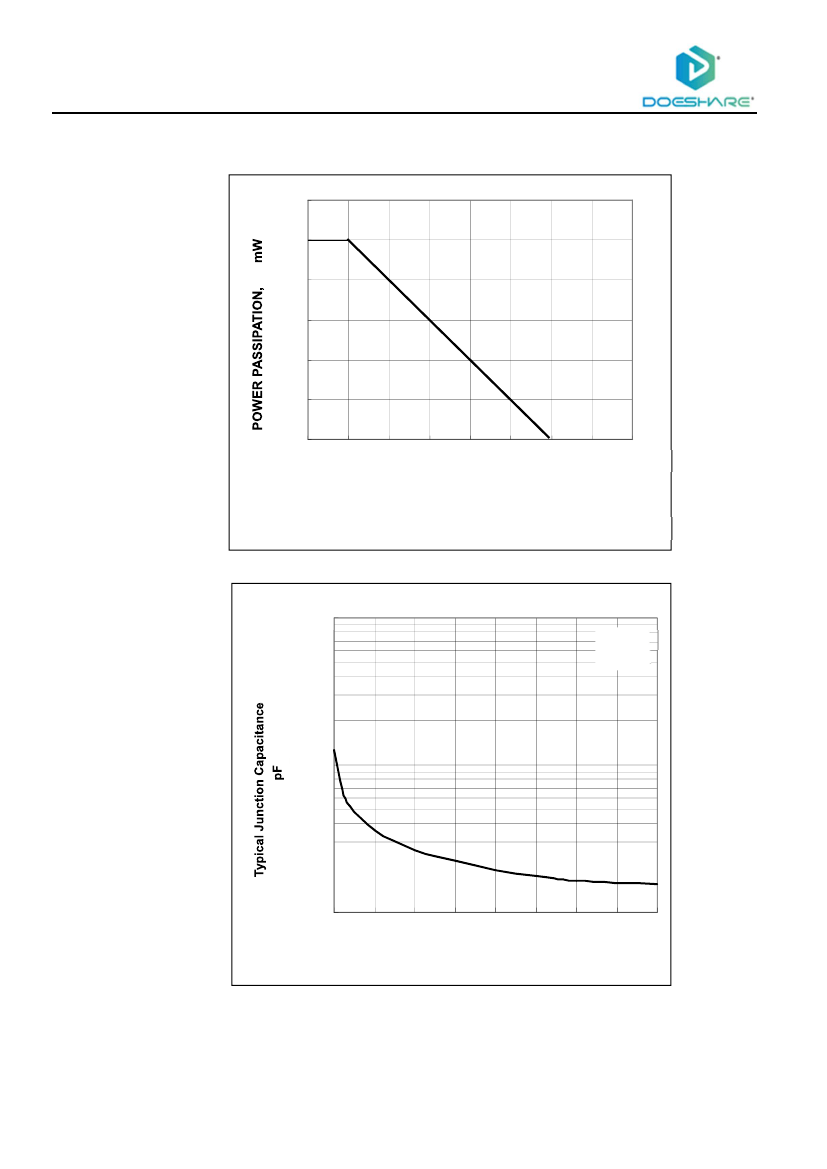

Power Dissipation
Parameter
Storage Temperature Range
Operating Junction Temperature
Repetitive Peak Reverse Voltage
Average Rectified Output Current
Peak Forward Surge Current
(t=8.3ms Single Half Sine-wave)
Repetitive Peak Forward Current
DEVICE MARKING CODE:
Device Type
B5819W
Device Marking
SL
.
Electrical Characteristics
Symbol
T
A
= 25°C unless otherwise noted
Limits
Parameter
Test Condition
Min
Typ
--
--
--
--
Max
-
1
0.60
0.90
120
Volts
mA
Volts
pF
Unit
V
BR
I
R
V
F
Cd
Reverse Breakdown Voltage
Reverse Leakage Current
Forward Voltage
Diode Capacitance
I
R
=1mA
V
R
=40V
I
F
=1A
I
F
=3A
V
R
=4V f=
1MHz
40
--
--
--
