PC74HC4075P datasheet, PDF - EEWORLD Datasheet

PC74HC4075P: DescriptionOR Gate, CMOS, PDIP14; Categorylogic logic; File Size115KB，3 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

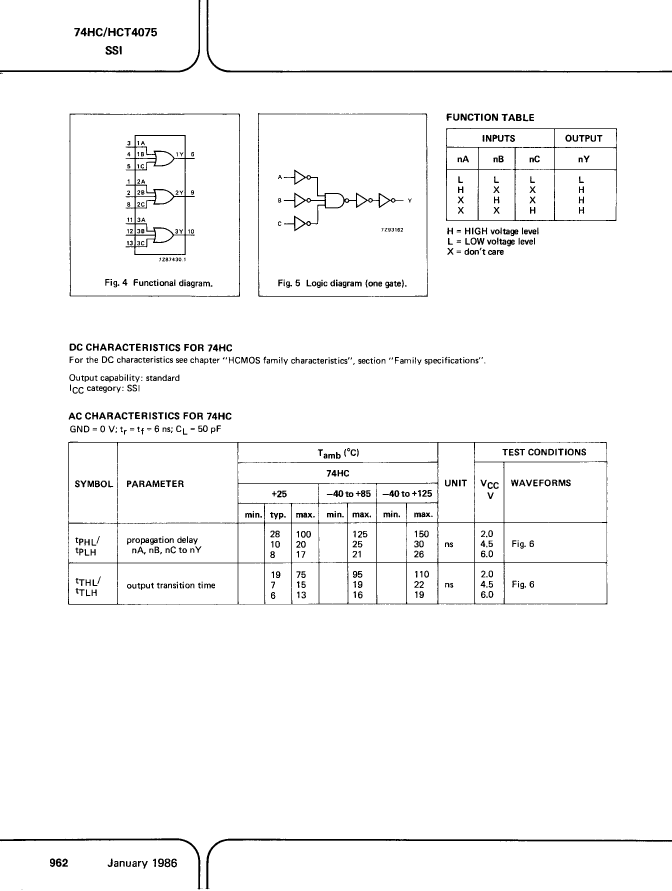

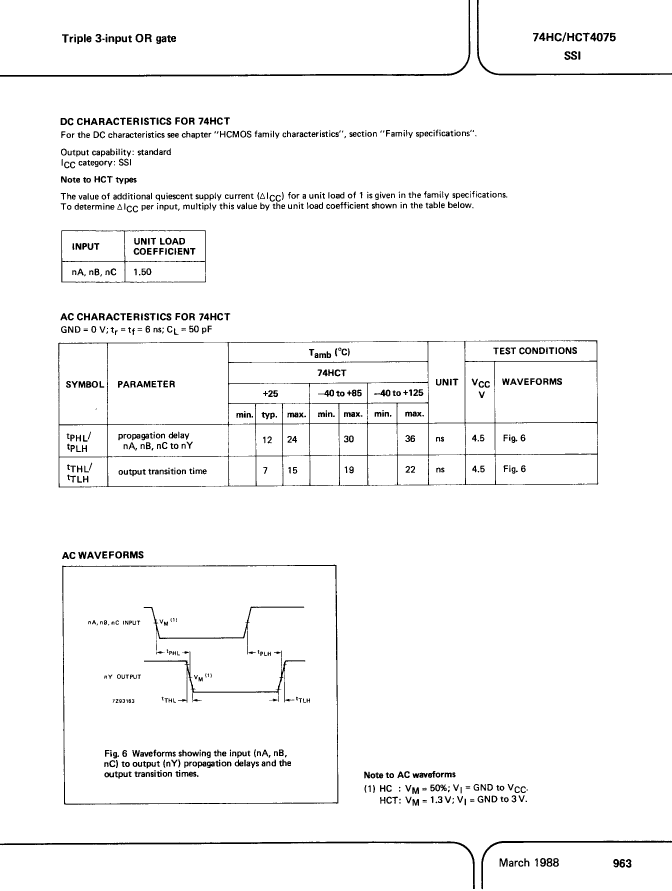

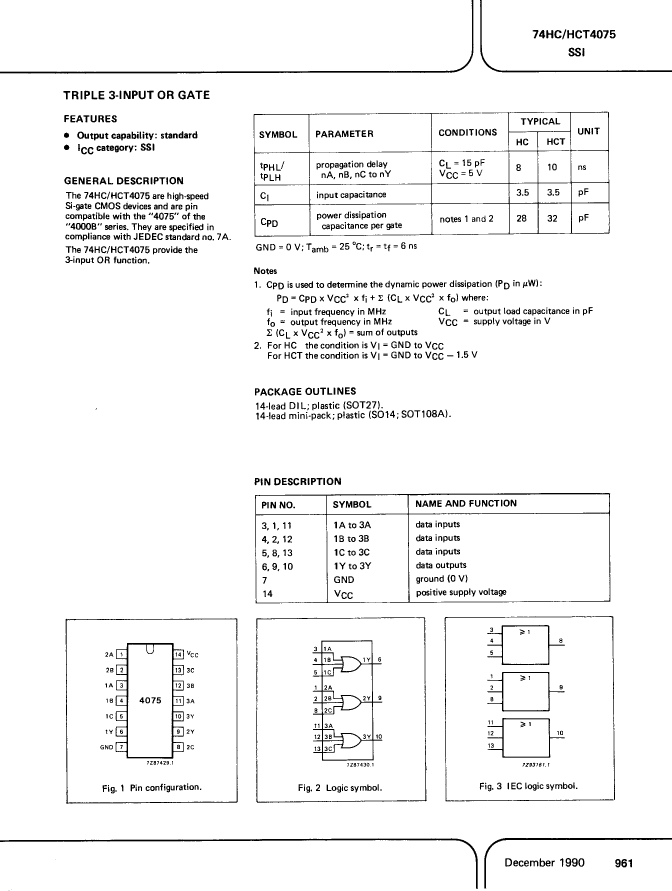

PC74HC4075P Overview

OR Gate, CMOS, PDIP14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	100771835
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	OR GATE
MaximumI(ol)	0.004 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2/6 V
Prop。Delay @ Nom-Sup	30 ns
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	NO
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	PC74HC4075P	74HC4075D-T
Description	OR Gate, CMOS, PDIP14	OR Gate, CMOS, PDSO14,
Is it Rohs certified?	incompatible	conform to
package instruction	DIP, DIP14,.3	SOP, SOP14,.25
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDIP-T14	R-PDSO-G14
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	OR GATE	OR GATE
MaximumI(ol)	0.004 A	0.004 A
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP14,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
power supply	2/6 V	2/6 V
Prop。Delay @ Nom-Sup	30 ns	30 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
