DTSM-21N-S-V-B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DTSM-21N-S-V-B

DTSM-21N-S-V-B: DescriptionKeypad Switch, SPST, Vertical, 0.05A, 12VDC, Solder Terminal, Surface Mount-straight,; CategoryMechanical and electronic products switch; File Size1MB，1 Pages; ManufacturerAPEM

Download Datasheet Parametric View All

DTSM-21N-S-V-B Overview

Keypad Switch, SPST, Vertical, 0.05A, 12VDC, Solder Terminal, Surface Mount-straight,

DTSM-21N-S-V-B Parametric

Parameter Name	Attribute value
Objectid	1510313870
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	PUSHBUTTON
body width	12.0142 mm
Body length or diameter	12.0142 mm
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	1000000 Cycle(s)
Installation features	SURFACE MOUNT-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Switch type	KEYPAD SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

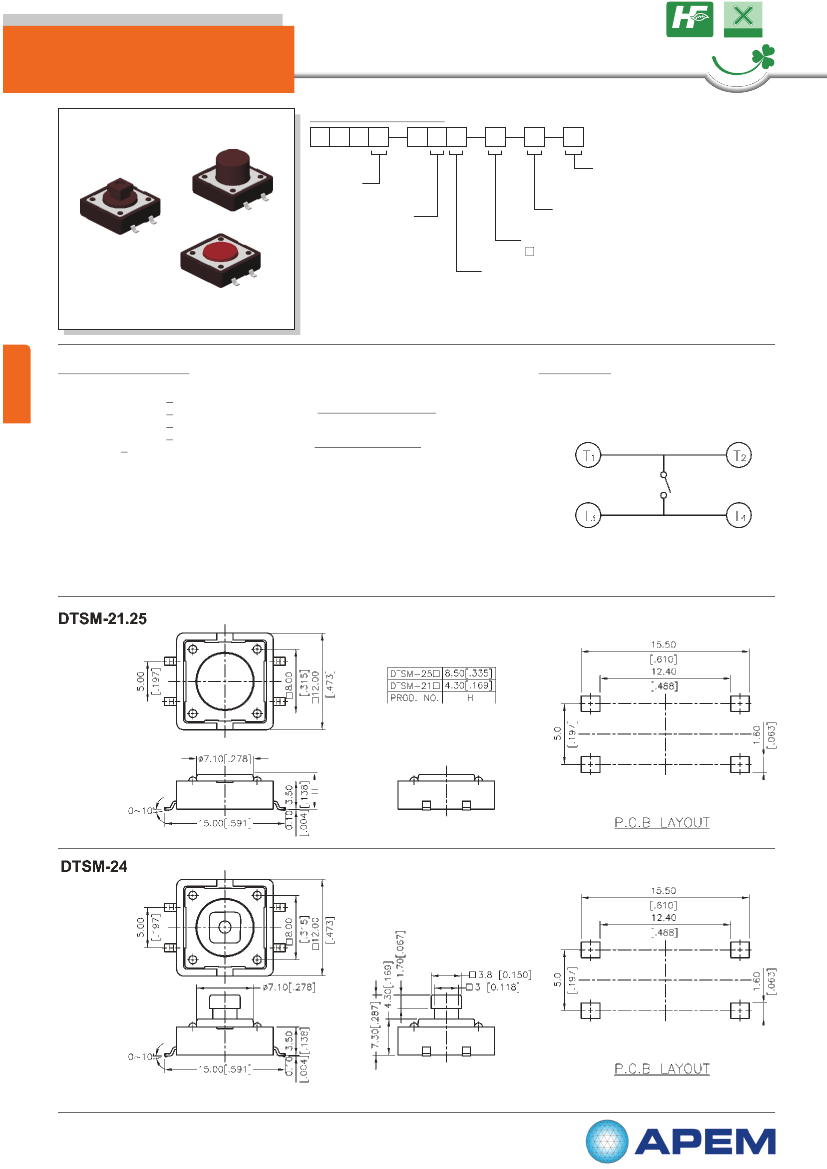

DTSM-2 SERIES

12x12

Surface Mounting Type

HOW TO ORDER

Package:

B=Tube

T/R=Tape&Reel

Height:

1=4.3mm

4=7.3mm

5=8.5mm

Halogen Free

LEAD FREE

RoHS

Compliant

SMT

V=RoHS & Lead Free Solderable

Q=Halogen Free

S=Stainless Steel Dome (only for K, N, R)

=Phosphor Bronze Dome

Operating Force :

K=Black, 130gf

N=Brown, 160gf

R=Red, 260gf

S=Salmon, 320gf

>Not Available For Halogen Free

Y=Yellow, 520gf

SPECIFICATION

MECHANICAL

Operation Force: 520 + 130gf Yellow(Y)

320 + 80gf Salmon (S)

260 + 50gf Red (R)

160 + 50gf Brown (N)

Stroke: 0.35 + 0.1mm

ENVIRONMENTAL

Operation Temperature: -25C to +70C

Storage Temperature: -30C to +80C

ELECTRICAL

Electrical Life:

*Phosphor Bronze Dome

100,000 cycles for 520gf, 320gf, 260gf

200,000 cycles for 160gf

*Stainless Steel Dome

300,000 cycles for 520gf, 320gf

500,000 cycles for 260gf

1,000,000 cycles for 100gf, 160gf

Rating: 50mA , 12VDC

PACKAGE

DTSM-2: 40 pcs/tube

DTSM-21: 700 pcs/reel

DTSM-24: 500 pcs/reel

DTSM-25: 400 pcs/reel

CIRCUIT

TACT SWITCH
