VJ1210Y124 Overview

Surface Mount Multilayer Ceramic Chip Capacitor Solutions for Boardflex Sensitive Applications

Preview

Download Datasheet

View All

Not for New Designs

Product Discontinuation

VJ RuGGed Chip

Vishay Vitramon

Surface Mount Multilayer Ceramic Chip Capacitors

for Power Supply Applications

FEATURES

•

Rugged, surface-mountable, multilayer ceramic

capacitors, made with Advanced X7R dielectric

•

Efficient low-power consumption, ripple current

RoHS

COMPLIANT

capable to 1.2 A

rms

at 100 kHz

•

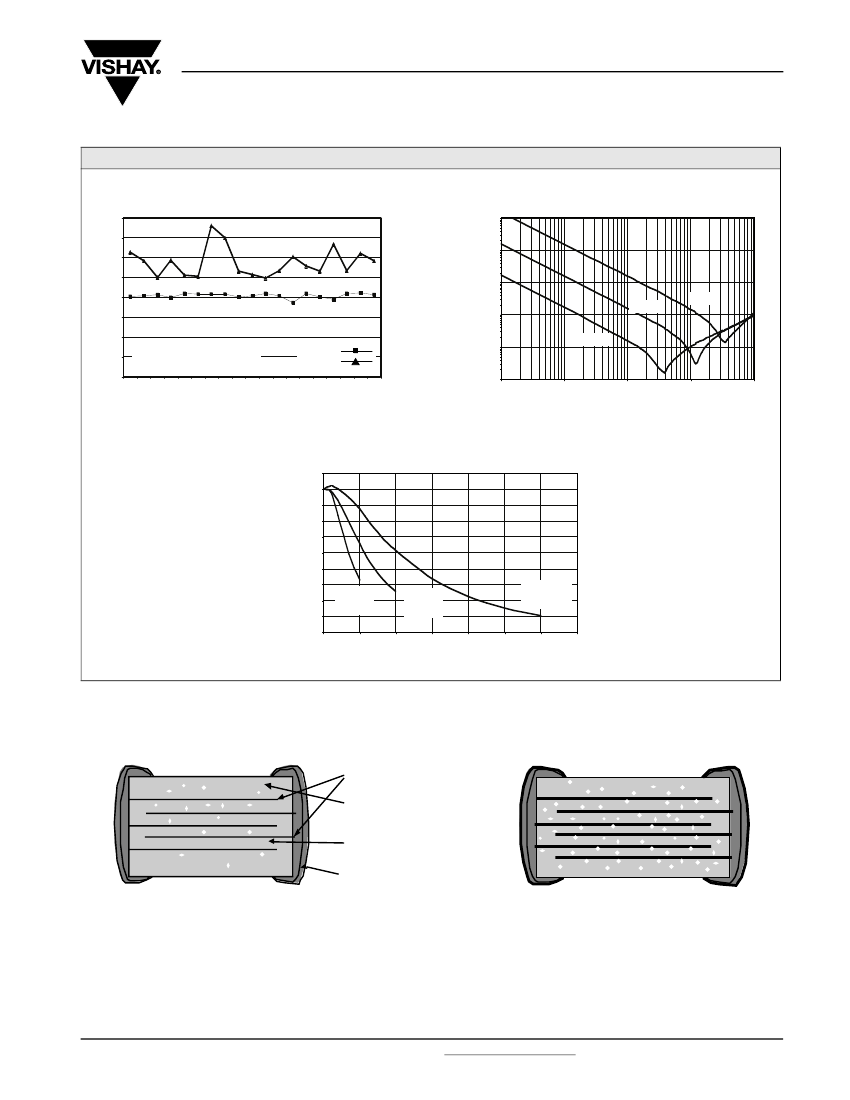

High voltage breakdown compared to standard design

•

Excellent reliability and thermal shock performance

•

Surface

mount,

precious

metal

technology,

wet build process

APPLICATIONS

•

Ideal for power supplies

•

For input/output filters

ELECTRICAL SPECIFICATIONS

Note:

Electrical characteristics at + 25 °C unless otherwise specified

Insulation Resistance (IR):

At + 25 °C and rated voltage 100 000 MΩ minimum or

1000

ΩF,

whichever is less

Dielectric Withstanding Voltage (DWV):

This is the maximum voltage the capacitors are tested for a

1 to 5 second period and the charge/discharge current does

not exceed 50 mA

≤

250 Vdc: DWV at 250 % of rated voltage

500 Vdc: DWV at 200 % of rated voltage

630 Vdc: DWV at 150 % of rated voltage

Operating Temperature:

- 55 °C to + 125 °C

Capacitance Range:

1000 pF to 1.8 µF

Voltage Rating:

50 Vdc to 630 Vdc

Temperature Coefficient of Capacitance (TCC):

X7R: ± 15 % from - 55 °C to + 125 °C, with 0 Vdc applied

Aging Rate:

1 % maximum per decade

DIMENSIONS

in inches [millimeters]

(MAX.)

PART

ORDERING

NUMBER

VJ1206

VJ1210

VJ1812

VJ1825

VJ2220

VJ2225

LENGTH (L)

0.126 ± 0.008 [3.20 ± 0.20]

0.177 ± 0.010 [4.50 ± 0.25]

0.228 ± 0.008 [5.79 ± 0.20]

0.220 ± 0.010 [5.59 ± 0.25]

WIDTH (W)

0.063 ± 0.008 [1.60 ± 0.20]

0.098 ± 0.008 [2.50 ± 0.20]

0.126 ± 0.008 [3.20 ± 0.20]

0.252 ± 0.010 [6.40 ± 0.25]

0.197 ± 0.008 [5.00 ± 0.20]

0.262 ± 0.010 [6.65 ± 0.25]

MAXIMUM

THICKNESS (T)

0.067 [1.70]

0.086 [2.18]

TERMINATION PAD (P)

MINIMUM

0.010 [0.25]

MAXIMUM

0.030 [0.76]

ORDERING INFORMATION

VJ1812

CASE DIELECTRIC

CODE

1206

1210

1812

1825

2220

2225

Y = X7R

824

CAPACITANCE

NOMINAL CODE

Expressed in

picofarads (pF).

The first two digits

are significant, the

third is a multiplier.

Examples:

824 = 820 000 pF

CAPACITANCE TERMINATION DC VOLTAGE

TOLERANCE

RATING

(1)

J=±5%

K = ± 10 %

M = ± 20 %

X = Ni barrier

100 % tin

plated

F = AgPd

A = 50 V

B = 100 V

C = 200 V

P = 250 V

E = 500 V

L = 630 V

MARKING

A = Unmarked

PACKAGING

T = 7" reel/

plastic tape

PROCESS

CODE

3E = RuGGed

Note:

(1)

DC voltage rating should not be exceeded in application

Document Number: 45032

Revision: 29-Sep-08

For technical questions contact mlcc.specials@vishay.com

www.vishay.com
