LA2C502K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> LA2C502K

LA2C502K: DescriptionFilm Capacitor,; CategoryPassive components capacitor; File Size107KB，2 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

LA2C502K Overview

Film Capacitor,

LA2C502K Parametric

Parameter Name	Attribute value
Objectid	2088137643
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Capacitor type	FILM CAPACITOR
Number of terminals	2

LA2C502K Preview

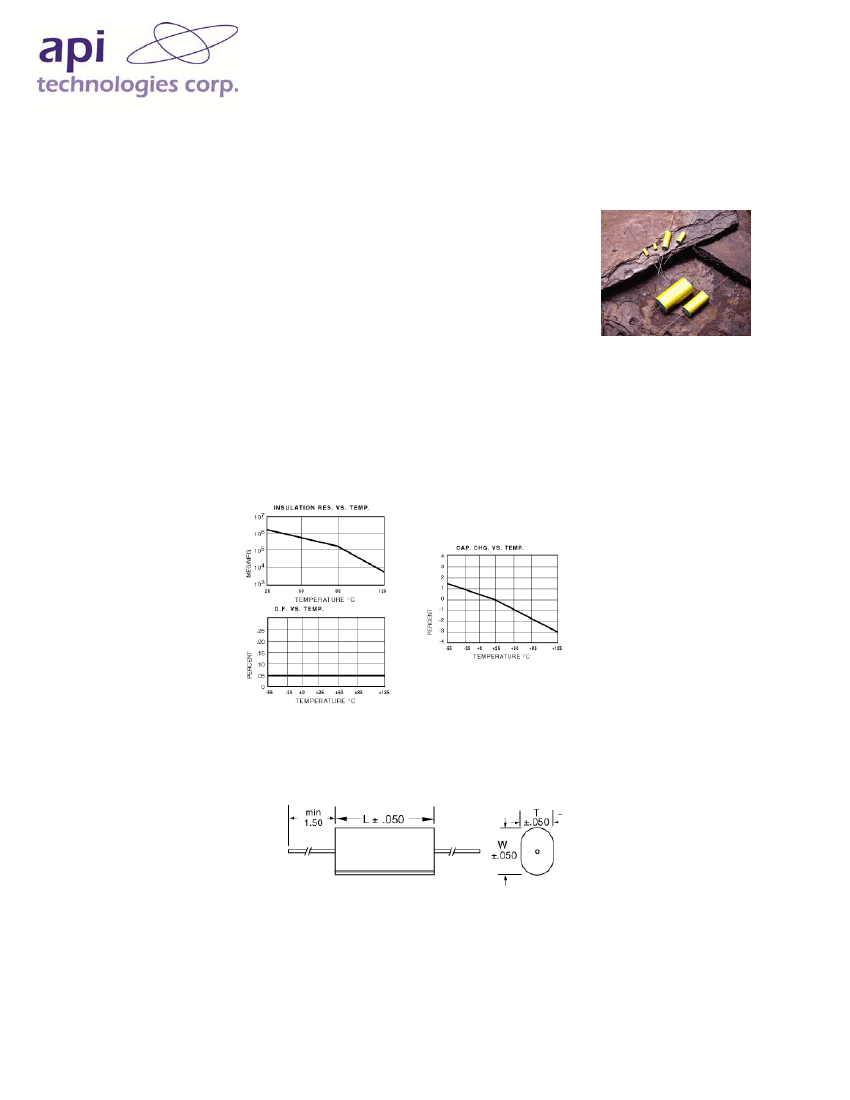

POLYPROPYLENE AND FOIL FILM CAPACITORS

RECTANGULAR – WRAP AND FILL – AXIAL LEADS

SPECIFICATIONS:

1. CAPACITY: TABULATED

2. TOLERANCE: SHALL BE INDICATED BY ONE OF THE

FOLLOWINGING SUFFIXS; NONE ±20%, K ± 10%, J ± 5%, H±3%,

G±2% AND F±1%

3. RATED WORKING VOLTAGE: TABULATED

4. DISSIPATION FACTOR: LESS THAN 0.1% AT 1KHz AND 25°C

5. INSULATION RESISTANCE: SHALL EXCEED 250,000 MEG/MFD., AFTER TWO MINUTE

CHARGE AT THE RATED VOLATAGE AND 25°C, NEED NOT EXCEED 500,000 MEGOHMS

6. DIELECTRIC STRENGTH: SHALL WITHSTAND A SURGE OF 200% OF THE RATED

VOLTAGE FOR ONE MINUTE THRU A LIMITING RESISTANCE OF 1 OHMS PER VOLT

7. TEMPERATURE RANGE: -55°C TO +85°C

8. CASE: POLYESTER PRESSURE TAPE WITH EPROXY ENDFILL

9. LEAD MATERIAL: TINNED COPPERWELD WIRE

LA2 Series - Specifications

Electromagnetic Integrated Solutions

8061 Avonia Road

●

Fairview

●

Pennsylvania

●

16415

Phone: (814) 474-1571

●

Email: eisSales@apitech.com

●

Web: http://eis.apitech.com

PART NUMBER KEY

EXAMPLE

Code

Polypropylene

and Foil

Case Style

Wrap & Fill

Shape

Oval-

Cylindrical

Voltage

A-50

B-100

C-200

E-400

G-600

104

Capacity

In Picofarads the

first 2 digits

indicate significant

figures, the 3

indicates number

of zeroes to follow

Tolerance

± 20% = Bank

± 10% = K

± 5% = J

± 3% = H

± 2% = G

± 1% = F

Dimensions: (in.)

Part No.

LA2-102

LA2-122

LA2-152

LA2-182

LA2-202

LA2-222

LA2-252

LA2-272

LA2-332

LA2-392

LA2-472

LA2-502

LA2-562

LA2-682

LA2-752

LA2-822

LA2-103

LA2-123

LA2-153

LA2-183

LA2-203

LA2-223

LA2-253

LA2-273

LA2-333

LA2-393

LA2-473

LA2-503

LA2-563

LA2-683

LA2-753

LA2-823

LA2-104

LA2-124

LA2-154

LA2-184

LA2-204

LA2-224

LA2-254

LA2-274

LA2-334

LA2-394

LA2-474

LA2-504

LA2-564

LA2-684

LA2-754

LA2-824

LA2-105

CAP

MFD

.0010

.0012

.0015

.0018

.0020

.0022

.0025

.0027

.0033

.0039

.0047

.0050

.0056

.0068

.0075

.0082

.010

.012

.015

.018

.020

.022

.025

.027

.033

.039

.047

.050

.056

.068

.075

.082

.10

.12

.15

.18

.20

.22

.25

.27

.33

.39

.47

.50

.56

.68

.75

.82

1.0

.14

.16

.17

.18

.17

.18

.20

.22

.23

.24

.25

.26

.24

.25

.27

.28

.30

.32

.29

.30

.33

.36

.35

.38

.41

.42

.45

.46

.40

.44

.48

.49

.52

.58

.49

.51

.56

100 V

.25

.26

.27

.28

.27

.28

.30

.32

.33

.34

.35

.36

.34

.35

.37

.38

.40

.42

.39

.40

.43

.46

.45

.48

.51

.52

.55

.56

.54

.58

.62

.64

.67

.72

.64

.66

.71

.48

.63

.77

.89

1.00

1.25

1.50

.14

.15

.16

.17

.18

.19

.20

.22

.19

.20

.21

.22

.23

.24

.27

.29

.28

.29

.30

.33

.35

.36

.35

.38

.42

.46

.48

.50

.42

.44

.49

.53

.58

.49

.52

.57

.51

.54

.59

200 V

.25

.26

.27

.28

.29

.30

.32

.29

.30

.31

.32

.33

.34

.37

.39

.38

.39

.40

.43

.45

.46

.45

.48

.52

.56

.58

.60

.57

.59

.64

.68

.73

.64

.67

.72

.71

.74

.79

.48

.63

.77

.89

1.00

1.25

1.50

1.80

.14

.15

.17

.18

.17

.18

.20

.21

.23

.19

.20

.22

.23

.26

.28

.29

.31

.33

.34

.33

.36

.39

.40

.42

.41

.42

.45

.49

.42

.47

.51

.54

.57

.51

.53

.58

.63

.70

.72

.76

.71

.77

.79

.88

400 V

.25

.27

.28

.27

.28

.30

.31

.33

.29

.30

.32

.33

.36

.38

.39

.41

.43

.44

.38

.46

.49

.50

.52

.51

.52

.55

.59

.57

.62

.66

.69

.72

.66

.68

.73

.78

.85

.87

.91

.97

.99

1.08

.48

.63

.77

.89

1.00

1.25

1.50

1.80

.15

.16

.17

.18

.19

.20

.22

.23

.25

.26

.22

.23

.24

.25

.28

.31

.34

.37

.33

.35

.37

.39

.43

.41

.45

.46

.49

.53

.44

.46

.51

.56

.62

.59

.62

.65

.70

.72

.69

.76

.83

.87

.91

.92

.97

1.02

1.04

600 V

.25

.26

.27

.28

.29

.30

.32

.33

.35

.36

.32

.33

.34

.35

.38

.41

.44

.47

.43

.45

.47

.49

.53

.51

.55

.56

.59

.63

.59

.61

.66

.71

.77

.74

.77

.80

.85

.87

.89

.96

1.03

1.07

1.11

1.12

1.17

1.22

1.24

.63

.77

.89

1.00

1.25

1.50

1.80

2.00

2.30

PART LENGTH

.48 THRU .63

.77 THRU 1.00

1.25 THRU 2.30

WIRE LEADS

A.W.G.

#24

#22

#20

DIA.

.020

.025

.031

Electromagnetic Integrated Solutions

8061 Avonia Road

●

Fairview

●

Pennsylvania

●

16415

Phone: (814) 474-1571

●

Email: eisSales@apitech.com

●

Web: http://eis.apitech.com
