CL32B106KAJ4PNE datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CL32B106KAJ4PNE

CL32B106KAJ4PNE: DescriptionCeramic Capacitor, Ceramic,; CategoryPassive components capacitor; File Size218KB，1 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric View All

CL32B106KAJ4PNE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CL32B106KAJ4PNE	-	-	View	Buy Now

CL32B106KAJ4PNE Overview

Ceramic Capacitor, Ceramic,

CL32B106KAJ4PNE Parametric

Parameter Name	Attribute value
Objectid	8335386705
package instruction	, 1210
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	26 weeks
capacitance	10 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	2.5 mm
length	3.2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, Embossed Plastic, 7 Inch
positive tolerance	10%
Rated (DC) voltage (URdc)	25 V
size code	1210
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal shape	WRAPAROUND
width	2.5 mm

Preview

Download Datasheet

View All

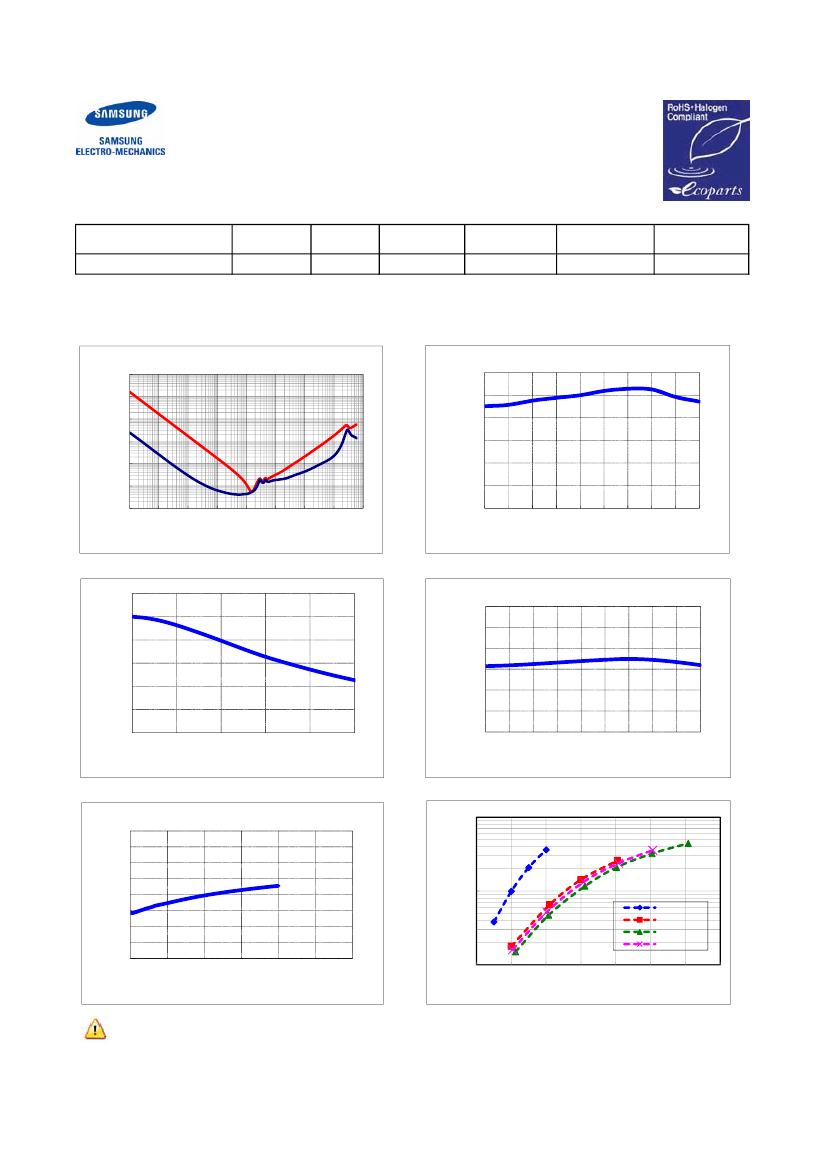

Multi Layer Ceramic Capacitor (MLCC)

1. Model : CL32B106KAJ4PNE

2. Description

Part no.

CL32B106KAJ4PNE

Size

(inch(mm))

1210/3225

Thickness

(mm)

2.5mm

Temperature

charateristics

X7R

Capacitance

value

10uF

Capacitance

tolerance(%)

± 10 %

Voltage

(V)

3. Characteristics data

1) Frequency characteristics

Network Analyzer 8753E, 100Hz to 6GHz

Impedance |Z|, ESR

1000

100

|Z|, ESR [Ohm]

0.1

0.01

0.001

0.0001 0.001

2) Temperature characteristics of capacitance(TCC)

Agilent 4284A, 1kHz, 1.0Vrms

|Z|

ΔC(%)

-20

-40

-60

-80

-100

0.01

0.1

100

1000 10000

ESR

-55 -35 -15

105 125

Frequency [MHz]

Temperature (°C)

3) DC Bias characteristics (Quadtech 7600,1KHz, 1.0Vrms)

-20

ΔC(%)

4) Bias TCC characteristics (Agilent 4284A, 1kHz, 1.0Vrms, 12.5Vdc)

-20

ΔC(%)

-40

-60

-80

-100

-40

-60

-80

-100

DC Voltage (V)

-55 -35 -15

105 125

Temperature (℃)

6) Ripple Current

100

5) AC voltage characteristics (Agilent 4284A, 1kHz)

ΔC(%)

-10

-20

-30

-40

0.0

0.5

1.0

1.5

2.0

2.5

3.0

AC Voltage (Vrms)

Temperature Rise (

10kHz

100kHz

500kHz

1000kHz

Ripple Current (Arms)

Any data in this sheet are subject to change, modify or discontinue without notice

The data sheets include the typical data for design reference only. If there is any question

regarding the data sheets, please contact our sales personnel or application engineers
