CGA6P1X7R1E106KT datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CGA6P1X7R1E106KT

CGA6P1X7R1E106KT: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 10uF, Surface Mount, 1210, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size99KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

CGA6P1X7R1E106KT Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 10uF, Surface Mount, 1210, CHIP, ROHS COMPLIANT

CGA6P1X7R1E106KT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1080376369
package instruction	, 1210
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	10 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	2.5 mm
JESD-609 code	e3
length	3.2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, BLISTER PLASTIC, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	25 V
Guideline	AEC-Q200
series	CGA
size code	1210
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	2.5 mm

Preview

Download Datasheet

View All

TDK - Ceramic Capacitors - Part No: CGA6P1X7R1E106KT Characteristics

http://www.tdk.com/s_details.php?class_code=TJA037&item_roots_ke...

Close Window

Ceramic Capacitors

Fixed Ceramic Capacitors

Part Number :

CGA6P1X7R1E106KT

Product Name :

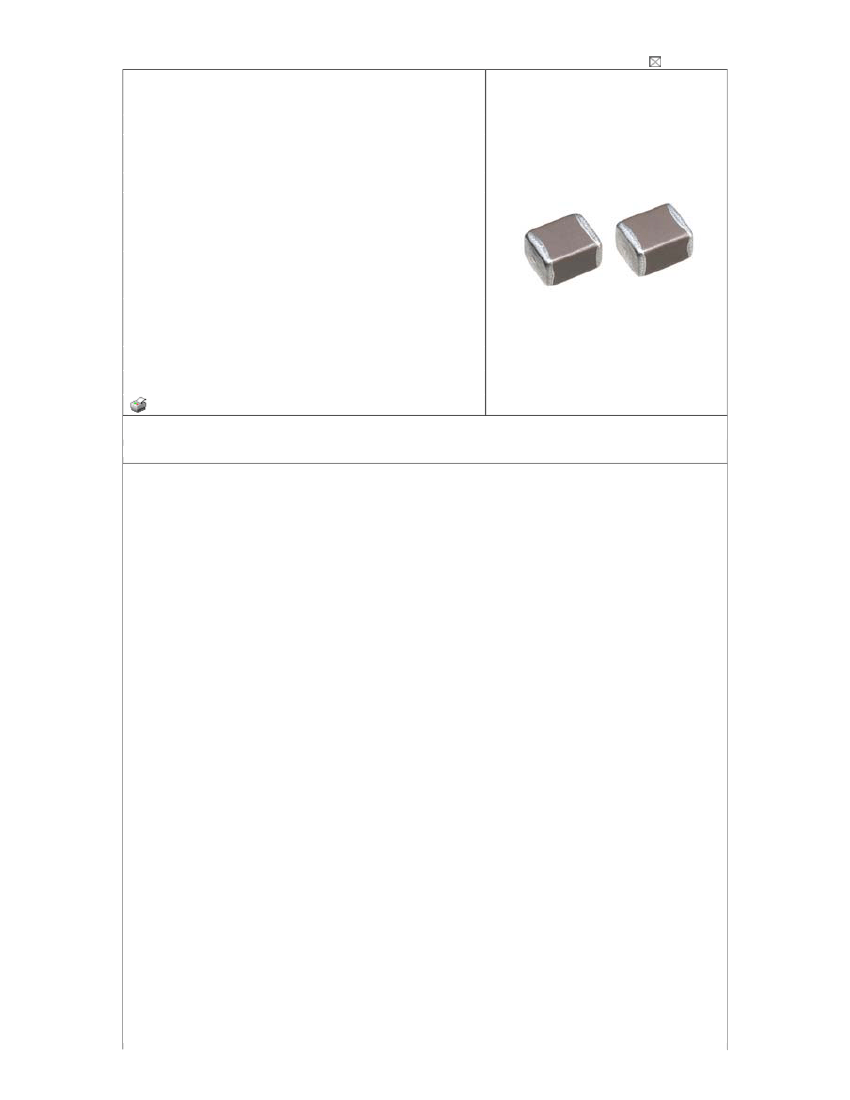

Multilayer Ceramic Chip Capacitors - Automotive Grade

TDK Series Name :

CGA Series(For Automotive)

Application :

Automotive applications, High reliability requirement applications,

Harsh environment requirement applications, Smart meter, Base

stations, Noise bypass in automotive

Function :

Can be used for the power train, safety equipment, etc. of a vehicle.

Qualified to AEC Q200 test standard

Description :

Automotive Grade Multilayer Ceramic Chip Capacitor. It has no

polarity. High reliability is guaranteed.

Submit Sample Request

Check Distributor Inventory

Print Page
