VLMS233.., VLMR233.., VLMK233.., VLMO233.., VLMY233..
www.vishay.com
Vishay Semiconductors
Power Mini SMD LED
FEATURES
• Utilizing latest advanced AlInGaP technology
• Available in 8 mm tape
• Luminous intensity and color categorized per
packing unit
• Luminous intensity ratio per packing unit
I
Vmax.
/I
Vmin.
≤
1.6
• ESD-withstand voltage: up to 2 kV according
to JESD22-A114-B
19226
• Preconditioning according to JEDEC
®
level 2a
• IR reflow soldering
• AEC-Q101 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESCRIPTION
The new MiniLED series has been designed in a small white
SMT package. The feature of the device is the very small
package 2.3 mm x 1.3 mm x 1.4 mm. The MiniLED is an
obvious solution for small-scale, high-power products that
are expected to work reliably in an arduous environment.
This is often the case in automotive and industrial
application.
APPLICATIONS
• Traffic signals and signs
• Interior and exterior lighting
• Dashboard illumination
• Indicator and backlighting purposes for audio, video,
LCDs switches, symbols, illuminated advertising etc.
PRODUCT GROUP AND PACKAGE DATA
• Product group: LED
• Product series: power
• Package: SMD MiniLED
• Angle of half intensity: ± 60°
PARTS TABLE
PART
COLOR
LUMINOUS
INTENSITY
(mcd)
MIN. TYP. MAX.
VLMS233T1V1-GS08
VLMR233T2V2-GS08
VLMK233U1AA-GS08
VLMO233U1AA-GS08
VLMO233U2V2-35-08
VLMY233T2V2-GS08
Super red
Red
Amber
Soft orange
Soft orange
Yellow
280
355
450
450
560
355
450
650
680
760
760
650
900
1120
1400
1400
1120
1120
20
20
20
20
20
20
at I
F
(mA)
WAVELENGTH
(nm)
MIN. TYP. MAX.
626
619
611
600
602
583
630
625
616
605
605
589
639
631
622
611
609
594
20
20
20
20
20
20
at I
F
(mA)
FORWARD
VOLTAGE
(V)
MIN. TYP. MAX.
1.8
1.8
1.8
1.8
1.8
1.8
2.0
2.0
2.1
2.1
2.1
2.15
2.6
2.6
2.6
2.6
2.6
2.6
20
20
20
20
20
20
AlInGaP on Si
AlInGaP on Si
AlInGaP on Si
AlInGaP on Si
AlInGaP on Si
AlInGaP on Si
at I
F
TECHNOLOGY
(mA)
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
VLMS233.., VLMR233.., VLMK233.., VLMO233.., VLMY233..
PARAMETER
Reverse voltage
(1)
TEST CONDITION
Short term application only
T
amb
≤
60 °C (480 K/W)
SYMBOL
V
R
I
F
P
V
T
j
T
amb
T
stg
VALUE
5
50
130
125
-40 to +100
-40 to +100
480
UNIT
V
mA
mW
°C
°C
°C
K/W
DC Forward current
Power dissipation
Junction temperature
Operating temperature range
Storage temperature range
Thermal resistance junction/ambient
Mounted on PC board (pad size > 16
mm
2
)
R
thJA
Note
(1)
Driving the LED in reverse direction is suitable for a short term application only
Rev. 1.3, 27-Jul-17
Document Number: 82423
1
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VLMS233.., VLMR233.., VLMK233.., VLMO233.., VLMY233..
www.vishay.com
Vishay Semiconductors
OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
VLMS233.., SUPER RED
PARAMETER
Luminous intensity
Luminous flux/luminous intensity
Dominant wavelength
Peak wavelength
Spectral bandwidth at 50 % I
rel max.
Angle of half intensity
Forward voltage
Reverse current
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
V
R
= 5 V
TEST CONDITION
I
F
= 20 mA
PART
VLMS233T1V1
SYMBOL
I
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
I
R
MIN.
280
-
626
-
-
-
1.8
-
TYP.
450
3
630
639
18
± 60
2
0.01
MAX.
900
-
639
-
-
-
2.6
10
UNIT
mcd
mlm/mcd
nm
nm
nm
deg
V
μA
OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
VLMR233.., RED
PARAMETER
Luminous intensity
Luminous flux/luminous intensity
Dominant wavelength
Peak wavelength
Spectral bandwidth at 50 % I
rel max.
Angle of half intensity
Forward voltage
Reverse current
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
V
R
= 5 V
TEST CONDITION
I
F
= 20 mA
PART
VLMR233T2V2
SYMBOL
I
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
I
R
MIN.
355
-
619
-
-
-
1.8
-
TYP.
650
3
625
632
18
± 60
2
0.01
MAX.
1120
-
631
-
-
-
2.6
10
UNIT
mcd
mlm/mcd
nm
nm
nm
deg
V
μA
OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
VLMK233.., AMBER
PARAMETER
Luminous intensity
Luminous flux/luminous intensity
Dominant wavelength
Peak wavelength
Spectral bandwidth at 50 % I
rel max.
Angle of half intensity
Forward voltage
Reverse current
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
V
R
= 5 V
TEST CONDITION
I
F
= 20 mA
PART
VLMK233U1AA
SYMBOL
I
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
I
R
MIN.
450
-
611
-
-
-
1.8
-
TYP.
680
3
616
622
18
± 60
2.1
0.01
MAX.
1400
-
622
-
-
-
2.6
10
UNIT
mcd
mlm/mcd
nm
nm
nm
deg
V
μA
OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
VLMO233.., SOFT ORANGE
PARAMETER
Luminous intensity
Luminous flux/luminous intensity
Dominant wavelength
Peak wavelength
Spectral bandwidth at 50 % I
rel max.
Angle of half intensity
Forward voltage
Reverse current
Rev. 1.3, 27-Jul-17
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
V
R
= 5 V
VLMO233U1AA
VLMO233U2V2-35
TEST CONDITION
I
F
= 20 mA
PART
VLMO233U1AA
VLMO233U2V2-35
SYMBOL
I
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
I
R
MIN.
450
560
-
600
602
-
-
-
1.8
-
TYP.
760
760
3
605
605
611
17
± 60
2.1
0.01
MAX.
1400
1120
-
611
609
-
-
-
2.6
10
UNIT
mcd
mlm/mcd
nm
nm
nm
nm
deg
V
μA
Document Number: 82423
2
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VLMS233.., VLMR233.., VLMK233.., VLMO233.., VLMY233..
www.vishay.com
Vishay Semiconductors
OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
VLMY233.., YELLOW
PARAMETER
Luminous intensity
Luminous flux/luminous intensity
Dominant wavelength
Peak wavelength
Spectral bandwidth
at 50 % I
rel max.
Angle of half intensity
Forward voltage
Reverse current
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
V
R
= 5 V
TEST CONDITION
I
F
= 20 mA
PART
VLMY233T2V2
SYMBOL
I
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
I
R
MIN.
355
-
583
-
-
-
1.8
-
TYP.
650
3
589
591
17
± 60
2.15
0.01
MAX.
1120
-
594
-
-
-
2.6
10
UNIT
mcd
mlm/mcd
nm
nm
nm
deg
V
μA
COLOR CLASSIFICATION
DOMINANT WAVELENGTH (nm)
GROUP
MIN.
1
2
3
4
5
6
Note
• Wavelengths are tested at a current pulse duration of 25 ms
611
614
AMBER
MAX.
618
622
600
602
604
606
608
603
605
607
609
611
583
585
587
589
591
586
588
590
592
594
SOFT ORANGE
MIN.
MAX.
MIN.
YELLOW
MAX.
LUMINOUS INTENSITY CLASSIFICATION
GROUP
STANDARD
T
U
V
A
1
2
1
2
1
2
A
B
LUMINOUS INTENSITY (mcd)
OPTIONAL
MIN.
280
355
450
560
710
900
1120
1400
MAX.
355
450
560
710
900
1120
1400
1800
CROSSING TABLE
VISHAY
VLMS233T1V1
VLMO233U2V2-35
VLMY233T2V2
OSRAM
LS M67F-S2U2-1
LO M67F-U2AB-24
LY M67F-T2V2-36
Note
• Luminous intensity is tested at a current pulse duration of 25 ms
and an accuracy of ± 11 %.
The above type numbers represent the order groups which
include only a few brightness groups. Only one group will be
shipped on each reel (there will be no mixing of two groups on
each reel).
In order to ensure availability, single brightness groups will not
be orderable.
In a similar manner for colors where wavelength groups are
measured and binned, single wavelength groups will be shipped
on any one reel.
In order to ensure availability, single wavelength groups will not
be orderable
Rev. 1.3, 27-Jul-17
Document Number: 82423
3
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VLMS233.., VLMR233.., VLMK233.., VLMO233.., VLMY233..
www.vishay.com

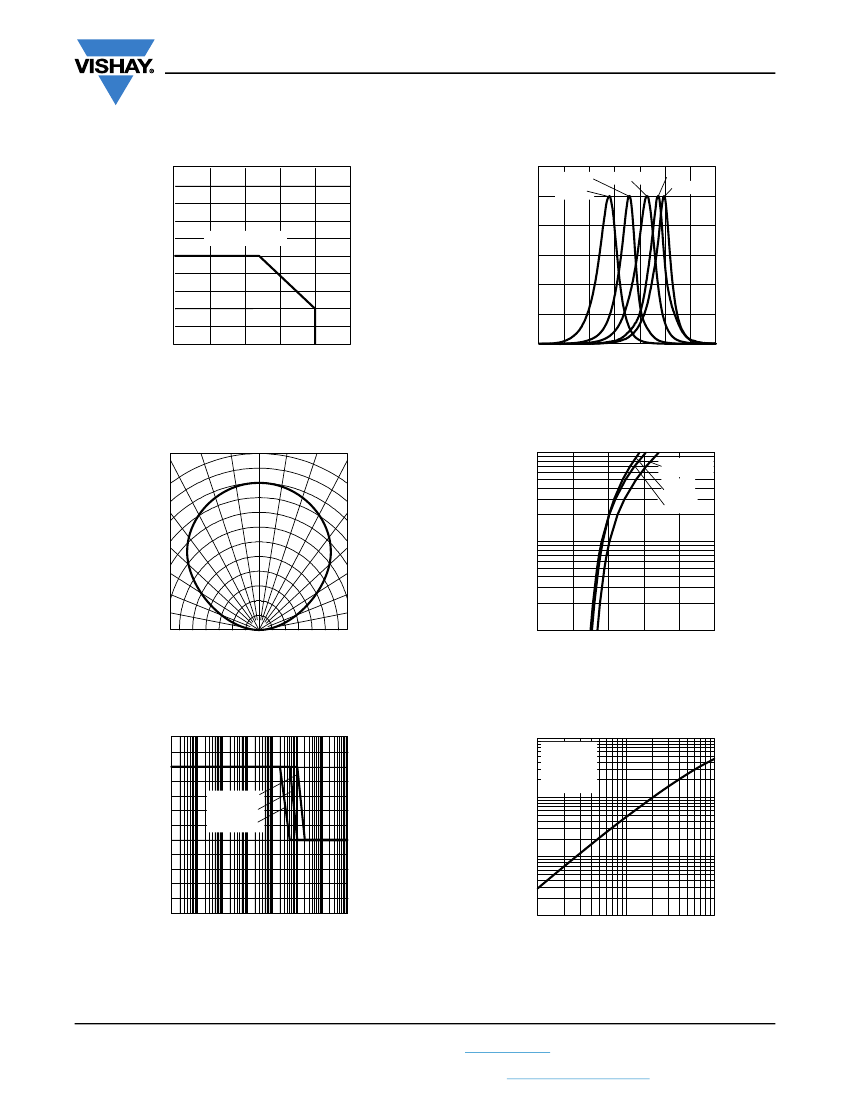

TYPICAL CHARACTERISTICS
(T
amb
= 25
°C,
unless otherwise specified)
100
90
1.2
1.0
0.8
0.6
0.4
0.2
0
540 560 580 600 620 640 660 680
22184
Vishay Semiconductors
soft
orange
yellow
amber
red
super
red
I
F
- Max. Permissible
Forward Current (mA)
70
60
50
40
30
20
10
0
0
25
50
75
100
125
R
thJA
= 480 K/W
I
rel
- Relative Intensity
80
22583
T
amb
- Ambient Temperature (°C)
λ
- Wavelenght (nm)
Fig. 1 - Maximum Permissible Forward Current vs.
Ambient Temperature
0°
10°
20°
30°
Fig. 4 - Relative Intensity vs. Wavelength
100
I
V rel
- Relative Luminous Intensity
40°
1.0
0.9
0.8
0.7
50°
60°
70°
80°
ϕ
- Angular Displacement
I
F
- Forward Current (mA)
yellow
soft
orange
amber
red
super
red
10
1
0.6
95 10319
0.4
0.2
0
22185
1
1.5
2
2.5
3
3.5
V
F
- Forward Voltage (V)
Fig. 2 - Relative Luminous Intensity vs. Angular Displacement
Fig. 5 - Forward Current vs. Forward Voltage
0.12
I
V rel
- Relative Luminous Intensity
10
yellow
soft
orange
amber
red
super
red
1
I
F
- Forward Current (A)
0.10
0.08
0.06
0.04
0.02
0.00
10
-5
10
-4
10
-3
10
-2
10
-1
10
0
10
1
10
2
t
p
/T = 0.005
0.05
0.5
0.1
0.01
1
22186
10
100
17044
t
p
- Pulse Length (s)
I
F
- Forward Current (mA)
Fig. 3 - Forward Current vs. Pulse Length
Fig. 6 - Relative Luminous Intensity vs. Forward Current
Rev. 1.3, 27-Jul-17
Document Number: 82423
4
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VLMS233.., VLMR233.., VLMK233.., VLMO233.., VLMY233..
www.vishay.com
Vishay Semiconductors
ΔV
F
- Change of Forward Voltage (mV)
300
200
100
0
- 100
- 200
- 300
- 40 - 20
0
20
40
60
80
100
yellow
soft
orange
amber
red
super
red
22187
T
amb
- Ambient Temperature (°C)
Fig. 7 - Change of Forward Voltage vs. Ambient Temperature
2.5
I
V rel
- Relative Luminous Intensity
2.0
1.5
yellow
soft
orange
amber
red
1.0
super
red
0.5
0
- 40 - 20
22188
0
20
40
60
80
100
T
amb
- Ambient Temperature (°C)
Fig. 8 - Relative Luminous Intensity vs. Ambient Temperature
Δλ
d
- Change Dominant Wavelength (nm)
10
8
6
soft
orange
4
2
0
-2
-4
-6
-8
- 40 - 20
0
20
40
60
80
100
amber
red
super
red
yellow
22189
T
amb
- Ambient Temperature (°C)
Fig. 9 - Change of Dominant Wavelength vs. Ambient Temperature
Rev. 1.3, 27-Jul-17
Document Number: 82423
5
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
