VPR451U075N1L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> VPR451U075N1L

VPR451U075N1L: DescriptionRadial Leaded Aluminum Electrolytic; CategoryPassive components capacitor; File Size166KB，5 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

VPR451U075N1L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	VPR451U075N1L	-	-	View	Buy Now

VPR451U075N1L Overview

Radial Leaded Aluminum Electrolytic

VPR451U075N1L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	450 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
Custom functions	Other Tolerances Available
diameter	25.4 mm
dielectric materials	ALUMINUM (WET)
ESR	102 mΩ
JESD-609 code	e3
leakage current	0.0675 mA
length	41.3 mm
Manufacturer's serial number	VPR
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
polarity	POLARIZED
positive tolerance	75%
Rated (DC) voltage (URdc)	75 V
ripple current	1779 mA
series	VPR
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

Type VPR

–55 to 105 ºC Radial Leaded Aluminum Electrolytic

Low ESR, Optional 3

Lead Case Styles, Aluminum Electrolytic Capacitors

Type VPR is a radial leaded aluminum electrolytic

capacitor with a 105 ºC, 2000 hours long life ratings.

The VPR has 3 optional case styles with a third lead.

The low ESR rating makes it ideal for output ﬁltering

in switching power supplies.

Highlights

•

105 ºC

Long life

Low ESR

High reliability

Speciﬁcations

Capacitance Range:

Voltage Range:

Capacitance Tolerance:

Operating Temperature Range:

DC Leakage Current:

34 to 12,000 µF

6.3 to 100 Vdc (250 Vdc on special request)

–10% +75% (others on special request)

–55 ºC to +105 ºC

I = .002 CV after 2 minutes @ 25 ºC

C = Capacitance in (µF)

V = Rated voltage

I = Leakage current in µA

Temperature (ºC)

Multiplier

1.66

1.52

1.37

1.2

0.75

Ripple Multipliers for Temperature:

Complies with the EU Directive

2002/95/EC requirement restricting

the use of Lead (Pb), Mercury (Hg),

Cadmium (Cd), Hexavalent chromium

(Cr(VI)), PolyBrominated Biphenyls

(PBB) and PolyBrominated Diphenyl

Ethers (PBDE).

QA Stability Test:

Apply WVDC for 2000 h at 105 ºC

Capacitance change within 15% of initial limits

DC leakage current meets initial limits

ESR ≤ 150% of initial measured value

Part Numbering System

VPR

372

Capacitance

Type

Capacitance Tolerance

(µF)

(%)

016

Rated

Voltage

(Vdc)

Case Code

L2C

Insulating

Sleeve

Lead

Conﬁguration

VPR

100 = 10

101 = 100

372 = 3700

U = –10 +75

T = –10 +50

6R3 = 6.3

016 = 16

100 = 100

See Case

Code Chart

0 = No sleeve

3 = PVC

4 = Plastic sleeve

5 = Plastic sleeve with end seal

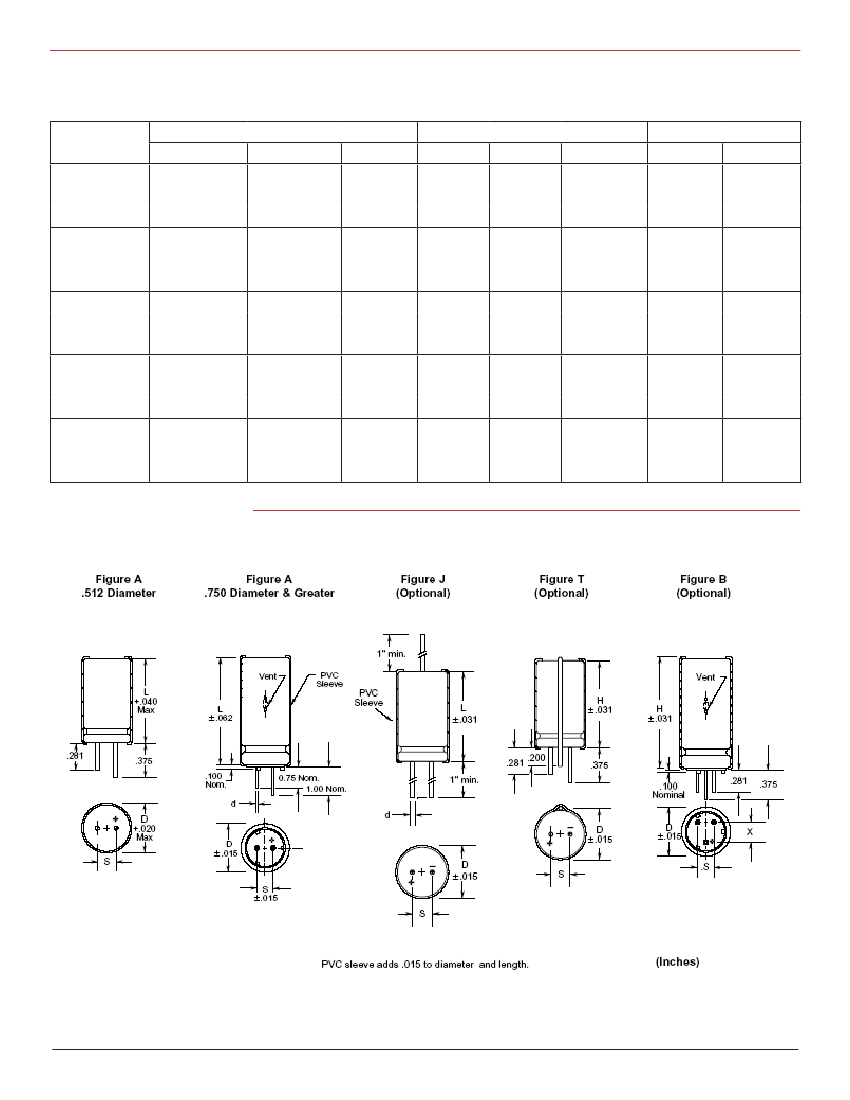

A = Standard

B, J or T – see

outline dimensions

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
